That is part of the oil intake port it looks like.

May 25, 2022 | 09:26 PM

#452

TooManyToys.

Hotshot

Joined: Dec 2014

Posts: 17,838

Likes: 3,143

From: Jersey Shore

I remember it Sean.

May 25, 2022 | 10:47 PM

#453

Yahiko

FTE Remembers

Joined: Apr 2012

Posts: 27,307

Likes: 549

From: Spanaway

With all the stuff I packrat you think I could find it on my computer.

May 26, 2022 | 01:33 AM

#454

Hartwig

Cargo Master

Joined: Oct 2018

Posts: 2,813

Likes: 1,921

From: unfortunately Germany

@ blicharski1989: I wonder how the gear could come loose on your pump. Is it possible that you used a tool on the central gear screw of the pump to turn/crank the motor by hand? If so, it may have come loose?
With the early pump, a half turn of the central screw counterclockwise is sufficient for the gear to become loose and no longer drive the pump!

May 26, 2022 | 04:33 AM

#455

blicharski1989

Thread Starter

Tuned

Joined: Oct 2021

Posts: 478

Likes: 194

Quote:

Originally Posted by Hartwig

Yeah it’s possible that I may have accidentally caused it to be loose. There’s not much holding the gear to the pump in terms of friction. Purely that bolt. I’ll be curious to see how the new pump performs. I wonder if my WOT values will be increased due to a stronger pump.

May 26, 2022 | 06:45 AM

#456

Hartwig

Cargo Master

Joined: Oct 2018

Posts: 2,813

Likes: 1,921

From: unfortunately Germany

What is incomprehensible to me about this is that the cam gear turns counterclockwise and drives the HPOP gear. That means that the central bolt of the HPOP is tightened during operation because the wheel of the HPOP rotates clockwise and it is theoretically impossible for this to loosen

May 26, 2022 | 07:14 AM

#457

TooManyToys.

Hotshot

Joined: Dec 2014

Posts: 17,838

Likes: 3,143

From: Jersey Shore

Assuming the bolt head stays in relation to the gear. A lot depends on the friction under the bolt head for it to self tighten. With a non-keyed straight shaft, the resistance to slipping is all about the correct clamp force/friction between the gear and the shaft face in the back. The surface area under the bolt and its radius is the minor player.

May 26, 2022 | 09:06 AM

#458

blicharski1989

Thread Starter

Tuned

Joined: Oct 2021

Posts: 478

Likes: 194

Quote:

Originally Posted by TooManyToys.

I agree all that is holding that gear on is the friction from the fastener clamping the gear to the shaft face. The shaft is not even tapered it seems. Obviously mine was not sufficient but it worked for over 100 miles until it slipped. Once it slipped it was done for.

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

5 BEST / 5 WORST Ford Daily Drivers of the 21st Century

Joe Kucinski

10 Fords to Drive Before You Die

Joe Kucinski

3 Best / Worst Features Of The 2025+ Ford Expedition

Brett Foote

10 Ways Ford is LOSING to the Competition

Joe Kucinski

Top 6 Best Deals Available on New Fords & Lincolns Right Now

Brett Foote

This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level

Verdad Gallardo

Top 10 Fords at 2026 Carlisle Ford Nationals

Joe Kucinski

3 Best / 3 Worst Parts of Modern Ford Ownership

Brett Foote

10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches

Pouria Savadkouei

Every 2026 Ford Engine Explained

Brett Foote

May 26, 2022 | 11:07 AM

#459

HydroTek

Mountain Pass

Joined: Oct 2012

Posts: 233

Likes: 65

From: Southern Indiana

I suspect that part of the gear to shaft, friction design is to protect the cam gear in case the pump has a failure and locks the shaft -- kinda goes along with the press fit swash plate idea

May 26, 2022 | 01:40 PM

#460

bismic

Fleet Owner

Joined: Nov 2003

Posts: 27,931

Likes: 3,653

Credit to @Ford_Doctor for these pics
https://www.forddoctorsdts.com/galle...50-60l-hpop-1/
https://www.forddoctorsdts.com/galle...51-60l-hpop-2/
https://www.forddoctorsdts.com/galle...-hpop-failure/

Plus the links to some early work on diagnosing an early HPOP that Sean eluded to is attached

Attached Images

__HPOP_fix_from_home_shop_machinist forum.pdf (314.9 KB, 25 views)

May 26, 2022 | 02:01 PM

#461

blicharski1989

Thread Starter

Tuned

Joined: Oct 2021

Posts: 478

Likes: 194

Quote:

Originally Posted by HydroTek

I suspect that part of the gear to shaft, friction design is to protect the cam gear in case the pump has a failure and locks the shaft -- kinda goes along with the press fit swash plate idea

makes sense

May 26, 2022 | 02:58 PM

#462

Yahiko

FTE Remembers

Joined: Apr 2012

Posts: 27,307

Likes: 549

From: Spanaway

Quote:

Originally Posted by bismic

Thanks Mark that was just the one I was thinking about.

Quote:

Originally Posted by HydroTek

I suspect that part of the gear to shaft, friction design is to protect the cam gear in case the pump has a failure and locks the shaft -- kinda goes along with the press fit swash plate idea

Quote:

Originally Posted by blicharski1989

makes sense

I agree with thais idea and was wondering. Was there any thread and bearing mount on the shaft and bolt?

May 26, 2022 | 10:55 PM

#463

blicharski1989

Thread Starter

Tuned

Joined: Oct 2021

Posts: 478

Likes: 194

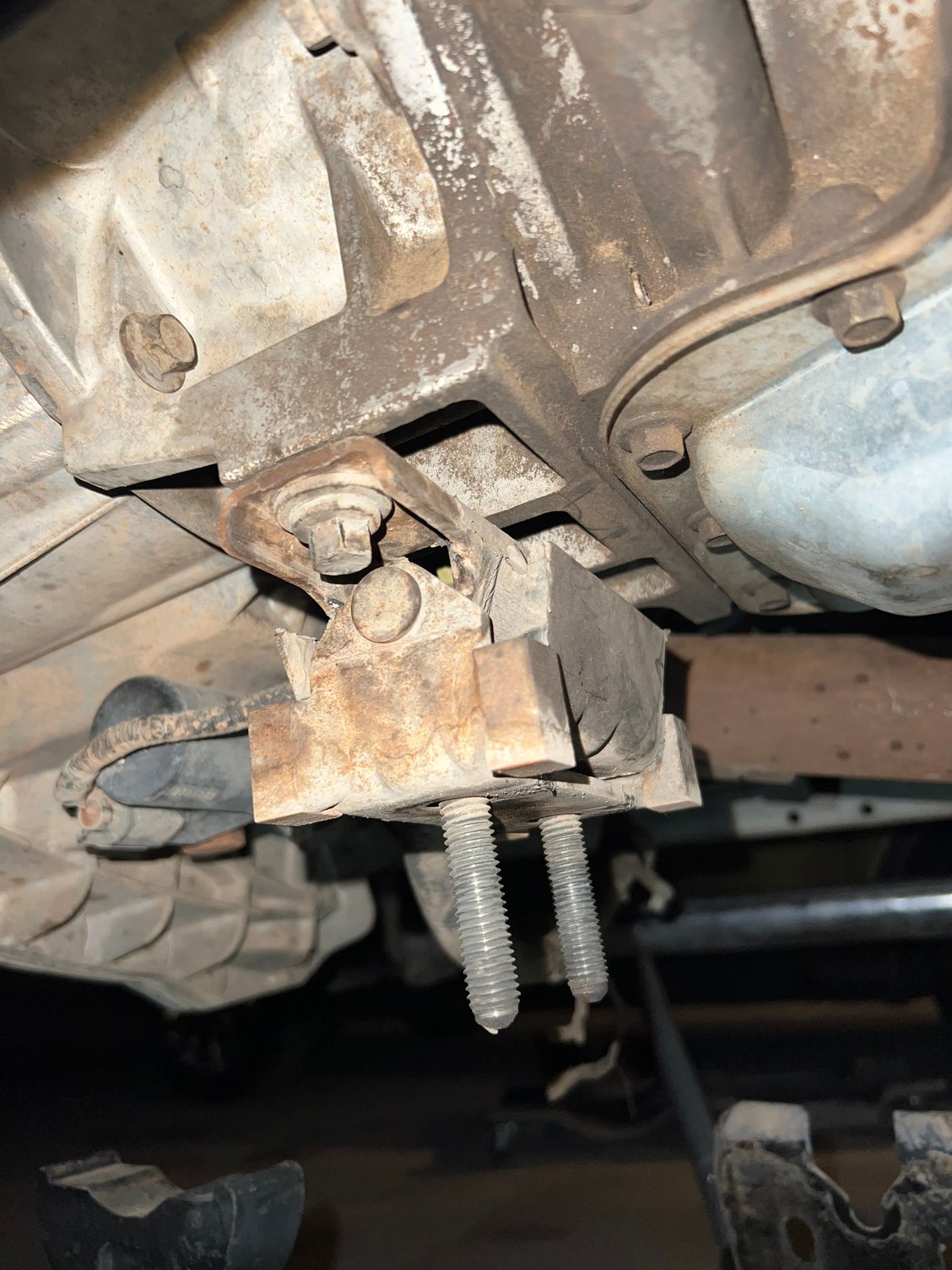

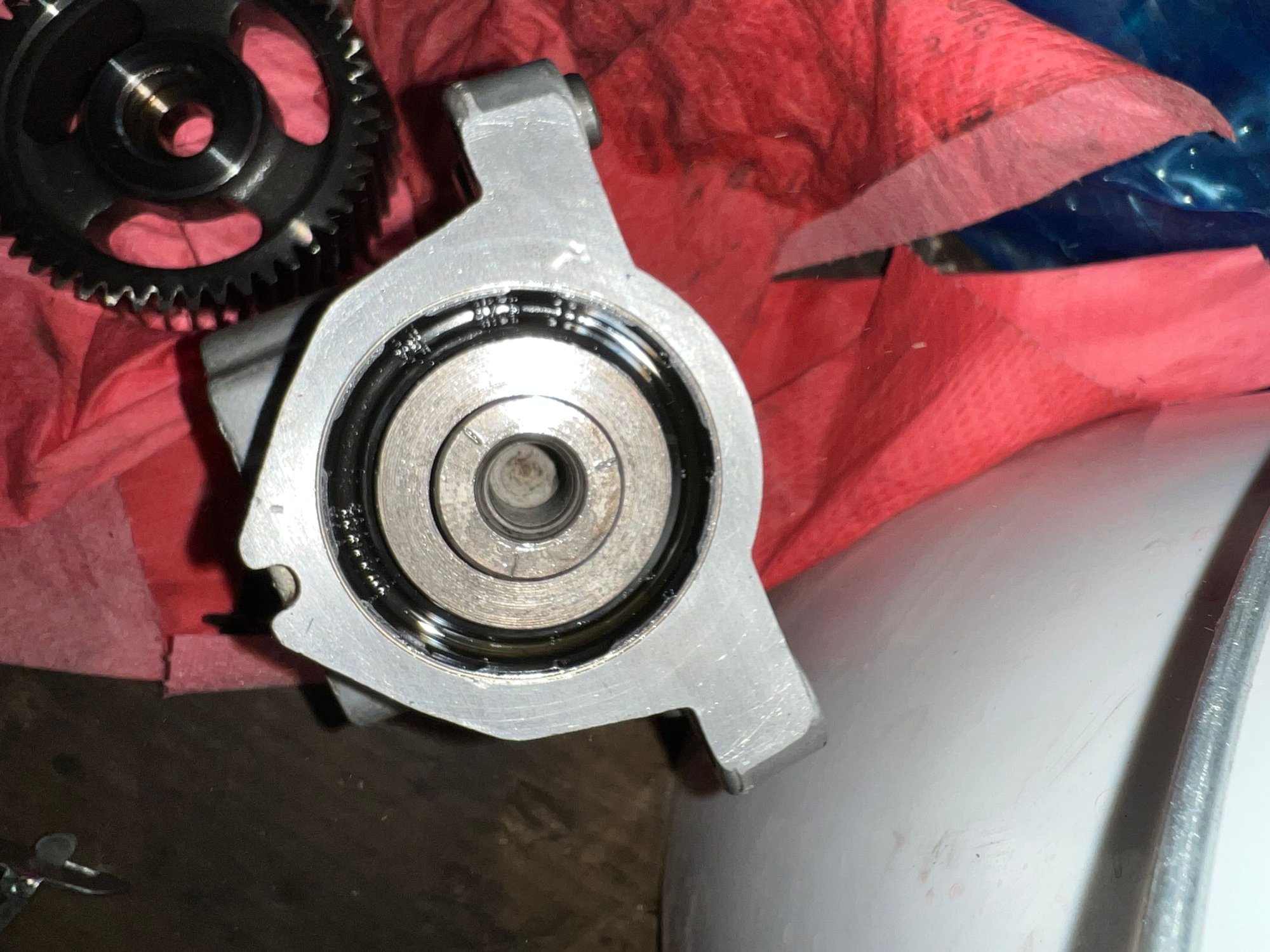

Hpop

Transmission mount torn

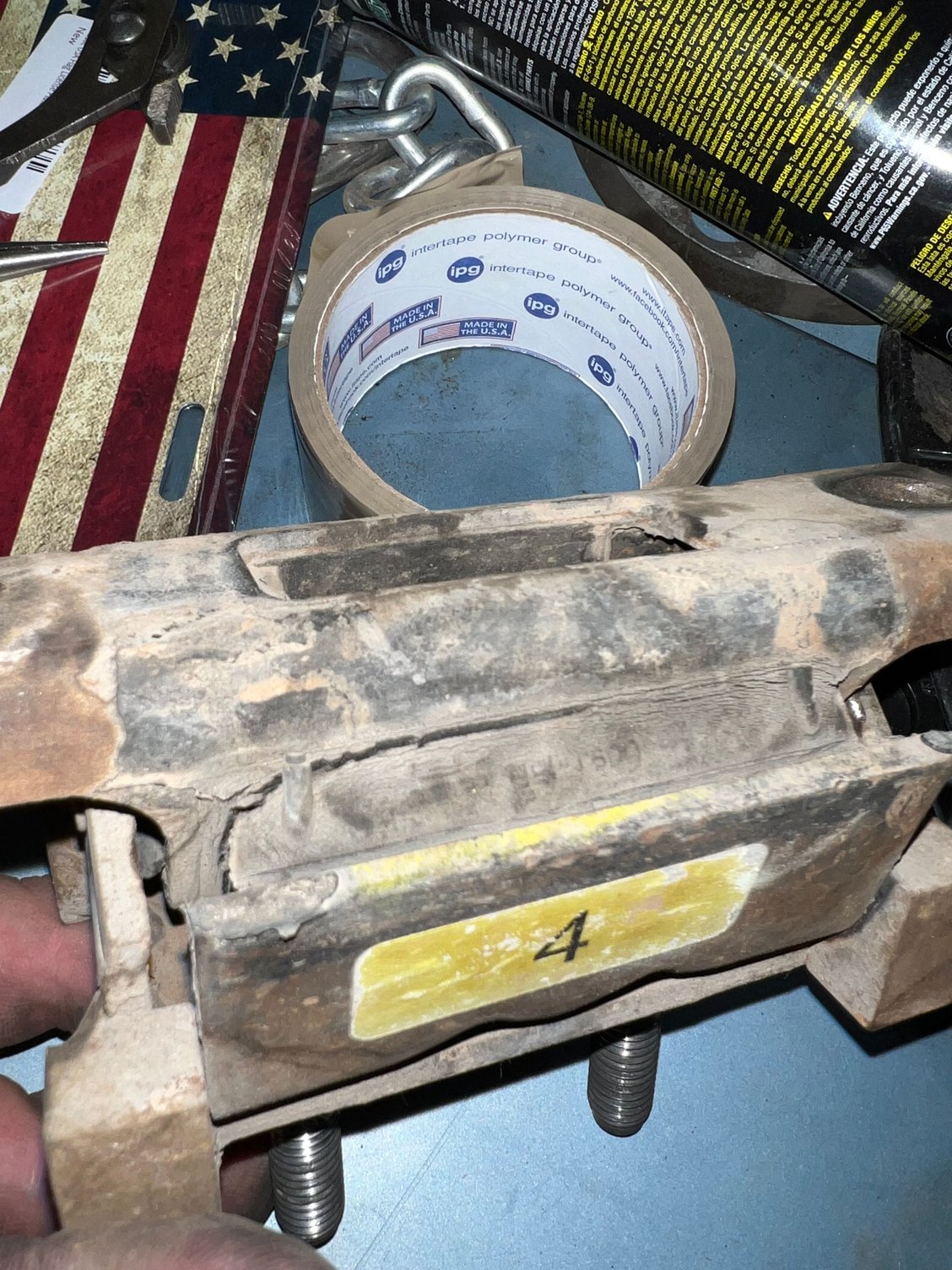

Mount

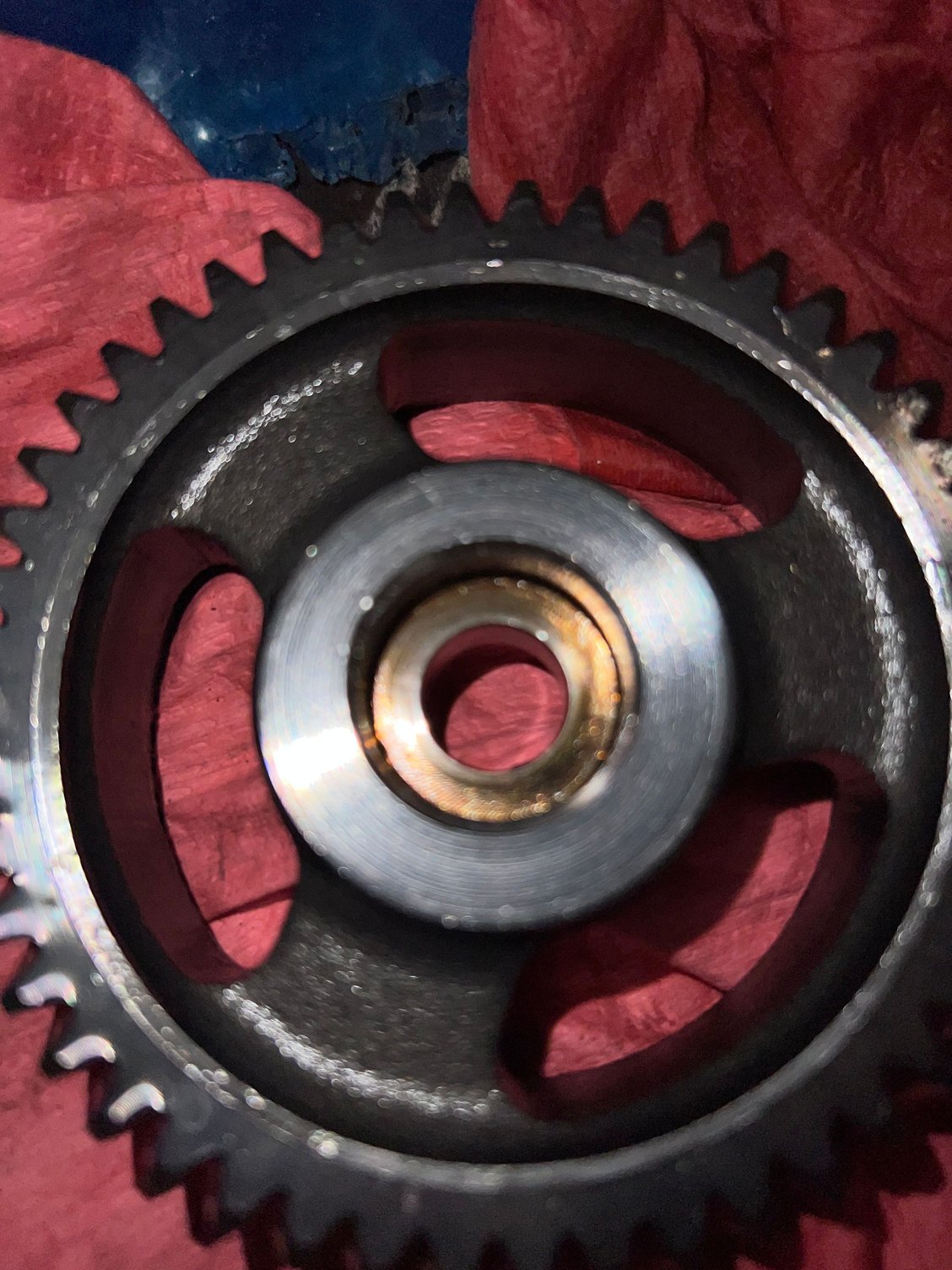

HPOP gear
