1972 Highboy Build Progress
Cargo Master
Joined: Nov 2005
Posts: 2,694
Likes: 45
From: La Ribera, Baja, Mexico
OK, its a bit crude, but it will be effective and I made it out of scrap I had laying around, and an idle mind... The center pipe, under the plate, is 2" galv. steel pipe and fits exactly over the center of the jack lift. The two pieces of angle steel, welded to the pipe, fit along side the jack lift, and bolt through the sides of the lift support. The plate on top has 4 holes to bolt to the Xfer case where the large flat place is on the bottom side of the case... Not having access to a transmission lift, this is my Mexican invention out of what was available.. It took all of an hour to make, and while not professional, it will work well enough..
Baja
Baja
Thread Starter
|
Elder User
Joined: May 2014
Posts: 617
Likes: 0
OK, its a bit crude, but it will be effective and I made it out of scrap I had laying around, and an idle mind... The center pipe, under the plate, is 2" galv. steel pipe and fits exactly over the center of the jack lift. The two pieces of angle steel, welded to the pipe, fit along side the jack lift, and bolt through the sides of the lift support. The plate on top has 4 holes to bolt to the Xfer case where the large flat place is on the bottom side of the case... Not having access to a transmission lift, this is my Mexican invention out of what was available.. It took all of an hour to make, and while not professional, it will work well enough..
Baja
Baja
Lead Driver
Joined: Aug 2003
Posts: 7,592
Likes: 10
From: **** hole San Jose ca.

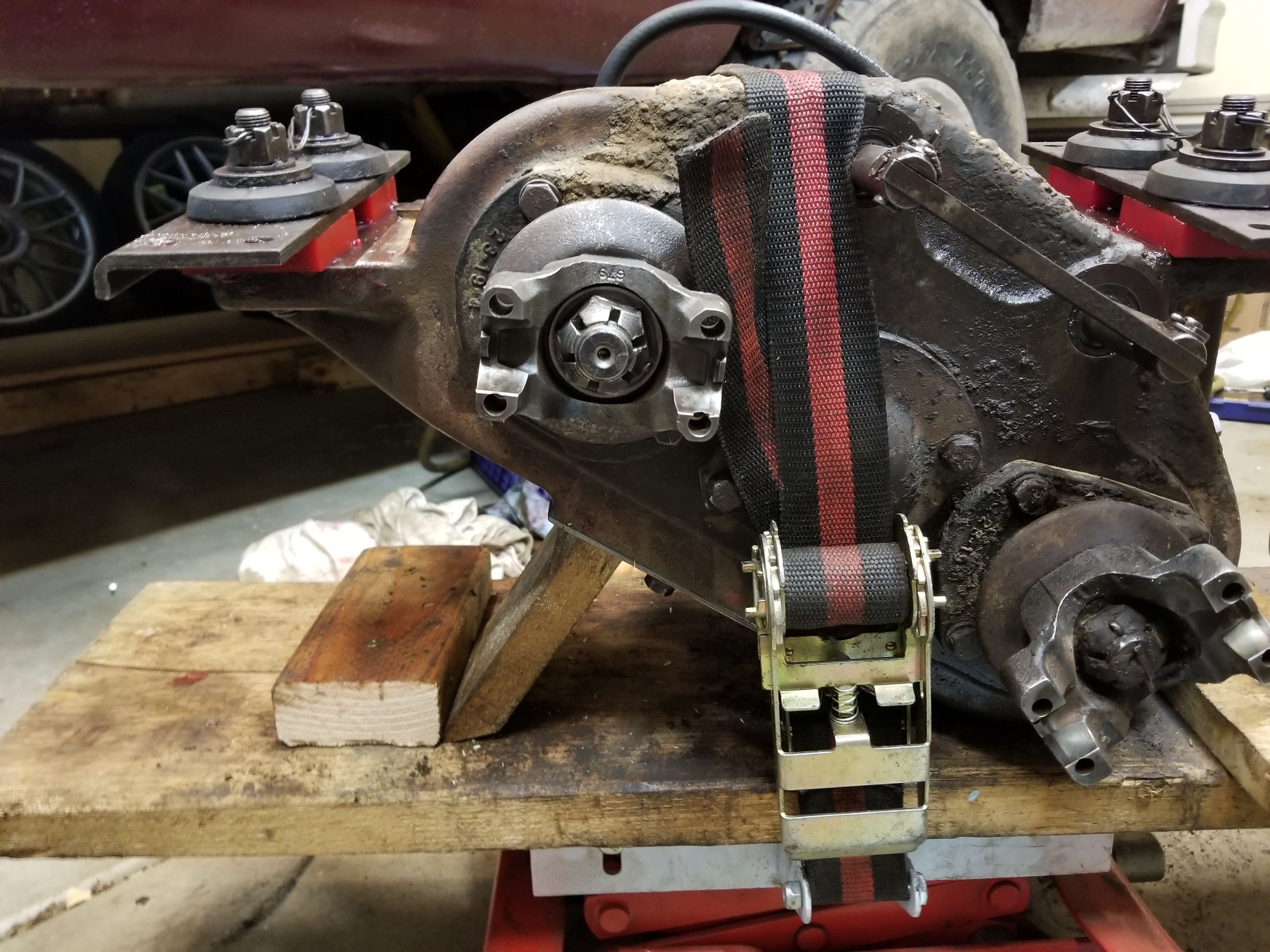

Back about 10yrs ago found this on C/L when doing the nv4500 install found a nos steel black heavy cradle tranny lift bracket from the 80's that mounts into a floor jack once the steel dish lifting pad cup is removed.
The cradle will tilt 3ways. Has a chain that is support to hold it from sliding off.
I still used a 4x6'' block of would cut at a 45*angle to keep it at the correct installing angle and just raised it up an bolted it in.
Used new grade 8 bolts plus installs a three yokes with new ones along with new pinch nuts added some RTV on the washer & spline so no lube will leaks their.
Orich
The cradle will tilt 3ways. Has a chain that is support to hold it from sliding off.
I still used a 4x6'' block of would cut at a 45*angle to keep it at the correct installing angle and just raised it up an bolted it in.
Used new grade 8 bolts plus installs a three yokes with new ones along with new pinch nuts added some RTV on the washer & spline so no lube will leaks their.
Orich
Thread Starter
|
Elder User
Joined: May 2014
Posts: 617
Likes: 0

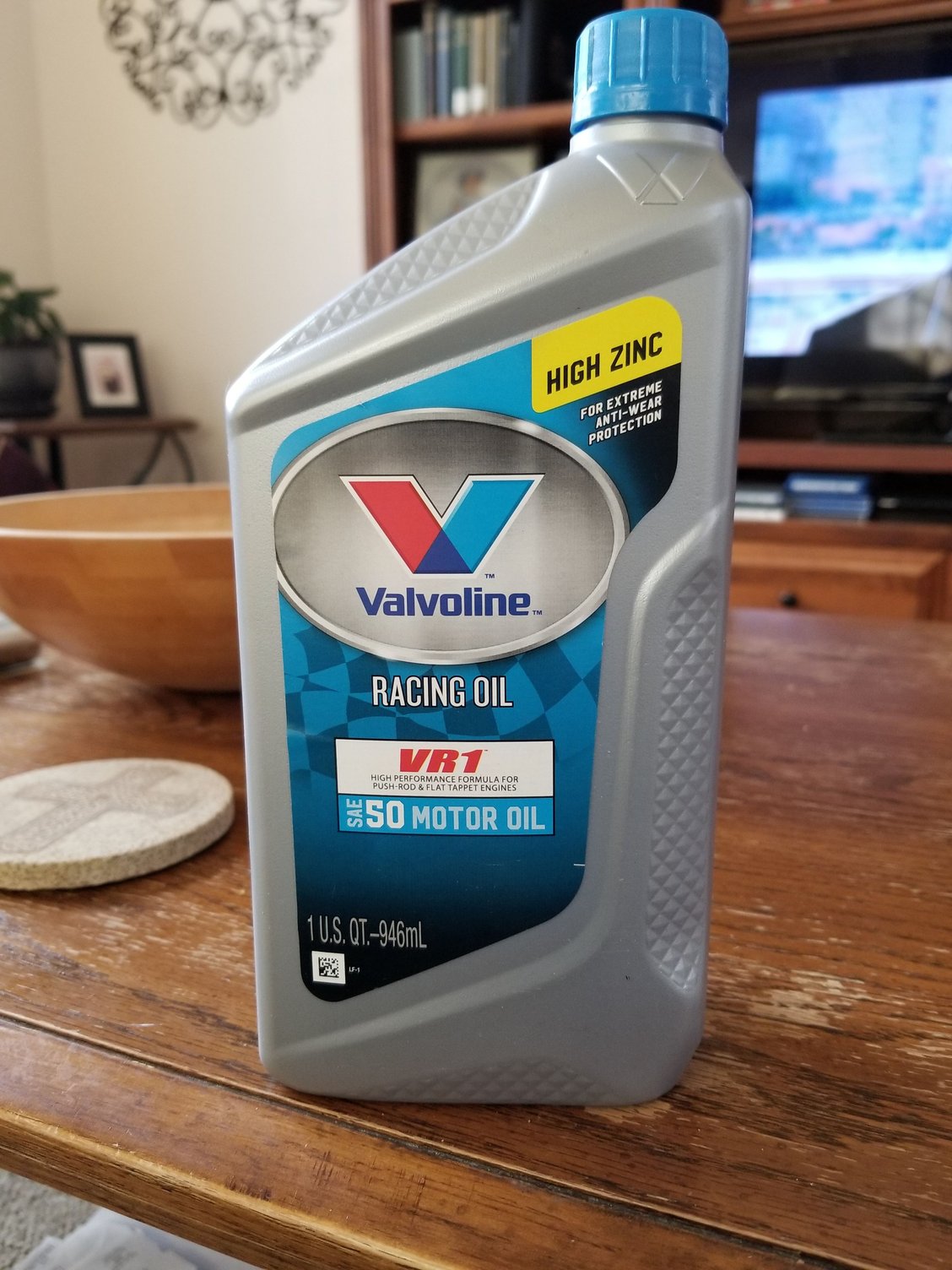

I found a thread... talking about using this 50W oil for the Dana Transfer Case. So I picked some up today at O'Reilly Auto Parts. They had it in stock. It's 50W racing oil... any thoughts - good or bad? For the tranfer case, we do need to make sure no oil goes in the case that would cause corrosion. On a diff thread they were talking about being somewhat selective with the oil for the transfer case. Thoughts?
Cargo Master
Joined: Mar 2003
Posts: 2,333
Likes: 296
As I understand it, the Dana 20 and the similar Dana 24 were originally called out by Ford to require a 50w non detergent motor oil.
This may be hard to find.
Some people report no ill results using 85-90 W gear oil instead.
This may be hard to find.
Some people report no ill results using 85-90 W gear oil instead.
Logistics Pro
Joined: Mar 2009
Posts: 4,835
Likes: 595
From: Minnesota
McLeod you hit it right on the head! According to my Ford assembly Manual "Transfer Case - Dana 24 SAE50 Engine Oil (ESE-M2C39-A)" 4.5 pints. I was thinking it was 90W gear oil only.
