F 8 = This F 8 seat upholstery color/material not listed in the parts catalog for 1969. It might be Green Vinyl if the truck is a Custom Cab (1970 listing).
O = Fuller model T-905-B 5 Speed Direct or New Process model 541 5 Speed Direct.
F3C:
F3 = Eaton model 15201 Two Speed Rear Axle / 6.33/8.81 / 15,000 lbs. Rear Axle Capacity.
C = Ford Rockwell-Timken 6,000 lbs. Capacity Front Axle.
21,000 lbs. Gross Vehicle Weight Rating.
164 net HP @ 3,800 RPM
470002:
47 = Cincinnati OH Ford District Sales Office, where the original selling dealer ordered the truck from.
0002 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
*When there is no COLOR code stamped on the Warranty Plate, truck painted a non standard color per the purchasers order, making it a Domestic Special Order.
Geez Louise, even with a 27" screen and a magnifying glass, this pic is so tiny that I can barely read it. Post a LARGER pic next time.
There's no guarantee that I'm reading these codes correctly. By the time I'm through, my eyes will resemble Mr. Magoo's!
W95 = NT950 (Diesel).
D = Cummins model NHE-195 743 cid 6 Cylinder Diesel.
U = Louisville KY Assembly Plant.
B12153 = 1967.
194" Wheelbase.
COLOR J = Rangoon Red.
MODEL W952 = NT950 (Diesel); 49,000 lbs. GVWR
BODY 681: 6 = Black all Vinyl / 81 = 81A Standard Cab.
Domestic Special Order TRANS - DRIVESHAFT - FRONT & REAR AXLE listed on the separate plate.
MAX GVW LBS = 49,000 lbs. Gross Vehicle Weight Rating.
CERT NET HP 184 @ 1,950 RPM
DSO 220210:
22 = Charlotte NC Ford District Sales Office, where the original selling dealer ordered the truck from.
0210 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
Sorry about the picture size, it wouldn't let me resize it. Does the T of NT mean factory tandem axle? This one appears to have had the frame welded on both sides and maybe the tandem added.
Sorry about the picture size, it wouldn't let me resize it. Does the T of NT mean factory tandem axle? This one appears to have had the frame welded on both sides and maybe the tandem added.
The rear axle was not an RPO (Regular Production Order) for this truck. It was a Domestic Special Order and installed after the truck left the assembly line.
Who installed it and how it was done is unknown, as the records are no longer available.
The Fuller RT-915 15 speed transmission (usually installed in W/WT1000D w/a diesel), front axle and driveshaft were also Domestic Special Orders.
Thank you so much for your time and knowledge. Just two more questions please.
*Would the first three of the Vin for a '63-69 N1000 be W10?
*I know two of the three diesels offered were the Cummins 195 and the Detroit 671, but what was the third?
Thanks again.
Why to you want a T4 manifold for that small of a engine?

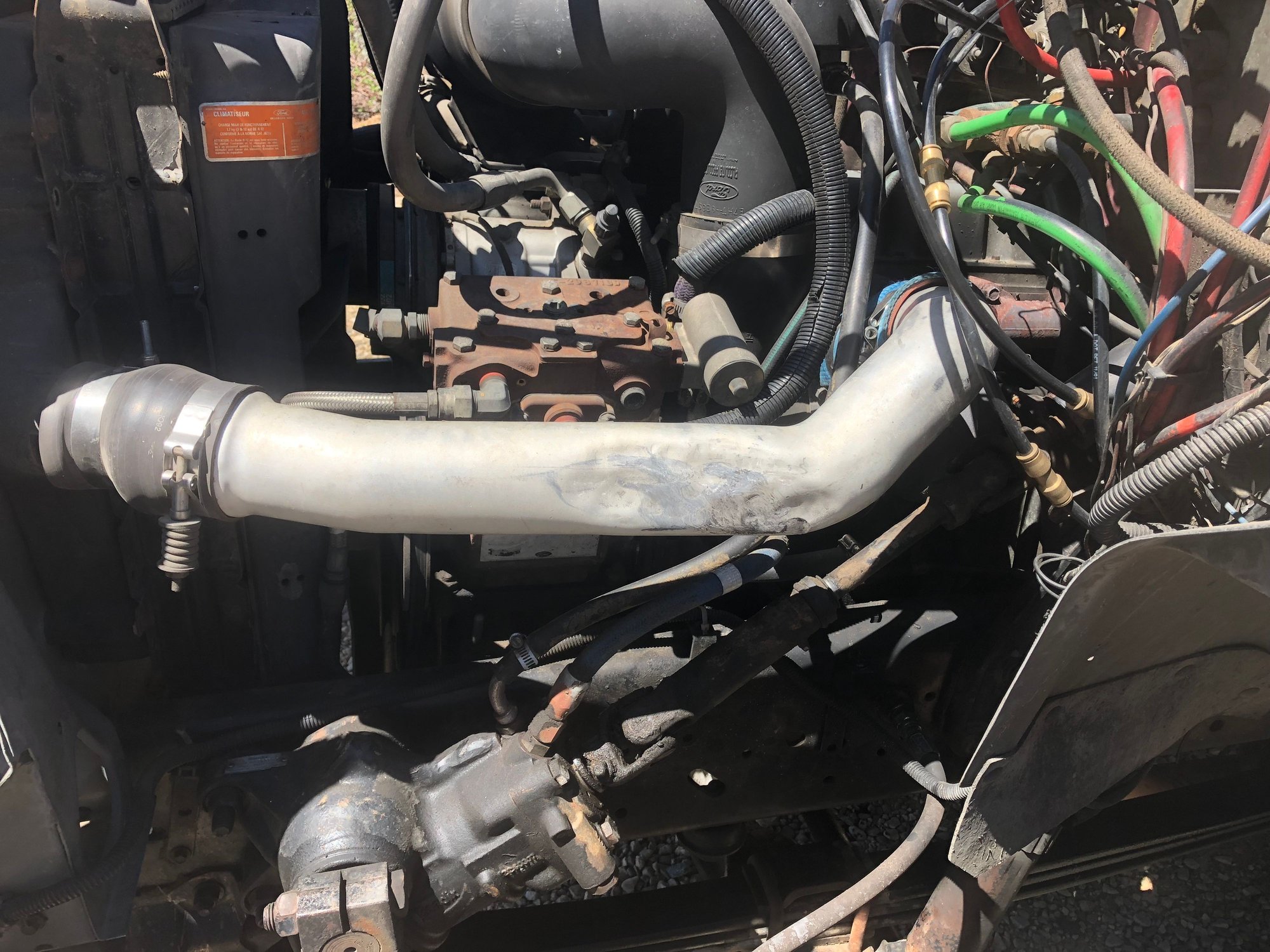

As for the pipe, a salvage yard for shop that can cut out the bent section and weld in a new piece.
