FTN's T4/SXE Build/Conversion Thread
Thread Starter
|
FTE Chapter Leader
Joined: Jan 2005
Posts: 13,106
Likes: 4,714
From: Henderson, NV
Originally Posted by Sous
Regarding the 3/8" vs M10 bolts, could I ask you to do the FTE community a big favor... Find the part number and supplier for the 3/8" studs and jet nuts for your parts list for future.
Originally Posted by brokestroke
How do the Jet nuts work in presence of corrosion? I am always worried that the T4 flange nuts will seize to the stud since it has happened to me before on other motors.
Hotshot
Joined: Jul 2008
Posts: 12,782
Likes: 2,142
From: N.GA Mountains
Fighting with those bolts in the future would SUCK!!!
I don’t *think* any of my bolts have loosened up. They were good for each engine swap so far. This engine has been in for +5yrs now? I may find out soon. Big injectors may dictate some mods to the old S366 (.91 housing?)
Laughing Gas
Joined: Jun 2018
Posts: 863
Likes: 96
From: Idaho
I'm not familiar with the hardware that comes with the CSD or Irate kits. But I was meaning to ask if you guys were using any type of loctite (blue) on all of your install bolts to help from loosening? Or are you guys typically using anti sieze on your hardware?
Cargo Master
Joined: May 2018
Posts: 2,442
Likes: 993
Thread Starter
|
FTE Chapter Leader
Joined: Jan 2005
Posts: 13,106
Likes: 4,714
From: Henderson, NV
I wouldn’t think anti-seize would be effective on turbo flange for very long.
Fighting with those bolts in the future would SUCK!!!
I don’t *think* any of my bolts have loosened up. They were good for each engine swap so far. This engine has been in for +5yrs now? I may find out soon. Big injectors may dictate some mods to the old S366 (.91 housing?)
Fighting with those bolts in the future would SUCK!!!
I don’t *think* any of my bolts have loosened up. They were good for each engine swap so far. This engine has been in for +5yrs now? I may find out soon. Big injectors may dictate some mods to the old S366 (.91 housing?)

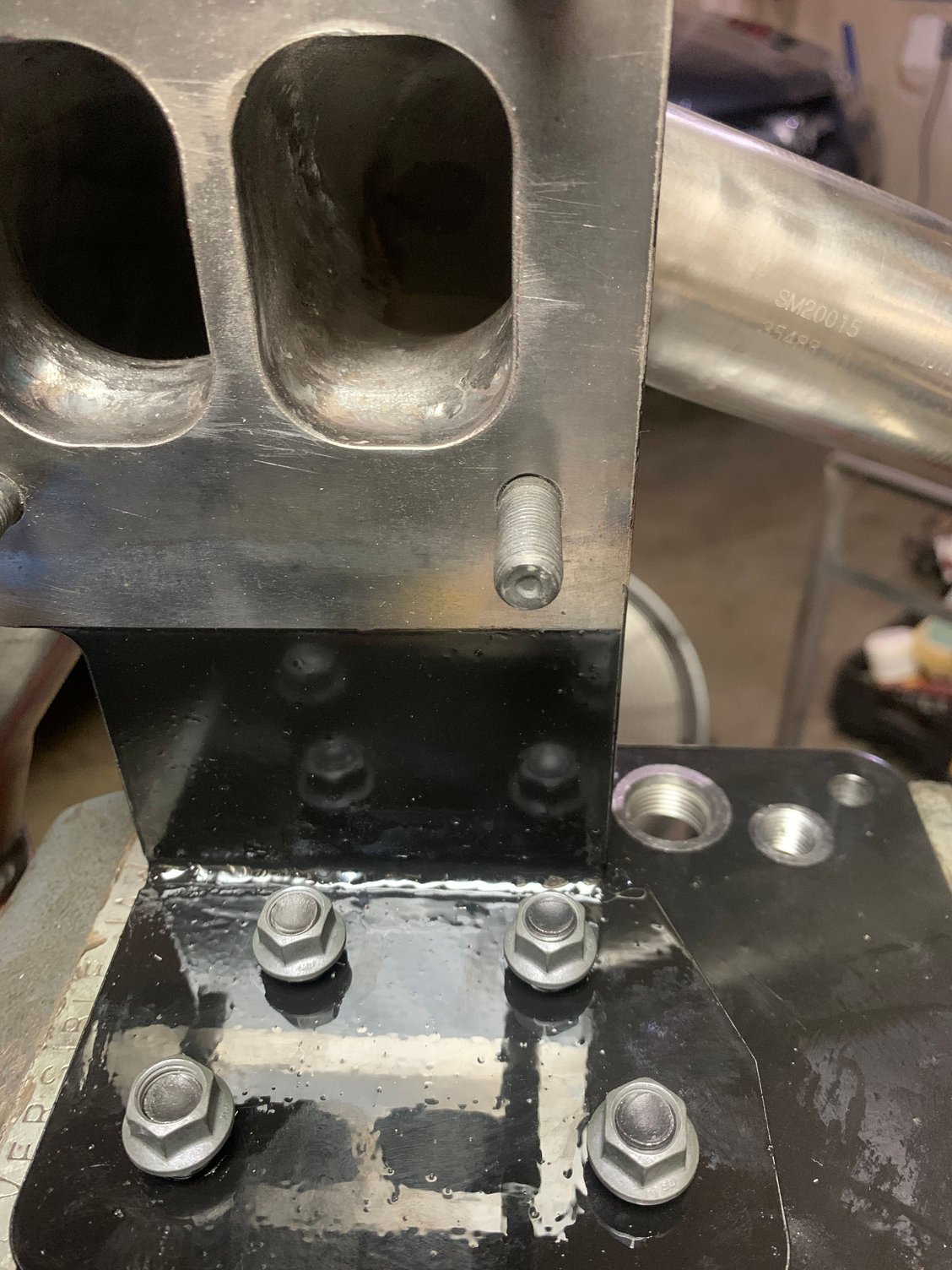

Okay, the parts list in the first post has been updated. I found a stud that will fit into the 3/8"-16 UNC holes in the Pedestal Plate and allow you to use 3/8"-24 UNF Jetnuts on top. These are the same nuts used on the T4 flange so now you need 8 of them not 4.
Posting Guru
Joined: Mar 2007
Posts: 1,425
Likes: 9
Leonard, If I can share an observation I made with you when I installed my turbo. When I installed my turbo I removed the Compressor Housing. This gave me a bit more room to install the turbo, as well as much better access to the up-pipe flange bolts which can be a bear to reach. The only difference between your 363 and my 472 is of course the physical size, but also my turbo housing has a V band clamp on the housing which in turn makes removal and install very simple. I've studied your turbo housing a bit more and it could be difficult, not impossible but for sure difficult to reach the bolts on the Turbo compressor housing in order to reinstall it after the exhaust housing and core have been installed.
I've never messed with your type of Turbo housing mounting method, so to be honest I don't know if this would help, or hinder your install. I think most guys just install the entire turbo as a unit, but again for me it gave me the access I needed to get to the up-pipe and base flange bolts.
I've never messed with your type of Turbo housing mounting method, so to be honest I don't know if this would help, or hinder your install. I think most guys just install the entire turbo as a unit, but again for me it gave me the access I needed to get to the up-pipe and base flange bolts.
Thread Starter
|
FTE Chapter Leader
Joined: Jan 2005
Posts: 13,106
Likes: 4,714
From: Henderson, NV
Thanks Carlos. That is helpful information. I imagine the v-band system makes it much easier to join the CHRA to the turbine scroll than the half-moon clamps mine uses though. The fun part will be getting the clamp bolt started in its hole after inserting the supercore into the turbine scroll and then holding that and the clamp plate in place. If I decide to do an install video, I may have to dub over the swearing with more elevator muzak.
