OLD DECODES
New User
Joined: Nov 2019
Posts: 5
Likes: 0
From: Whitesburg, Georgia
New User
Joined: Sep 2019
Posts: 7
Likes: 0
Thread Starter
|
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
34,000 lbs. Gross Vehicle Weight Rating.
1FD = FoMoCo USA - Ford Truck - Incomplete Vehicle.
Y = Class 8 - Air Brakes - 33,001-55,000 lbs. Gross Vehicle Weight Rating range.
C90 = C900 Tilt Cab (gas).
P = 534 4V (8.8L) Super Duty V8 engine.
7 = Check digit, FoMoCo use only.
B = 1981.
V = Kentucky Truck Assembly Plant.
J02521 = 1981 Numerical Sequence of Assembly, the trucks specific serial number.
99 = Not listed in the parts catalog.

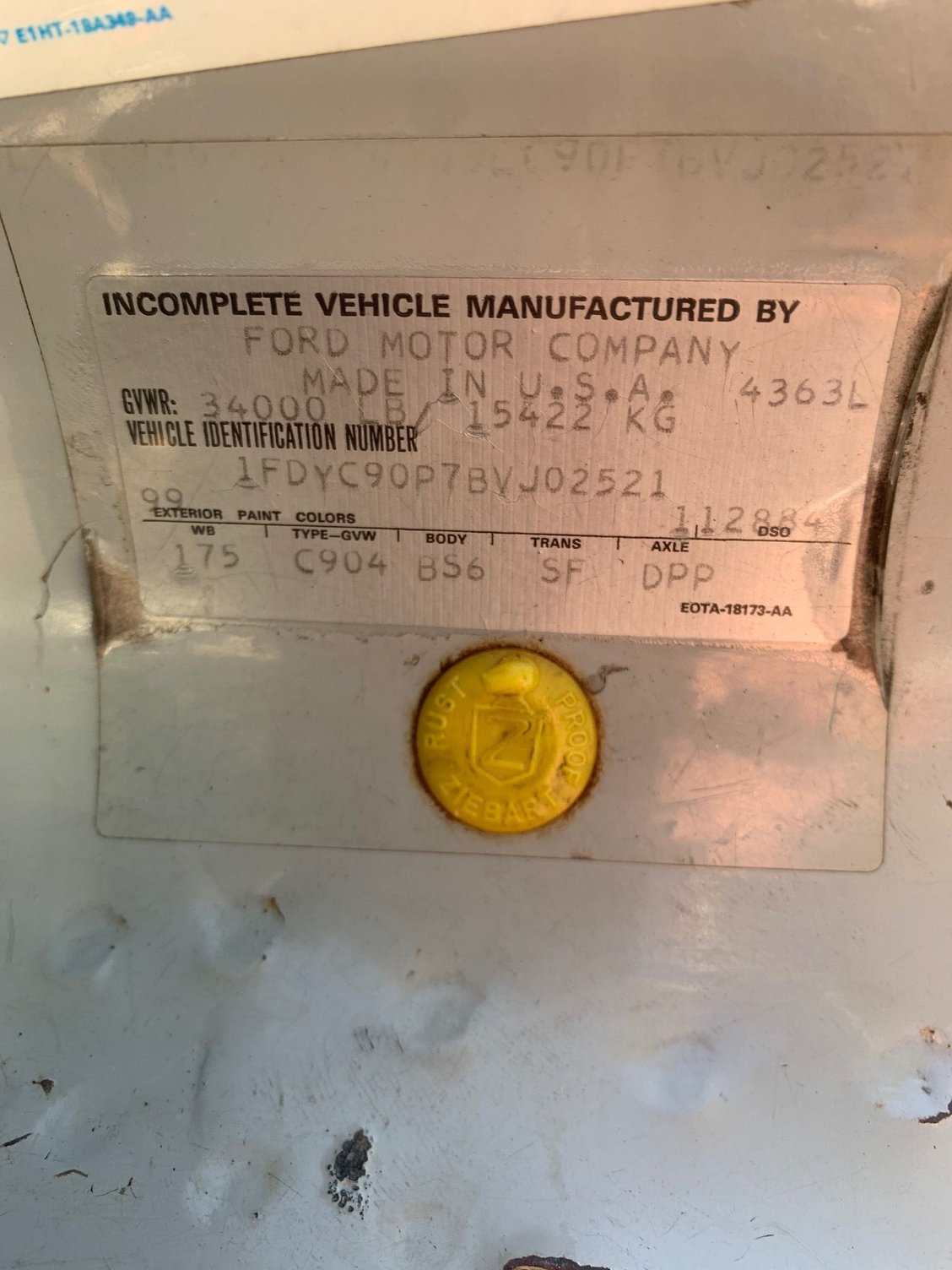

112884:
11 = Boston MA Ford District Sales Office, where the original selling dealer ordered the truck from.
2884 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
175" Wheelbase.
C904 = C900 Tilt Cab (gas), 34,000 lbs. GVWR
BS6: BS = Black Heavy Duty Vinyl with Gray Appointments - Full Width Seat / 6 = Tilt Cab.
SF = Spicer model CM-6052-C 5 Speed Direct.
DPP:
DP = Eaton model 23221 Two Speed Rear Axle / 6.17/8.40 / 23,000 lbs. Rear Axle Capacity.
P = Rockwell/Timken model FF-903 12,000 lbs. Capacity Front Axle with Power Steering.
1FD = FoMoCo USA - Ford Truck - Incomplete Vehicle.
Y = Class 8 - Air Brakes - 33,001-55,000 lbs. Gross Vehicle Weight Rating range.
C90 = C900 Tilt Cab (gas).
P = 534 4V (8.8L) Super Duty V8 engine.
7 = Check digit, FoMoCo use only.
B = 1981.
V = Kentucky Truck Assembly Plant.
J02521 = 1981 Numerical Sequence of Assembly, the trucks specific serial number.
99 = Not listed in the parts catalog.
112884:
11 = Boston MA Ford District Sales Office, where the original selling dealer ordered the truck from.
2884 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
175" Wheelbase.
C904 = C900 Tilt Cab (gas), 34,000 lbs. GVWR
BS6: BS = Black Heavy Duty Vinyl with Gray Appointments - Full Width Seat / 6 = Tilt Cab.
SF = Spicer model CM-6052-C 5 Speed Direct.
DPP:
DP = Eaton model 23221 Two Speed Rear Axle / 6.17/8.40 / 23,000 lbs. Rear Axle Capacity.
P = Rockwell/Timken model FF-903 12,000 lbs. Capacity Front Axle with Power Steering.
Thread Starter
|
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
E = 361 2V FT engine.
U = Louisville KY Assembly Plant.
F57433 = 1969.
153" Wheelbase.
J = Rangoon Red.

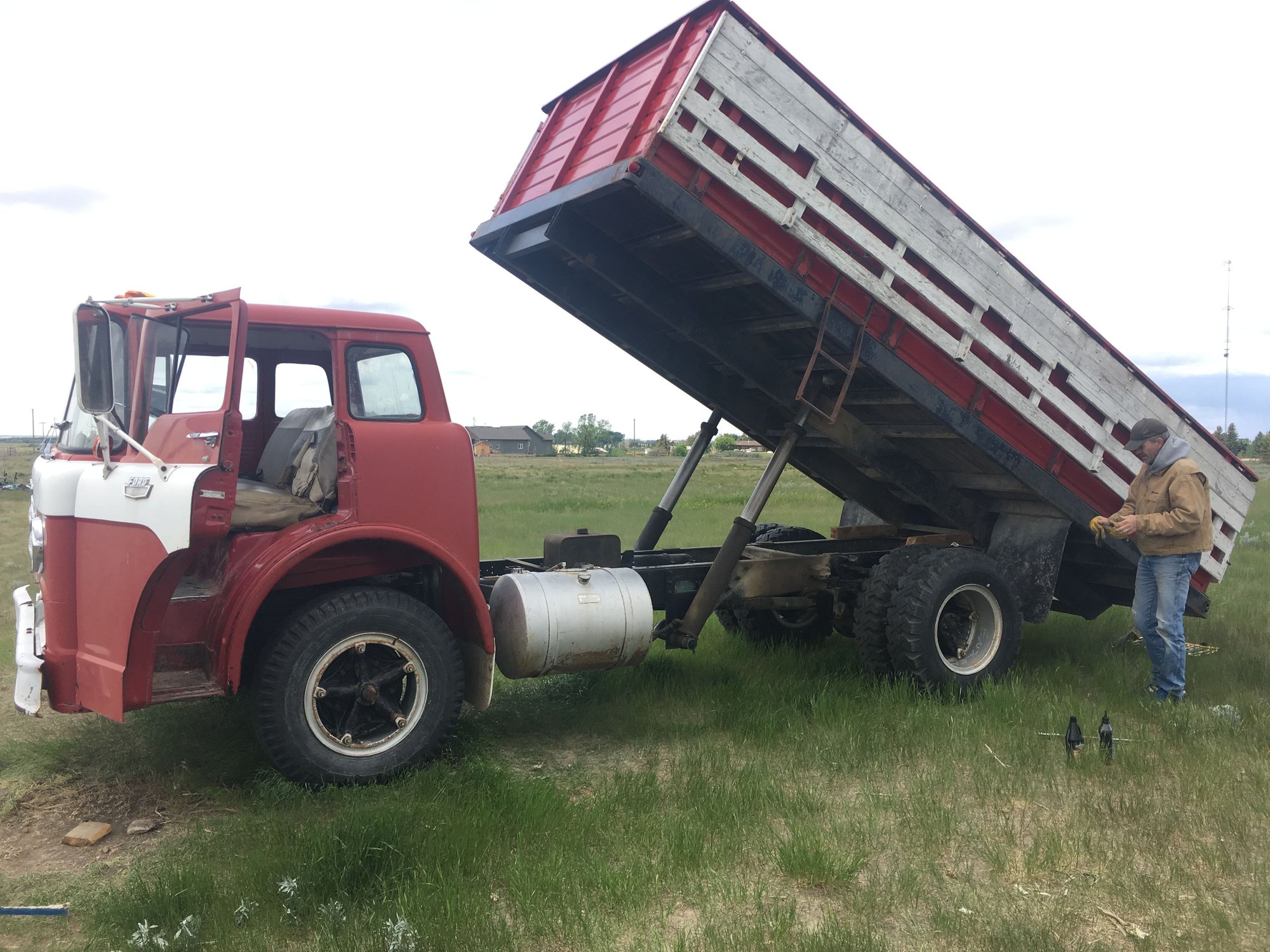

C700 Tilt Cab (gas), 24000 lbs. GVWR
A291: A2 = Light Gray Crush Vinyl & Gray Twill Stripe Woven Plastic / 91 = 91B Custom Cab.
2 = Clark model 282V 5 Speed Direct.
E3D:
E3 = Eaton model 16244 Two Speed Rear Axle / 6.50/9.04 / 17,500 lbs. Rear Axle Capacity.
D = Ford-Rockwell/Timken 7,000 lbs. Capacity Front Axle.
24,000 lbs. Gross Vehicle Weight Rating.
182 net HP @ 3,800 RPM
B49097:
B4 = FoMoCo of Canada Ltd., Midwestern Ford Division, where the original selling dealer ordered the truck from.
9097 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
New User
Joined: Nov 2019
Posts: 3
Likes: 0

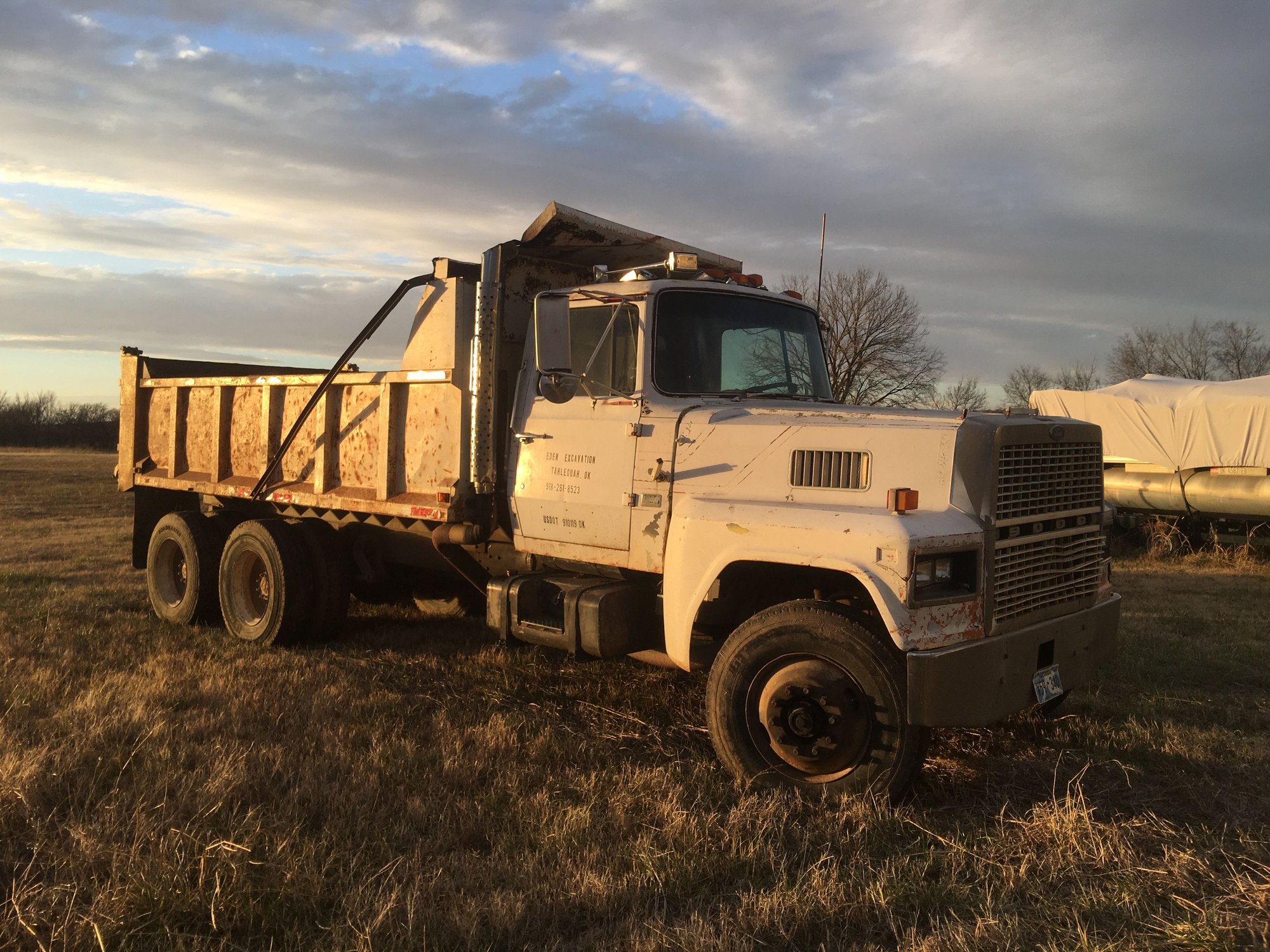

Whew, spent awhile browsing through this post. I just picked up a 1986 LTL9000? Ford Dump Truck. Bill, If you could decode the VIN I'd appreciate it. I am wanting to pick up service manuals/ parts manuals. Right now it has a 300 cummins, but the previous owner said he threw that in it used after the original cummins started having issues. I also am wondering if it is an eaton 9 speed. I need to get the gauges hooked up. speedo, tac, temperature gauges are all out.
1FDYA92W4GVA20833 this is the VIN on the title.
Thanks
Robert
1FDYA92W4GVA20833 this is the VIN on the title.
Thanks
Robert
Thread Starter
|
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
Whew, spent awhile browsing through this post. I just picked up a 1986 LTL9000? Ford Dump Truck. Bill, If you could decode the VIN I'd appreciate it. I am wanting to pick up service manuals/ parts manuals. Right now it has a 300 cummins, but the previous owner said he threw that in it used after the original cummins started having issues. I also am wondering if it is an eaton 9 speed. I need to get the gauges hooked up. speedo, tac, temperature gauges are all out.
1FDYA92W4GVA20833
1FDYA92W4GVA20833
Y = Class 8 - Air Brakes - 33,001-55,000 lbs. Gross Vehicle Weight Rating range.
A92 = LTL 900 Diesel - Single Sleeper // 900 is a 9000 w/a diesel engine.

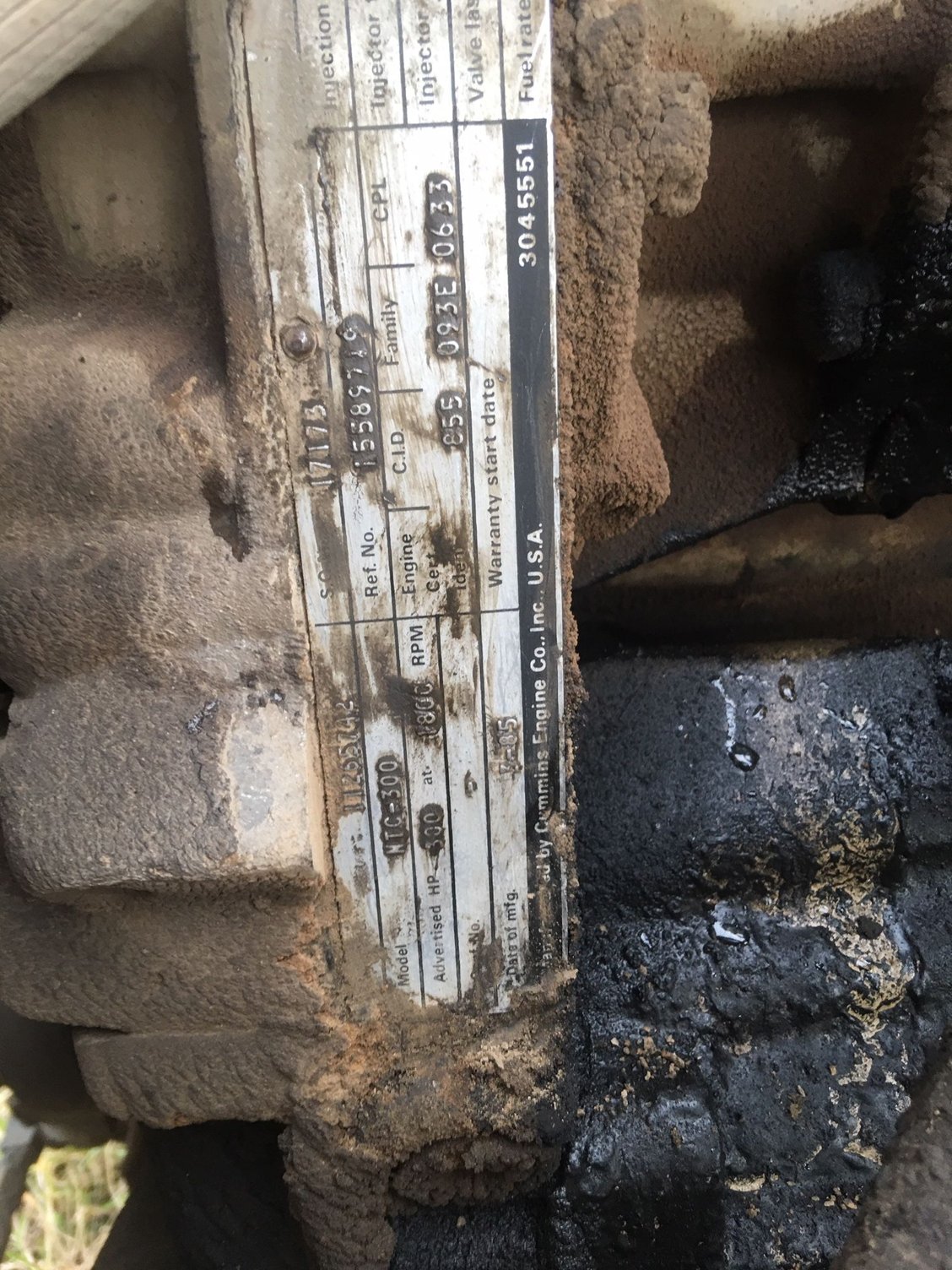

W = Cummins 855 cid 6 Cylinder (14.0L) Diesel (see W in pic below for the various types).
4 = Check digit, FoMoCo use only.
G = 1986.
V = Kentucky Truck Assembly Plant.
A20833 = 1986 Numerical Sequence of Assembly, the trucks specific serial number.
TRANS, AXLE and etc codes printed on the Certification Label, glued to the left door face below the latch. Post a pic of it.
Considering this truck originally had a sleeper, the dump body was added later after the sleeper was removed.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
46 = Indianapolis IN Ford District Sales Office, where the original selling dealer ordered the truck from.
4970 = Domestic Special Order number, truck ordered special by the original purchaser, not "bought off the lot."
222" Wheelbase.
TYPE/GVW A92480 = LTL900 (diesel), 48,000 lbs. Gross Vehicle Weight Rating.
BODY FA8: FA = Charcoal Cloth & Vinyl // 8 = Standard Cab.
TRANS CODE: None, trans was installed after the truck left the assembly line, making it a Domestic Special Order.
AXLE YRP:
YR = Rockwell model SQ100P Single Speed Rear Axle / 3.55-1 / 40,000 lbs. Rear Axle Capacity.
P = Rockwell model FF-903 12,000 lbs. Capacity Front Axle with Power Steering.
Thread Starter
|
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA

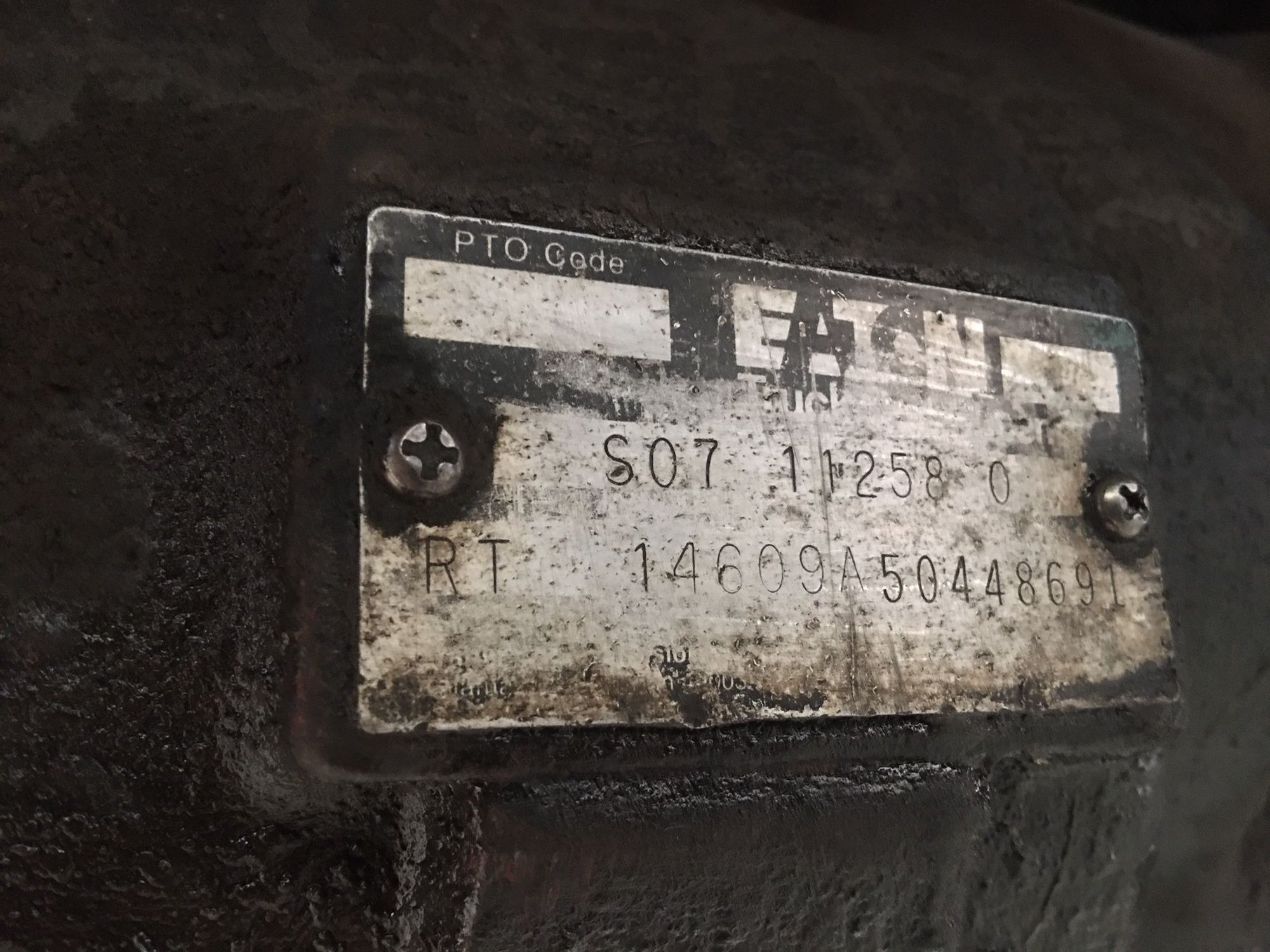

There's no Eaton transmissions listed for these trucks, only Clark, Fuller, New Process, Rockwell, Spicer and Warner.
Because there's no Eaton and the original purchaser wanted one, the truck was sent out after it left the assembly line to have it installed.
This makes the truck a Domestic Special Order, because this would have been the only way to discover what trans it had and where the parts could be found.
Because there's no Eaton and the original purchaser wanted one, the truck was sent out after it left the assembly line to have it installed.
This makes the truck a Domestic Special Order, because this would have been the only way to discover what trans it had and where the parts could be found.
