Need tag decoded specific trans and axle any help thanks



NumberDummy, no luck with the LTL vin? Do the axle and tranny codes cross over to anything?



Hard to read the pic at this angle, can you move it to the upright position?



Numberdummy, here you go



23,100 lbs. Gross Vehicle Weight Rating.

1FD = FoMoCo USA - Ford Truck - Incomplete Vehicle.

N = Class 6 - Hydraulic Brakes - 19,501-26,000 lbs. Gross Vehicle Weight Rating range.

K70 = F700 (diesel).

U = Caterpillar model 3208N or 3208T 10.4L 8 Cylinder 636 cid diesel.

3 = Check digit, FoMoCo use only.

G = 1986.

V = Kentucky Truck Assembly Plant.

A16926 = 1986 Numerical Sequence of Assembly, the trucks specific serial number.

No Exterior Paint Colors.*

215744:

21 = Atlanta GA Ford District Sales Office, where the original selling dealer ordered the truck from.

5744 = Domestic Special Order* number, truck ordered special by the original purchaser, not "bought off the lot."

225" Wheelbase.

K70231 = F700 (diesel), 23,100 lbs. GVWR

BA8: BA = Charcoal all Vinyl - Full Width Seat // 8 = Conventional Cab.

SK = Spicer model CM5552A 5 Speed Manual Transmission.

UDM:

UD = Rockwell/Timken model H173 Single Speed Rear Axle // 4.56-1 // 17,500 lbs. Rear Axle Capacity.

M = Ford 7,000 lbs. Capacity Front Axle with Power Steering.

*When there is no exterior paint color codes printed on the Certification Label, truck was painted non standard color(s) per the original purchasers order, making it a Domestic Special Order.



Thanks numberdummy. Tracking down trans and axle gearing been a pain



Curious what you can tell me about this?



D80 = C800 Tilt Cab (diesel).

D = Caterpillar model V225-3208 636 cid 8 Cylinder Diesel or Cummins model KT450 1150 cid 6 Cylinder Diesel. Edit: See post #1347.

V = Kentucky Truck Assembly Plant.

AJ7218 = 1978.

153" Wheelbase.

AT: A = Raven Black // T = Candyapple Red.

D808 = C800 Tilt Cab (diesel), 35000 lbs. GVWR

DB6: DB = Black Heavy Duty Vinyl - Full Width Seat // 6 = Body Style 91B Custom Cab.

TRANS code: Blank = Domestic Special Order.*

4AP:

4A = Rockwell/Timken model R-170 Single Speed Rear Axle without Traction Lock / 6.14-1 / 23,000 lbs. Rear Axle Capacity.

P = Rockwell/Timken model FF-903 12000 lbs. Capacity Front Axle with Power Steering.

35,000 lbs. Gross Vehicle Weight Rating.

432194:

43 = Milwaukee WI Ford District Sales Office, where the original selling dealer ordered the truck from.

2194 = Domestic Special Order* number, truck ordered special by the original purchaser, not "bought off the lot."

*Unknown Domestic Special Order transmission installed after the truck left the assembly line.



Since a KT Cummins is to big to fit under the C cab it pretty much has to be a 3208 Cat.

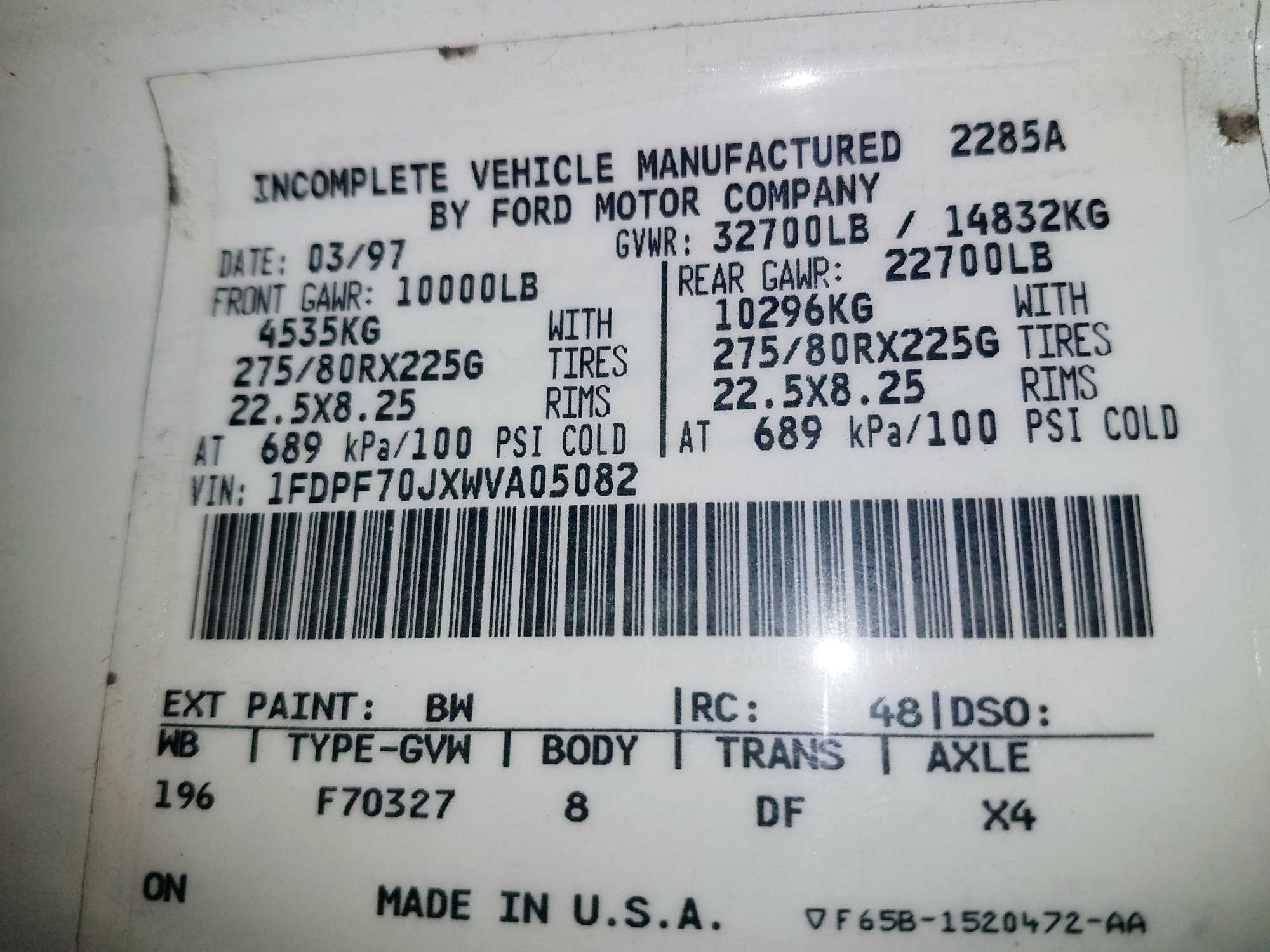

ND... can you do the voodoo that you do with this tag please



Sorry, I cannot decode anything after 1989. You'll have to visit a dealer or ask Green Sales Company in Cincinnati OH for assistance (800-543-4959).

Green Sales has the largest stock of FoMoCo NOS obsolete parts on the planet.



Bummer, thanks though



I don't know if this is the place to ask but I will try
Talking about a 1992F 600 v.i.n.1FTFX28LOVKD32239
I am not a mechanic I am an industrial machinist and my knowledge of cars and trucks is amateurish.
My boss decided to buy a 1992 F600 for us (meaning me) to work on during week ends when we are not working.
Most of the complete rebuild is done after 3 years but there are parts I can't find.
Can you guys help me.
I need a replacement rubber floor mat , it is an automatic transmission truck.
also need replacement parts for the turn signal switch and hazard button is broke off and horn is missing parts in other words steering column guts.
Also the rubber pcs. that the hood closes against are all worn out ( forward flip hood)
left and right hood reflectors.
The screw in the light trim ring ( manual calls it a head light door) is striped and I need to find the little plastic insert that it screws into.
Thanks for any help.



All the interior parts you can get from LMC TRUCK. 1989-1992

The exterior parts you might be able to get some from RANEYS TRUCK PARTS
or check craigslist and local wrecker yards.

Was Truck built before or after AUG 1992? This determines body style. EXP 1989.5 to 1992.5. 1992.5 to 1997.5

Also look @ part numbers on OEM parts tells you what year

EXP. "D9TA-0000AB"

D= decade 1970
9= year of decade 1979
TA = vehicle type "truck accessory"
0000 = part number
AB = engineer revision (after part number)


This works for most FORD produced parts cars trucks and commercial


A 1940
B 1950
C 1960
D 1970
E 1980
F 1990
G 2000
and so on
