2020 Camera/TPMS/Backup Sensor Cable Problem
Thread Starter
|
Tuned
Joined: Jul 2019
Posts: 430
Likes: 27
From: Truckee, CA
How did you route the cable from the pin box into the trailer?
Freshman User
Joined: Nov 2019
Posts: 32
Likes: 0
Requested pics
The camper came with a Furrion Wireless already mounted. The camera would no longer sync to the screen unit. I removed the Furrion and was able to re-use the large hole to run the Ford camera wire through.
I got in behind the sound bar and TV to run the wire down to floor level.

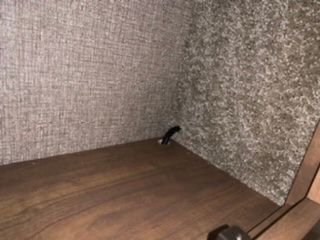

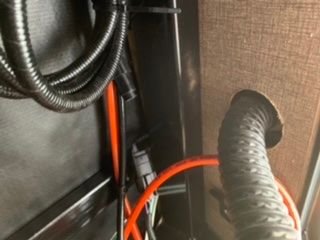

In the bottom corner cabinet to the right of the TV I poled the wire out and down through the floor in to the storage compartment below. Once in the storage compartment I ran it along under the floor above as far forward as I could. I dropped it through the floor into the area where the stabilizer is behind the rear wheel. From there ran it along the frame rail into the propane compartment, to the battery compartment. That is where I connected to the harness to the pin box.
I drilled a 3/4” hole behind the steel around the pin box. I was able to snake the harness above the skin into the battery compartment.
Senior User
Joined: Sep 2005
Posts: 217
Likes: 1
nice job. is that a Montana 3790/91? We have a 2015 3791. With the new 2020 F450 I got the trailer TMPS kit without the camera mostly because I didn't want so ugly wire running down the back of the trailer, but your install makes me with I had ordered the camera kit.
Freshman User
Joined: Nov 2019
Posts: 32
Likes: 0
Freshman User
Joined: Nov 2019
Posts: 32
Likes: 0
Senior User
Joined: Sep 2005
Posts: 217
Likes: 1
