My 56 pickup build thread

Reply Subscribe

Thread Tools

Search this Thread

Jul 31, 2015 | 07:11 PM

#91

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

I started by welding 1/2" tubing to the top end of a 6" length of 3/4 " square tubing.

Jul 31, 2015 | 07:13 PM

#92

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

Sliced off the excess with a zip wheel and completed the welding on the two uprights.

Jul 31, 2015 | 07:15 PM

#93

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

Using the magnetic square positioned the upright on the cross over bar to make my welds.

Jul 31, 2015 | 07:18 PM

#94

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

With the one end welded in place I leveled it vertically in the vice and then positioned the upright on the other end and made my welds.

Jul 31, 2015 | 07:25 PM

#95

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

Time to make the end caps the cross bar pivots on, I cut a piece on 1/8" thick plate 2 1/2" x 5" and bent it in my vise then welded a piece of tubing 1" inside diameter x 1 1/4" long. I needed to clean out the inside of this tube with a grinding stone attached to my die grinder so the cross tube would pivot freely inside.

Jul 31, 2015 | 07:26 PM

#96

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

A picture of the cleaned up piece

Jul 31, 2015 | 07:30 PM

#97

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

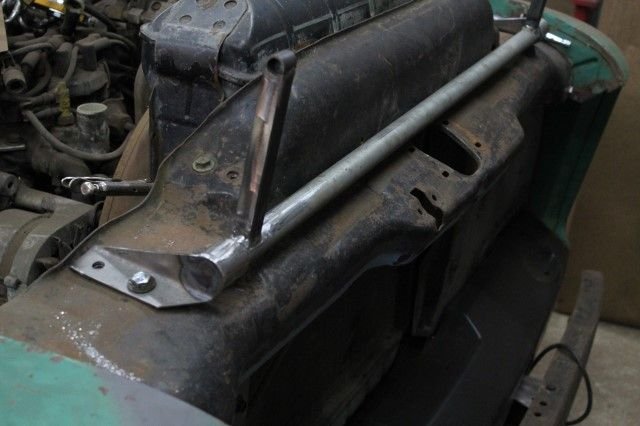

Once both end caps were done I positioned it on the upper rad valance and drilled my mounting holes.

Jul 31, 2015 | 07:32 PM

#98

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

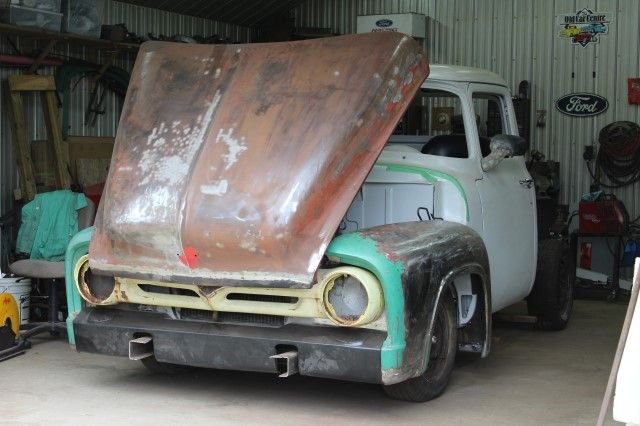

I then mounted the under hood rods in place of the originals.

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

Brett Foote

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

Michael S. Palmer

Jul 31, 2015 | 07:34 PM

#99

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

Not owning a lathe I took a piece of 1 1/2" round stock black phenolic plastic to a friend who does own a lathe and had him copy the guide wheel from my panel.

Jul 31, 2015 | 07:39 PM

#100

56panelford

Thread Starter

FTE Legend

Joined: Oct 2005

Posts: 283,683

Likes: 8,269

From: northwestern Ontario

I proceeded to make the guide rails from 3/8" round bar stock, although I could have bought nice shiny stainless steel rails for $65 / side I've decided these will work just fine once cleaned up and painted. Cheaper too.
