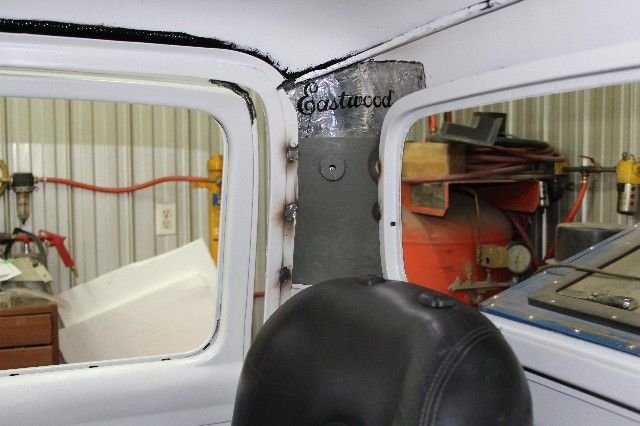

I decided to make my own seat belt restraints for the shoulder straps


Test fit

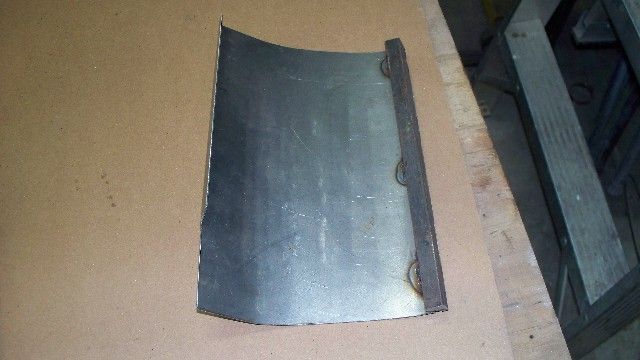

I cut a piece of round stock I had 1/2" thick x 1 3/8" diameter then drilled and tapped it


Then welded it to the plate




coated them in primer


and welded them in place
Reply With Quote
  #17
Old 03-22-2015, 07:19 PM
56panelford's Avatar
56panelford 56panelford is offline
Posting Legend
Thread Starter

Join Date: Oct 2005
Location: Ontario,Canada
Posts: 104,548
56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation


The next thing I wanted to do was mount the cab on the frame and had tried ordering the rear mount brackets but was told they were not available so had to make my own


then it was time to bring in the frame from hibernation


I used my engine hoist with a simple cradle I made from some 4x4 timber to lift the cab high enough to roll the frame under it




Half hour later it's sitting on the frame, worked out very well






next was stripping off the rear suspension to get ready for the TCI kit that I purchased


I picked up an 8.8 rear differential from a 98 Ford Explorer from the wreckers.



Then I proceeded to install the front cross member, it's a Heidts superide ll.

This is where I am at at the moment, I am waiting on arrival of an oil pan so I can install motor mounts for the 351W and C6 transmission.
