quadzjr's build thread!!!

Reply Subscribe

Thread Tools

Search this Thread

Jun 3, 2008 | 11:39 PM

#541

RawPower

Postmaster

Joined: Jul 2003

Posts: 2,976

Likes: 0

From: Rep. of Texas

To be honest, I'd redo the lower link tabs. I'd make the plate larger, so that it serves as a tab and as a gusset for the center bar. As for joint @ the frame where the two center pieces of tube meet I'd make a large plate that goes up the side of the frame about 2" and down below the frame about 3 or 4", then cut some 3/8" slits in it that run along the center of the tubes, then burn in those gaps w/ weld to the tubes.

Does that make sense?

Jun 4, 2008 | 04:44 PM

#542

Slow

Senior User

Joined: Mar 2005

Posts: 297

Likes: 1

I think your front to rear strength will be fine, I'd triangulate accross the middle for side loads.

Jun 4, 2008 | 05:15 PM

#543

quadzjr

Thread Starter

just another Rockwell looser

Joined: Feb 2003

Posts: 4,042

Likes: 0

From: Cocoa, FL

Quote:

Originally Posted by kjett

There is a tube that ties the 2 sides of the subframe in the front, are you going to add another tube toward the back as well? It looks tight with the t-case diaper, but it should fit, that way it will give strength to the rear for when you do the back part of the truck.

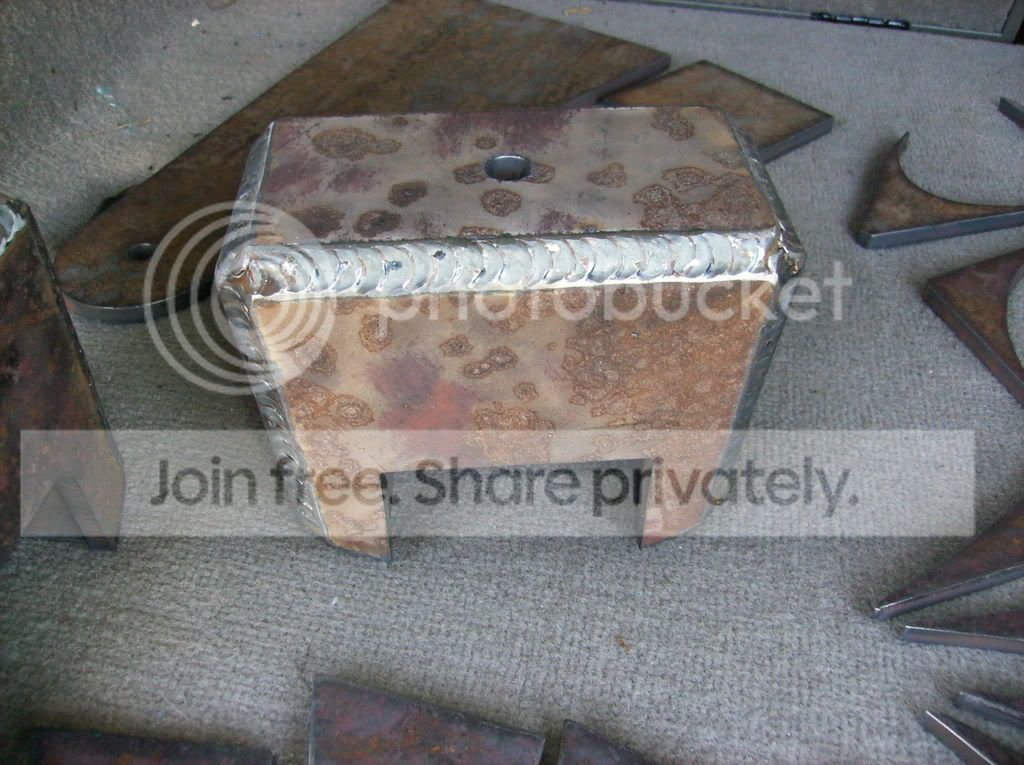

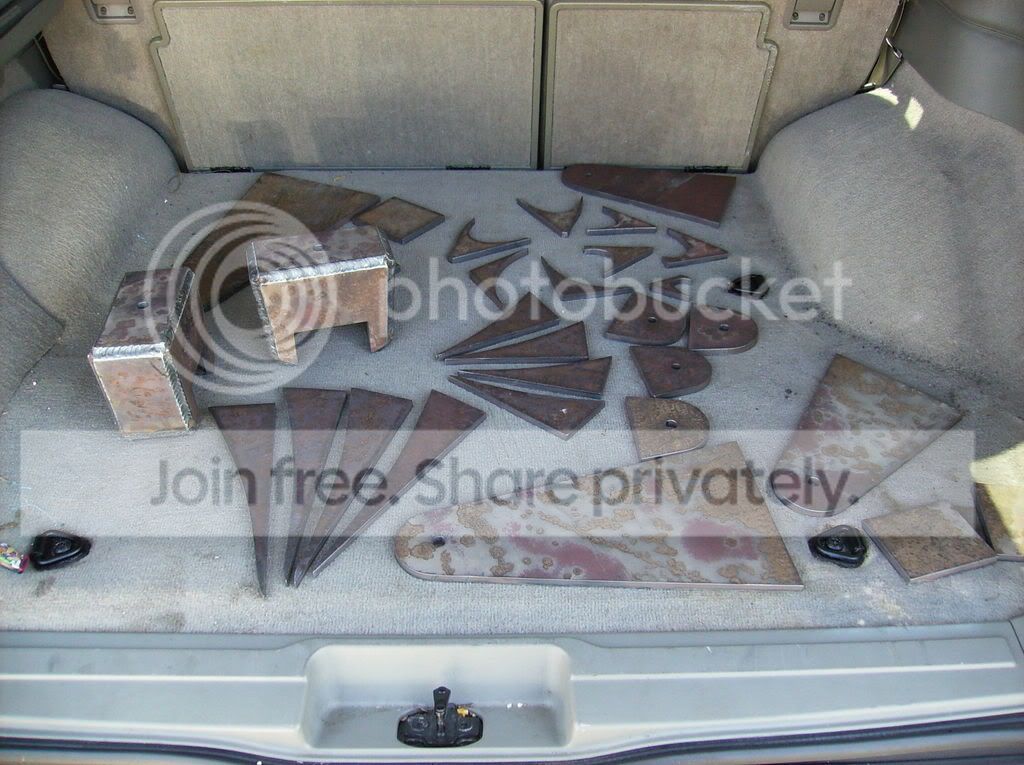

its already done.....check out the tcase mount pics.....they are all gusseted

Jun 4, 2008 | 05:16 PM

#544

quadzjr

Thread Starter

just another Rockwell looser

Joined: Feb 2003

Posts: 4,042

Likes: 0

From: Cocoa, FL

Quote:

Originally Posted by IB Adrian

How bout a small bar where I put the yellow line, and don't worry about the gusset I tried to black out (but got lazy).

I assume the other 4-link is going to be mounted on the sub-frame in the same manner?
If so, do the small bars on the same at the other end too

ya know......i planned on that, but for some reason i never got around to it......thats what i did on my buddies truck...

Jun 4, 2008 | 05:18 PM

#545

quadzjr

Thread Starter

just another Rockwell looser

Joined: Feb 2003

Posts: 4,042

Likes: 0

From: Cocoa, FL

Quote:

Originally Posted by RawPower

nope......i got redo lower link tabs.....thats about it.....

Jun 4, 2008 | 08:36 PM

#546

RawPower

Postmaster

Joined: Jul 2003

Posts: 2,976

Likes: 0

From: Rep. of Texas

Quote:

Originally Posted by quadzjr

nope......i got redo lower link tabs.....thats about it.....

well that was right, I'd definitely redo the lower link tabs for more strength

Here is what I would do.
green = plate steel
red = where you cut gaps and fill in w/ weld to help w/ structure

Jun 4, 2008 | 08:54 PM

#547

quadzjr

Thread Starter

just another Rockwell looser

Joined: Feb 2003

Posts: 4,042

Likes: 0

From: Cocoa, FL

Quote:

Originally Posted by RawPower

well that was right, I'd definitely redo the lower link tabs for more strength

Here is what I would do.
green = plate steel
red = where you cut gaps and fill in w/ weld to help w/ structure

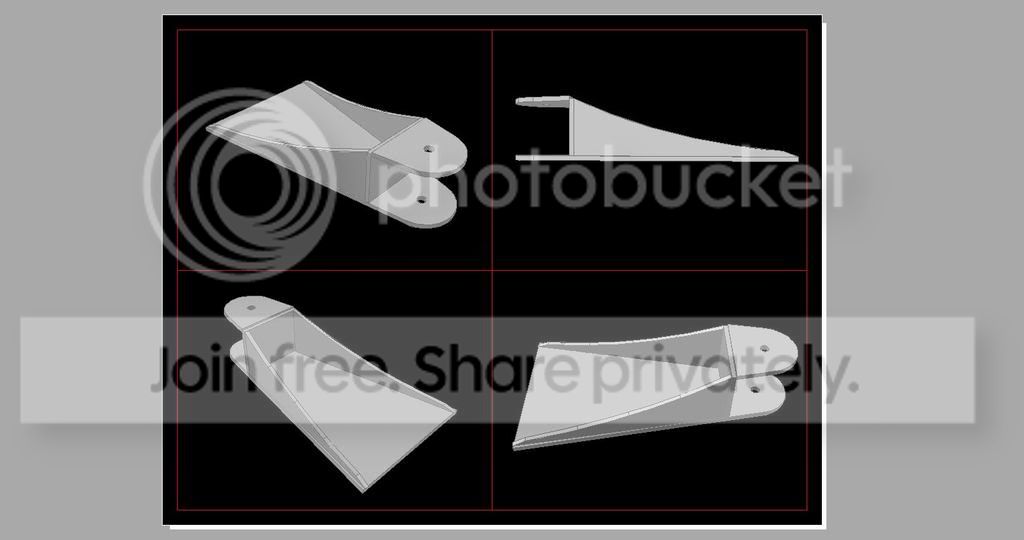

besides the tab strengthening part, whats the point of the bigger ones on the frame.....the tabs i designed would do the exact same thing, only look better in the middle of the tube.....boxing the inside points on the frame at those points would be more beneficial strength wise more then any other part.......especially the frame esentially makes it single shear......

im thinking of boxing in the bottom part of the tabs.....
