More brake info to look at...

Difference in rotors between '00-'05 Excursion and '07 Super Duty:

2007 Front Rotor:
Outside Diameter: 13.66 in
Nominal Thickness: 38 mm
Discard Thickness: 36.4 mm
Bolt Circle Diameter: 6.69 in
Total Swept Area (sq. in.): 306.4

2001 Front Rotor:
Outside Diameter: 13.03 in
Nominal Thickness: 38.1 mm
Discard Thickness: 36 mm
Bolt Circle Diameter: 6.69 in
Total Swept Area (sq. in.): 264.48

2007 Rear Rotor:
Outside Diameter: 13.39 in
Nominal Thickness: 34 mm
Bolt Circle Diameter: 6.69 in
Discard Thickness: 32.4 mm
Total Swept Area (sq. in.): 272.01

2001 Rear Rotor:
Outside Diameter: 12.83 in
Nominal Thickness: 30.1 mm
Bolt Circle Diameter: 6.69 in
Discard Thickness: 28 mm
Total Swept Area (sq. in.): 244.81

************************************
Difference in Calipers between '00-'05 Excursion and '07 Super Duty:

2007 Front Caliper:
Brake Piston Count: 2
Piston Material: Phenolic
Inlet Port Size: 3/8 x 24
Bleeder Port Size: 3/8 x 24
Piston Size (OD): 2.356"

2001 Front Caliper:
Brake Piston Count: 2
Piston Material: Phenolic
Bleeder Port Size: 3/8 x 24
Piston Size (OD): 2.12"

2007 Rear Caliper:
Brake Piston Count: 2
Piston Size (OD): 1.89"
Piston Material: Phenolic
Inlet Port Size: 3/8 x 24
Bleeder Port Size: 3/8 x 24

2001 Rear Caliper:
Brake Piston Count: 2
Piston Size (OD): 1.75"
Piston Material: Phenolic
Bleeder Port Size: 3/8 x 24

  #63
Old 11-23-2017, 10:12 PM
aortizexcursion's Avatar
aortizexcursion
aortizexcursion is offline
Posting Guru
Join Date: Aug 2007
Posts: 2,421
aortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputation
Do you have the specs for the '13+ brake rotors and calipers as well?

What year Super Duty got the longer rear leaf springs? I recall seeing someone else on the forum installing the longer, updated rear leafs fairly easy on an Excursion/older Super Duty...is that what you're going to be doing with yours?

  #64
Old 11-23-2017, 10:30 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation
The longer rear leafs came in '08.

I don't have the specs for '13, but they are bigger than the '07 I am upgrading to.

  #65
Old 11-24-2017, 01:17 AM
pirate4x4_camo's Avatar
pirate4x4_camo
pirate4x4_camo is offline
Post Fiend
Join Date: Apr 2011
Location: Northern California
Posts: 5,070
pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.
2013 + F250

Front brake rotor 14.29"
Front dual piston, size 2.36"
Front pad sweep 381 sq inch
Front pad gross lining area 59.7 sq inches

Rear brake rotor 14.29.
Rear dual piston size 189
Rear pad sweep area 334.9 sq inches
Rear pad gross lining area 45.82 so inches

Master cylinder piston 1.5" diesel
Master cylinder piston 1.3125 gas
Hydroboost piston size 1.56"

  #66
Old 11-24-2017, 02:45 AM
aortizexcursion's Avatar
aortizexcursion
aortizexcursion is offline
Posting Guru
Join Date: Aug 2007
Posts: 2,421
aortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputationaortizexcursion has a superb reputation
Thanks pirate

  #67
Old 11-25-2017, 12:46 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation

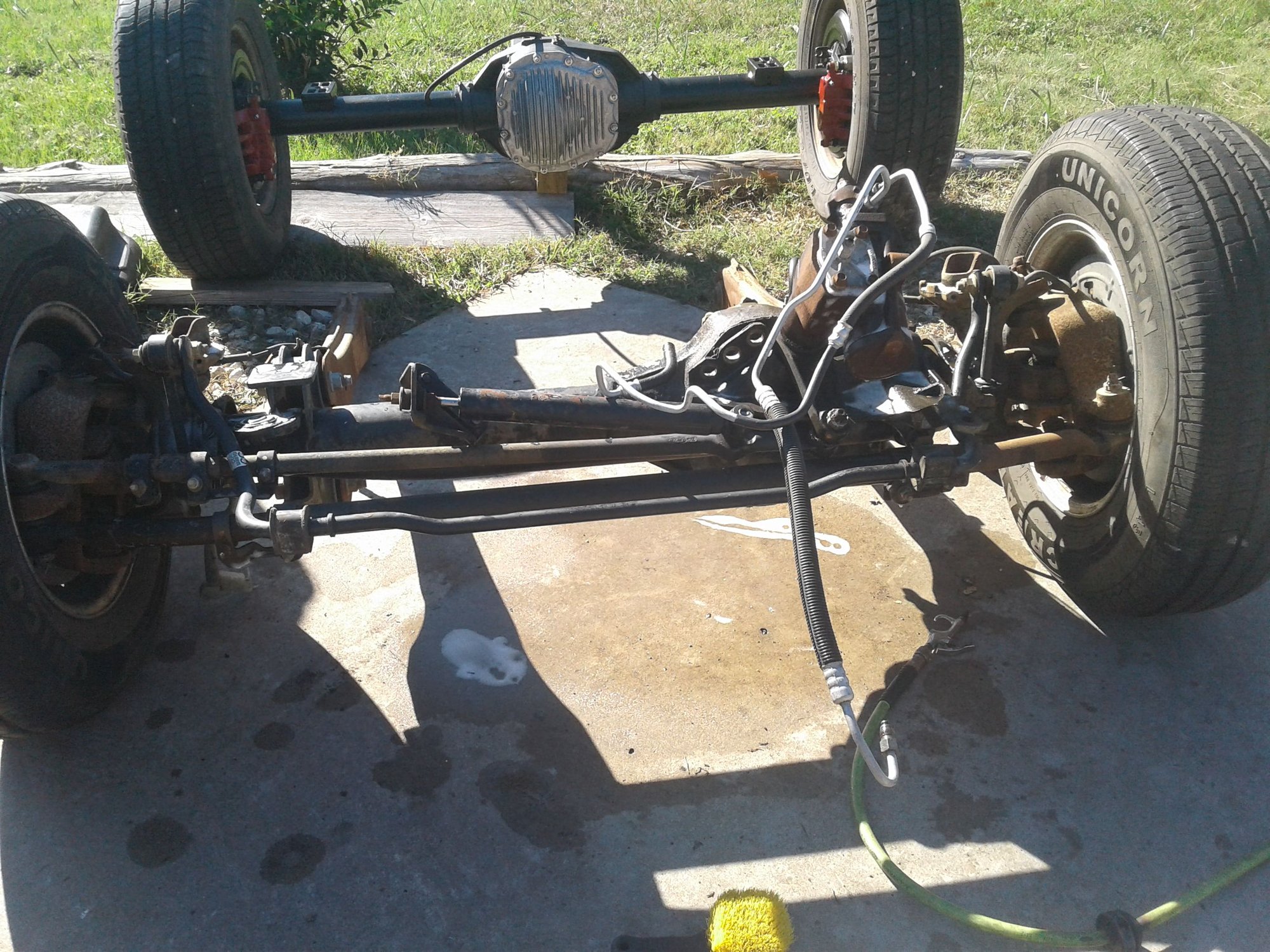

This is what I'm working with on front axle:


Algae growing on this one, too. Most of the reddish brown stuff is dirt...not rust.


Steering gear is good. Lots of cleanup and disassemly to do to check all systems/parts.

- I do know I need a new steering arm. The rubber boot up at the pitman arm is torn.
-The track bar looks and feels good on first examination. The ball joint at the bottom is solid and boot is good, so I need to check the bushing at the top end for wear.
- I found PowerStop brakes on sale @ Rockauto until the 29th for a very good price. Heavy duty tow kit for front for $197 after 15% sale. Rotors pads and hardware in the kit.
- rebuild kit for front calipers is under $20 (combined) for both rotors. Gonna try again, and will be much more careful extracting the pistons this time. Got the kits from RockAuto as well.

Tires and wheels still up in the air. I have some nice 17" rims that came with the axles. I might strip them and paint them black. I would still have to buy tires @ ~$600 for a set though. There are good deals on CL to be had for take-offs, sometimes you can get new tires with the rims for under $800-1000. Just have to keep an eye out.

Front axle will proceed much slower than the rear. More parts to look at, and potentially more money to get it to 100%. I'll get hubs/bearings checked over next few days at a minimum.

  #68
Old 11-25-2017, 01:04 PM
Oldguyfl's Avatar
Oldguyfl
Oldguyfl is offline
Posting Guru
Join Date: Sep 2015
Location: Central Florida
Posts: 1,310
Oldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant futureOldguyfl has a brilliant future
Originally Posted by Nicmike View Post
- rebuild kit for front calipers is under $20 (combined) for both rotors. Gonna try again, and will be much more careful extracting the pistons this time. Got the kits from RockAuto as well.
To get those pistons out like butter, take the calipers off, put a piece of plywood in them where the rotor would go and apply air into the brake line fitting. They will pop right out, easy peasy.

  #69
Old 11-25-2017, 02:11 PM
pirate4x4_camo's Avatar
pirate4x4_camo
pirate4x4_camo is offline
Post Fiend
Join Date: Apr 2011
Location: Northern California
Posts: 5,070
pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.
Originally Posted by Nicmike View Post



- I do know I need a new steering arm. The rubber boot up at the pitman arm is torn.

If the radial and axial play in the tie rod end is within spec and you just need a new boot I like the polyurethane ones from energy suspension.
Number one killer of tie rod ends is torn boots and grime getting inside.

energysuspension.com | Tie Rod & Ball Joint Boots

Attached Images
  #70
Old 11-25-2017, 04:17 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation
Originally Posted by Oldguyfl View Post
To get those pistons out like butter, take the calipers off, put a piece of plywood in them where the rotor would go and apply air into the brake line fitting. They will pop right out, easy peasy.
I did that on the rear, but too much air pressure. Piston chipped after hitting the wood and bouncing back. Just gotta watch air pressure this time.

  #71
Old 11-25-2017, 04:18 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation
Originally Posted by pirate4x4_camo View Post
If the radial and axial play in the tie rod end is within spec and you just need a new boot I like the polyurethane ones from energy suspension.
Number one killer of tie rod ends is torn boots and grime getting inside.

energysuspension.com | Tie Rod & Ball Joint Boots
Gonna look into those. Thanks for the tip!

  #72
Old 11-25-2017, 05:19 PM
pirate4x4_camo's Avatar
pirate4x4_camo
pirate4x4_camo is offline
Post Fiend
Join Date: Apr 2011
Location: Northern California
Posts: 5,070
pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.
Originally Posted by Nicmike


-The track bar looks and feels good on first examination. The ball joint at the bottom is solid and boot is good, so I need to check the bushing at the top end for wear.
.
Even brand new the stock track bar on these era F250 do not "look good" because they are not well designed. A tiny bit of play in the ball joint ( you will be hard pressed to feel the play by hand ) will induce death wobble and the rubber upper bushing Is just dumb.

My brand new 2006 f350 developed death wobble in 20k miles and from my research that is not uncommon.

Luckily in my position in the off road industry I have access to many great companies and know good engineers so I spend a fair amount of time and effort researching this subject. The general consensus is Ford screwed the pooch on the track bar design. And the Track Bar is the most common source of the dreaded death wobble.

On my current linked Excursion I made my own track bar using beefy 1.25" heims that are mounted in brackets that double capture the bolt.

The only company I know of that makes a double captured track bar setup is Baja Customs.
Trac-inator

Carli Designs makes a bar that has a heim on one end and the lower end uses iroved geometry to reduce wear on the ball joint.
Ford Adjustable Trackbar

PMF makes a beefy track bar that uses rebuidable joints so at least you can keep the cost down when they wear out. They also make a beefy upper mount that helps cure the problem of the bolt on mount loosening up.
2005-15 Ford F-250/350 HD Solid Mount Adjustable Trackbar

At the very least, even if you think your track bar is good I would put a new lower ball joint on it and a new polyurethane bushing from energy suspension on it, at least that way you have a fresh start.

  #73
Old 11-25-2017, 05:52 PM
pirate4x4_camo's Avatar
pirate4x4_camo
pirate4x4_camo is offline
Post Fiend
Join Date: Apr 2011
Location: Northern California
Posts: 5,070
pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.pirate4x4_camo has a spectacular reputation.
The Baja Customs is my favorite ( and proven ) design for a upgraded track bar however this one looks promising because it uses a standard heim joint on each end.

The issue I see is that by raising the bar above the stock mount you are changing the arc so you would need to correct the pitman arm angle to avoid inducing bumpsteer into the system.

May be worth calling these guys and discussing their design.

https://www.signaturemetalfab.com/pr...-track-bar-kit

Attached Images
  #74
Old 11-25-2017, 06:34 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation
Front axle assessment...

I would love one of those upgraded track bars, but budget won't allow it with all the other parts I'm having to replace. I'm also NEVER going to lift this thing beyond the stock F250 setup going on it, and at least two of those upgrades requires a lift.

While waiting for more funds, I'll be painting the steering gear and a few other things. I'll post progress on that in the meantime.


$10 and it fit over the pitman arm perfectly.


That boot is done...


Passenger side tie rod needs a boot...


Driver's side, too...


Upper track bar bolt and tools.


Driver's side sway bar bushing looks new


Passenger side sway bar bushing also good.


Upper sway bar bushings look ok. Part number shown. (5484)


Upper track bar bushing Pirate is talking about. This one looks brand new.


On the bright side, I got grease zerks in my stub axle u-joints.



I got good 17" rims, they just need to be black. I really want a set of 18" rims. Budget will determine this choice.

  #75
Old 11-27-2017, 08:07 PM
Nicmike's Avatar
Nicmike
Nicmike is offline
Veteran/Sheepdog
Thread Starter
Join Date: Feb 2012
Location: La Grange, TX/Oden, AR
Posts: 5,112
Nicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputationNicmike has a superb reputation
Removed the track bar today. Used a 1 1/8 pickle fork to free it from the taper on the ball joint. Found the ball joint is the original from the factory...and it was shot (like Pirate suggested it would be). Gonna get the heavy duty Moog problem solver ball joint from PMF with the grease zerk - $40.

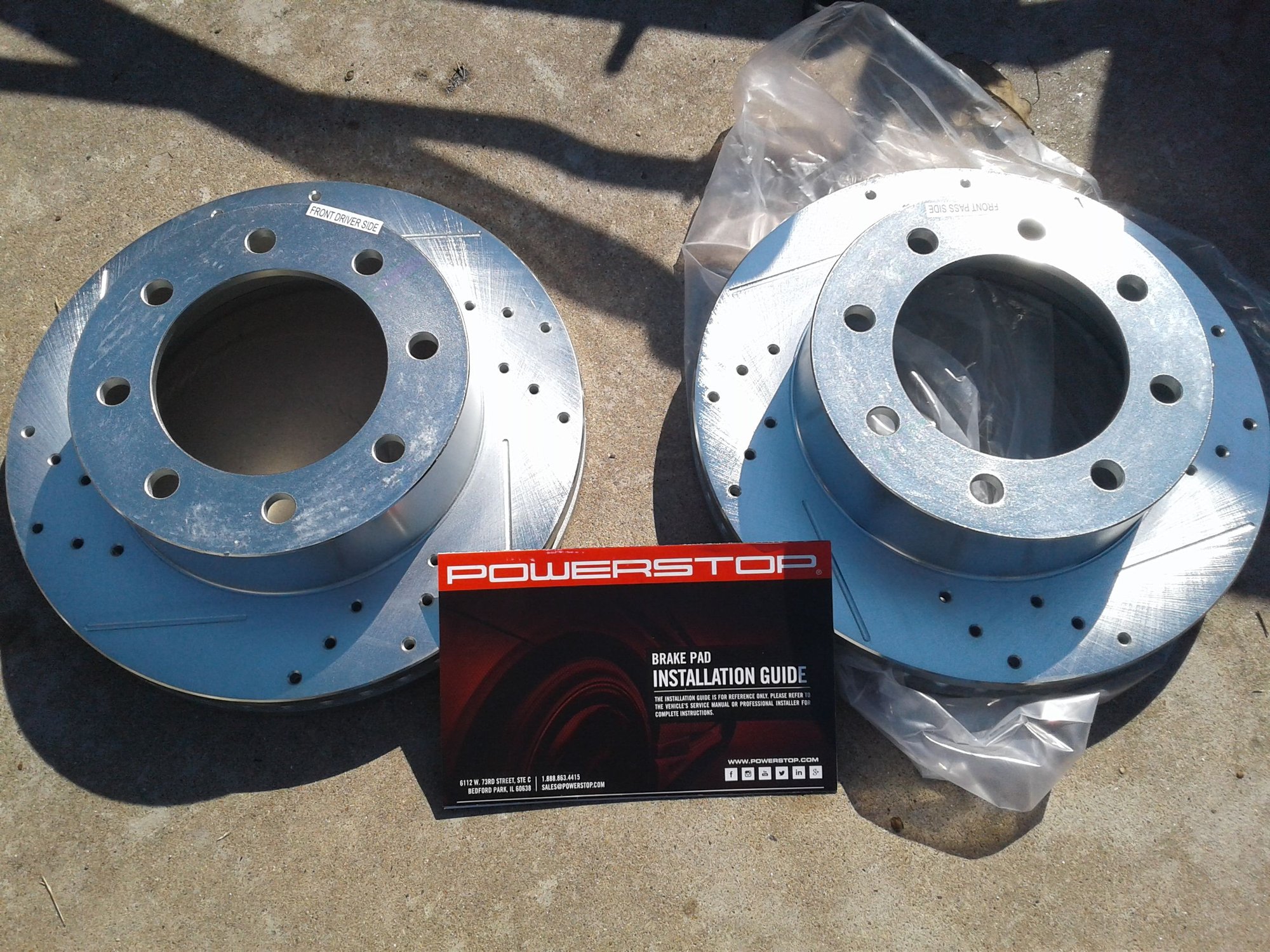

This arrived while I was stripping the clear coat off the rims:








For those that have never broke in/set their own pads before...
