Clifford's Big Red Build Thread

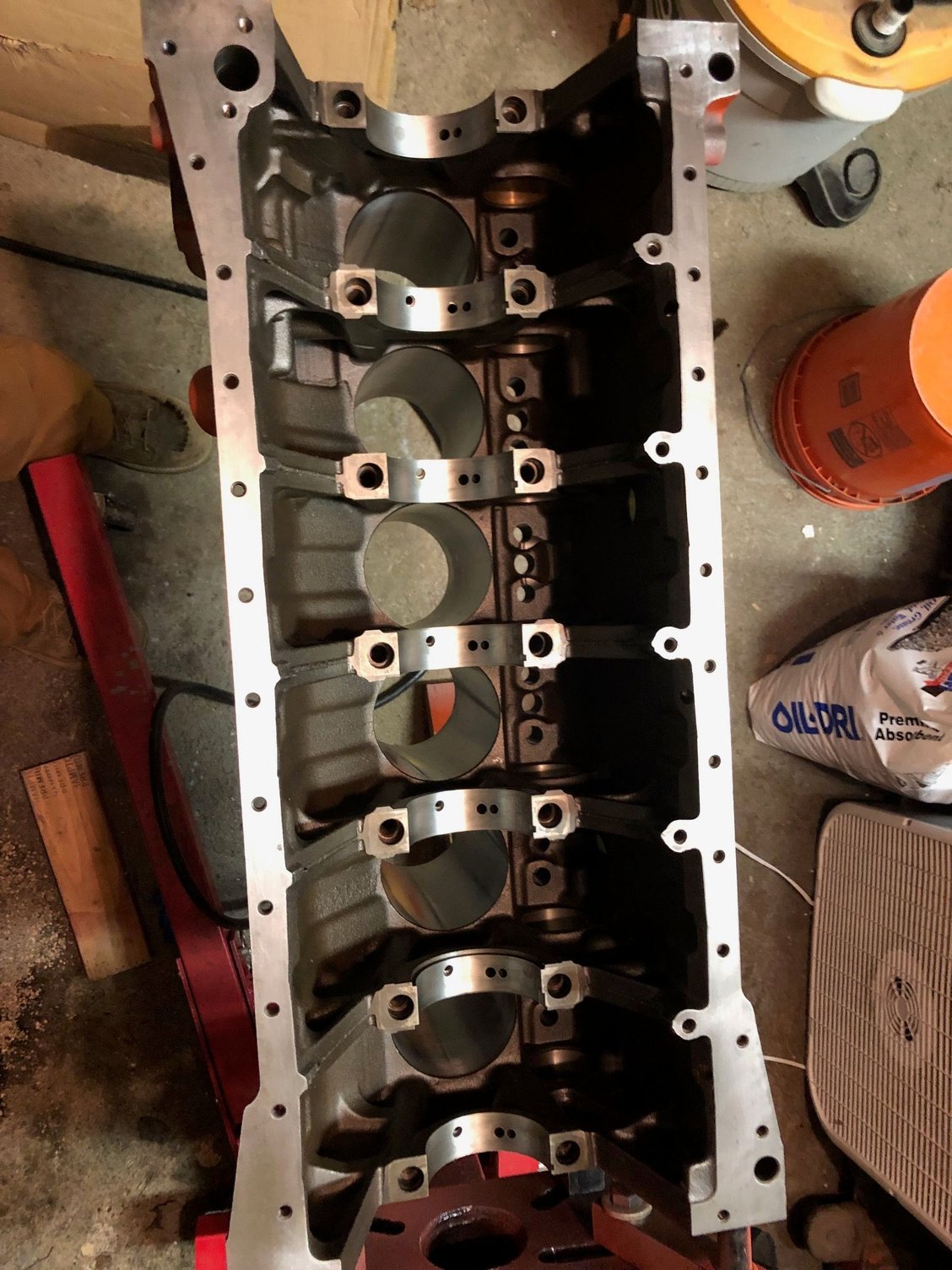

Bottom half ready for cleaning of holes
I used a round brush and some carb cleaner
Oil squirters
They fit fairly tight
I used this screw and a small hammer to GENTLY seat them in the holes
Snug as a bug!
Still have some surface work to do on the block, but its' getting there.

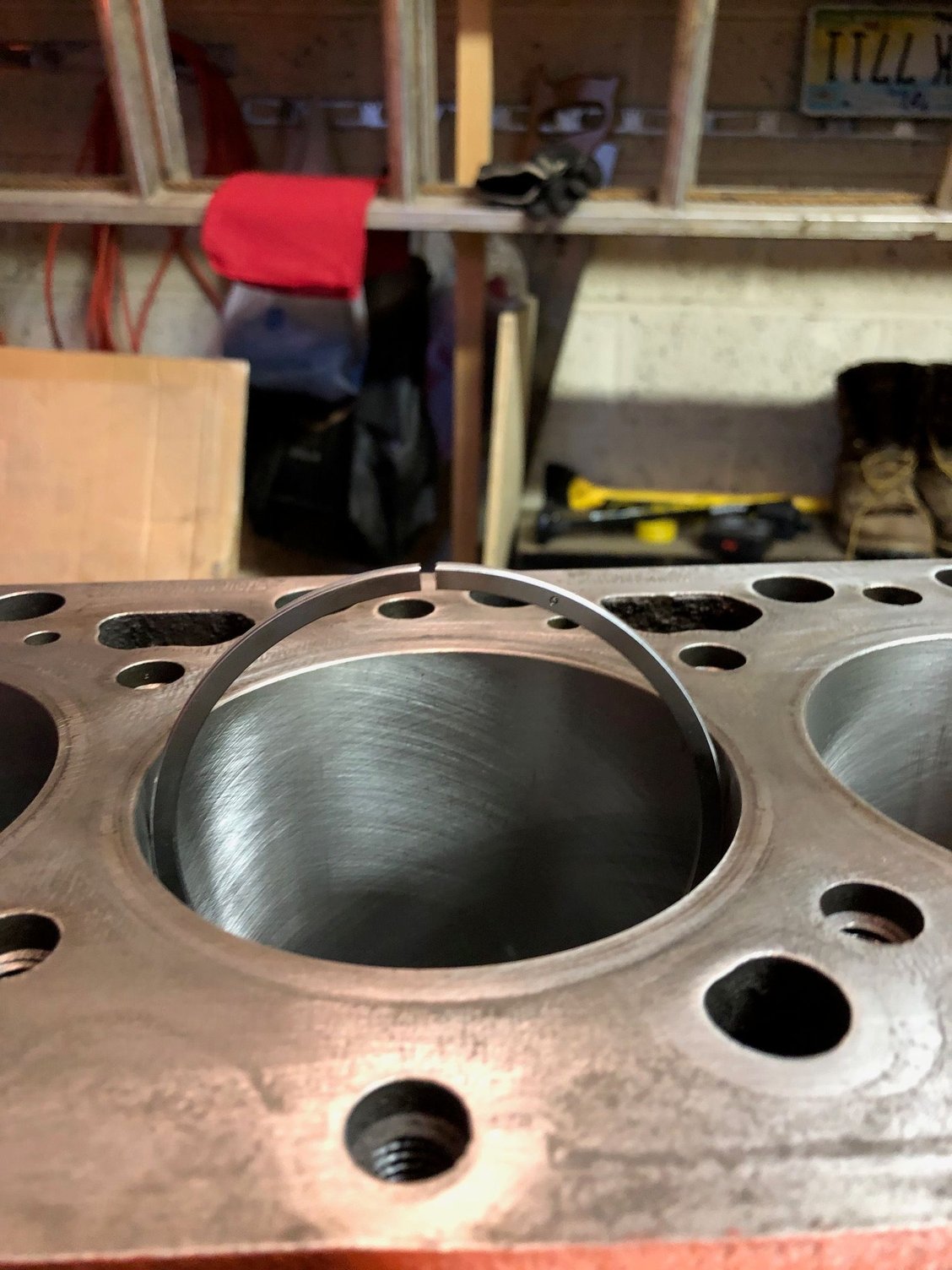

Squeeze and insert, flip down
Push ring down the cylinder wall to a depth of 3.5"

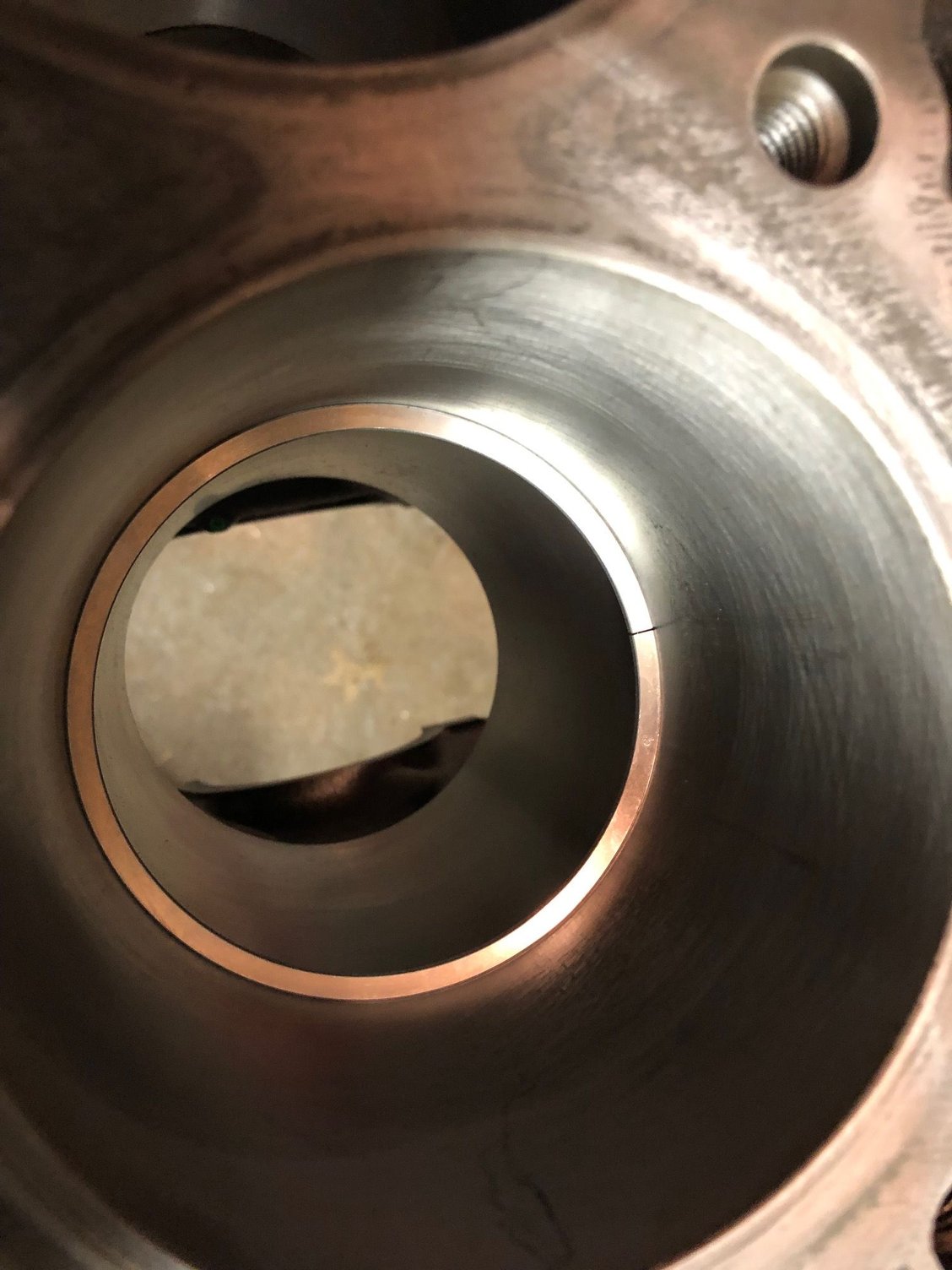

Ring in place for measurement
these Maxiforce rings seem to be manufactured with pretty good tolerances from the get go
Chart showing the starting ring gaps
Rings gaps after filing and measuring
Got the tape and earplugs off of the block from paint and cleaned up the gasket surfaces using one of the maroon automotive scratch pads. They work fairly well to get grime off, and when coupled with carb/brake cleaner, they work really well. Tough spots were hit with emery cloth and then touched back up with the scrubbie. From there, I sprayed carb cleaner in all the holes, it them with a round brush, and then compresses air to blow any remaining crap out. I was able to put in the piston squirters and get all my rings gapped properly. Since this block has been bored 0.040 over, and I didn't know how tight the tolerances would be on the new rings, I measured each ring, in each hole, and wrote down what it was. From there, I was able to see #5 is just a touch (0.001+/-) larger than the rest. Which, makes sense because that's the cylinder that was the worst and had the pitting (likely from a blown head gasket). So (you'll see from my chart), I marked each set of rings A-F and measured each in Cylinders 1-6. Good news was that most of the 2nd and 3rd rings were right about where I wanted them in the first place. The top (compression) rings had to all be filed to fit the spec I wanted. So, on to the specs.
Top Ring:
0.016 Min
0.028 Max
0.020 Set Point (this is the number I decided to use for my ring gap)
Middle Rings:
0.010 Min
0.022 Max
0.015 Set Point
Bottom Rings:
0.010 Min
0.022 Max
0.015 Set Point
So, set "E", middle ring, cylinder #5 of the original measurements was 0.017. So, I used that set in Cylinder #4. Otherwise, all the numbers were close enough to spec or the gap was smaller and I had room to work so I used A for #1, B for #2, etc. Next steps are crankshaft (main) bearing clearance and then I can install the crank permanently. Then, I'll put the rods and pistons together and get the rod bearing clearance numbers and install those permanently as well. After that, I'll have to do some more painting to get the front gear case and other accessories painted as the camshaft has to go in and the gear case has to go on before that. I still have some glass bead work to do, a turbo to rebuild (after paint), cam gear removal and install on the new camshaft, the list goes on. As of right now, the plan is to start the body removal the first weekend in MArch with a goal of running and driving 3 months after that (first part of June). OH, and I also have a transmission to tear down, inspect, rebuild if necessary. paint, etc, etc....should be fun!
https://www.ford-trucks.com/forums/1...ns-o-pics.html
@Oldguyfl did a bang up job on his. I'm taking a lot of clues from his build for sure!
All the parts cleaned up

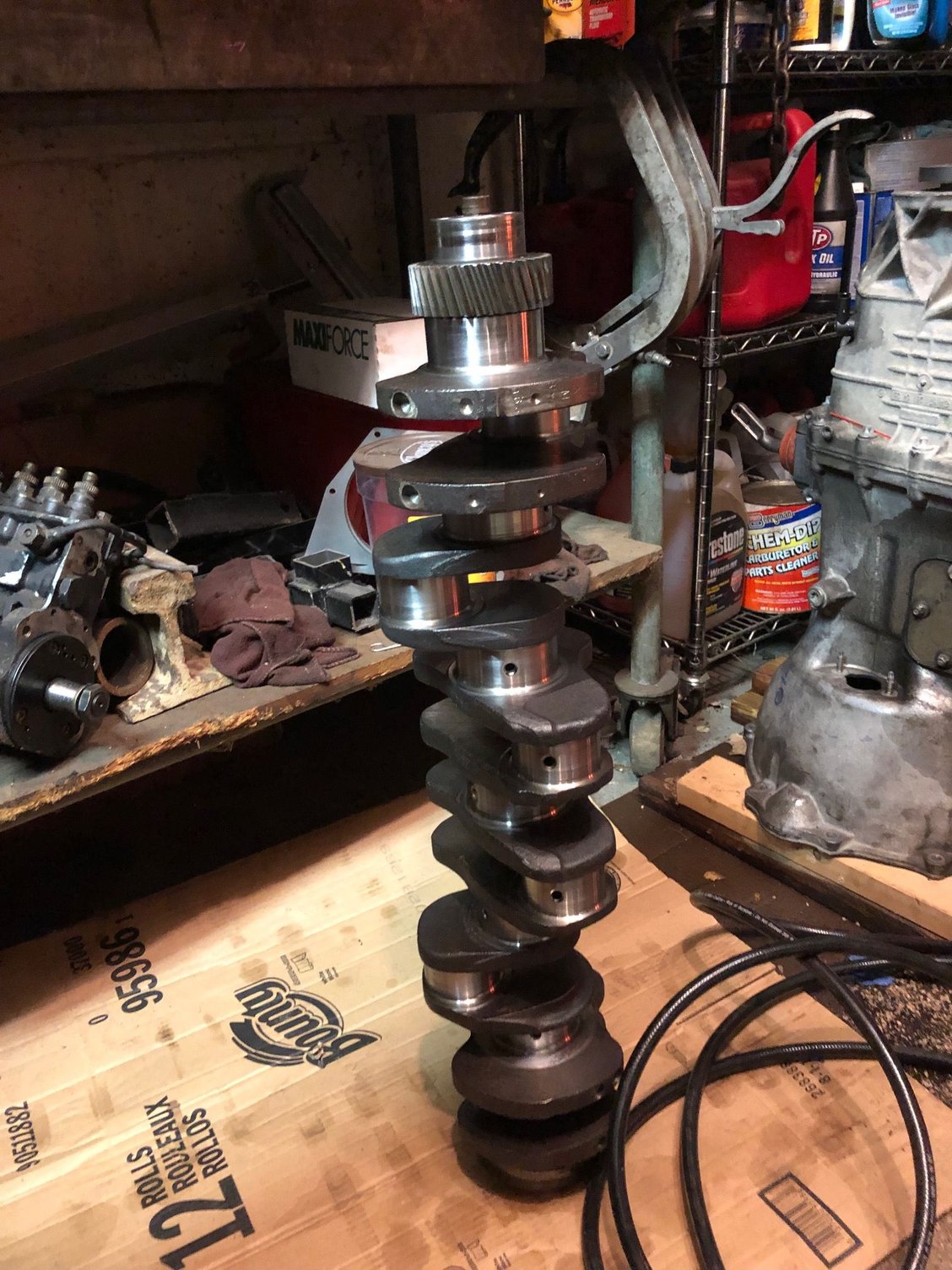

Crank cleaned up and all the holes cleaned up with brake cleaner and then hit with air
Plastigauge
Measuring
Tops installed with assembly lube

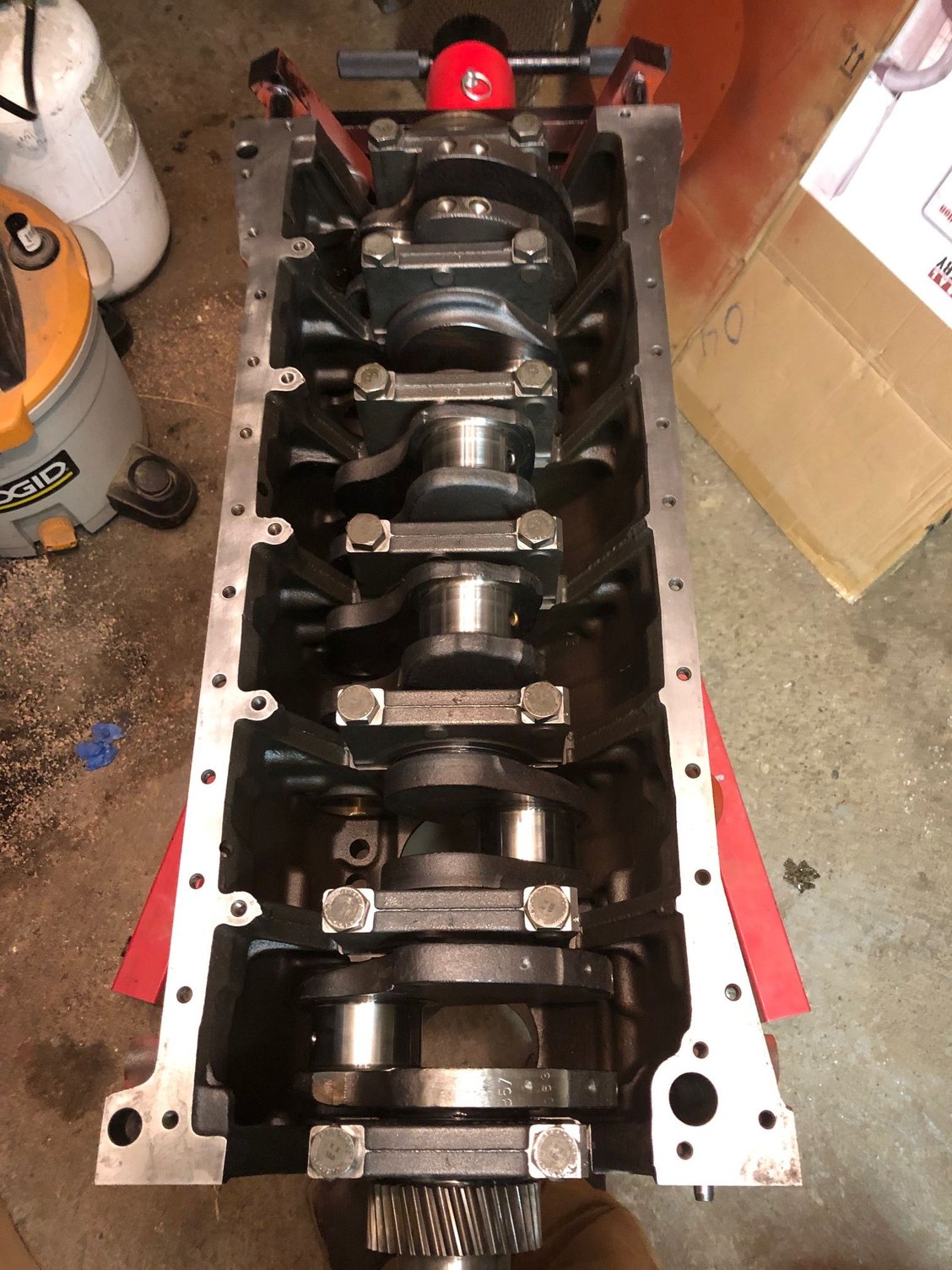

Crank in
Torqued snug as a bug!!
Well, ran into a bit of an issue last night. The other day I went to put my pistons and rods together. Reading the manual, it said that the pistons had to be at room temperature. I figured since both the wrist pins and pistons were the same temperature (cold), that it wouldn't matter. It does. They wouldn't fit. So, I went ahead and put one snap ring in and brought it all in the house to warm up. They're still pretty tight going in, but once I oil them up they should slide right in. BUT, I was looking at the pins and found a defective one. It's the pits.

So, I happen to have 2 extra sets in my garage because when I bought the kit, two pistons were damaged so they sent out 2 new ones. I did a review of the kit (and will continue to update) a while back. Hopefully by the end of the week and this weekend, I'll be about ready to slap the head on (provided everything goes to plan). More to come!
Here's a link to the review so far:
https://www.cumminsforum.com/forum/9...it-review.html
Question: Why use assembly lube on the crank bearings? I was taught, years ago, to use a very light scotch brite to prep and standard oil for assy. Done it that way for years and never an issue. Race car goes mid 9's on this type of build technique. I do however use assy lube on the cam. Just wondering, not a big deal.
Following for the smoke!
As far as the assembly lube on the mains, I have a technical manual from the Army that I'm using for the build and it says to use assembly lube on them. No other real reason than that. I also have the Dodge service manual for that year engine (though it didn't come from a Dodge) and I haven't checked it to see what it says as the Army manual is VERY detailed.
I've never rebuilt one and I do have to say that I'm a little apprehensive about the break in of the new cam, so I figure a little extra lube won't hurt anything. Nothing like firing it for the first time (or essentially the first time), cranking it up to 2,000 RPM and letting it eat for 20 minutes to make the pucker factor go way up!! On the upside, I suppose if it's gonna let go, that'll be the time it does!
Ford Trucks for Ford Truck Enthusiasts
Tappets in their holes
Oil pump and gear case on, ready to install the camshaft, block upside down
Oil pump installed
Camshaft ready for lube
Camshaft in and retainer bolted and torqued
Procomp 22210 and 22415
I'll get a hold of the vendor later today and see make sure I have the correct part and probably end up ordering a new one. The impeller is pressed onto the shaft, so I suspect that it wasn't all the way on. There's also a rather large and thick o-ring that needs compressed while installing. With only two bolts holding it on, I'll have to be careful for sure. So, I moved on to other things: timing pin, oil cooler, and rocker pedestals. The timing pin was pretty straightforward. Take apart, clean, change o-rings, install. Two torx screws, locktite, and torque to 48 Inch pounds. Easy Peasy. Oil cooler was a little more involved in the cleanup. It was pretty dirty and had paint left on it, which I got most of off (the paint). Clean all the parts, wire wheel the bolts, install the parts, find the gaskets, put it on. However, the gasket kit comes with two gaskets and they are different. So, I dug out the old one and compared to place the correct one. The gasket that goes on the block is metal with flimsy rubber around some of the bolts. There are 2 gaskets and two main plates that have to be sandwiched together and then bolted on. I ended up lining them up enough to get two bolts through as a package (away from the flimsy rubber holes),set it in, and then work all the bolts in. It's a bit delicate, so I took my time after just breaking my water pump. Got all the bolts in and started and then worked my way around slowly running them all in by hand and lining everything up to make sure I didn't mess up that gasket. The manual doesn't have a torque sequence, so I started in the middle (vertical) and worked my way out. Torque is 18 foot pounds. After that, I went ahead and worked my rocker pedestals over. I had one that was pretty rusty (probably the #5 piston as that's where the problems were originally). They have the main pedestal with two rods, the rocker, a washer, and a snap ring. They're very simple to take apart. Cleaned all the oil holes with brake cleaner, scrubbed them down, removed the adjusters and cleaned them up, hit everything with compressed air to make sure it was all dry, hit with assembly lube, and put back together. I also put a squirt of oil in the holes on top of the rocker. Overall, a good day in the garage with decent weather. On to the pics!

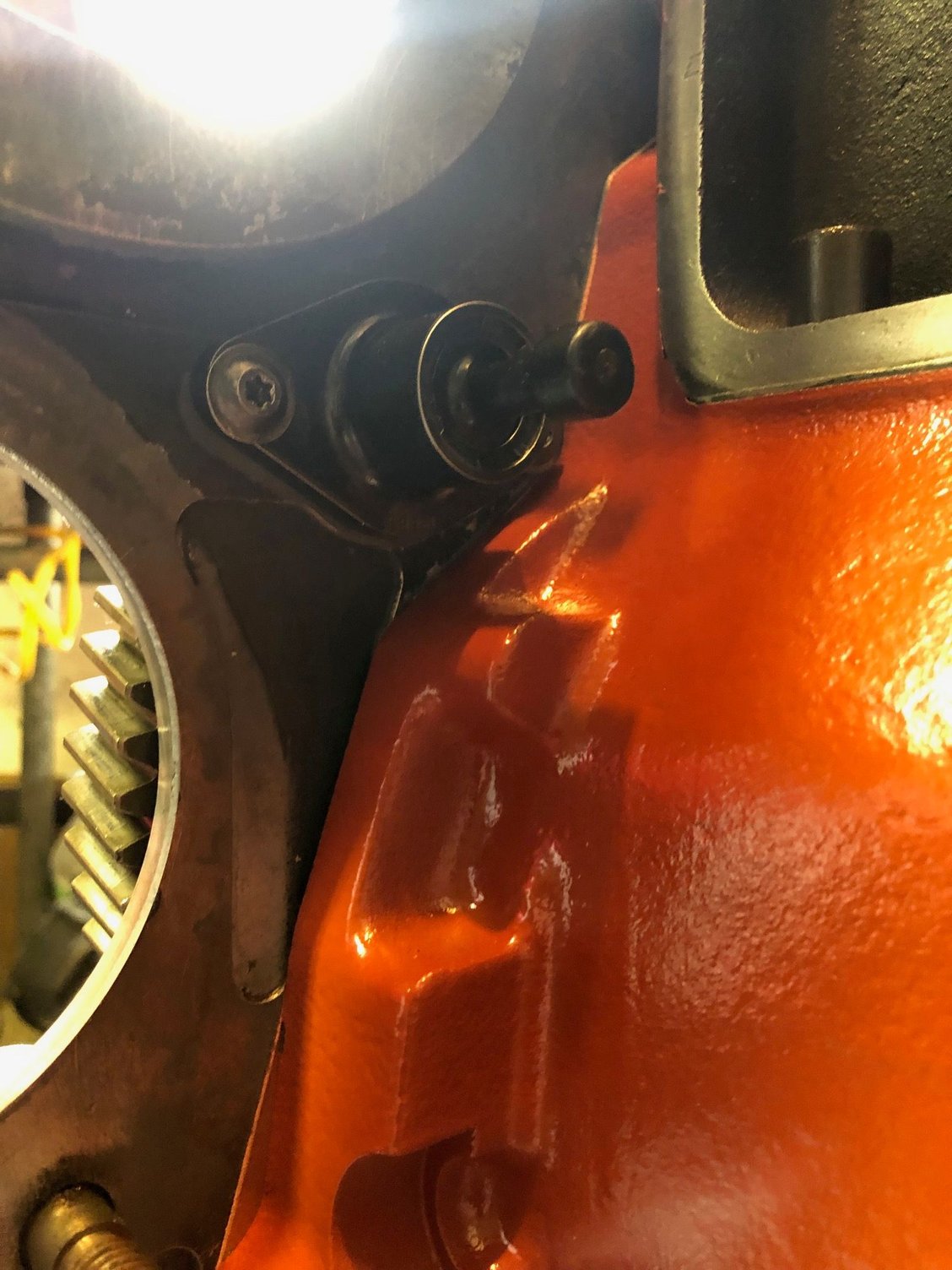

Timing pin
All cleaned up and ready for assembly
Installed, operates freely, and lines right up with the cam gear.
Water pump
Inside the block where the impeller sits
This one was from #5. It cleaned up pretty good.

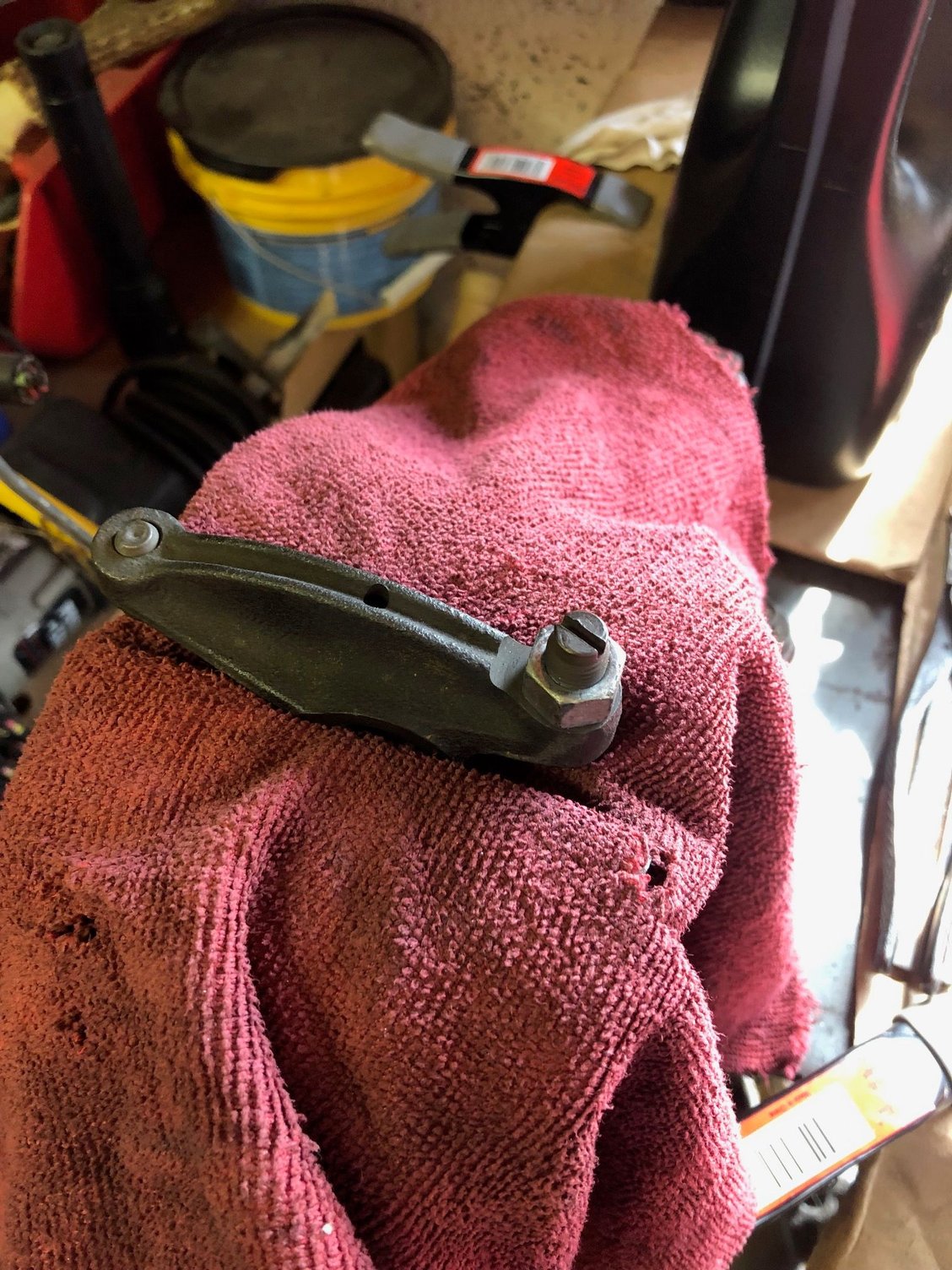

Adjusters were very tight. About halfway through, I got smart and hit it (lightly) with an impact to get them loose.
Fully disassembled
Most of them looked like this
Fully back together and lubed up
Outside prior to cleaning
Inside of outer part, dirty
Cooler core filthy
Ready for installation. This is the package that all goes together
Bolt that holds the spring and plunger
Plunger
Spring that hold the plunger down
Inner gasket with flimsy rubber
Package installed with bolts started
Fully installed and torqued
1. All 26 to 66 foot pounds
2. Recheck all 26 to 66 foot pounds
3. Long bolts that go through the rocker pedestals only to 89 foot pounds
4. All 26 turn 90 degrees
5. Overcheck all 26 to 102 foot pounds. If one is loose, loosen completely and retorque using the sequence.
6. Torque the rocker pedestal bolts to 18 foot pounds
After that, it was valve adjustment time. There's a chart in the manual, but essentially, place the motor at TDC compression (timing pin engages), adjust certain ones, them rotate 1 full turn, adjust the others. Intake is 0.010 and exhaust is .020. Simple enough. They'll get adjusted again after I do a retorque on the head, and again after the first run.
Overall a great weekend in the garage, weather was pretty nice, and now I have basically a built engine!! I have issues with my injection pump that I'm dealing with, but I'll leave that for another day. On the the Pictures!!!!
Main seal with driver
This is not the correct orientation
Partially installed
Housing and gasket
Seal fully installed
Almost all the way in
