My 2020 F350 had the trailer assist and there is a dual pirt in the bed. 7wY and 12 pin. I ordered the TPMS KIT LC3Z-1A189-E. It arrived and included the RV camera as well. The link above lists parts that begin with H. Will the kit I ordered work?
there is a a lot of discussion and details on this in the thread:
New for 2020 SD 5th Wheel Trailer, Aux Camera, and TPMS Connectors inside bed
I am starting this new thread with a more specific title to see if anyone has received the correct cable for the system.
If you ordered a truck with 5th wheel or gooseneck prep and the Ultimate Trailer Tow Camera System w/ Pro Trailer Backup Assist Package, you should have received a package in the back seat with a cable harness that plugs into the 12-pin connector in the truck bed and a backup/yaw sensor module to mount on your trailer.
If you also ordered the customer placed Trailer Camera and/or the trailer TPMS system you may have received another package with the camera, TPMS sensors & receiver module and a cable harness with another 12-pin connector that plugs into the same connector in the truck bed. Some of use have had to go back to the dealer for this and then we received the kit for the 2017-19 trucks that doesn't accommodate the backup sensor. The problem is that you cannot plug in both the backup sensor and the camera/TPMS system at the same time. There needs to be a new cable harness for the 2020 models that has 3 connectors on the trailer end.
Has anyone received the correct cable and if so, what is the part number?
Our dealers are not having much luck with this.
I just took delivery of my truck on Saturday. I have Just come to the realization that this is an issue. I certainly hope ford has a resolve to this Otherwise I would not have bought the camera back up system.
Question. Can you plug one into the bumper plug and the other into the box bed plug and it will work???
My Camera TPMS system is on back order. so I cannot try it.
I recieved the correct cable.If you look back in this thread it is also explained how to combine the yaw sensor/backup camera.As there combined in new cable ,not all 12 pins are used truckside
I currently do not have the Ultimate Trailer Tow Package on my 2020 F-350 truck. Is it possible for me to add the Trailer TPMS kit only (not the camera)? Part number is LC3Z-1A189-E. All the threads talk about trucks with UTT. I do have forscan if it would help get the 4 TPMS integrated on the dash. TIA.
I have the 5th wheel package and the UTT option on my 2021 F350 and it came with the Yaw Sensor. I'm planning on getting the Aux Camera with TPMS and I was wondering how to use them both (I assumed I could).
Based on the number of posts in this thread I've got a lot of reading (reading up - most recent to oldest) to see what's what. I wonder if anyone at the dealership even knows this. Any additional info on this is welcome.
SSM 48602 - 2020 F-Super Duty - Incorrect Or Missing Factory Invoiced Accessory (FIA) Trailer Camera Tire Pressure Monitoring System (TPMS) Kits Some 2020 F-Super Duty vehicles were shipped with incorrect FIA trailer camera/TPMS kits and some vehicles ordered with the Trailer TPMS only kit did not ship with the kit.
The only accessory trailer kit which can be used on 2020 vehicles is the Trailer Camera only kit HC3J-1A515-CC. Do not attempt to install kits (HC3J-1A515-AC or BC) with trailer TPMS. Vehicles equipped with fifth wheel prep pack and Pro Trailer Backup Assist should install the provided trailer yaw sensor kit 14G551 and plug the yaw sensor wiring into the 12-way bed connector.
The trailer camera only kit that shipped with the vehicle can be installed as it connects to the bumper mounted 7/12 trailer connector provided. Follow Super Duty Owners Manual Park Aid section to display trailer Auxiliary Camera view. Trailer TPMS only kit is still unavailable. Monitor OASIS for updates.
The kit also includes a 7 and 12 way connector to replace the 7 and 4 way in the bumper. Along with a 7 to 4 way adapter plug.
My 2020 came with 5th wheel prep and PTBA and had the yaw cable kit. I ordered the trailer camera and trailer TPMS kit. Does the post above mean it wont work?

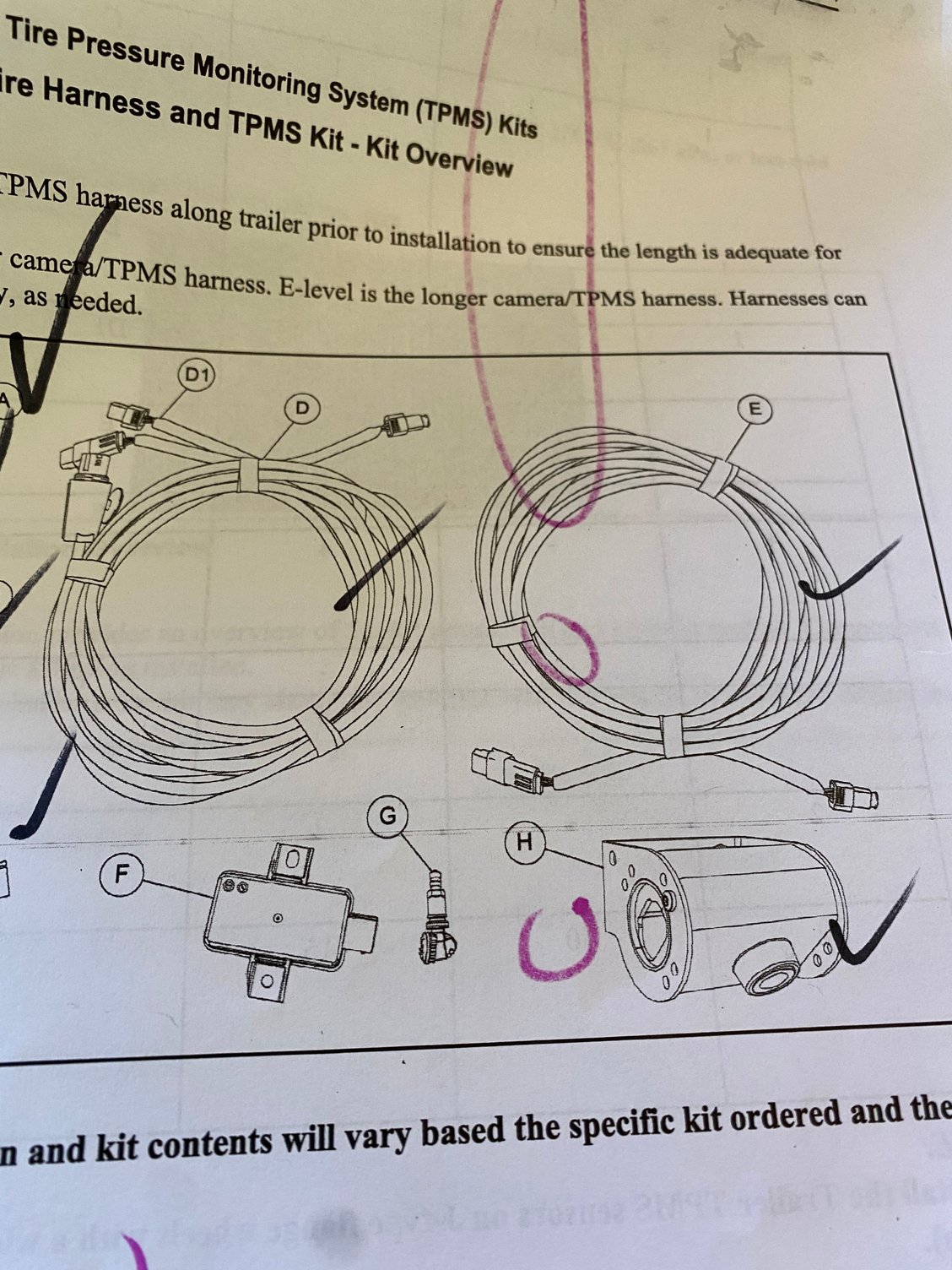

Got my trailer camera (just camera option) was not in the truck upon delivery nor did it show up in the parts department. Ford rep asked my dealer to check with me to make sure it was not in the glove box and I somehow missed it. Ford send the camera to the dealer, I laughed, the box was the size of a case of beer (bottles). Camera is plug and play except the harness off the truck is 3” short... reaching out to the dealer for a fix. Also there is a cover on one of the two enclosed harnesses that needs to be removed right out of the box.... see photo for the cover... this will inhibit harness D from attaching harness E (parts D and E per Ford directions)
Ford parts guy here. Was a bear to find the 7/12 connector for a customer and came here to post it to make the next guys life easier, this is everything that comes in a camera kit LC3Z.1A189.A.
The HU5Z.14489.B is the 7/12 pin connector.
E7US9N934AA STRP - ENG A/CLNR
HC3J19H391CB KIT CMR
HC3Z 1A189 D SNS ASY TIR PRESS
HC3Z 1548 B MOD ASY TIR PRESS MNTR
HU5T14A541AB BRKT ASY WIR CONN
HU5Z 14489 B SLV ASY WIR CONN MLE
KC3Z 14B242 B WIR ASY MN EXT
MC3Z 14B242 B WIR ASY MN EXT
ML3Z 14489 A ADPT ASY TRLR LP WIR
SKLC3J1A515AB KIT SNS TRLR TIR PRESS MNTR
W505252 S439 SCREW M6X14 HF 010
8U5Z 14A163 E RET WIR HRNS TIE STRP
Ford parts guy here. Was a bear to find the 7/12 connector for a customer and came here to post it to make the next guys life easier, this is everything that comes in a camera kit LC3Z.1A189.A.
The HU5Z.14489.B is the 7/12 pin connector.
Ford parts guy here. Was a bear to find the 7/12 connector for a customer and came here to post it to make the next guys life easier, this is everything that comes in a camera kit LC3Z.1A189.A.
The HU5Z.14489.B is the 7/12 pin connector.
E7US9N934AA STRP - ENG A/CLNR
HC3J19H391CB KIT CMR
HC3Z 1A189 D SNS ASY TIR PRESS
HC3Z 1548 B MOD ASY TIR PRESS MNTR
HU5T14A541AB BRKT ASY WIR CONN
HU5Z 14489 B SLV ASY WIR CONN MLE
KC3Z 14B242 B WIR ASY MN EXT
MC3Z 14B242 B WIR ASY MN EXT
ML3Z 14489 A ADPT ASY TRLR LP WIR
SKLC3J1A515AB KIT SNS TRLR TIR PRESS MNTR
W505252 S439 SCREW M6X14 HF 010
8U5Z 14A163 E RET WIR HRNS TIE STRP

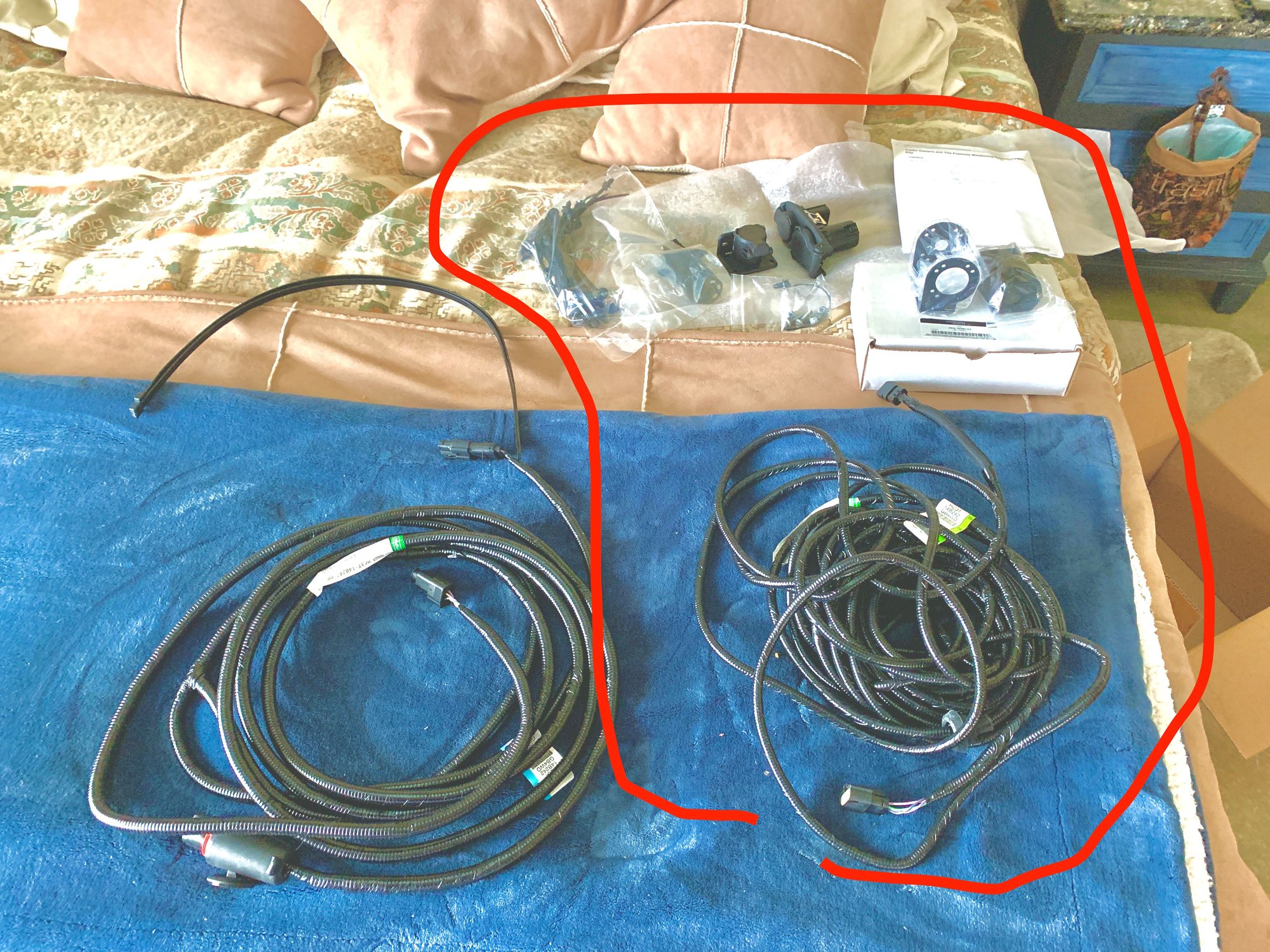

I also received a longer cable, not sure why, did not need it nor did I pay for it....gave it back to the dealer, the full camera kit is circled in Red, this kit does not have the TPMS, that is a different kit.
That longer cable is for the trailer. It connects to the 12-pin connector on the truck. Two connectors on the other end are for the TPMS receiver that mounts on the trailer and the trailer mounted camera.
I sold my 2020 Ford F-350 and just found the box for my trailer camera which also had my yaw sensor in it. It's currently for sale in the marketplace with pictures at the link below.
