Intercooler installation
Picked up a 99-03 7.3l psd aluminum intercooler of eBay for 150 shipped,
On my 91 7.3l I have the ats 093 turbo kit....there is no way to make the snail hat work without having pipes crossing all over the place....so I puchased one of the intakes racinndrummin makes for the idis (very good price BTW) here is a pic of that

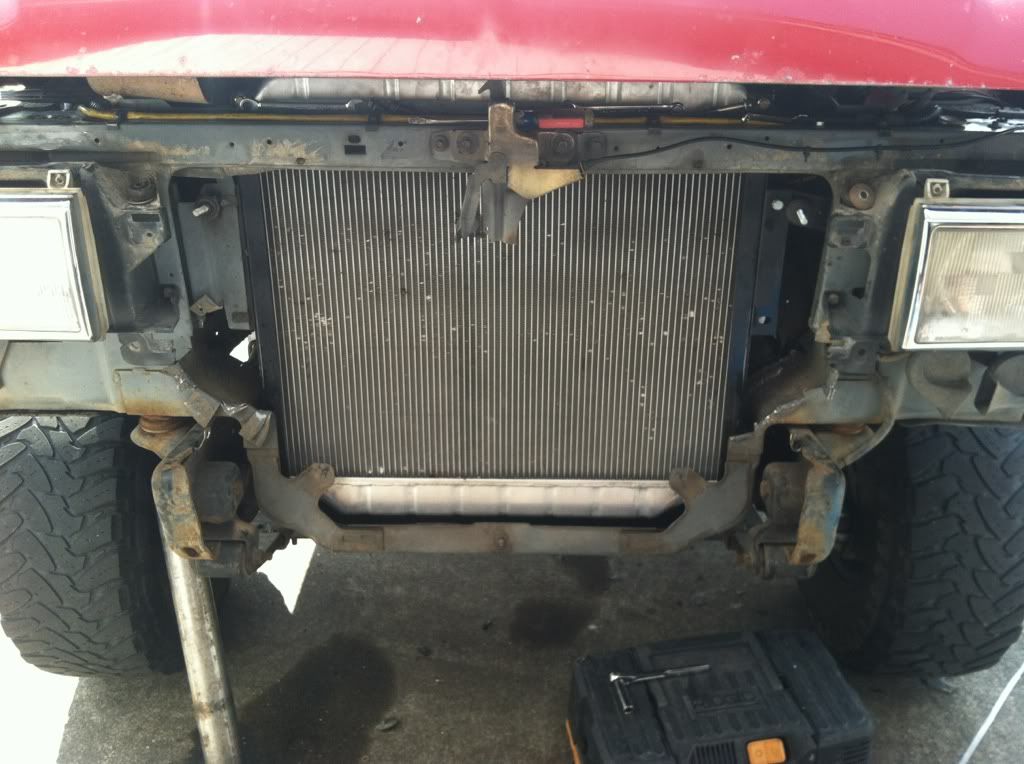

To make the IC fit I had to cut the center core support/trim out, trim part of the grille mounts, cut/bend the bottom corners near the radiator, cut a little bit of the fan should away untill I could make it happy.

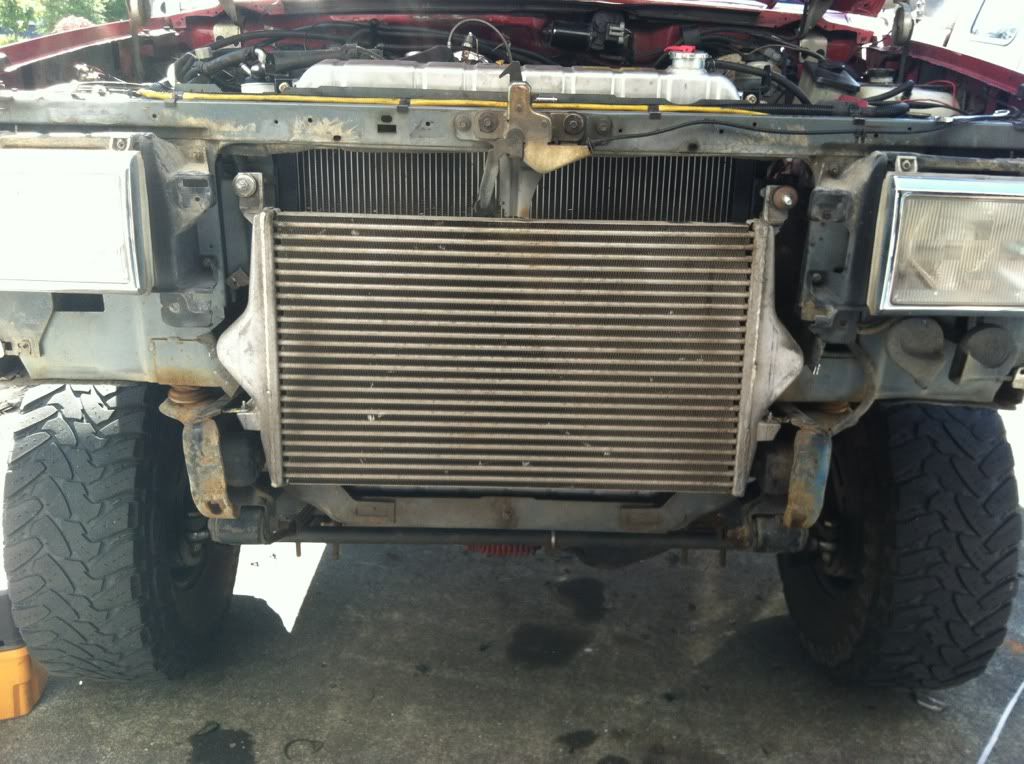

I mounted it by welding studs up top with bushings and nuts, then welded tabs on the frame down low and screwed that to lower IC mount.

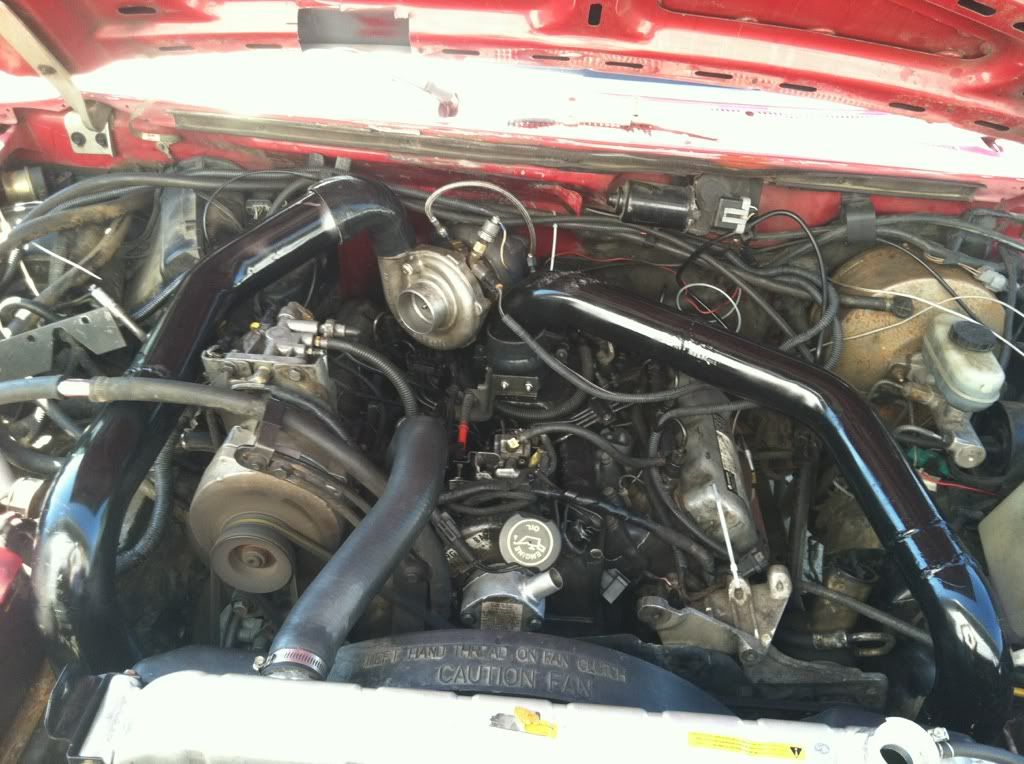

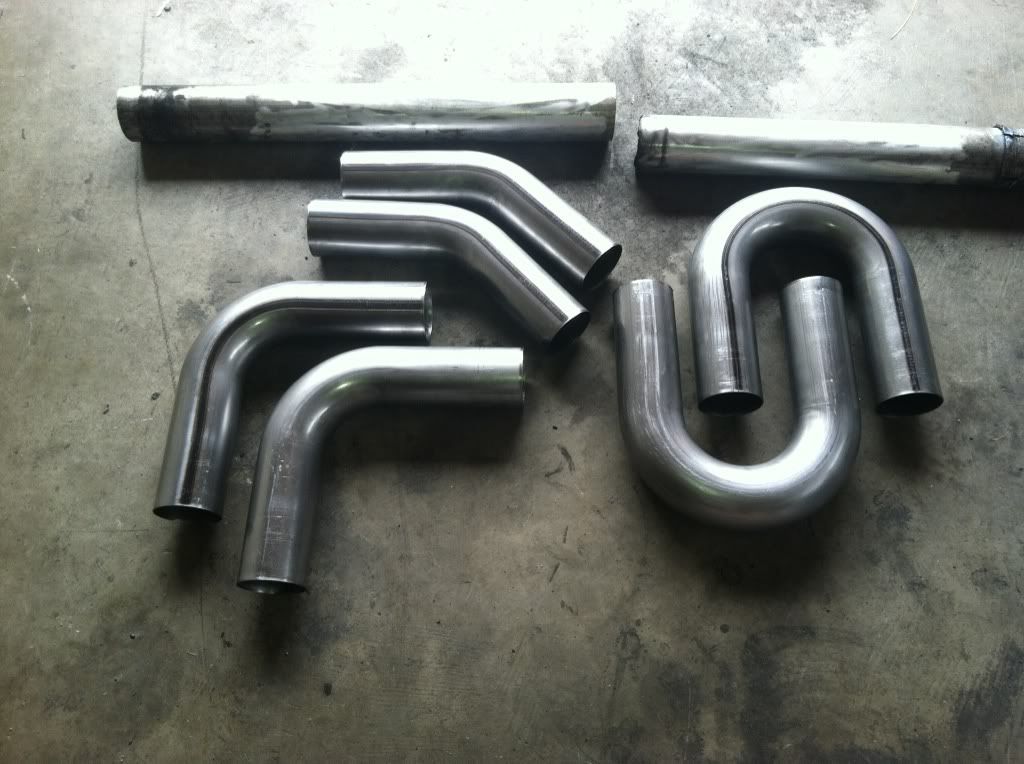

For the piping I clocked the turbo, and ordered the 3" builder kit from Columbia mandrel bends. Went to silicone intakes online and got a 2"-3" 90* boot, two 3.5"-3" reducers and a 3"-3" boot.
Had to trim part of my hood to make turbo boot clear. Still need to put 2nd layer of paint on pipes, make a new coolant filter bracket, and a new intake tube.
Haven't been able to drive it yet but I will post boost/egt/mpg results when I can
On my 91 7.3l I have the ats 093 turbo kit....there is no way to make the snail hat work without having pipes crossing all over the place....so I puchased one of the intakes racinndrummin makes for the idis (very good price BTW) here is a pic of that
To make the IC fit I had to cut the center core support/trim out, trim part of the grille mounts, cut/bend the bottom corners near the radiator, cut a little bit of the fan should away untill I could make it happy.
I mounted it by welding studs up top with bushings and nuts, then welded tabs on the frame down low and screwed that to lower IC mount.
For the piping I clocked the turbo, and ordered the 3" builder kit from Columbia mandrel bends. Went to silicone intakes online and got a 2"-3" 90* boot, two 3.5"-3" reducers and a 3"-3" boot.
Had to trim part of my hood to make turbo boot clear. Still need to put 2nd layer of paint on pipes, make a new coolant filter bracket, and a new intake tube.
Haven't been able to drive it yet but I will post boost/egt/mpg results when I can
