So the ignition lock cylinder in my truck has worn to the point where I can turn it on the first attempt maybe one in ten times. rather than replace only that and have to carry 2 different keys, I decided to replace all the lock cylinders on the truck. is one of the few I have found that has enough locks to replace the ignition, doors and tailgate locks. Time to get to work.

Phase 1: Remove the door card

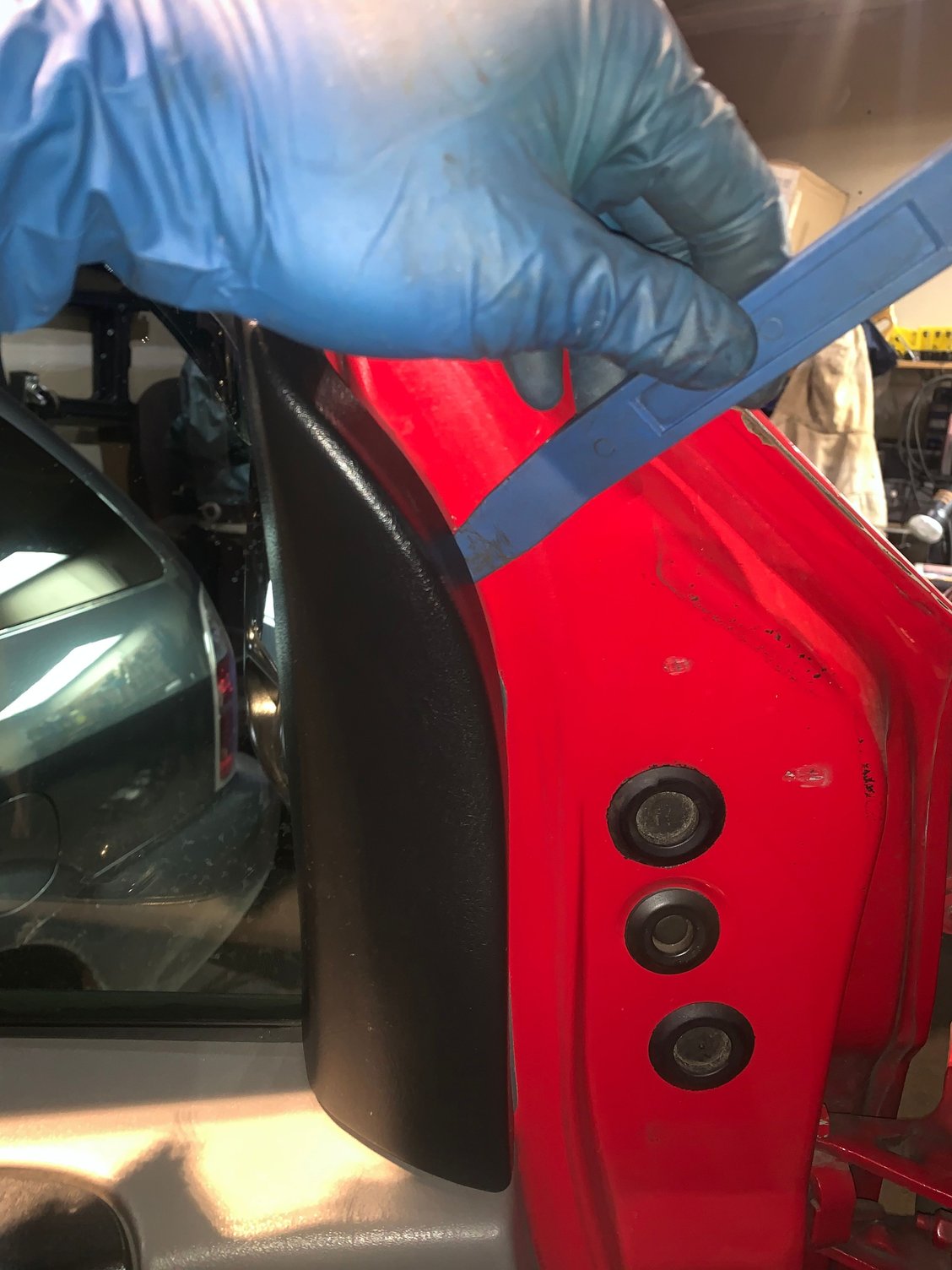

Step 1a: Pop the quarter light trim piece off.

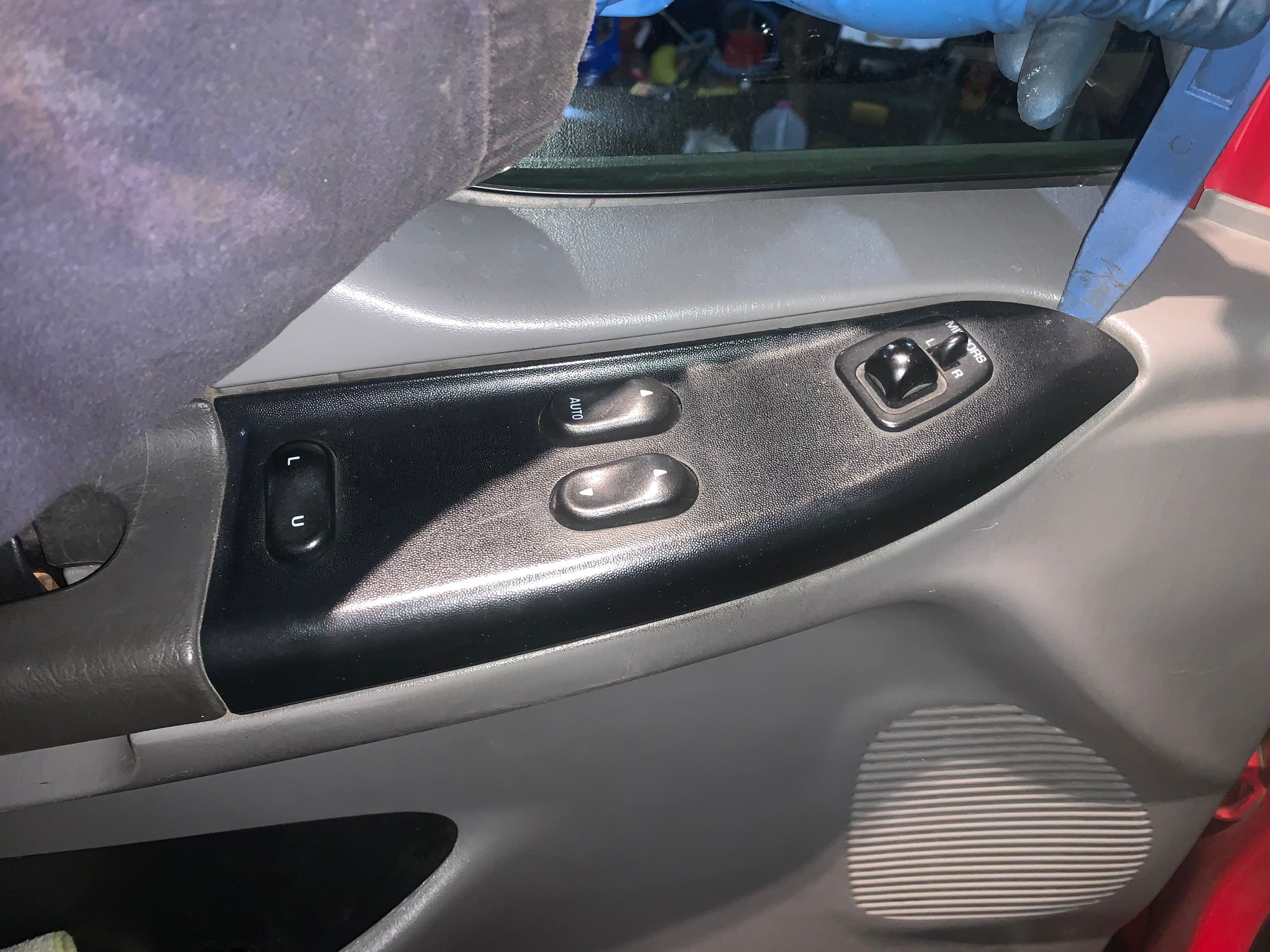

Step 1b: Pop the switch panel off

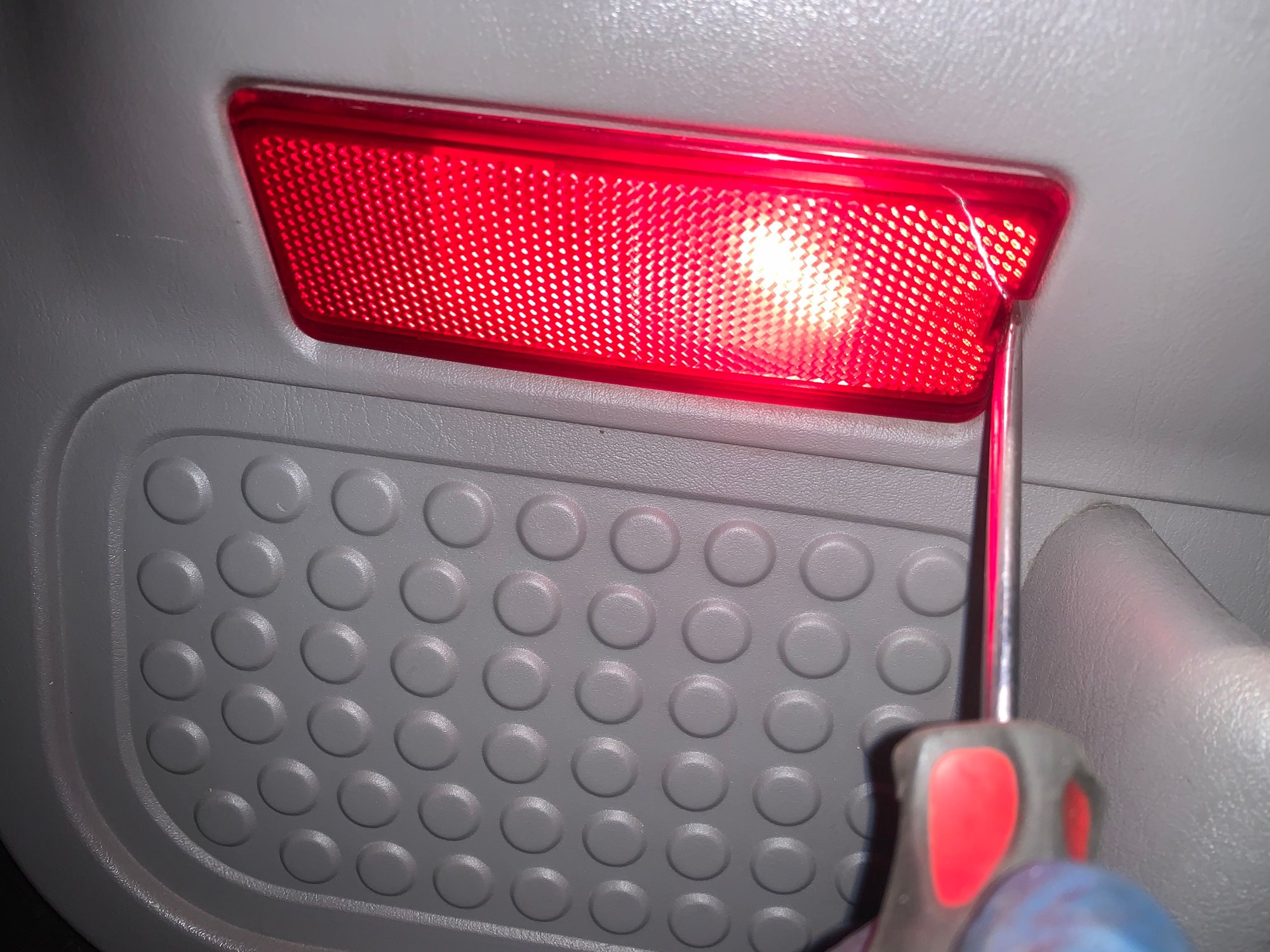

Step 1c: Pop the courtesy light cover off


Step 1d: Remove the two bolts. 7mm socket required.



Step 1e: Lift door card up and away from the door a little, unlock courtesy light from door card and set door card aside.



Phase 2: Remove obstructions to removing the lock cylinder. I opted to replace the lock without removing the handle from the door. This was because the thought of snapping open a 20-yo plastic clasp in 20 degree weather to release the latch operating rod did not sit well with me.

Step 2a: Remove bottom corner panel clips and peel door liner back.

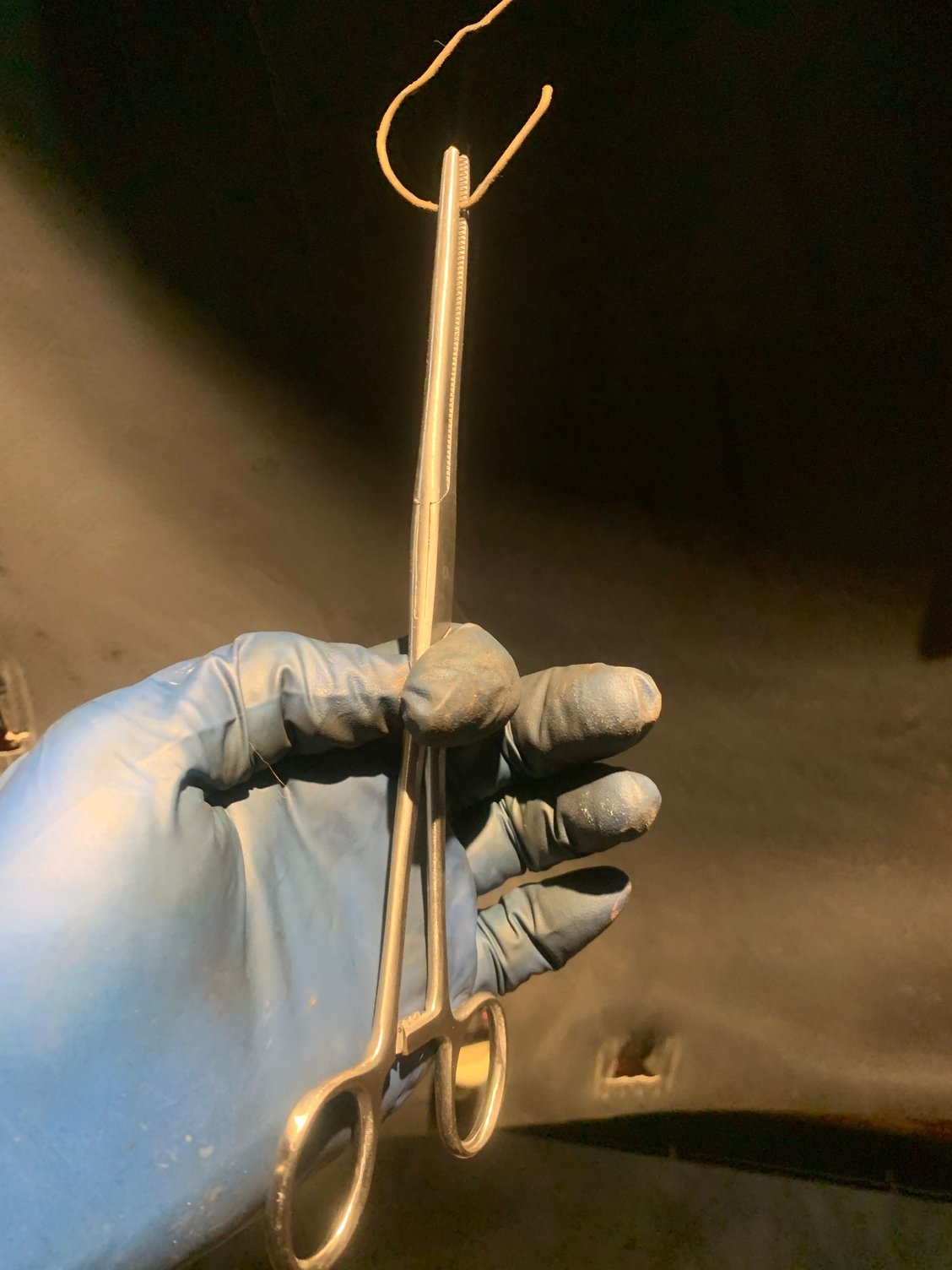

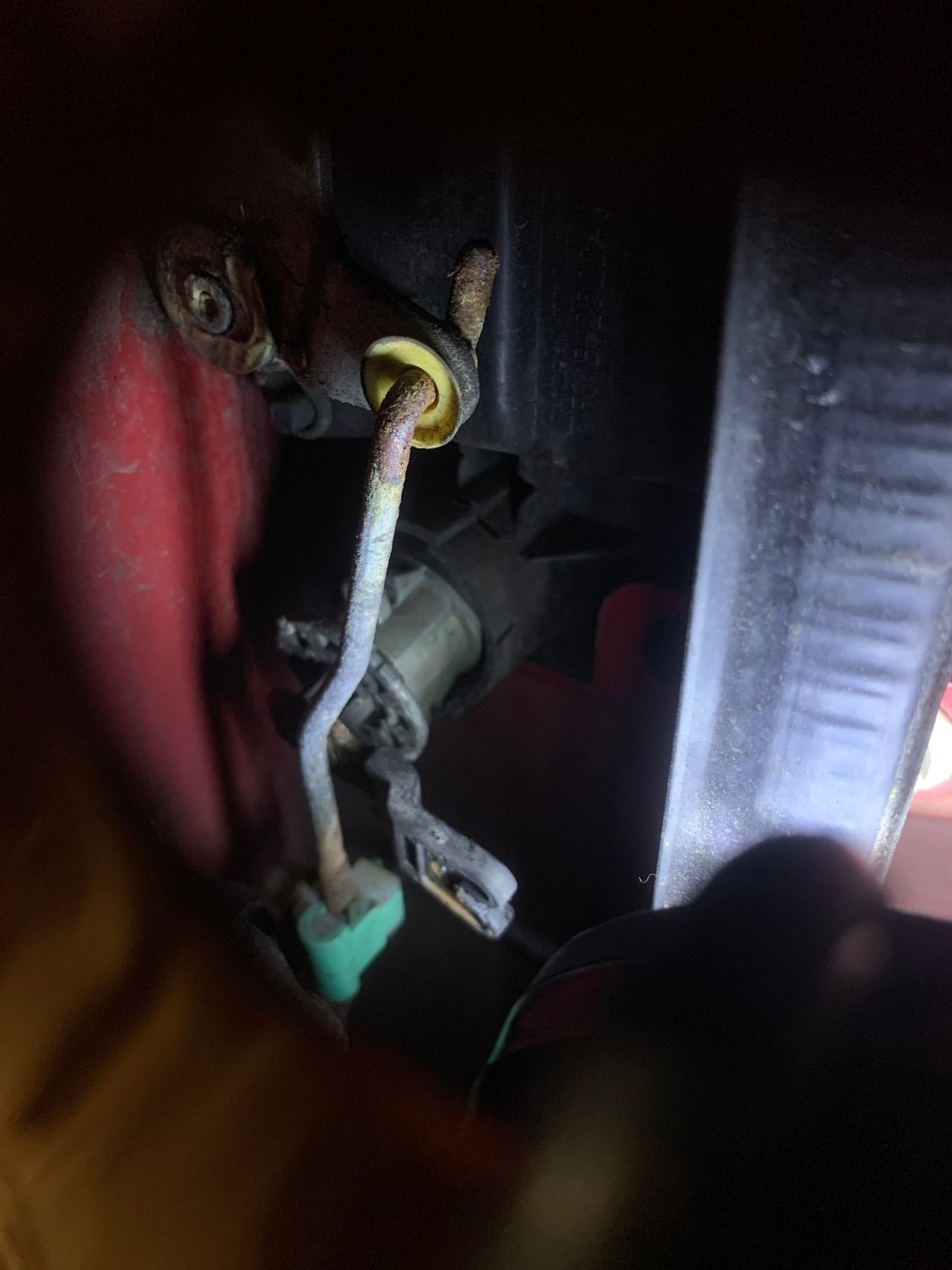

Step 2b: Release the lock operating rod. Snap ring spreading pliers are ideal for this.

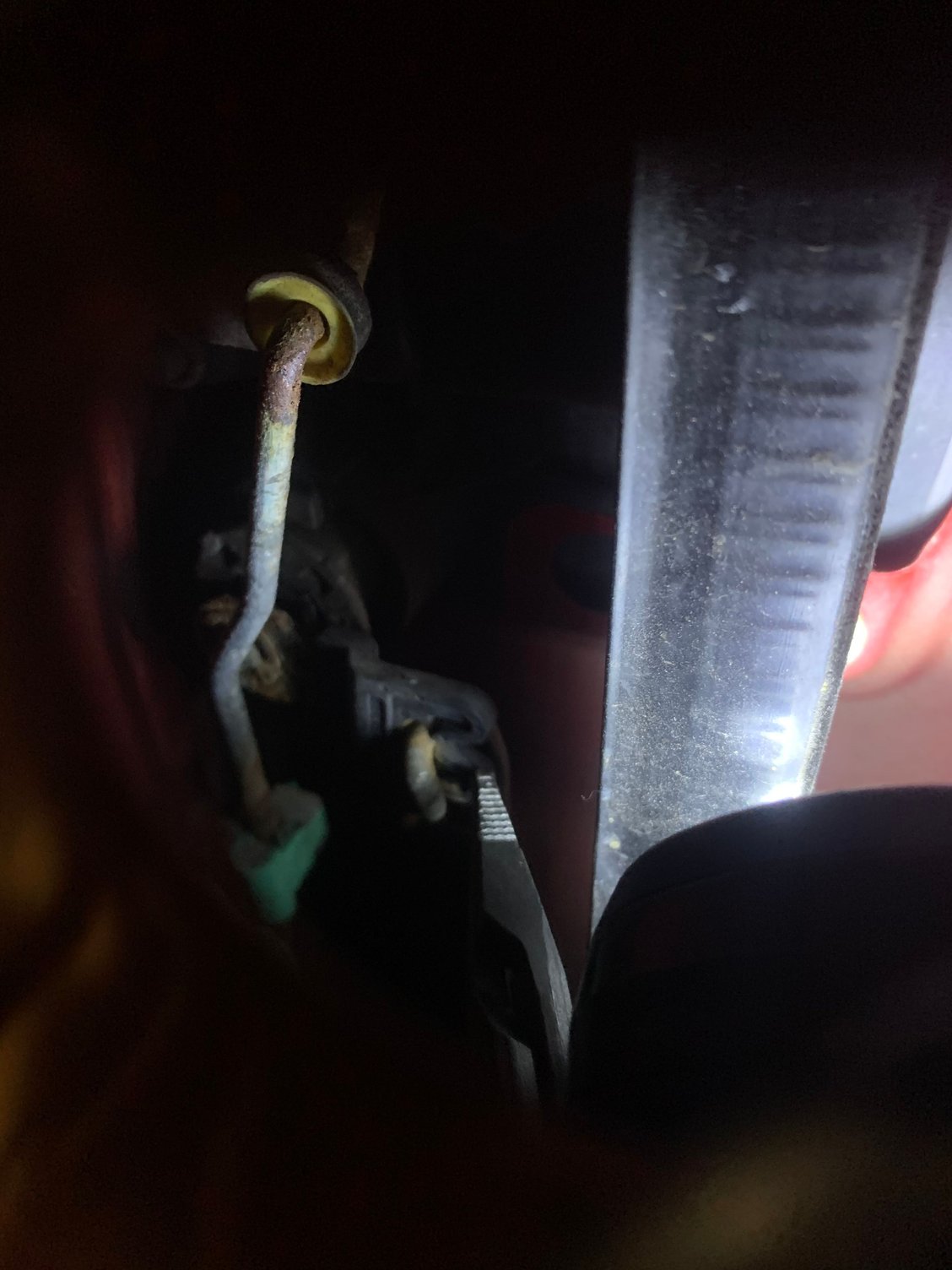

Step 2c: Remove latch mechanism screws. This is to allow the latch operating rod to move far away enough to allow the lock cylinder to slide out.



Phase 3: R&R the lock cylinder

Step 3a: Remove lock cylinder retaining spring clip. You will come to loathe this spring clip greatly.


Step 3b: Slide old lock cylinder out.


Step 3c: Use silicone grease to "glue" the new rubber seal in place in the cavity.



Step 3d: Using the new lock cylinder, reassemble everything in reverse order of disassembly. Enjoy your easier turning new locks.
