Well a update pertaining to the step forward and two steps back that Ive made since my last update.

First off I got all my parts for the bottom bracket and got them installed yesterday. Found out the crank on the right side hits the chain stay in the back while the left side has about 1/8" or so of clearance. I bought another crank at $21 with shipping and it is supposed to have 5" between the two arms but eyeballing what I have mine looks closer to 6 inches between. With how close it is I am contemplating of locating some spacers to shim the crank out towards the right side and cut the difference so each side has roughly the same clearance on the chain stays.

Second I received the aluminum cap that looks like a old vintage fuel can cap. Down side it has no gasket which up side is I can make the gasket no problem. Another down side is it doesn't thread down far enough to touch the gasket surface anyways. I think I will have to smear some grease on the threads and slowly work it back and forth till I clean or stretch the threads out so it will fit against the gasket surface.

Third I don't remember if I covered it but I lowered my front end by raising the spring perch with 35mm worth of spacers and installing a low profile stem over my VO high rise.

Fourth I have some vintage looking pedals but haven't installed them yet till I decide what to do with my crank issue. If I opt out and just invest in a 1 piece to 3 piece crank conversion I have to send them back as they are the vintage 1/2" thread where as the 3 piece cranks use 9/16" thread pedals.

Aside from that not much has been done. So far I have a pair of Avid BB7 MTN brake calipers coming in at a cost of $70 after shipping. I have a double pull brake handle coming from Amazon for $10. I also have from amazon for another $10 coming in some Velo brand leather sewn grips to put on bike. Down side is I have no choice in the light brown leather or the dark brown its a luck of the draw so I cant buy my leather seat yet till I see what color the grips are.

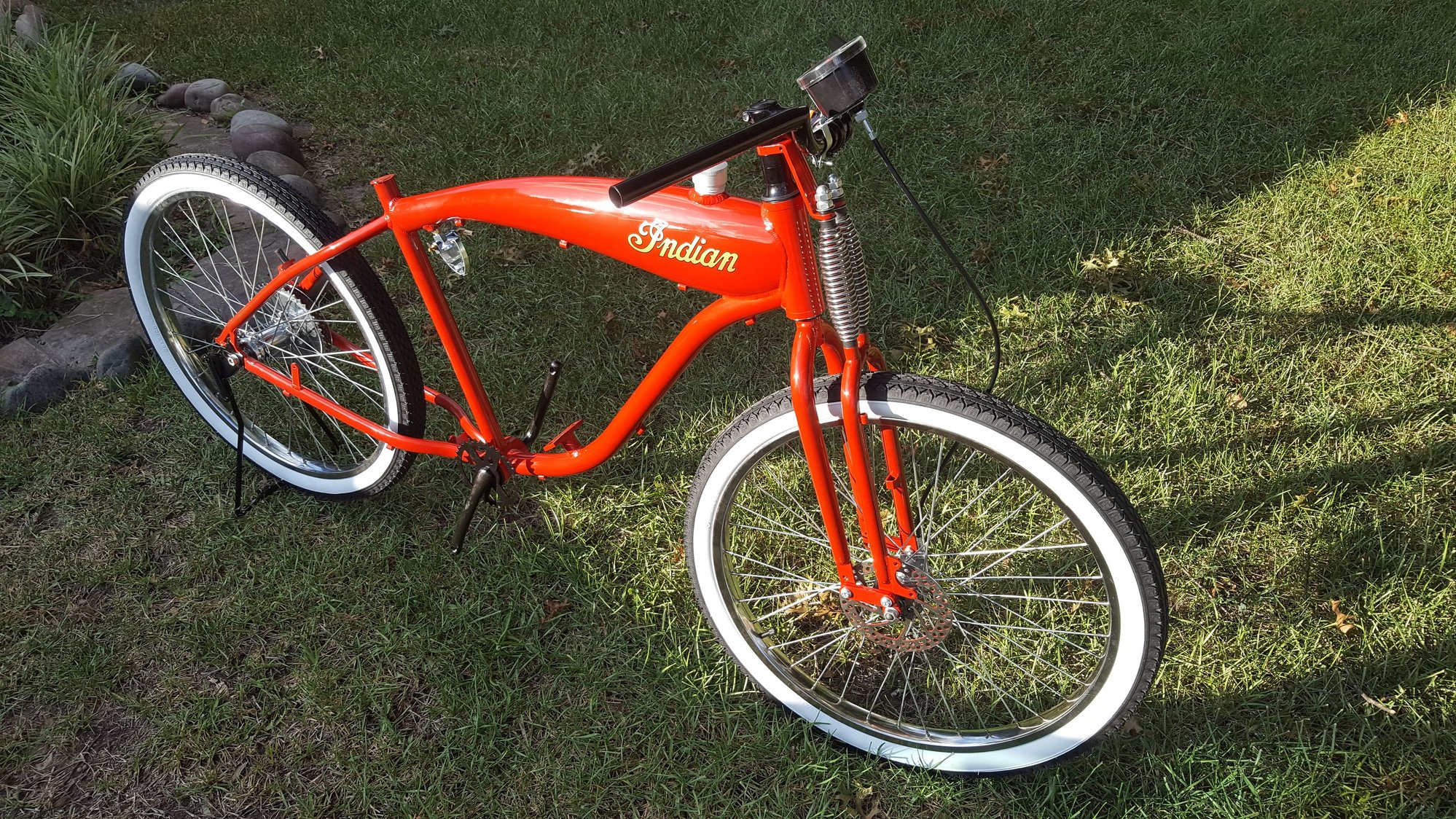

These first few pics are over all photos of how the bike looks as of now.










Right side interference between crank arm and chain stay.



Left side clearance between crank arm and chain stay.



modified drop stand mount to fit better. Also modified to allow wheel to slide forward to forward most position.

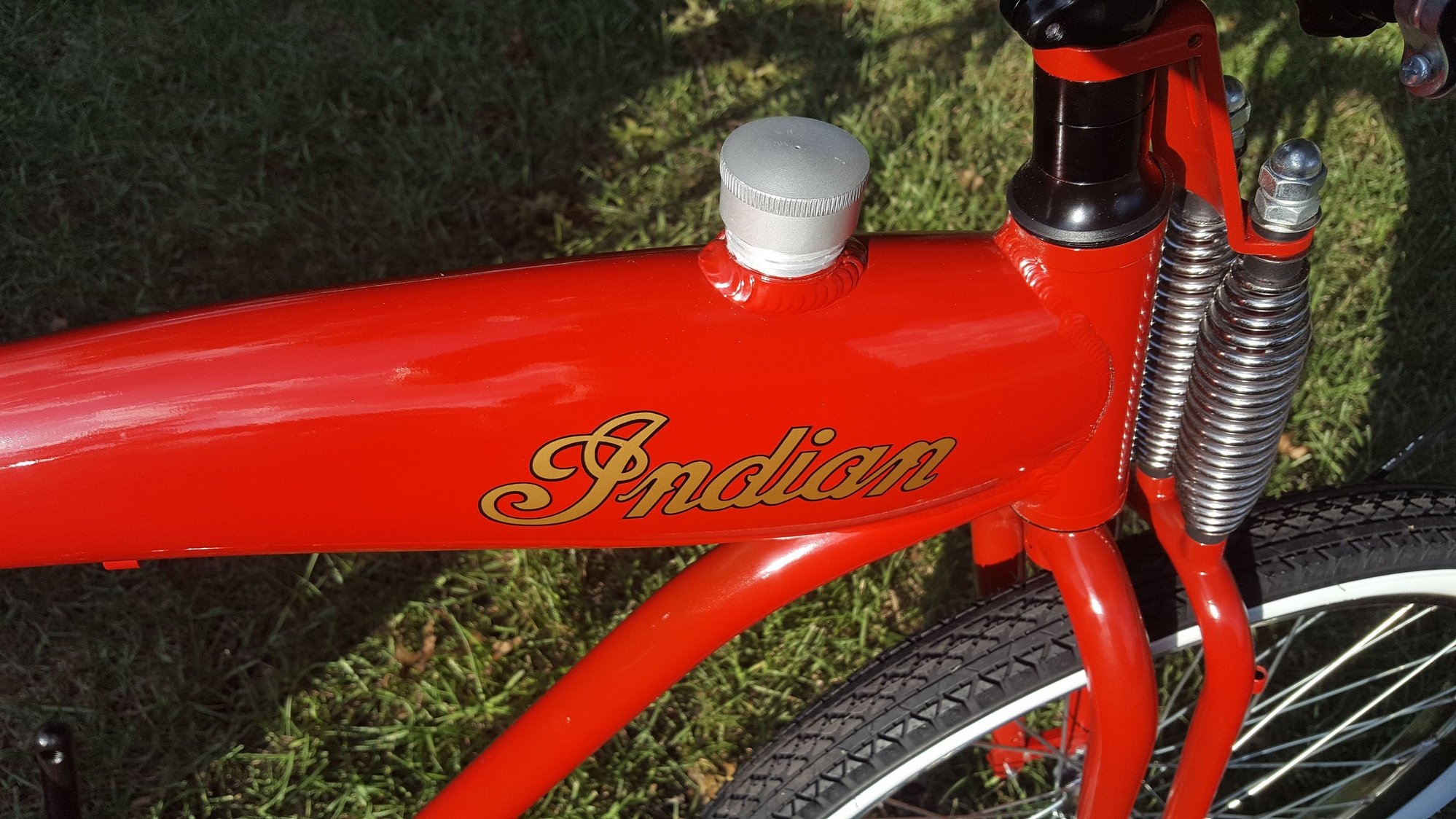

New fuel cap partially screwed down.
