Rare?
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Rare?
Hello all. Have trolled this site for quite some time based on my '66 F100 6cyl 'farm truck'.
Bought about a month ago in great basic shape (for me) and have been working on ever since.

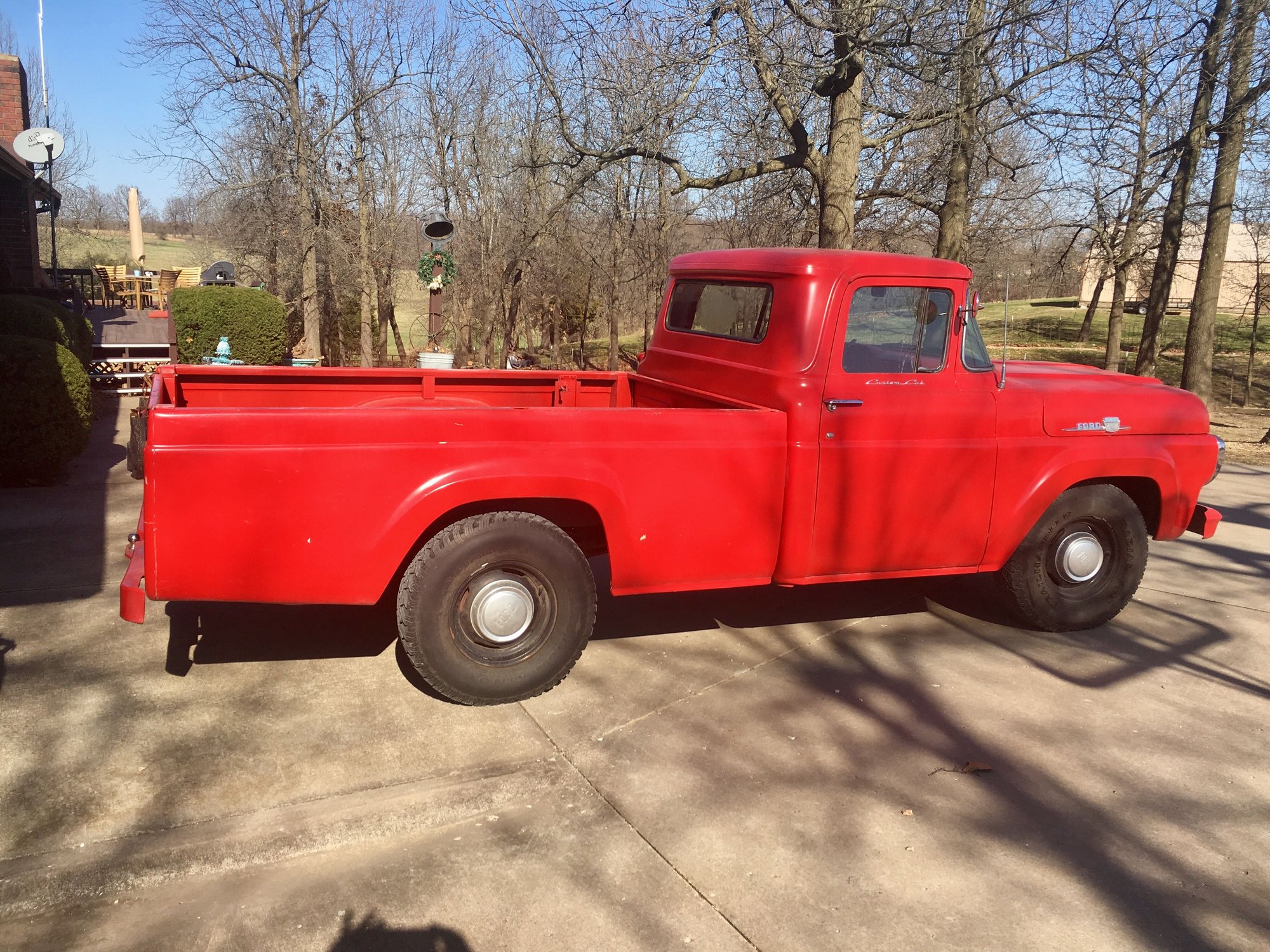

It's a '59 F250 2wd 292 with Factory cruise-o-matic (D2/D1/low) and power steering. All original.
Been trying to educate myself on this vehicle, but have not seen another example. Is this rare? Seems common sense this particular vehicle would have been marketed as a work truck - was surprised to see the automatic.
Any help/comment/feedback Appreciated!
P
Bought about a month ago in great basic shape (for me) and have been working on ever since.
It's a '59 F250 2wd 292 with Factory cruise-o-matic (D2/D1/low) and power steering. All original.
Been trying to educate myself on this vehicle, but have not seen another example. Is this rare? Seems common sense this particular vehicle would have been marketed as a work truck - was surprised to see the automatic.
Any help/comment/feedback Appreciated!
P
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Hello all. Have trolled this site for quite some time based on my '66 F100 6cyl 'farm truck'.
Bought about a month ago in great basic shape (for me) and have been working on ever since.
It's a '59 F250 2wd 292 with Factory cruise-o-matic (D2/D1/low) and power steering. All original.
Been trying to educate myself on this vehicle, but have not seen another example. Is this rare? Seems common sense this particular vehicle would have been marketed as a work truck - was surprised to see the automatic.
Any help/comment/feedback Appreciated!
P
Bought about a month ago in great basic shape (for me) and have been working on ever since.
It's a '59 F250 2wd 292 with Factory cruise-o-matic (D2/D1/low) and power steering. All original.
Been trying to educate myself on this vehicle, but have not seen another example. Is this rare? Seems common sense this particular vehicle would have been marketed as a work truck - was surprised to see the automatic.
Any help/comment/feedback Appreciated!
P
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Working on it just good clean dirty Fun!
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Trending Topics
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
Originally Posted by Pobo

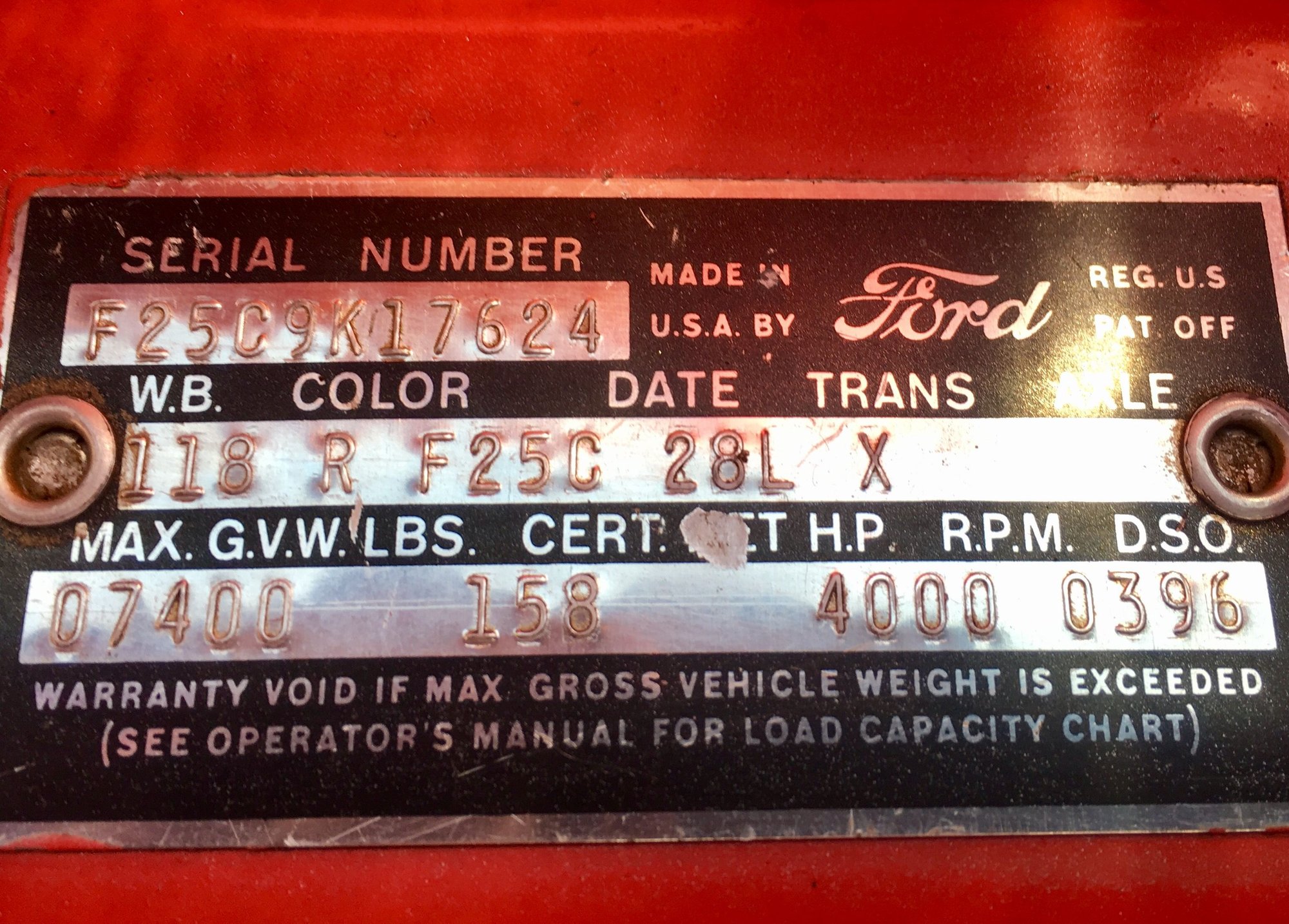

F25C9K17624 / WB: 118 / COLOR: R / MODEL: F25C / DATE: 28L / TRANS: X / AXLE: Blank (DSO)* / MAX GVW LBS: 07400 / CERT NET HP: 158 / RPM: 4000 / DSO: 0396
C = 292 2V
9 = 1959.
K = Kansas City MO Assembly Plant.
17624 = 1959 Numerical Sequence of Assembly, the trucks specific serial number.
118" Wheelbase.
R = The book I use to decode colors is presently in storage, will not be available until 4-21-2017.
F250 2WD .. 7,400 lbs. GVWR
28L = Assembled November (L) 28, 1958.
X = Ford-O-Matic 3 Speed A/T
Rear axle: DSO (Domestic Special Order).*
7,400 lbs. Gross Vehicle Weight Rating.
158 net HP @ 4,000 RPM
*When the AXLE code is blank, FoMoCo installed a rear axle that was not an RPO (Regular Production Order) per the request of the original purchaser, making the truck a Domestic Special Order (not "bought off the lot").
The P/S was either dealer installed, or installed by a previous owner.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
F25 = F250.
C = 292 2V
9 = 1959.
K = Kansas City MO Assembly Plant.
17624 = 1959 Numerical Sequence of Assembly, the trucks specific serial number.
118" Wheelbase.
R = The book I use to decode colors is presently in storage, will not be available until 4-21-2017.
F250 2WD .. 7,400 lbs. GVWR
28L = Assembled November (L) 28, 1958.
X = Ford-O-Matic 3 Speed A/T
Rear axle: DSO (Domestic Special Order).*
7,400 lbs. Gross Vehicle Weight Rating.
158 net HP @ 4,000 RPM
*When the AXLE code is blank, FoMoCo installed a rear axle that was not an RPO (Regular Production Order) per the request of the original purchaser, making the truck a Domestic Special Order (not "bought off the lot").
The P/S was either dealer installed, or installed by a previous owner.
C = 292 2V
9 = 1959.
K = Kansas City MO Assembly Plant.
17624 = 1959 Numerical Sequence of Assembly, the trucks specific serial number.
118" Wheelbase.
R = The book I use to decode colors is presently in storage, will not be available until 4-21-2017.
F250 2WD .. 7,400 lbs. GVWR
28L = Assembled November (L) 28, 1958.
X = Ford-O-Matic 3 Speed A/T
Rear axle: DSO (Domestic Special Order).*
7,400 lbs. Gross Vehicle Weight Rating.
158 net HP @ 4,000 RPM
*When the AXLE code is blank, FoMoCo installed a rear axle that was not an RPO (Regular Production Order) per the request of the original purchaser, making the truck a Domestic Special Order (not "bought off the lot").
The P/S was either dealer installed, or installed by a previous owner.
Thank You! ND Great Information! Is there a way to differentiate between the transmissions, or a good reference source? This one functions as the selector shows. Low is only low; D1 goes from 1-3; D2 goes from 2-3. Cool to know a Dealer did that level of options (p/s). Any way to tell either way? Steering wheel could gave been changed out by an owner I guess - good attention to detail if so! Thanks Again!
Post Fiend
Joined: Jun 2003
Posts: 8,209
Likes: 12
From: Black Hills of SD
Interesting. I've never heard of power steering but that horn ring is pretty compelling. Do you have a picture of the whole steering wheel? Also interesting is the oil filter canister. I don't recall ever seeing one of those, maybe part of the power steering if there wasn't room for an oil filter on the block.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Interesting. I've never heard of power steering but that horn ring is pretty compelling. Do you have a picture of the whole steering wheel? Also interesting is the oil filter canister. I don't recall ever seeing one of those, maybe part of the power steering if there wasn't room for an oil filter on the block.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.

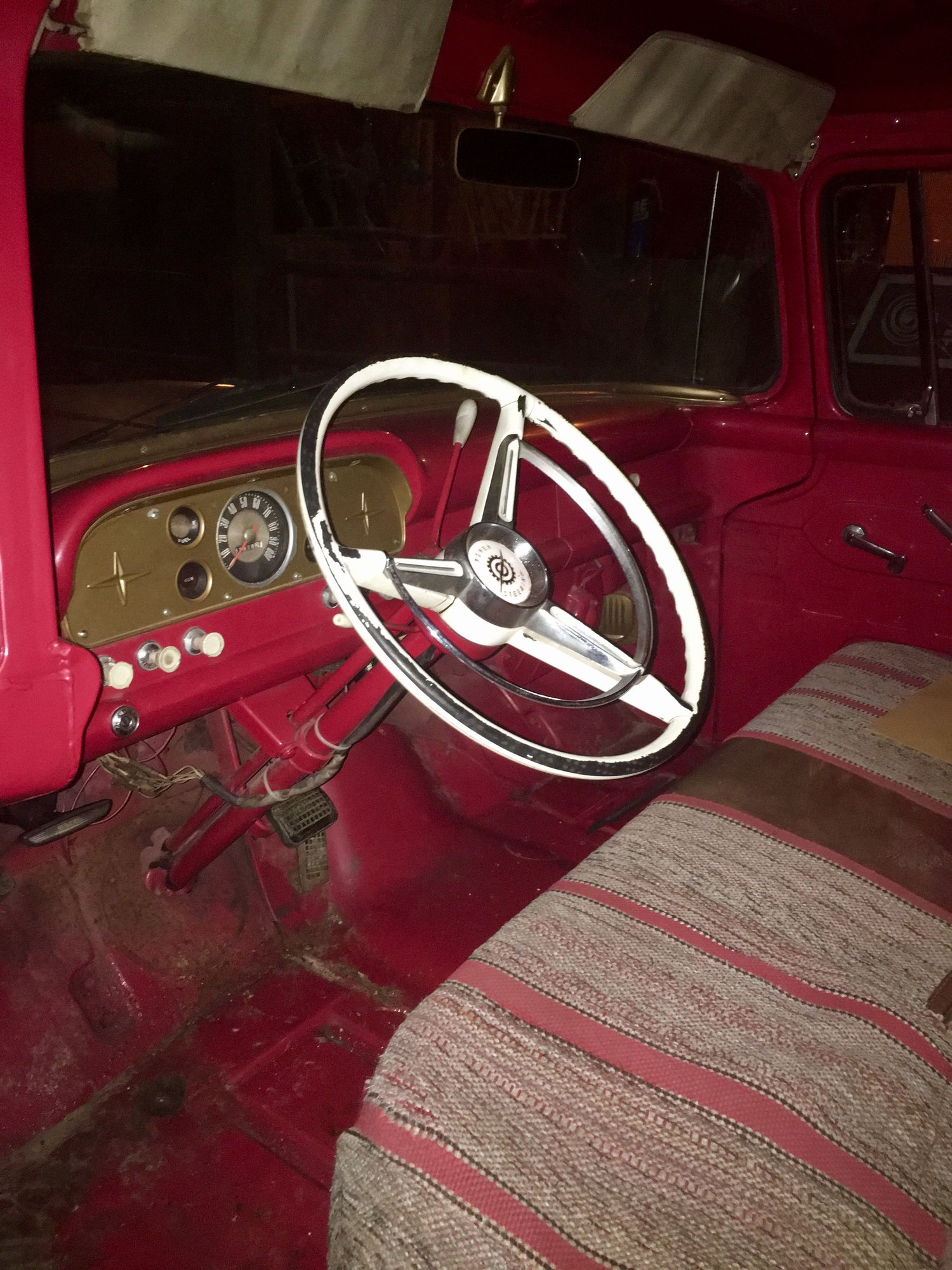

Thank You WB! Here is a picture of the whole steering wheel (pardon the seat - another battle to come). The canister is indeed the p/s fluid canister - the plumbing beneath it is on the agenda this weekend along with the water pump. Will get the steering wheel off and get that information! Appreciate the help greatly!
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
Interesting. I've never heard of power steering but that horn ring is pretty compelling. Do you have a picture of the whole steering wheel?
Also interesting is the oil filter canister.

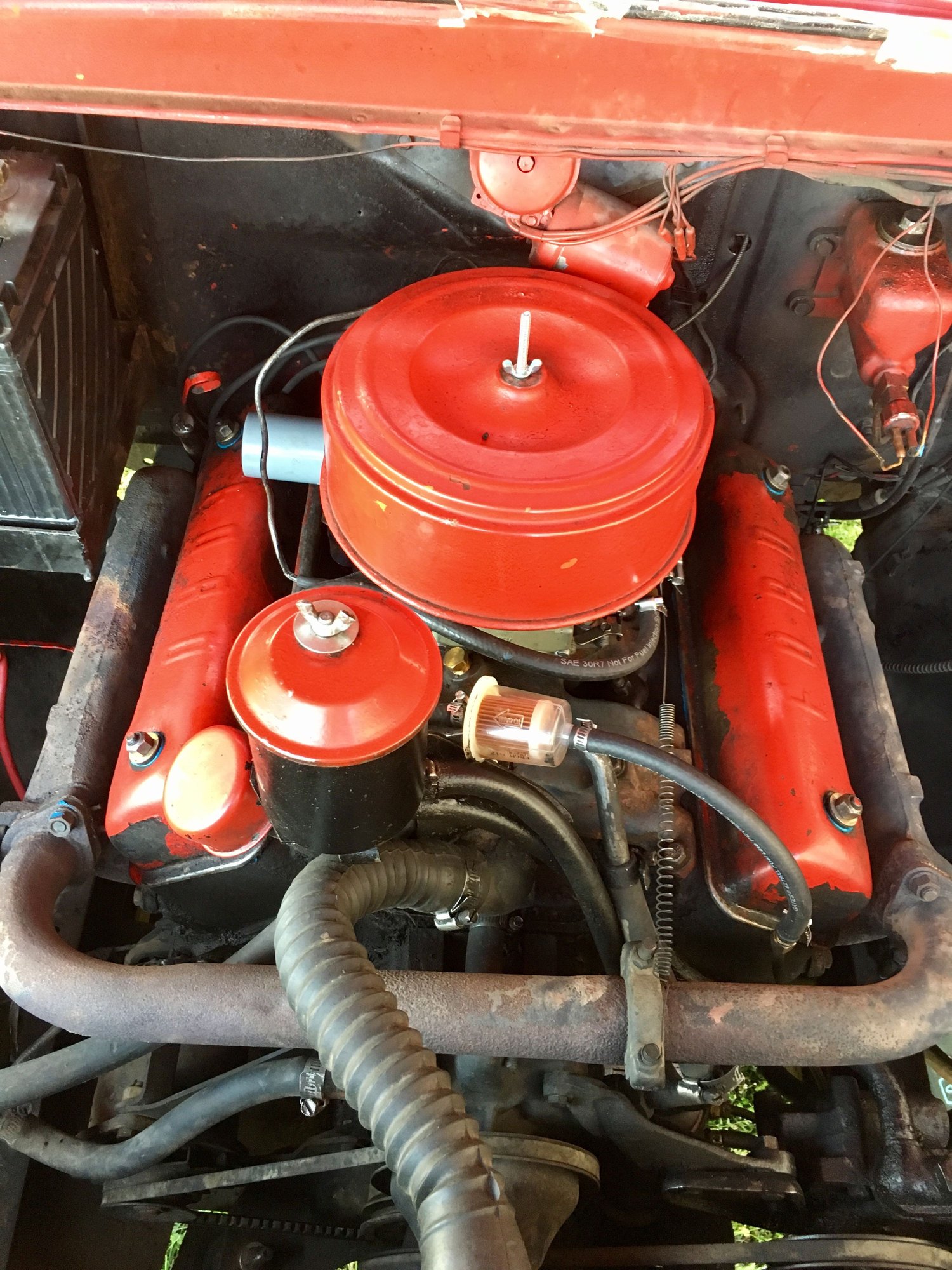

It's a remote mounted P/S pump reservoir.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.
Also interesting is the oil filter canister.
It's a remote mounted P/S pump reservoir.
I would also be curious to know the part number of the back of the horn ring and have it deciphered.
1959/60 F100/600 Custom Cab w/18" diameter steering wheel / 1959/60 C500/1100 Custom Cab & F700/1100 Custom Cab w/20" diameter steering wheel.
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Thanks again for all the Great information! Trying to do some CSI on this thing. Im in the SW Mo Ozarks. Bought it from a classic car place (DrivinDreams) not far away. Nice guy there told me he just got it in Wichita - not much other info. My neighbor/mechanic/Wiseman thinks it is not far from where it grew up - the KC assy Plant seems to support that. I would like to know how original is it - and how I can make it original-er! Its had recent body work and appears to be a quicky-paint job (yes, another future battle!).
Elder User
Joined: Aug 2014
Posts: 865
Likes: 2
that auto with power steering is so rare of a combination.been selling parts for over 30 years,only seen 1 with power steering ,but that horn ring saying power steering,is one rare bird you have there,enjoy what you have,not many have that if any even around anymore,
Thread Starter
|
Cross-Country
Joined: Apr 2017
Posts: 56
Likes: 7
Thanks! My neighbor/Wiseman who has been in it that long and knows exactly Everything says the same thing. Glad to get it back on this side of the border (KS/MO)!!
