51-52 dome light question

Got the dome light installed and door switches all wired up. Works as it should when the switches are open. When the switches are closed the light is off. I would have thought with switches closed and light off, the toggle switch would still turn the light on, is it supposed to, mine doesn’t?

JB

Feb 19, 2020 | 06:59 PM

52 Merc

Hotshot

Joined: Oct 2009

Posts: 16,173

Likes: 4,781

From: Burbank, WA

Does the toggle switch control the light off and on when the doors are open and the light is on?

Feb 19, 2020 | 07:01 PM

ALBUQ F-1

Fleet Owner

Joined: Jul 2004

Posts: 27,294

Likes: 1,055

From: NM

Yes, the light can be turned on by the hand switch regardless of door switch positions.

Feb 19, 2020 | 07:04 PM

3twinridges

Thread Starter

Cargo Master

Joined: Nov 2014

Posts: 2,442

Likes: 256

Think my toggle switch is bad or I have it wired wrong?

JB

Feb 19, 2020 | 08:23 PM

Mixer man

Logistics Pro

Joined: Sep 2014

Posts: 4,920

Likes: 21

From: Bothell & Silverdale, WA

Quote:

Originally Posted by 3twinridges

Think my toggle switch is bad or I have it wired wrong?

JB

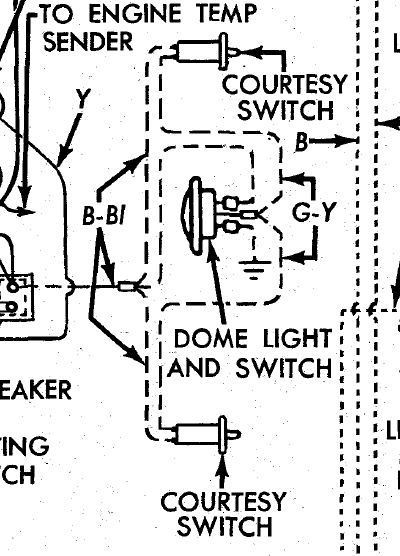

The manual switch does not override the door switches. The switch will not turn out the light if the door(s) are open. It doesn't show it in the schematic but the door switches are NO not NC. You shouldn't be showing any voltage at the light itself with the doors closed, but you will show voltage at the upstream side of the manual switch.

Feb 20, 2020 | 02:01 PM

Jersey devil

Mountain Pass

Joined: Nov 2015

Posts: 189

Likes: 36

From: South Jersey

JB
Bob has is correct. The switch will turn the light on/off with the doors closed. Voltage should be present all the time on one side of the switch

tom
