Help please
Thread Starter
|
New User
Joined: Jun 2016
Posts: 5
Likes: 0
Help please
Hey I have a couple of questions for everyone here. i bought an 86 f150 with a 4.9L as far as i know the motor is stock but i know for a fact that i am missing the air pump on the truck. but i also have a straight yellow wire that is not hooked up to anything on the driver side by the firewall. ive tried hooking it up to a couple other wires that werent connected to anything. can someone tell me what that wire goes to. and i am also missing something right behind the washer fluid resiviour but i dont know what i am missing. and if possible i am looking for the vaccum line diagram preferrably one with a description of the terms. i can hook things up but im not particularly inclined when it comes to vaccum lines
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO
It's virtually impossible to say what you might be missing without seeing some pictures (hint, hint).
If I'm thinking of the same yellow wire you're trying to describe, that's used for an optional camper or trailer lighting and can be left alone.
If I'm thinking of the same yellow wire you're trying to describe, that's used for an optional camper or trailer lighting and can be left alone.
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
I agree with Chris - the yellow wire is surely the one to the camper package, which is shown here: Trailer Option - ???Gary's Garagemahal. Few trucks have that option.
On the vacuum diagrams, if your truck doesn't have a diagram I have three for the 300 six on my web site: 300 Six - ???Gary's Garagemahal. And the acronym explanations are here: Vacuum Diagrams - ???Gary's Garagemahal.
On the vacuum diagrams, if your truck doesn't have a diagram I have three for the 300 six on my web site: 300 Six - ???Gary's Garagemahal. And the acronym explanations are here: Vacuum Diagrams - ???Gary's Garagemahal.
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
The first picture shows your thumb under the PCV valve. The top fitting is probably blanked off, meaning not open. But the bottom one should be open and it should be connected via a big hose to a fitting on the back side bottom of the carb. And, on the other valve cover towards the rear there should be a hose going to the side of the air cleaner. However, in my experience the PCV valve should be in the other valve cover and the hose fitting where the PCV valve currently is.

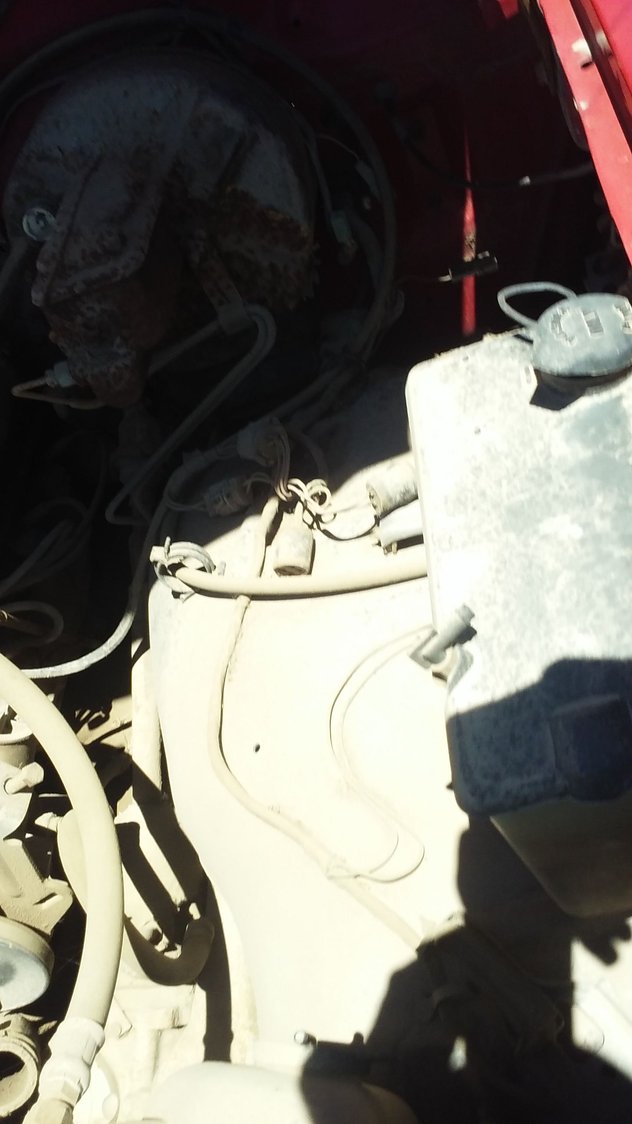

The second pic shows the coolant overflow hose is missing. There should be a hose from the fitting in the top of the reservoir to the overflow fitting on the radiator's neck - right below the radiator cap.
The third pic shows a cruise control actuator, but it isn't one I recognize as the ones for these trucks basically go above the yellow wire you said isn't connected. But, not all trucks got them. If your horn pad doesn't have the control buttons your truck probably didn't come with cruise.
The second pic shows the coolant overflow hose is missing. There should be a hose from the fitting in the top of the reservoir to the overflow fitting on the radiator's neck - right below the radiator cap.
The third pic shows a cruise control actuator, but it isn't one I recognize as the ones for these trucks basically go above the yellow wire you said isn't connected. But, not all trucks got them. If your horn pad doesn't have the control buttons your truck probably didn't come with cruise.
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO
My presumption is that cruise-control thing is aftermarket.
That disconnected vacuum hose + disconnected PCV valve... *heavy sigh*
Please remove the air cleaner assembly and post additional pictures of the carburetor from several angles and include the top of the engine in them, thanks.
That disconnected vacuum hose + disconnected PCV valve... *heavy sigh*
Please remove the air cleaner assembly and post additional pictures of the carburetor from several angles and include the top of the engine in them, thanks.
Trending Topics
Thread Starter
|
New User
Joined: Jun 2016
Posts: 5
Likes: 0
i will get more pictures of it on tuesday because i have to replace the oil pump gasket so i will get the pictures then
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 783
From: Simi Valley, CA
The third pic shows a cruise control actuator.
It isn't one I recognize as the ones for these trucks basically go above the yellow wire you said isn't connected. But, not all trucks got them.
If your horn pad doesn't have the control buttons your truck probably didn't come with cruise.
It has it, but it's not factory installed.
).Look at the lower pic: The 9C888 dealer installed Speed Control switch...clips onto the T/S handle.
9C735 is the dealer installed Speed Control servo. 9D757 is the dealer installed Speed Control module (Speed Control regulator).
9E799 is the dealer installed Speed Control vacuum reservoir.
1984/87 F150/350, Bronco & Econoline: E4TZ-9A818-A .. Dealer Installed Speed Control Kit / Obsolete ~ 1 available NOS
If a M/T, E4ZZ-9A819-A .. Adapter Kit is also required / Obsolete ~ 52+ available NOS
