Just drove up and back to the Irvine Cars n Coffee this morning. About 110 mile round trip for me.

I absolutely love the HydroBoost braking setup. Arguably the best modification I've made. Firm pedal, massive braking torque when needed. Easy on the leg in traffic. I'd absolutely use this system in a heart beat. In a configuration where the booster is on the firewall, it'd be even cheaper, too, with availability of OEM - grade high pressure hoses. The hoses and ends in my case cost ~ $200 (more than the booster) ~ $140 a brand new OEM AC Delco unit from Amazon for a 2010 Silverado.

Doug

Reply
Old Dec 7, 2014 | 09:17 AM
  #122
Jigger2020's Avatar
Jigger2020
FTE Legend
15 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2009
Posts: 161,106
Likes: 8,091
From: North Bay Ont Canada
WOW I just read most of this thread DW, very well done man, congrats

Reply
Old Feb 12, 2015 | 06:02 PM
  #123
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0
continued with some more fab work. Welding was done 3/4" at a time so as to not warp the ford 9" axle.

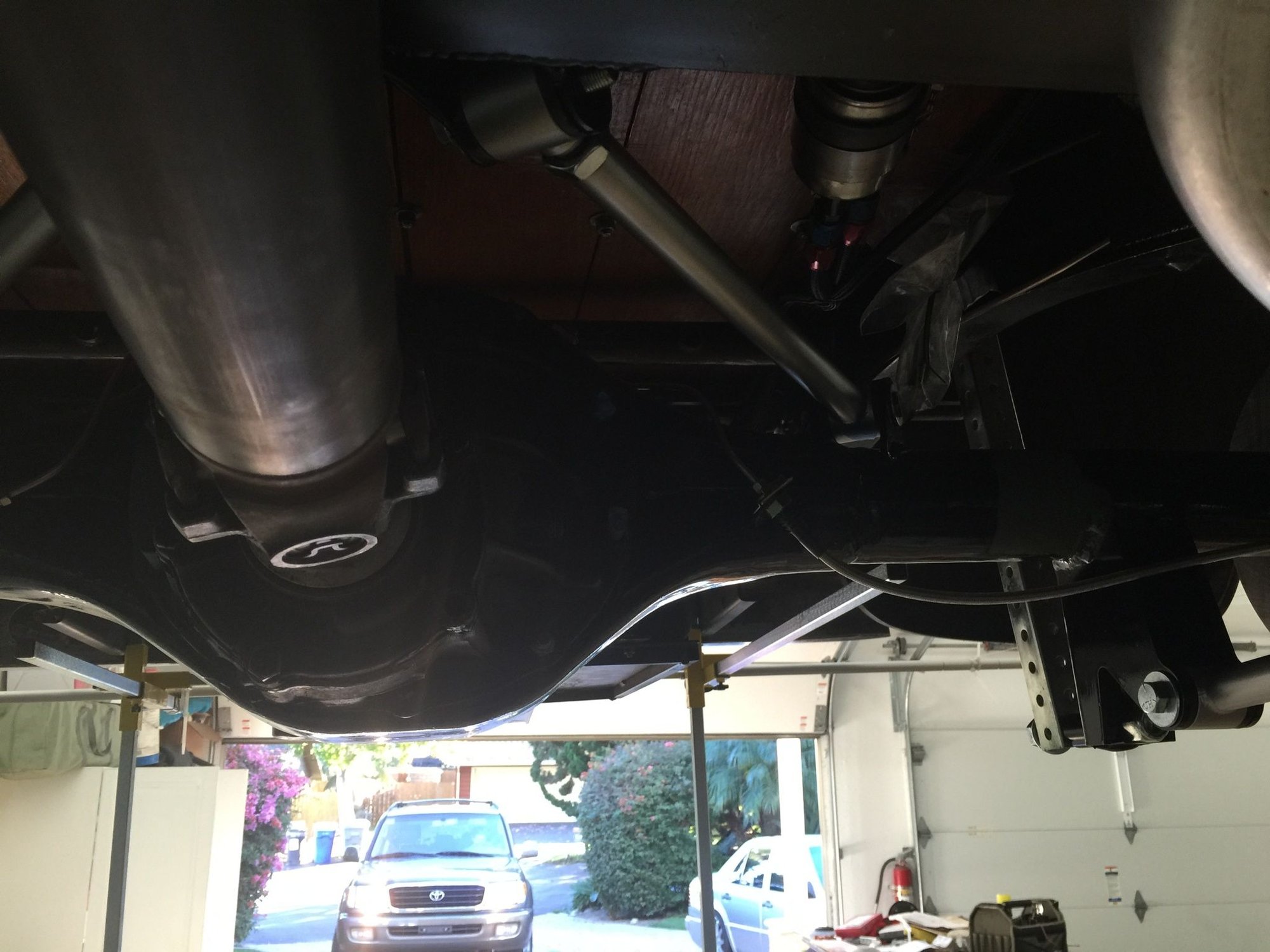

rear end shot, after adding triangulated four link





another shot of new triangulated four link setup





added harnesses to take hanging load off of shocks. Viking says shocks shouldn't suspend the suspension components





a shot of the coil overs. They are installed outside of the frame.

Reply
Old Feb 12, 2015 | 06:03 PM
  #124
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0

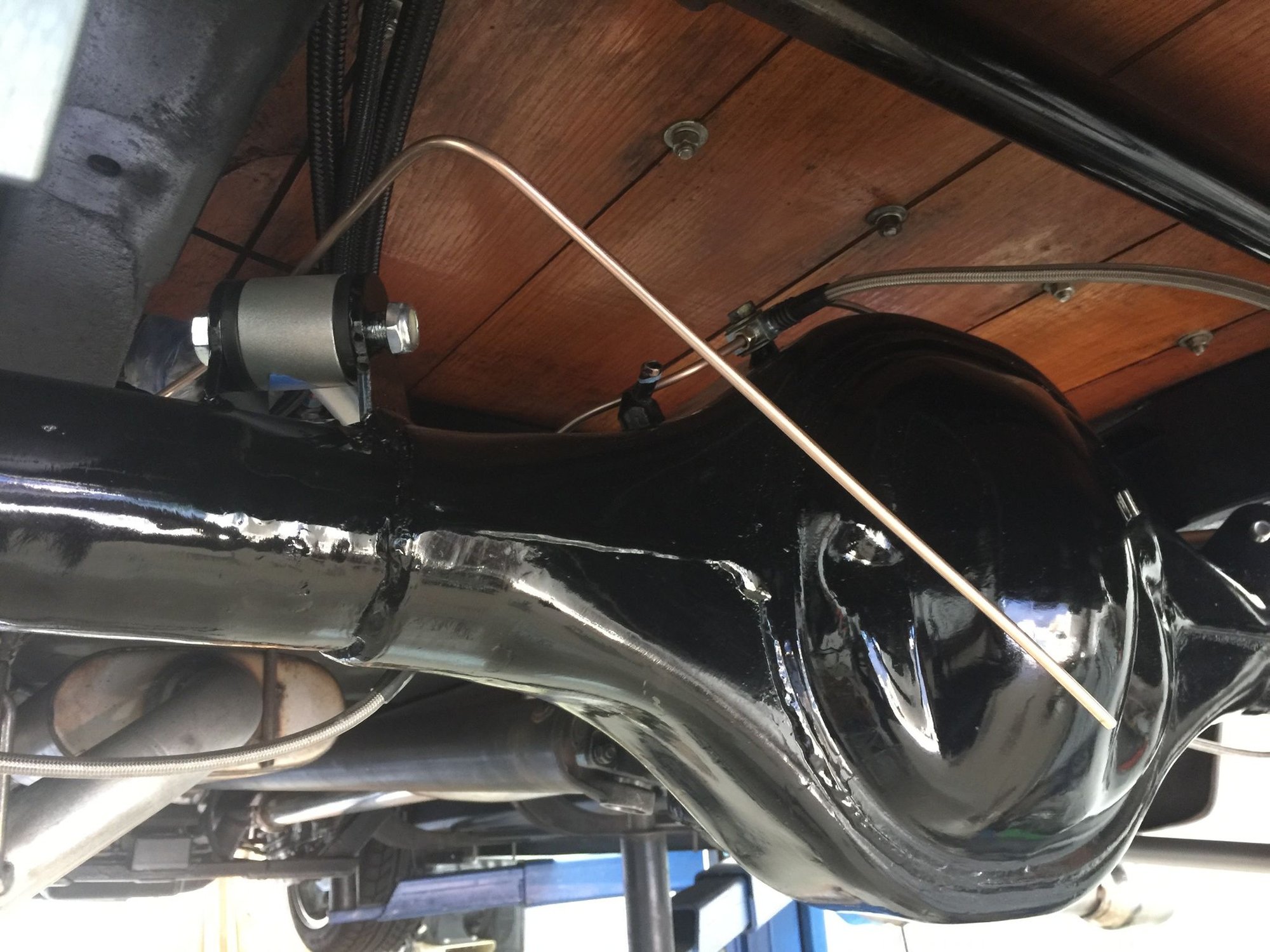

converted from drums to discs. (Thank you Rimrock F1 for the correction!!)





added a crossmember to attach the upper triangulated links

Reply
Old Feb 12, 2015 | 06:05 PM
  #125
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0



cut up an old frame and added tabs to mount my plate

Reply
Old Feb 12, 2015 | 06:06 PM
  #126
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0



built the bench skirt from 1/8" aluminum.





I sectioned and widened and extended (upwards) a dodge caravan bench seat.




Bought a SoundStream powered sub and Lanzar USB amp, and then JBL separates (tweeter and mids). The Lanzar amp has a built in cross-over. I can stream tunes from my iPhone without having a head unit. Keeps things real clean on the dash. Audio from google or Apple maps will also prompt me along when I've got directions turned on and then fade back to music.

Reply
Old Feb 12, 2015 | 06:09 PM
  #127
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0



hired an upholstere

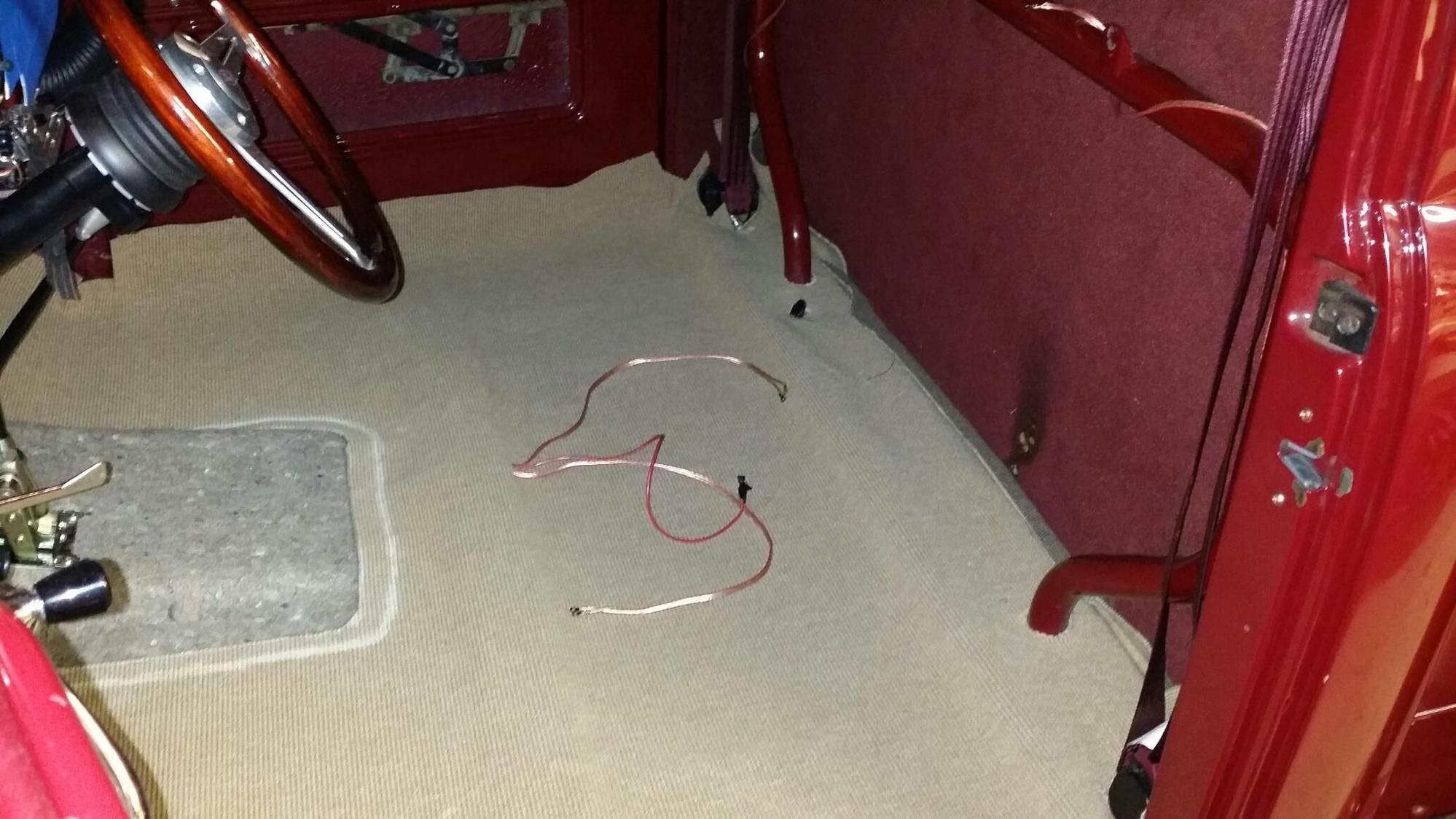

vintage German square weave carpet being installed

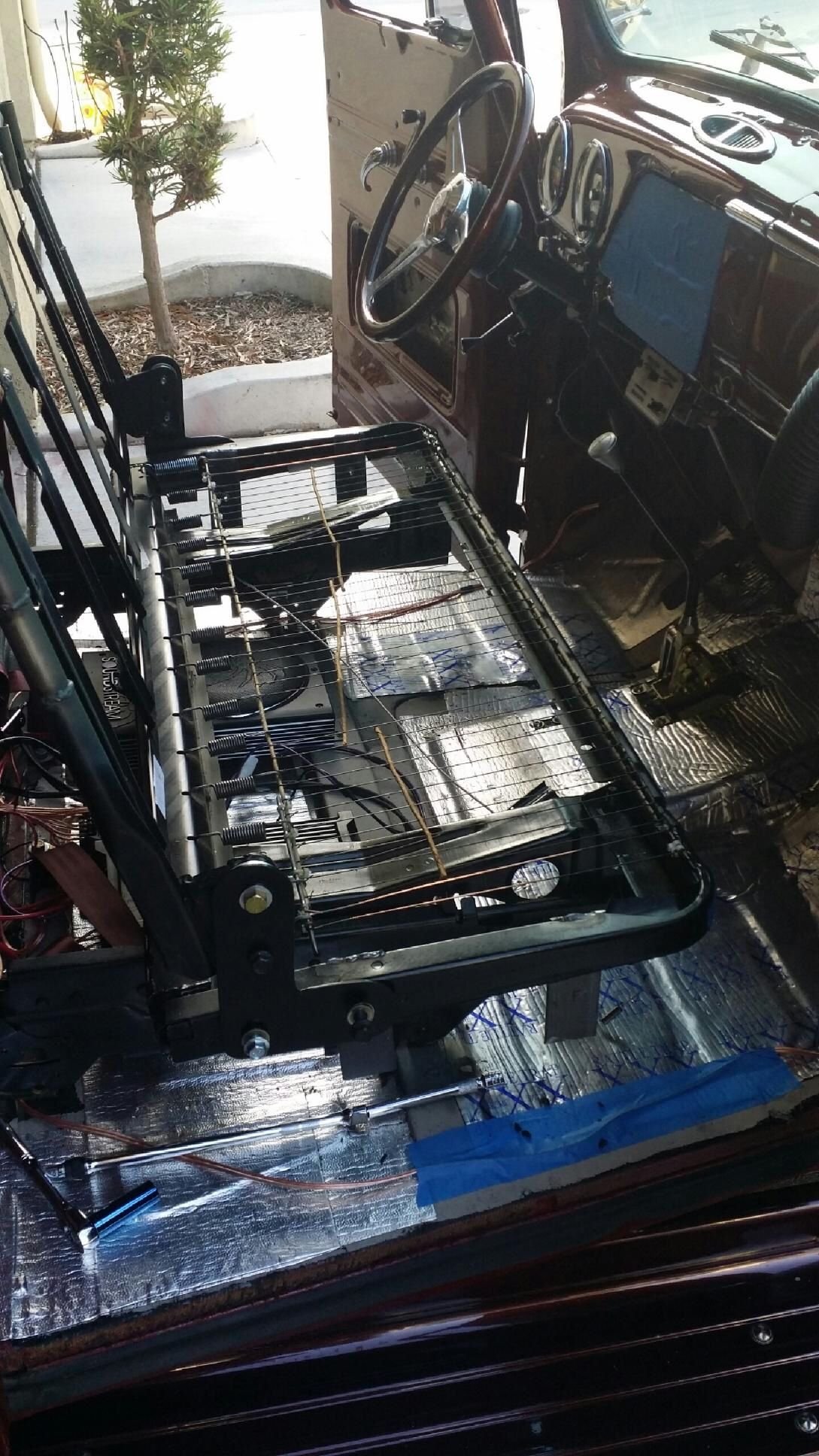

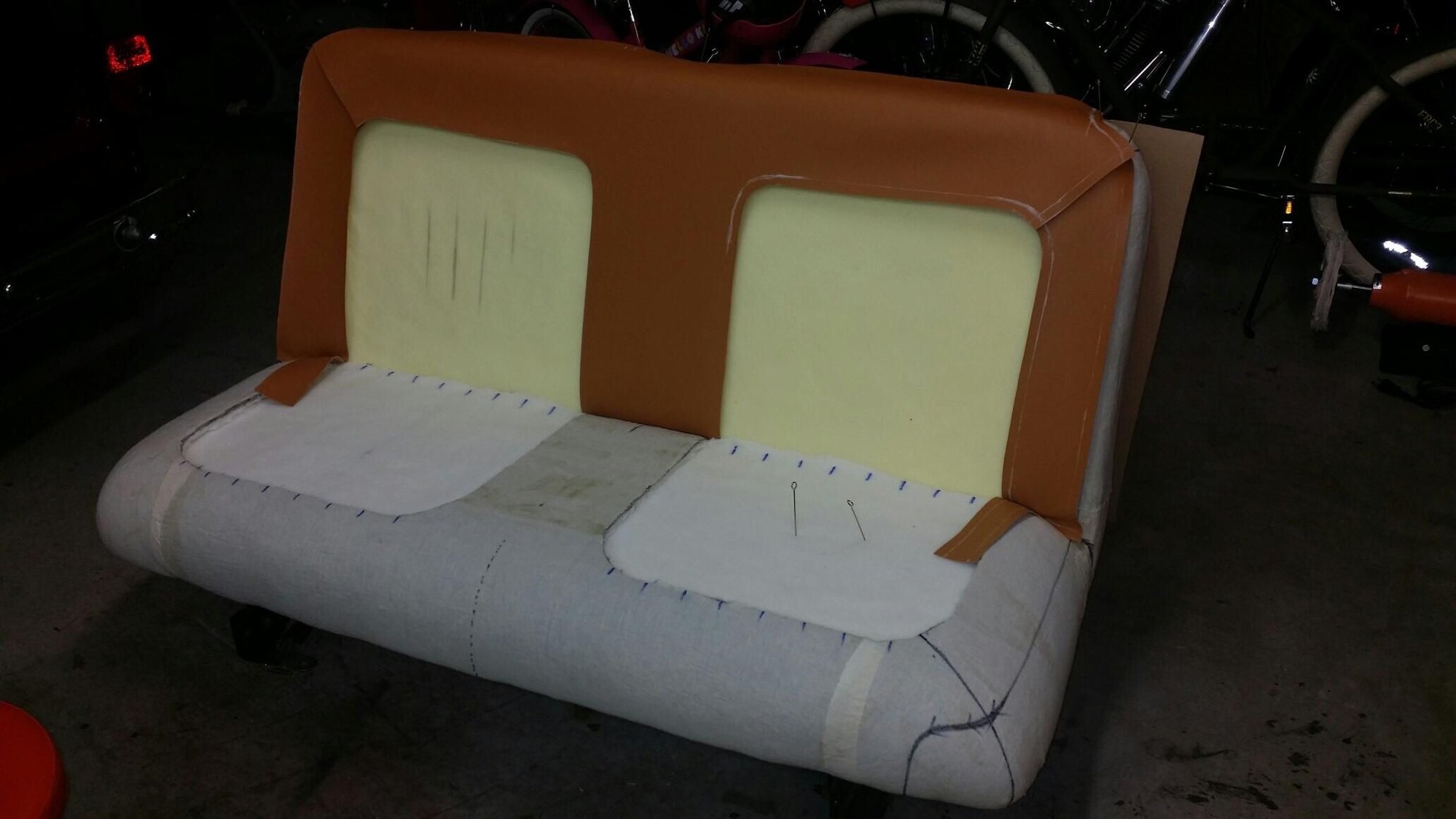

laying out the seat











skirt wrapped. USB plug - in for phone charger and heated seat controllers on front

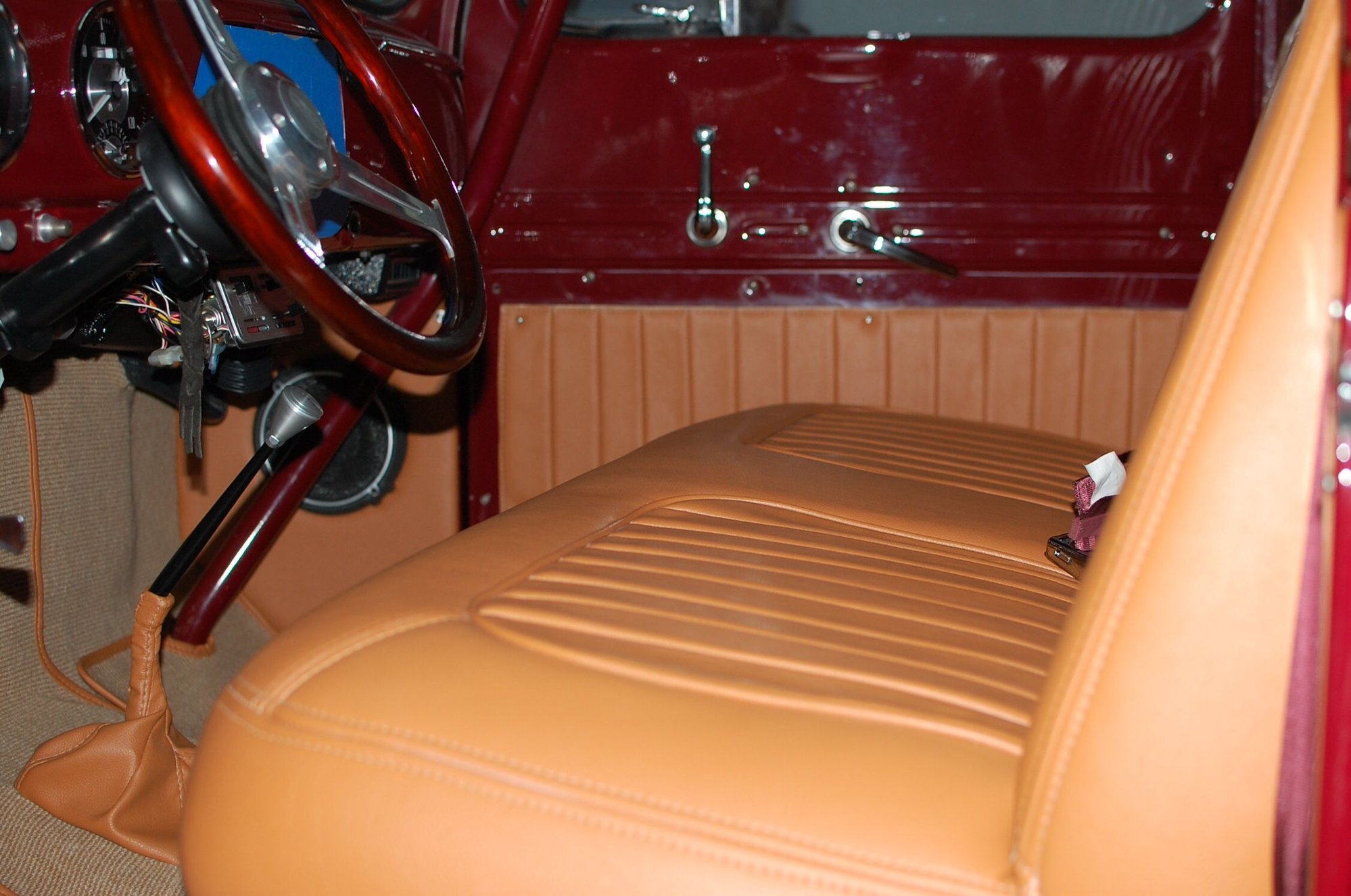

close to final... awaiting door panel frame

Reply
Old Feb 12, 2015 | 06:09 PM
  #128
Jigger2020's Avatar
Jigger2020
FTE Legend
15 Year Member
Liked
Loved
Community Favorite
Joined: Mar 2009
Posts: 161,106
Likes: 8,091
From: North Bay Ont Canada
Great pics & info, thx for sharing........... that seat is awesome

Reply
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level

 Verdad Gallardo
story-1

Top 10 Fords at 2026 Carlisle Ford Nationals

 Joe Kucinski
story-2

3 Best / 3 Worst Parts of Modern Ford Ownership

 Brett Foote
story-3

10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches

 Pouria Savadkouei
story-4

Every 2026 Ford Engine Explained

 Brett Foote
story-5

10 Ugly Ford Trucks That We Still Kinda Love

 Joe Kucinski
story-6

10 Things Every Truck Owner NEEDS (2026 Edition)

 Michael S. Palmer
story-7

Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath

 Verdad Gallardo
story-8

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

 Joe Kucinski
story-9

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

 Brett Foote
Old Feb 12, 2015 | 06:10 PM
  #129
DW SD's Avatar
DW SD
Thread Starter
|
Senior User
Joined: Jul 2013
Posts: 386
Likes: 0



got tired of brass radiator leaking... like a dutch boy's dike.

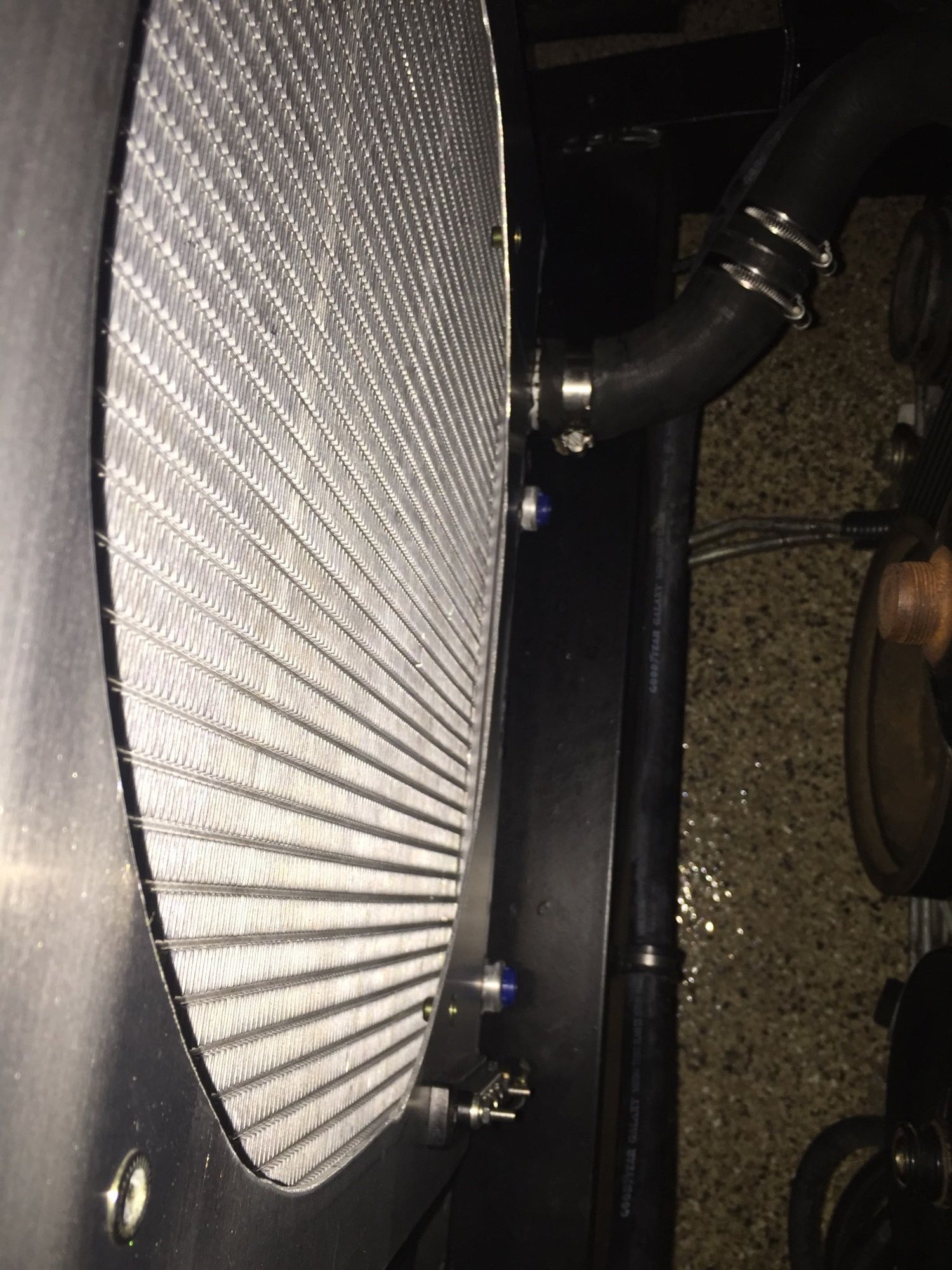

fabbed a fan shroud from 1/8" aluminum and welded to the radiator.





added mounting wings.

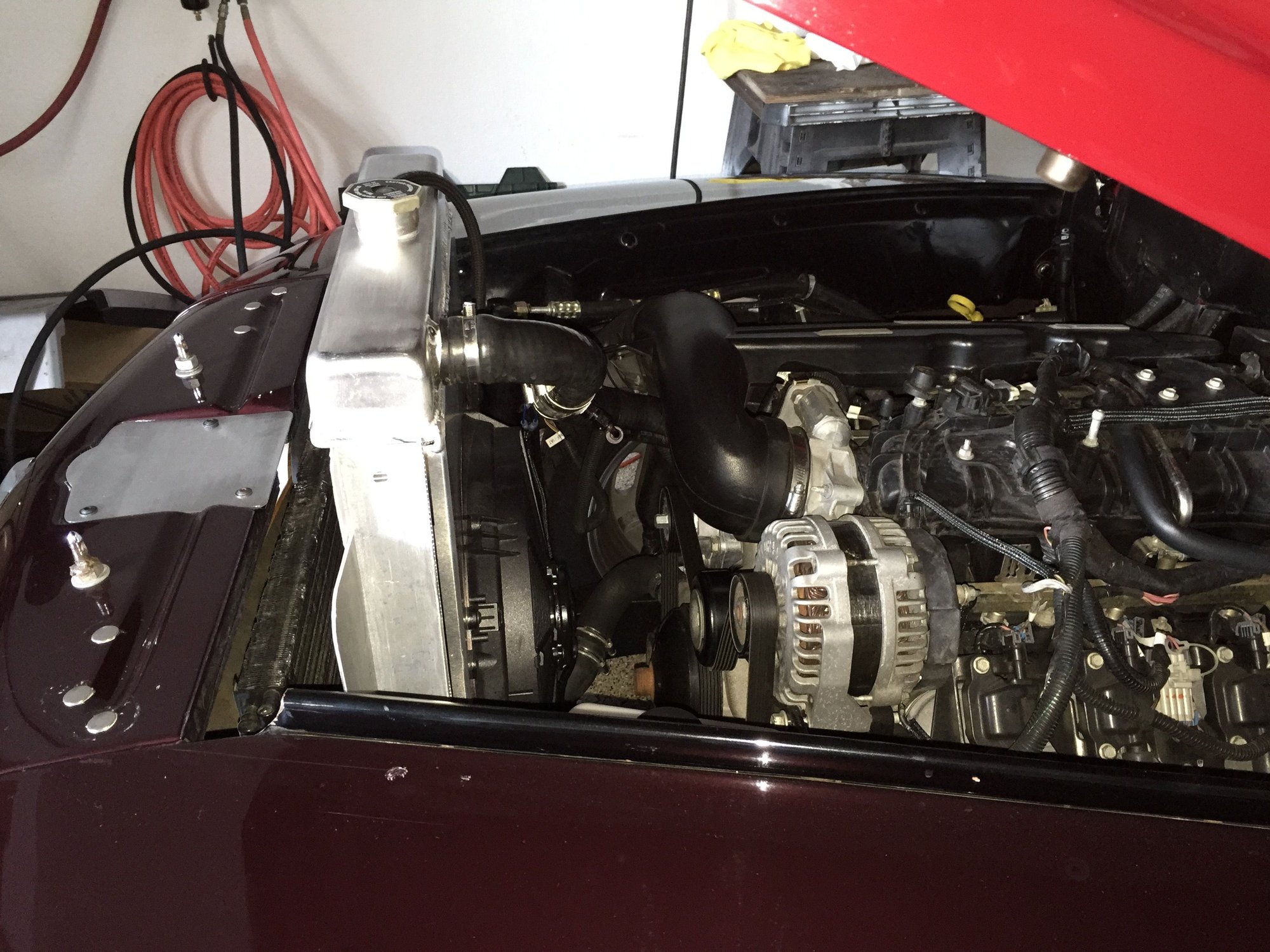

installed
