Oct 9, 2011 | 07:40 PM

#31

Brain's 97 Diesel

Senior User

Joined: Aug 2009

Posts: 432

Likes: 0

From: Willow Grove, PA

Some one either here, at PSN, or another site I was on used both on his Electric Fuel Conversion. I believe they wired the electric fuel pump to a bypass switch @ the pump so it could be ON w/o the truck running, used the oil PSI switch to activate the pump in the run/start position so once min PSI was met the pump turned on & truck started, and installed the Inertia Switch under the hood & wired it after the oil PSI switch (closer to the pump). I don't remember why they wanted the bypass switch, maybe to draw from an Aux tank to fill a stock tank IDK. The other 2 were wired so truck couldn't start/run w/o oil PSI and would kill motor if accident occured.

Oct 9, 2011 | 07:43 PM

#32

redman84

Cargo Master

Joined: Feb 2010

Posts: 2,526

Likes: 6

From: College Station, TX

With your manual trans you can put in either and the truck will shut off during an accident unless you are conscientous enough to hit the clutch or jerk it into neutral.

Oct 9, 2011 | 08:16 PM

#33

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=c28529bd.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/c28529bd.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>
<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=7e25324a.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/7e25324a.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Well here is the rig and here is my new pump and filter set up.

Oct 9, 2011 | 08:19 PM

#34

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=724feb03.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/724feb03.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=816a53e0.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/816a53e0.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Here is the filter inside the fuel bowl between it and the FPR, and the Bottom of the FPR

Oct 9, 2011 | 08:36 PM

#35

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=22abe212.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/22abe212.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Nasty

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=2d4415d7.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/2d4415d7.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

EBPV leaking. Hmmm weird??.

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=88ecc895.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/88ecc895.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Turbo out.

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=782e199d.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/782e199d.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

There is the fuel pump which I just got out today

Oct 9, 2011 | 08:42 PM

#36

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=d8ceb3b2.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/d8ceb3b2.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Turbo pedestal cleaned up a bit

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=6a3975ca.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/6a3975ca.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

"click-click" deleted!!EBPV Bye bye
<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=bd1d0081.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/bd1d0081.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Just got a few holes to fill.

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=fdc6c317.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/fdc6c317.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

"click-click" deleted!! That thing was stuck shut. When manually operated u could really feel it stick in the shut position. BYE BYE

Oct 9, 2011 | 09:30 PM

#37

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=fcb20704.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/fcb20704.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Just another pic

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=ff4093ed.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/ff4093ed.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Another o the fuel pump and the remains

Oct 9, 2011 | 09:42 PM

#38

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=1f51e366.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/1f51e366.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

EBPV taken apart.

FTE Stories

Ford Trucks for Ford Truck Enthusiasts

Top 10 Fords at 2026 Carlisle Ford Nationals

Joe Kucinski

3 Best / 3 Worst Parts of Modern Ford Ownership

Brett Foote

10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches

Pouria Savadkouei

Every 2026 Ford Engine Explained

Brett Foote

10 Ugly Ford Trucks That We Still Kinda Love

Joe Kucinski

10 Things Every Truck Owner NEEDS (2026 Edition)

Michael S. Palmer

Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

Oct 9, 2011 | 09:59 PM

#39

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

Got this uploading pictures thing down finally. I am goin to be putting my electric fuel pump and filters in tomorrow and hopefully the wiring too. Pics to come

Oct 10, 2011 | 02:03 PM

#40

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=a55ef6ba.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/a55ef6ba.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>
<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=eb08e01a.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/eb08e01a.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

<a href="http://s1083.photobucket.com/albums/j390/Linetrash/?action=view&current=8910f55c.jpg" target="_blank"><img src="http://i1083.photobucket.com/albums/j390/Linetrash/8910f55c.jpg" border="0" alt="Photobucket Pictures, Images and Photos" /></a>

Got it in just need To wire it up

Oct 10, 2011 | 03:10 PM

#41

strokin'_tatsch

Hotshot

Joined: Jun 2007

Posts: 10,008

Likes: 7

From: Austin, TX

Looky there. You got yourself a cali truck.

If it was me, I'd mount the filters and pump along the frame rail and get them away from the driveshaft. Looking good so far though.

Also, my system has an oil pressure switch and an inertia switch. You don't need the oil pressure switch though.

Oct 10, 2011 | 03:35 PM

#42

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

That's what I was goin to do originally but those 2 1" hydraulic hoses kinda jammed things up a bit. Just taking her one step @ a time. There were 2 plugs on the side of the fuel bowl. What r they for, do I need them??

Oct 10, 2011 | 04:17 PM

#43

strokin'_tatsch

Hotshot

Joined: Jun 2007

Posts: 10,008

Likes: 7

From: Austin, TX

Quote:

Originally Posted by Splatts

You don't need anything that was in the stock fuel bowl. Actually you can take the fuel bowl harness and cut all the unnecessary connectors out of it if you want to clean that area up a little. That way you won't have all those unused connectors laying around. Just make sure you leave the IPR plug in there.

Oct 10, 2011 | 04:26 PM

#44

Splatts

Thread Starter

Posting Guru

Joined: Jun 2011

Posts: 1,083

Likes: 0

From: Walla Walla, WA

Perfect thank u. I got a lot of cleaning to do!!!

Oct 10, 2011 | 05:49 PM

#45

strokin'_tatsch

Hotshot

Joined: Jun 2007

Posts: 10,008

Likes: 7

From: Austin, TX

Here is the fuel bowl harness after deleting the unused connectors

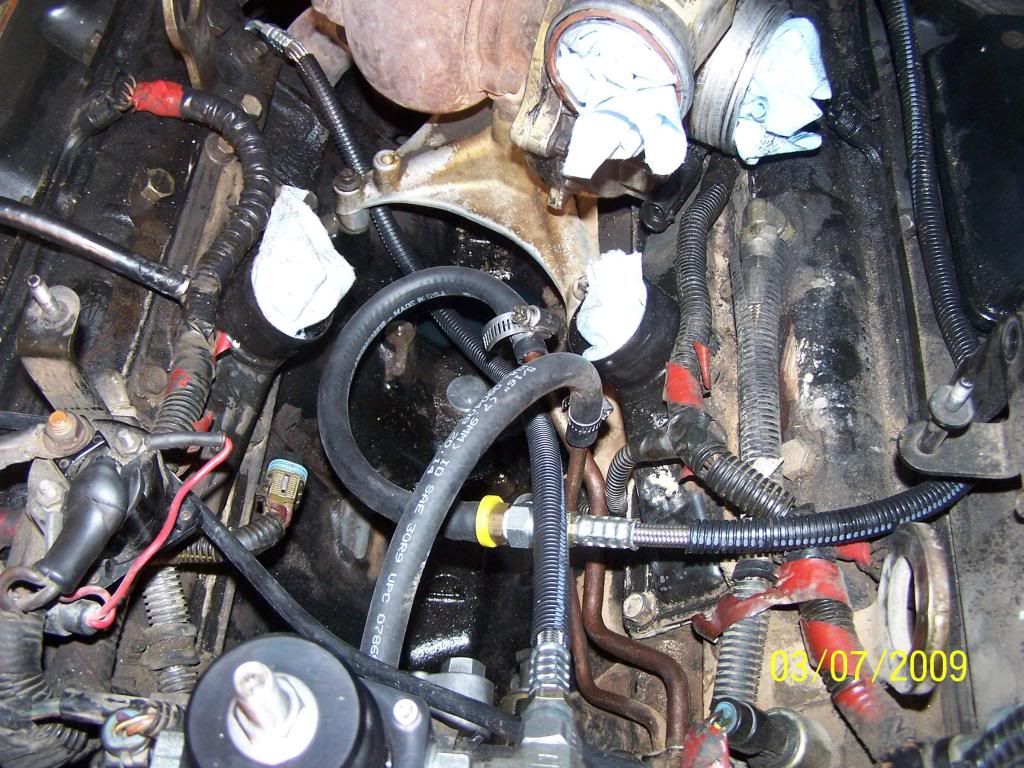

Also, here's a pic of my fuel lines in the valley. You can do this in several different ways. You can either split the supply to the rear of the heads and then return out the front of the heads to the regulator, or you can route it like mine is. The supply goes to the back of the driver side head, crosses over from the front driver side, to the front passenger side, then returns out the back passenger to the regulator.

As you can see in the pic, the metal line that sticks up towards the hood, is the return line. The line that is pointing towards the middle of the valley is supply.
