Belt Problems, Looking For Advice
Lead Driver
Joined: Sep 2002
Posts: 9,539
Likes: 2,030
From: North Texas
Ford changed the passenger side alt/air pump bracket. I think around '93/4, whenever they did 3Gs on the trucks from the factory. Mine being an '88 uses the above picture style on the 302 for it short belted...and zero issue, been that way for 20 years easily. The '92 4.9 is routed the same
My pal has no air pump on his '89 with a '95 roller 351W. I forget how we short belted it, I will see if he has a pic handy and if so I will post it.
My pal has no air pump on his '89 with a '95 roller 351W. I forget how we short belted it, I will see if he has a pic handy and if so I will post it.
Fleet Owner
Joined: Oct 2005
Posts: 20,786
Likes: 1,751
From: Kentucky
It looks to me like someone before you only removed the air pump pulley. The pump is still in place. You would have to remove the entire air pump assembly to use the bypass pulley and bracket.
Lead Driver
Joined: Jun 2021
Posts: 5,221
Likes: 805
but that presumes its not seized
Thread Starter
|
Tuned
Joined: Jun 2023
Posts: 318
Likes: 25
Okay I bet you're right about that thing being the air thingamagig. So I got underneath it just now and tried to turn it. It turns freely about 1/4 turn, then not. This is by hand, And I would guess that seizing is why it was bypassed?
Gotta be honest here, I don't see how the pulley/bracket people are listing for me is a direct replacement for that thing. The bolt that holds it on seems closer to the center of the pulley on the thingamagig, than it does on the replacement.
Maybe it's just the orientation that is throwing me off? In the photos, the bolt for the bracket is to the left of center, whereas on the air thingamagig, it is beneath it, and seemingly by a shorter amount.
How confident is everyone that this is the correct part #? If anyone can vouch for it, I'll just order it. I think you've all helped me explore the alternatives enough to say that is the right next step.
I suppose I should also verify that my A/C delete was done correctly before assuming a standard belt will work, but I'll post that on another thread.
Thread Starter
|
Tuned
Joined: Jun 2023
Posts: 318
Likes: 25
Okay after seeing this thread I think I've got it all in my head now:
https://www.ford-trucks.com/forums/1...th-pics-3.html
Thanks everyone. Now I just need to find a source for the 68110!
https://www.ford-trucks.com/forums/1...th-pics-3.html
Thanks everyone. Now I just need to find a source for the 68110!
Last edited by wannabuyaford; Jan 19, 2024 at 03:34 PM. Reason: Found Answer
Lead Driver
Joined: Jun 2021
Posts: 5,221
Likes: 805
About whether that bracket is correct, the listing I see says:
"This unit is a direct bolt-in when you eliminate the air pump. Uses standard serpentine belt. This part is for off-road/race use. Not for use in vehicles in pollution-controlled environments or for vehicles manufactured after 1995."
I have a '96.
Can anyone confirm what part number I need to replace the SMOG pump with a proper pulley/bracket? (96 5.8 F250 4wd)
"This unit is a direct bolt-in when you eliminate the air pump. Uses standard serpentine belt. This part is for off-road/race use. Not for use in vehicles in pollution-controlled environments or for vehicles manufactured after 1995."
I have a '96.
Can anyone confirm what part number I need to replace the SMOG pump with a proper pulley/bracket? (96 5.8 F250 4wd)
Thread Starter
|
Tuned
Joined: Jun 2023
Posts: 318
Likes: 25
You're misreading the listing. It says it's *not* for after 95. But it seems to go back to like the seventies. So, definitely not for just two years.
The only useful thing that came up when I searched was the link I showed above from this forum:
https://www.ford-trucks.com/forums/1...with-pics.html
I guess I'll take a chance but real confirmation would be nice.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Fleet Owner
Joined: Oct 2005
Posts: 20,786
Likes: 1,751
From: Kentucky
1996 F150/Bronco using EEC-V (OBD-II) with a 5.8L engine do not use an air pump. Ford must have used an idler so they would not have to stock a shorter belt and/or go back to the the earlier serpentine setup.

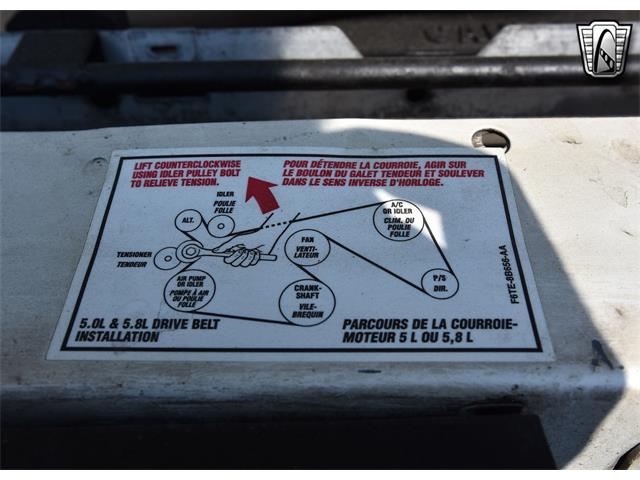

This belt routing diagram from a 1996 Bronco appears to confirm that theory:
