Distributor Connectors
Alright Guys,

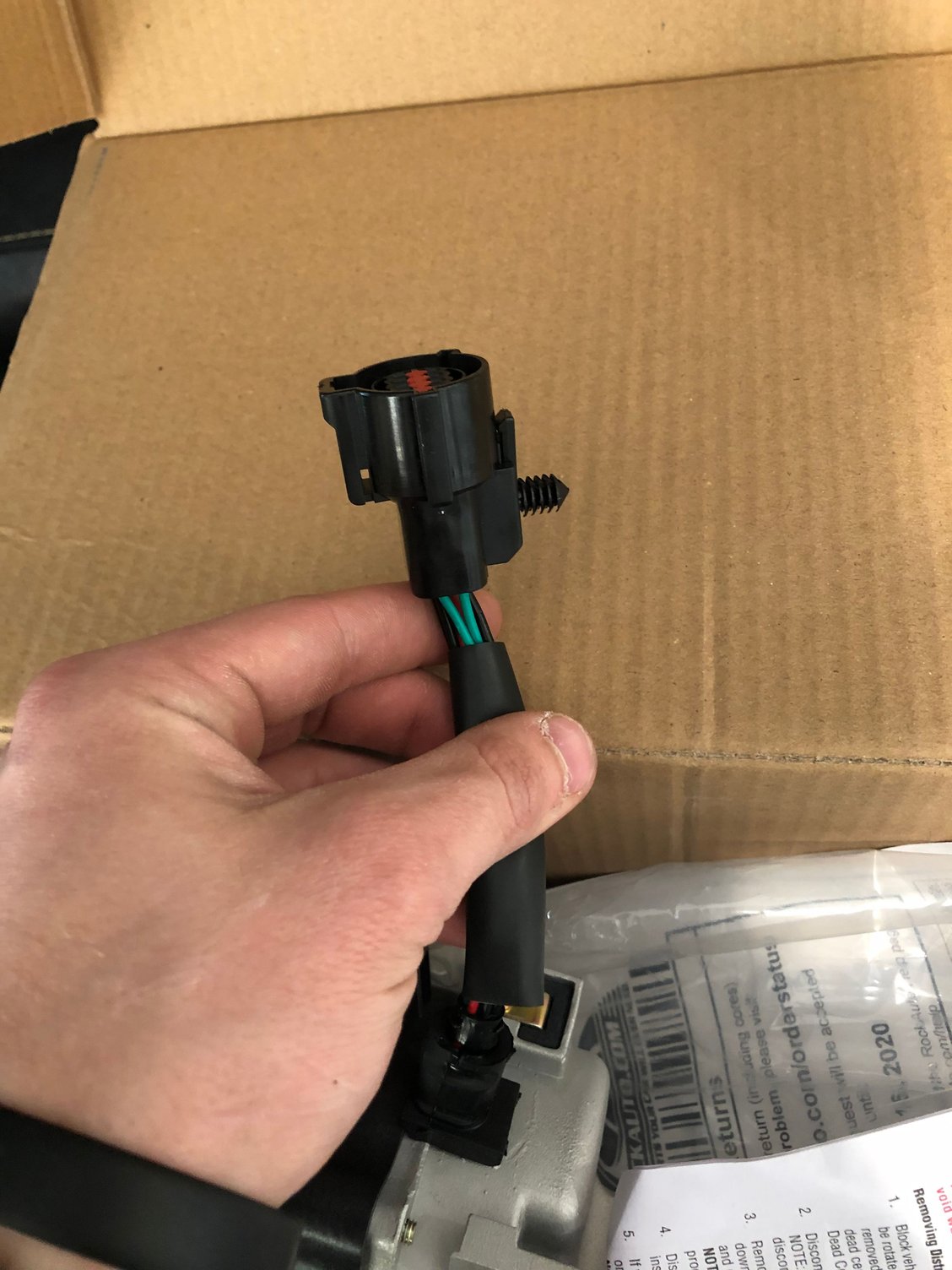

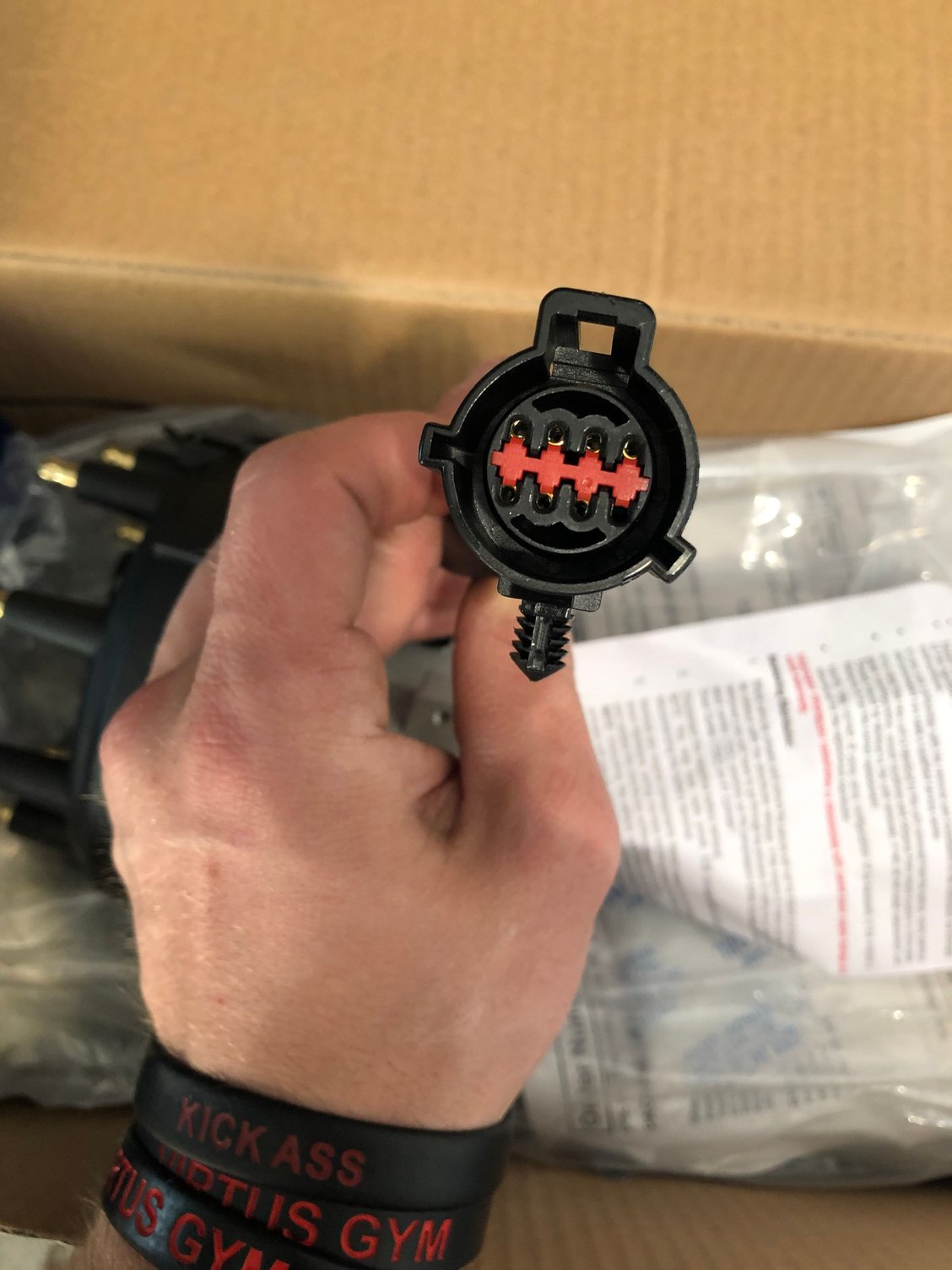

I have a new flywheel and a new distributor with a cast iron gear that fits a remote mount ignition control Module for my engine swap. I removed the old distributor a while ago to check it and I broke off a pin from the male end of the connector. When I went back to look at the connector however on the wiring harness, I saw 5 wires going into the male end of the connector (I believe the proper name is the distributor ignition pickup connector). Each wire had a pin connected to it. The connector is round and has 8 possible spots for a pin. When I look at the other end of the connector there are 8 slots for the pins to go and 7 wires on the female end of the connector. Does this mean that I'm good since there are 5 wires and 5 pins or do I need to find a new connector / fix the old one somehow? Some of the diagrams I saw online showed 5 wires going into the connection but they don't show the female end of the connection. This had been concerning me for some time. Any replies appreciated.
I have a new flywheel and a new distributor with a cast iron gear that fits a remote mount ignition control Module for my engine swap. I removed the old distributor a while ago to check it and I broke off a pin from the male end of the connector. When I went back to look at the connector however on the wiring harness, I saw 5 wires going into the male end of the connector (I believe the proper name is the distributor ignition pickup connector). Each wire had a pin connected to it. The connector is round and has 8 possible spots for a pin. When I look at the other end of the connector there are 8 slots for the pins to go and 7 wires on the female end of the connector. Does this mean that I'm good since there are 5 wires and 5 pins or do I need to find a new connector / fix the old one somehow? Some of the diagrams I saw online showed 5 wires going into the connection but they don't show the female end of the connection. This had been concerning me for some time. Any replies appreciated.
Thread Starter
|
Cross-Country
Joined: Feb 2020
Posts: 54
Likes: 0
So the male end of the connector is at my house, I can't take a picture of it right now, but it has 5 pins and 5 wires going to it. I remember breaking pins off but only the ones that didn't directly have wires running to them on the male end of the connector. Will this mess something up? are they ground wires???
FTE Chapter Leader
Joined: May 2006
Posts: 12,343
Likes: 1,318
From: Central Mississippi
If there is a pin in the connector, it has a wire connected to it. If there is no wire, there is no male pin, or female receptor in the connector barrel.
From your other thread:
My response:
From your other thread:
... I do remember breaking a pin off of the male end of the connector which comes from the wiring harness and connects to the distributor. I'm assuming I will need a new one unless there is a way to fix this. Any ideas where I might find a new one? maybe the junkyard?
The round connector will come apart if you remove (pull out) the red "lock" in the center of the plug.
The individual pins are held in place by a tiny clip that pushes against the side of the pins.
The trick is to pull/hold the clip away from the side of the pin while pulling the wire out the back of the plug without breaking the retaining clip.
I use a safety pin. (a big one about 2 inches per leg) If it's only one, you could replace the one pin & short length of wire & only have to make one splice.
You can use any similar size male pin & length of wire from any similar sized plug, but the color wire wouldn't match. No big deal.
If you go to a yard, I recommend getting a few similar sized/construction plugs & practicing.
The individual pins are held in place by a tiny clip that pushes against the side of the pins.
The trick is to pull/hold the clip away from the side of the pin while pulling the wire out the back of the plug without breaking the retaining clip.
I use a safety pin. (a big one about 2 inches per leg) If it's only one, you could replace the one pin & short length of wire & only have to make one splice.
You can use any similar size male pin & length of wire from any similar sized plug, but the color wire wouldn't match. No big deal.
If you go to a yard, I recommend getting a few similar sized/construction plugs & practicing.
