I have a 2012 f350 lariat I was wondering if someone could take a pic of there fuel rail pressure sensor with wire on plug showing enough that I can tell I'm putting on a new pigtail and dont know which color wire goes where on plug

Reply

Old

Dec 28, 2018 | 05:52 PM

#2

Just Strokin

Post Fiend

Joined: Nov 2001

Posts: 6,748

Likes: 118

From: Tallassee, ALabama

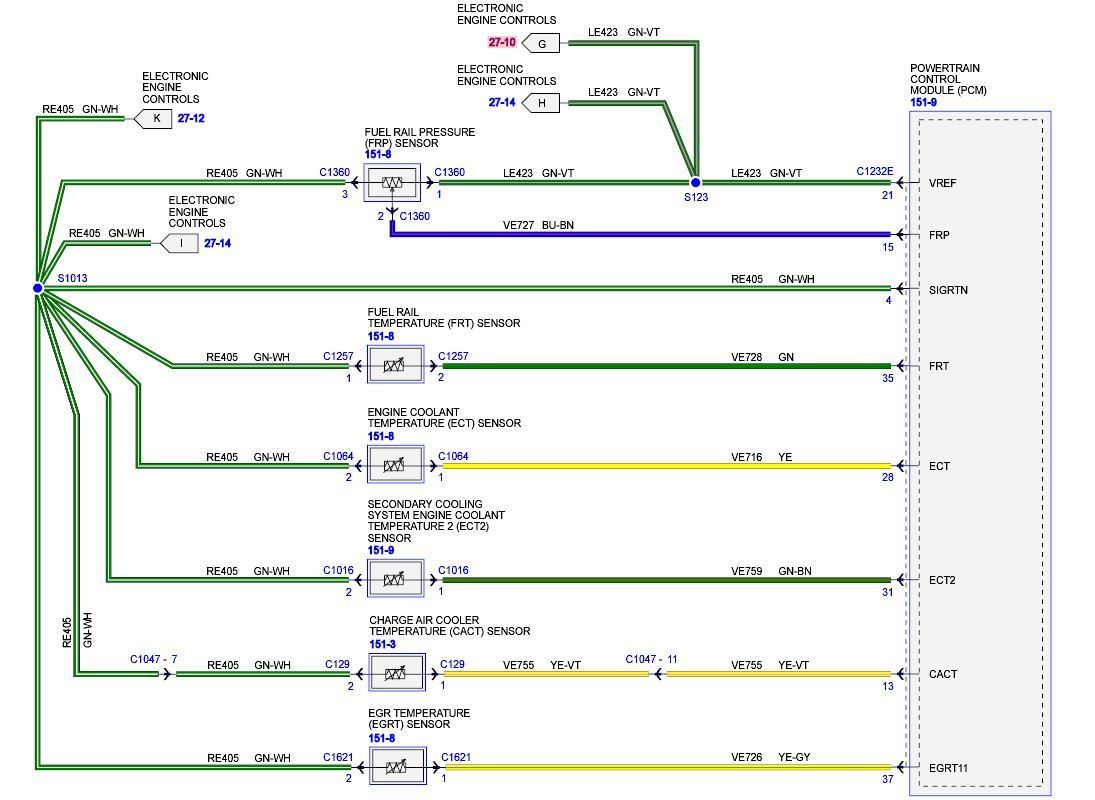

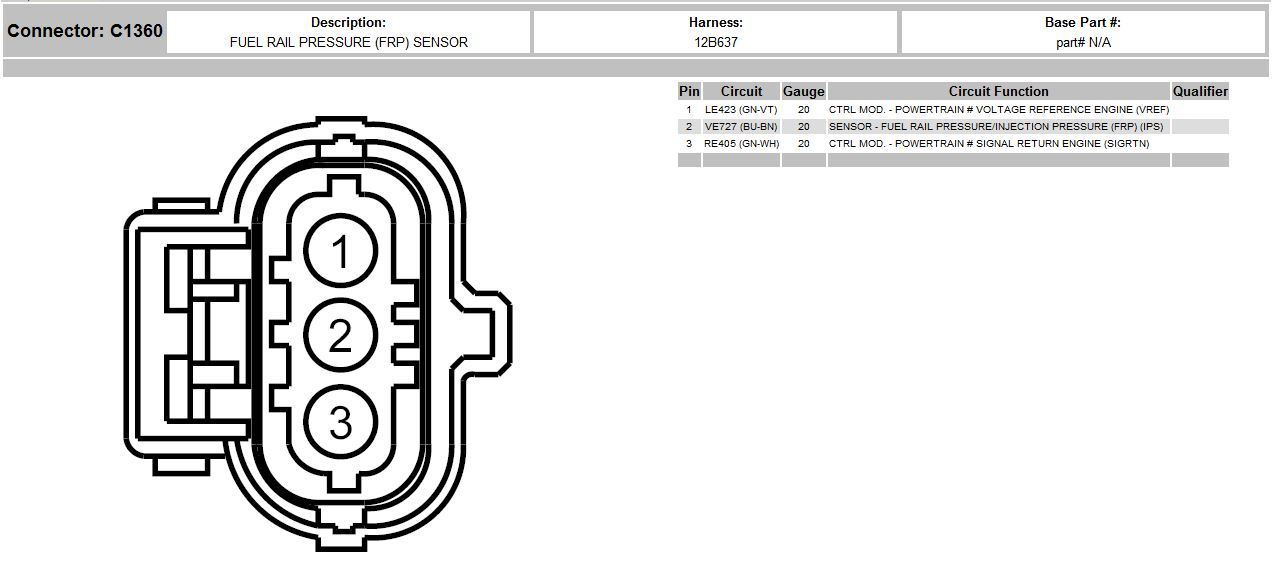

These are from the 2014 Ford Workshop DVD. I did check the 2016 schematics and they are the same as the 2014.I would think these are the same for the 2012 also.

Reply

Old

Dec 28, 2018 | 09:29 PM

#3

Nates8point

Thread Starter

|

New User

Joined: Dec 2018

Posts: 8

Likes: 0

Thanks man maybe it will be the same

Reply

Old

Dec 29, 2018 | 08:10 AM

#4

Just Strokin

Post Fiend

Joined: Nov 2001

Posts: 6,748

Likes: 118

From: Tallassee, ALabama

I suspect it is the same as Ford wouldn't make wholesale wiring color changes for the engine controls.
