Excursion Fog Lights Using OEM Switch
Thread Starter
|
Cross-Country
Joined: Feb 2016
Posts: 68
Likes: 0
weeeves, thank you for that, ill have to look for a ground and positive when I tackle it. just ordered the switch.
also, how did you easily release the terminal/wire from the connector?
housedad, you mentioned theres simple wiring to keep the fogs on with the highbeams, I looked through a few threads and I think its the orange/grey wire - but what do I do with it?
also, how did you easily release the terminal/wire from the connector?
housedad, you mentioned theres simple wiring to keep the fogs on with the highbeams, I looked through a few threads and I think its the orange/grey wire - but what do I do with it?
Cargo Master
Joined: Mar 2005
Posts: 2,790
Likes: 24
From: Mount Royal, NJ
I have a diagram of it as part of the electrical mods I have made. (aux fuse blocks, aux battery, f350 dash, air lockers, air compressors, etc.) I'll try to strip that circuit out tonight for you and post it. It requires a relay but it is really dead simple.
Thread Starter
|
Cross-Country
Joined: Feb 2016
Posts: 68
Likes: 0

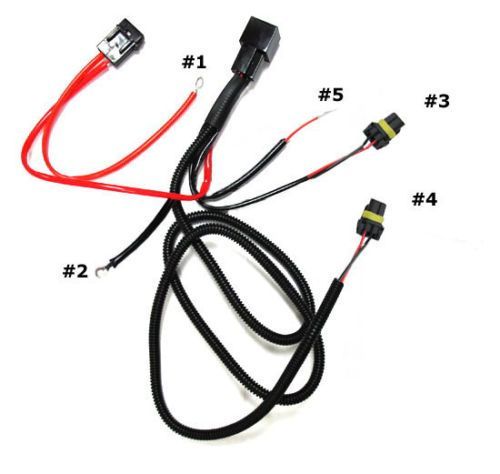

this is the relay im going to use. #5 goes to the 5pin yellow wire on the connector, right..
then for the positive #1, can I tap back into another wire at the headlight switch - or what is an easy wire I can use for power (don't want to put them on the battery).
for the ground #2, is there a ground wire I can tap? or just attach to body somewhere..?
#3 and #4 go to the lights, looks pretty simple from there. thanks for everyones input!
Senior User
Joined: Apr 2015
Posts: 173
Likes: 0
You need to remove the locking piece in the connector. Push down on the locking tab and the same time, pry the locking piece off with a screwdriver.
Now, if you look closely inside, you'll notice small locking tabs underneath each pin. I outlined them in the picture with a red dot. You'll need to pry between that and the pin with a very small screwdriver, pick, ect. At the same time, pull on the wire from the other side.
Senior User
Joined: Apr 2015
Posts: 173
Likes: 0
Any ground is fine. Just make sure it's not on a painted surface.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Junior User
Joined: Jan 2010
Posts: 75
Likes: 2
From: Metro Atlanta (NW burbs)
I like how clean your labels look... as simple as it seems... what did you use to make them. Like the clean look and may use them for my switches...
Fleet Mechanic
Joined: Mar 2004
Posts: 1,483
Likes: 1
From: SE PA
I used one of those Brother label machines on the smallest size. White print on clear label then trimmed it close. They were on for probably 10 years before I pulled them when I refinished the dash.
ATG....if it's a help...PM what you'd like them to say and I can print them and drop 'em in the mail for ya. Also, black or white letters? (I think I have both tapes...)
ATG....if it's a help...PM what you'd like them to say and I can print them and drop 'em in the mail for ya. Also, black or white letters? (I think I have both tapes...)
Super Moderator
Joined: May 2004
Posts: 29,380
Likes: 118
From: Central Coast of CA
Woow. I barely even remember doing that mod and making that thread.. Alzheimer's has got me bad.. But I never throw away pics. I could probably find them and post them again if needed. The ones posted online were in a photo site that went out of business and the were erased there.
