Excursion Fog Lights Using OEM Switch
Thread Starter
|
Cross-Country
Joined: Feb 2016
Posts: 68
Likes: 0
Excursion Fog Lights Using OEM Switch
Has anyone successfully done this: OEM Fog light Pictures and instructions are up! - Diesel Forum - TheDieselStop.com
post#3 in specific? I have a 2000 Excursion looking to add fog lights utilizing the oem switch. Thank you.
post#3 in specific? I have a 2000 Excursion looking to add fog lights utilizing the oem switch. Thank you.
Posting Guru
Joined: May 2015
Posts: 1,029
Likes: 6
I've done a lot of searching,but never found that post! I am looking to do this in the future, but want going to go that in depth for fear it wouldn't work my plan was to get the switch from the newer excursion, and find which pins on the switch were for power and output to fog lights, then add my wires straight at the switch, otherwise bypassing the Ford harness for that part. looking at the diagrams, it should work!
Auto zone has all of the wiring diagrams in the website
Auto zone has all of the wiring diagrams in the website
Posting Guru
Joined: May 2015
Posts: 1,029
Likes: 6
Just kidding, I misread the pay that's exactly what I was planning on doing I thought he was trying to use more wires in the factory harness, not just the connector. should work just fine, but make sure you use the fog light power from the switch to control a fog light relay that is supplied with 12v positive with a sufficiently sized wire to handle the load of the fog lights.
it would be awesome if there was a way to use the factory relay location, but that might be more work than its worth if the pins aren't already in the junction box.
it would be awesome if there was a way to use the factory relay location, but that might be more work than its worth if the pins aren't already in the junction box.
Fleet Mechanic
Joined: Mar 2004
Posts: 1,483
Likes: 1
From: SE PA
When my Ex was new, I installed the fog light kit that Ford sold for the Excursion. Since my Ex is an '05, I had to use the 2005 foglights or brackets as the kit came with the lights for the earlier trucks.
The kit came with a switch, but I used my own switch that I installed along with a switch to turn off the air horns. Both were placed beside the power point in the blank plate on the dash.
I seem to remember speaking with the parts guy at the dealership back in the day, who told me that I couldn't use the Ford headlight switch for trucks with fog lights because the connector was different. Made sense at the time, or Ford would've made the kit differently.
The kit came with a switch, but I used my own switch that I installed along with a switch to turn off the air horns. Both were placed beside the power point in the blank plate on the dash.
I seem to remember speaking with the parts guy at the dealership back in the day, who told me that I couldn't use the Ford headlight switch for trucks with fog lights because the connector was different. Made sense at the time, or Ford would've made the kit differently.
Posting Guru
Joined: May 2015
Posts: 1,029
Likes: 6
I seem to remember speaking with the parts guy at the dealership back in the day, who told me that I couldn't use the Ford headlight switch for trucks with fog lights because the connector was different. Made sense at the time, or Ford would've made the kit differently.
Fleet Mechanic
Joined: Mar 2004
Posts: 1,483
Likes: 1
From: SE PA
makes sense , but the workaround for that would be to get the pig tail for the fog light switch, then compare wiring diagrams and put the pins in all the right places to make it work. it is a lot more work than just popping in a switch, but for guys like me who want the factory look it is worth the extra effort!
Remember, for me this was almost 12 years ago. (I ordered and bought mine new...January 4th it will be 12 years)
Cargo Master
Joined: Mar 2005
Posts: 2,790
Likes: 24
From: Mount Royal, NJ
Woow. I barely even remember doing that mod and making that thread.. Alzheimer's has got me bad.. But I never throw away pics. I could probably find them and post them again if needed. The ones posted online were in a photo site that went out of business and the were erased there.
Trending Topics
Posting Guru
Joined: May 2015
Posts: 1,029
Likes: 6
I'm sure it's possible, and that's what I wanted to do originally. I'm all for keeping things original. I was then, and still am very pleased with the way my install worked out.
Remember, for me this was almost 12 years ago. (I ordered and bought mine new...January 4th it will be 12 years)
Remember, for me this was almost 12 years ago. (I ordered and bought mine new...January 4th it will be 12 years)
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Cross-Country
Joined: Feb 2016
Posts: 68
Likes: 0
Woow. I barely even remember doing that mod and making that thread.. Alzheimer's has got me bad.. But I never throw away pics. I could probably find them and post them again if needed. The ones posted online were in a photo site that went out of business and the were erased there.
Housedad, appreciate the response. Please post the pics. I have a 2000 so I know I need to get a new oem switch from a later model with the fog option, and will follow your wiring on that thread and tackle it. Only question I have for now is did you use any relays? Stock relay perhaps? Thank you!
Cargo Master
Joined: Mar 2005
Posts: 2,790
Likes: 24
From: Mount Royal, NJ
Housedad, appreciate the response. Please post the pics. I have a 2000 so I know I need to get a new oem switch from a later model with the fog option, and will follow your wiring on that thread and tackle it. Only question I have for now is did you use any relays? Stock relay perhaps? Thank you!
Cargo Master
Joined: Mar 2005
Posts: 2,790
Likes: 24
From: Mount Royal, NJ
I also remember a small mod I did that allows me to turn on the fogs even with the high beams on. That is a no-no in most states, so I have a hidden underdash switch that allows me to turn off that feature when getting inspected. Now, years later, New Jersey has gutted the inspection requirements and I just leave the switch on. They basically only test emissions anymore so they can keep getting Fed EPA money. Your state may be different.
Senior User
Joined: Apr 2015
Posts: 173
Likes: 0
I seem to remember speaking with the parts guy at the dealership back in the day, who told me that I couldn't use the Ford headlight switch for trucks with fog lights because the connector was different. Made sense at the time, or Ford would've made the kit differently.
Simple fix...install the two missing pins into the harness side of the connector and run a wire to a relay for the fogs or go to a junkyard and find a F250/EX with fogs and cut off the harness.
DigiKey.com sells the pins. The easiest option would be to just cut the connector/pigtail if you can find one in the junkyard.
Thread Starter
|
Cross-Country
Joined: Feb 2016
Posts: 68
Likes: 0
Last question I have is, is there a better place to hook up the relay beside connecting directly to the battery (I'd like to keep my batteries free of any auxiliary connections if possible)?
Is there a stock relay receptacle I can use or can I just tap the relay into any hot wire and ground wire at the headlight switch or something?
Is there a stock relay receptacle I can use or can I just tap the relay into any hot wire and ground wire at the headlight switch or something?
Fleet Mechanic
Joined: Mar 2004
Posts: 1,483
Likes: 1
From: SE PA
Not true...the connectors are the same. The pin outs are different. You can plug in a headlight switch w/fogs into an EX without fogs and vice versa but the connector won't have wiring and pins for the fogs.
Simple fix...install the two missing pins into the harness side of the connector and run a wire to a relay for the fogs or go to a junkyard and find a F250/EX with fogs and cut off the harness.
DigiKey.com sells the pins. The easiest option would be to just cut the connector/pigtail if you can find one in the junkyard.
Simple fix...install the two missing pins into the harness side of the connector and run a wire to a relay for the fogs or go to a junkyard and find a F250/EX with fogs and cut off the harness.
DigiKey.com sells the pins. The easiest option would be to just cut the connector/pigtail if you can find one in the junkyard.
I'll post a pick of how I installed the switches just as a FYI for those that might have an interest. As soon as I get down to the garage today...
Senior User
Joined: Apr 2015
Posts: 173
Likes: 0
Last question I have is, is there a better place to hook up the relay beside connecting directly to the battery (I'd like to keep my batteries free of any auxiliary connections if possible)?
Is there a stock relay receptacle I can use or can I just tap the relay into any hot wire and ground wire at the headlight switch or something?
Is there a stock relay receptacle I can use or can I just tap the relay into any hot wire and ground wire at the headlight switch or something?
For anyone that's interested in adding the missing pins for the relay, here are the pin outs from a 2003 headlight switch connector with fogs:
#5 Pin/terminal removed:

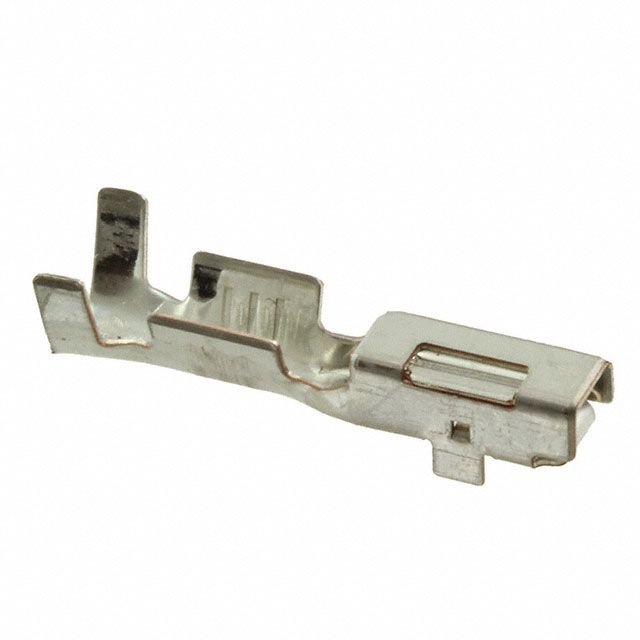

For adding new terminals, you can either buy them from Digi-Key (part# 368084-1) or rob them off an existing connector.
368084-1 TE Connectivity AMP Connectors | Connectors, Interconnects | DigiKey
2000 Wiring Diagram:
