Transmission temperature sensor
Thread Starter
|
Junior User
Joined: May 2016
Posts: 79
Likes: 0
I am also now getting the audible tone when testing resistance from pin 18 to pin 22.
I swear I'm not typically this dumb, I am just overwhelmed at this point. I promise you the next time I'm in Utah, I'm buying you a drink or 14. Your patience and help is such a huge difference maker for me right now.
I swear I'm not typically this dumb, I am just overwhelmed at this point. I promise you the next time I'm in Utah, I'm buying you a drink or 14. Your patience and help is such a huge difference maker for me right now.
Hotshot
Joined: Apr 2010
Posts: 19,055
Likes: 235
From: Saratoga Springs,UT
[QUOTE=usmarine1979;16479647]I am also now getting the audible tone when testing resistance from pin 18 to pin 22.
QUOTE]
what side of the plug at trans were you on at this time
things going into trans
or
leading back to PCM
anytime a DVM is set ohm or continuity you do not want to Feed it power or the DVM may not be calibrated correct or work at all
Testing at the Trans plug going back to PCM side with Key ON would have feed DVM power 5.03 volts to be exact
If so touch the battery terminals to verify DVM Accuracy reading a 12 volts range and nothing crazy DVM set to read DC volts IM sure tons of other things come into play when testing a DVM for accuracy Probably yours is OK
OHM pins 18 & 22 going into trans side of things
There are so many rules to electronics testing that its hard
QUOTE]
what side of the plug at trans were you on at this time
things going into trans
or
leading back to PCM
anytime a DVM is set ohm or continuity you do not want to Feed it power or the DVM may not be calibrated correct or work at all
Testing at the Trans plug going back to PCM side with Key ON would have feed DVM power 5.03 volts to be exact
If so touch the battery terminals to verify DVM Accuracy reading a 12 volts range and nothing crazy DVM set to read DC volts IM sure tons of other things come into play when testing a DVM for accuracy Probably yours is OK
OHM pins 18 & 22 going into trans side of things
There are so many rules to electronics testing that its hard
Thread Starter
|
Junior User
Joined: May 2016
Posts: 79
Likes: 0
[QUOTE=BLADE35;16479694]
I've got a 5" exhaust pipe directly in front of the Trans side plug making it impossible to see where my leads are, much less if they are on the right pins. I might have to go get some alligator clips or something
I am also now getting the audible tone when testing resistance from pin 18 to pin 22.
QUOTE]
what side of the plug at trans were you on at this time
things going into trans
or
leading back to PCM
leading back to the pcm
anytime a DVM is set ohm or continuity you do not want to Feed it power or the DVM may not be calibrated correct or work at all
Testing at the Trans plug going back to PCM side with Key ON would have feed it power 5.03 volts to be exact
OHM pins 18 & 22 going into trans side of things
There are so many rules to electronics testing that its hard
QUOTE]
what side of the plug at trans were you on at this time
things going into trans
or
leading back to PCM
leading back to the pcm
anytime a DVM is set ohm or continuity you do not want to Feed it power or the DVM may not be calibrated correct or work at all
Testing at the Trans plug going back to PCM side with Key ON would have feed it power 5.03 volts to be exact
OHM pins 18 & 22 going into trans side of things
There are so many rules to electronics testing that its hard
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Hotshot
Joined: Apr 2010
Posts: 19,055
Likes: 235
From: Saratoga Springs,UT
well you most likely need an internal harness at this point
I find it hard to believe you got 2 bad TFT Sensors
At the TFT sensor 2 pins comong Directly out the sensor set DVM to OHM or Beep and if it beep its OK to a Point Use ohm value per the temp on step B4 scale to verify sensor integrity
I find it hard to believe you got 2 bad TFT Sensors
At the TFT sensor 2 pins comong Directly out the sensor set DVM to OHM or Beep and if it beep its OK to a Point Use ohm value per the temp on step B4 scale to verify sensor integrity
Fleet Mechanic
Joined: Nov 2008
Posts: 1,443
Likes: 9
From: South Alabama
Quote:
Originally Posted by BLADE35 View Post
Sweet you got this
Key was in On Position when testing right??
Sigh..............
USMarine1979 you have kept yor sense of humor thru this whole thing. You sir are a good man.
Originally Posted by BLADE35 View Post
Sweet you got this
Key was in On Position when testing right??
Sigh..............
USMarine1979 you have kept yor sense of humor thru this whole thing. You sir are a good man.
Thread Starter
|
Junior User
Joined: May 2016
Posts: 79
Likes: 0

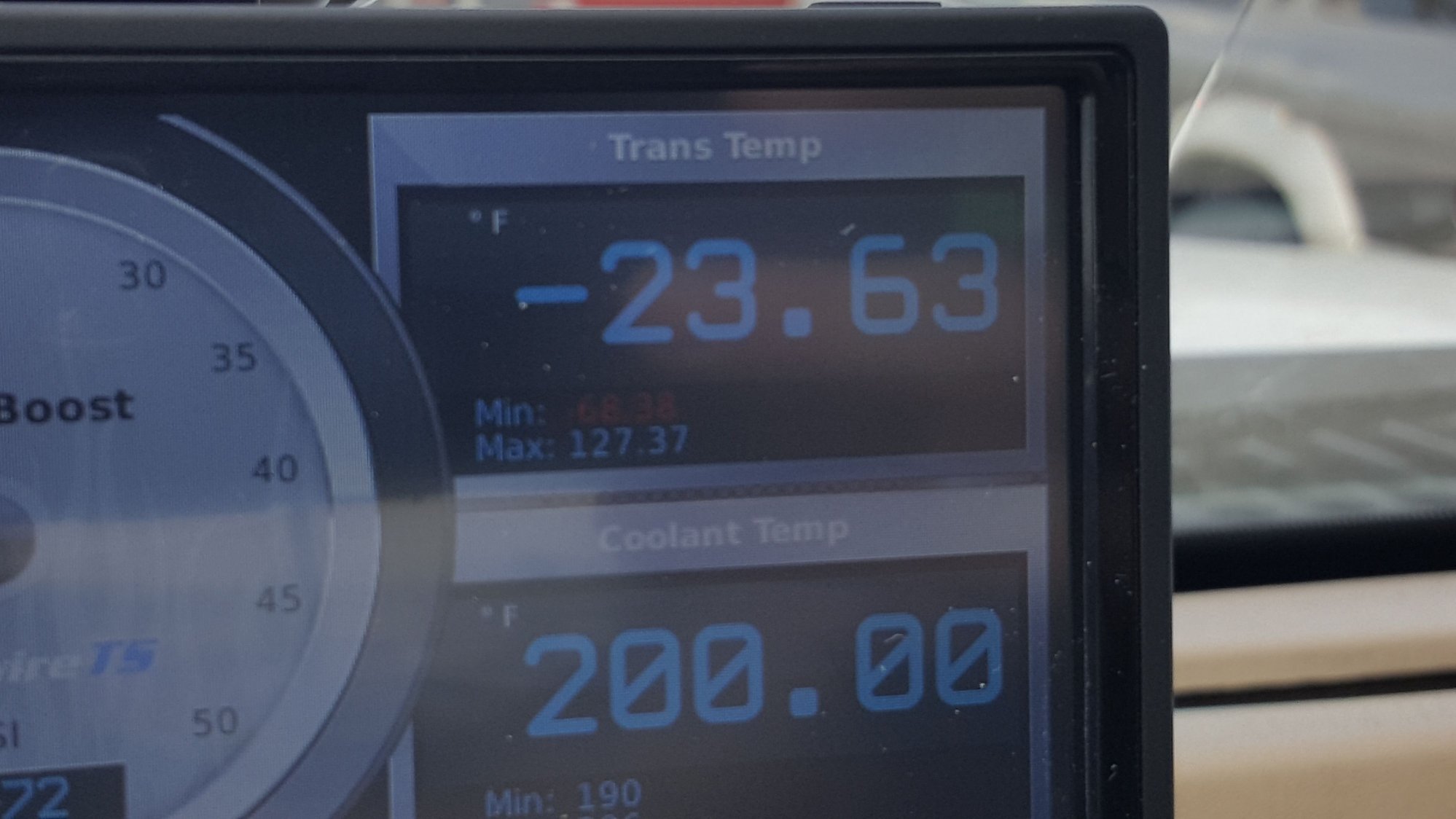

Thanks Tideman, it was a struggle at times. I drove to oreilly's in it and thought the issue was gone. For the first time I saw what looked to be legitimate Temps until it started bouncing erratically again, then dropped to that pic and lower. At this point, my sense of humor is all I have left.
