02 Excursion TV Replacement
Elder User
Joined: Jan 2013
Posts: 916
Likes: 1
From: Reno, NV
Fellow FTE user Radmacks posted this video (and there is a thread on here too) installing an aftermarket deck with the factory dvd.
Why this matters to you is that if you buy 2 of these adapters or similar and wire the power, ground and audio to the correct pins, you should have a working dvd player. You'll notice the adapter he bought in that video IS the correct one to fit the newer >2003 DVD players
Get one of these:
and wire it to this:
You should now have a 2002->2003 DVD adapter harness.
Why this matters to you is that if you buy 2 of these adapters or similar and wire the power, ground and audio to the correct pins, you should have a working dvd player. You'll notice the adapter he bought in that video IS the correct one to fit the newer >2003 DVD players
Get one of these:
and wire it to this:
You should now have a 2002->2003 DVD adapter harness.
Elder User
Joined: Jan 2013
Posts: 916
Likes: 1
From: Reno, NV
I realized after posting that that it won't matter for you because you don't have factory dvd so you don't need an adapter per se.
That said however, if you wire power and ground to the 2003 adapter you'll be able to turn on the dvd player and use wireless headphones with the IR. If you want to run audio through the head unit you WILL need to wire it up to the 2002 adapter and plug that into the back of your deck.
That said however, if you wire power and ground to the 2003 adapter you'll be able to turn on the dvd player and use wireless headphones with the IR. If you want to run audio through the head unit you WILL need to wire it up to the 2002 adapter and plug that into the back of your deck.
More Turbo
Joined: Jan 2014
Posts: 722
Likes: 13
From: ramsey mn
Well I'm hoping I can get a aftermarket deck depending on the cost so it is worth something
I will figure it out either way. If I could just see a factory connectors on each end or a diagram I could pin it out and run my own wires and use my own connectors
I will figure it out either way. If I could just see a factory connectors on each end or a diagram I could pin it out and run my own wires and use my own connectors
Elder User
Joined: Jan 2013
Posts: 916
Likes: 1
From: Reno, NV
Did anyone who bought this install it in an '02 or lower? I finally decided to tackle this today and the wiring harness is slightly different (old plug on truck is 12 pin - new plug on new dvd is 20 pin. Funny enough you can fit your old 12 pin male pug into the new 20 pin plug but nothing happens.
Does anyone have a pinout diagram for both the '02 DVD and '03 DVD system? All I should really need to wire up power, ground, illum and ignition.
If anyone did this any other way, let me know too.
Does anyone have a pinout diagram for both the '02 DVD and '03 DVD system? All I should really need to wire up power, ground, illum and ignition.
If anyone did this any other way, let me know too.
More Turbo
Joined: Jan 2014
Posts: 722
Likes: 13
From: ramsey mn
Did anyone who bought this install it in an '02 or lower? I finally decided to tackle this today and the wiring harness is slightly different (old plug on truck is 12 pin - new plug on new dvd is 20 pin. Funny enough you can fit your old 12 pin male pug into the new 20 pin plug but nothing happens. Does anyone have a pinout diagram for both the '02 DVD and '03 DVD system? All I should really need to wire up power, ground, illum and ignition. If anyone did this any other way, let me know too.
The correct 20 cavity connector is 3U2Z-14s411-FCA
Give me about 3 days and I will be able to help get you rollin
More Turbo
Joined: Jan 2014
Posts: 722
Likes: 13
From: ramsey mn
Also I do have the full wiring diagram for the 2002 I will get that page sent over to you with my note since i had to add all of the wiring.
Are you running a stock radio?
Are you running a stock radio?
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 6 Best Deals Available on New Fords & Lincolns Right Now
Brett Foote
This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level
Verdad Gallardo
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
More Turbo
Joined: Jan 2014
Posts: 722
Likes: 13
From: ramsey mn
Ok one more thing you will need more than power ground and illum. Wires if you still want sound out the stereo, unless you plan on using the IR headphones only in that case you will only need the wires you stated
More Turbo
Joined: Jan 2014
Posts: 722
Likes: 13
From: ramsey mn

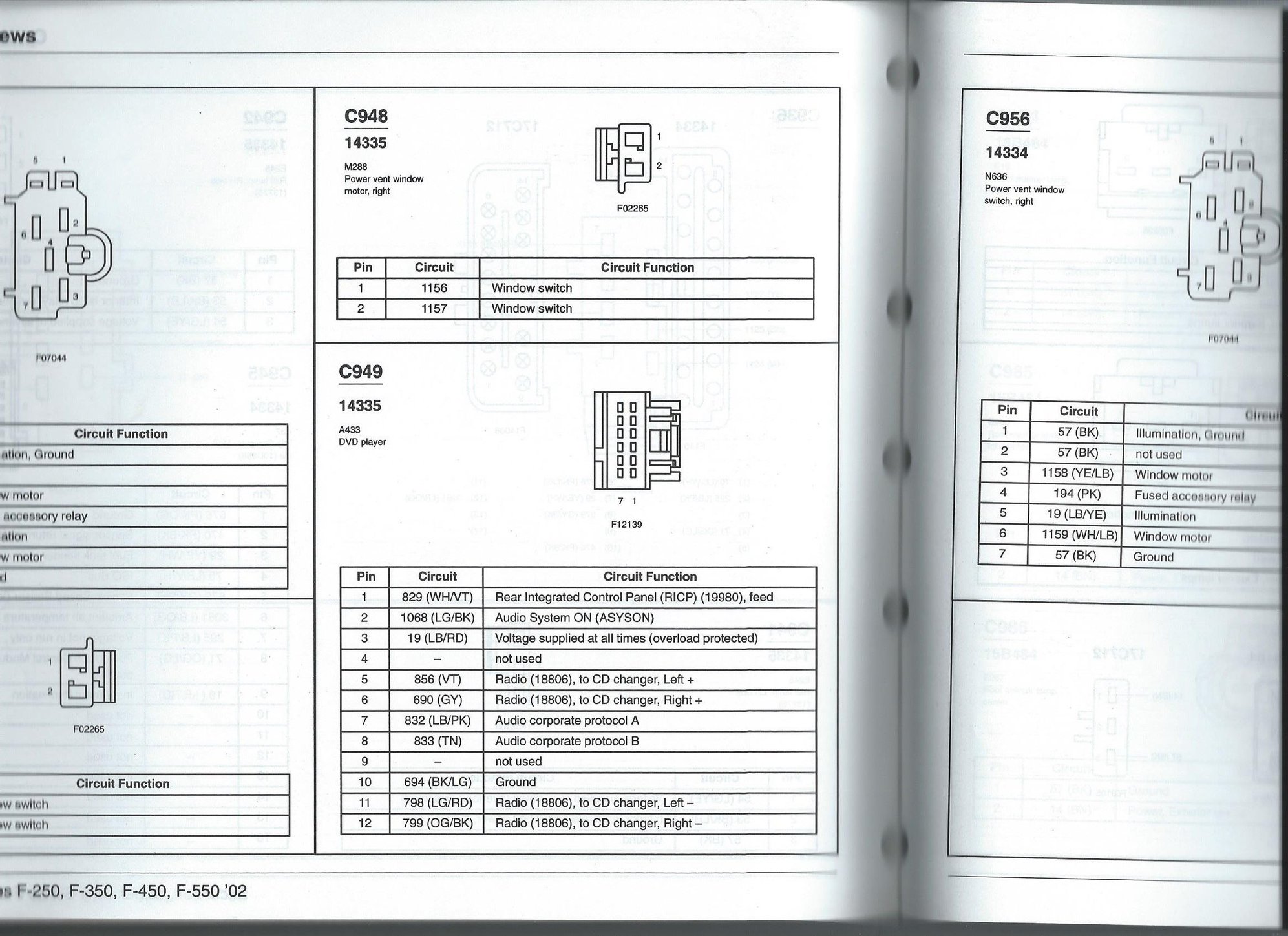

here is what i can get you today
.....
