e4od wiring
Laughing Gas
Joined: Mar 2011
Posts: 811
Likes: 1
From: West Central Southern MN
Where did those diagrams come from?
The diodes can't be sealed completely can they?
I'd like to go through RJM for this procedure, but since they are down and out, is there another option for the hardware with some support?
The diodes can't be sealed completely can they?
I'd like to go through RJM for this procedure, but since they are down and out, is there another option for the hardware with some support?
Fleet Owner
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
REF Post #13 in this thread.

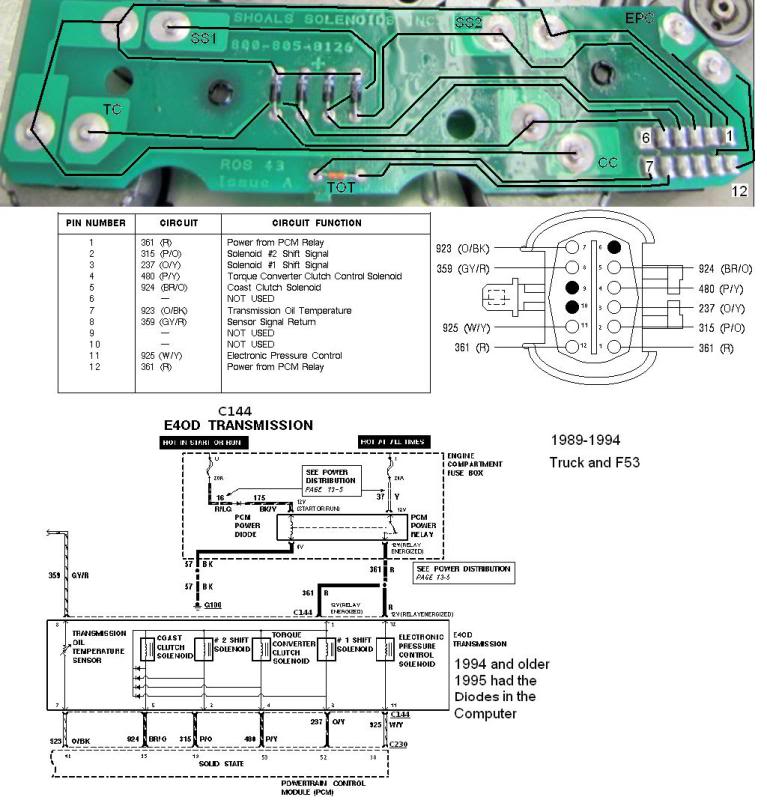

I made the image.
I took the photo and then traced the lines on the photo.
The wiring diagram was from a FORD shop manual and I put the diodes in the image using the photo for placement.
The plug diagrams were also from a FORD shop manual.
I made the image.
I took the photo and then traced the lines on the photo.
The wiring diagram was from a FORD shop manual and I put the diodes in the image using the photo for placement.
The plug diagrams were also from a FORD shop manual.
Fleet Owner
Joined: Oct 2005
Posts: 20,785
Likes: 1,751
From: Kentucky
I would advise against it even if their website is back online.
https://www.ford-trucks.com/forums/1...ce-so-far.html
https://www.ford-trucks.com/forums/1...on-update.html
https://www.ford-trucks.com/forums/1...ce-so-far.html
https://www.ford-trucks.com/forums/1...on-update.html
New User
Joined: Nov 2020
Posts: 1
Likes: 0
Hi do u still have this diagram I need it asap
Hi did u still have these diagrams UOTE=subford;13985468]Maybe these diagrams will help:

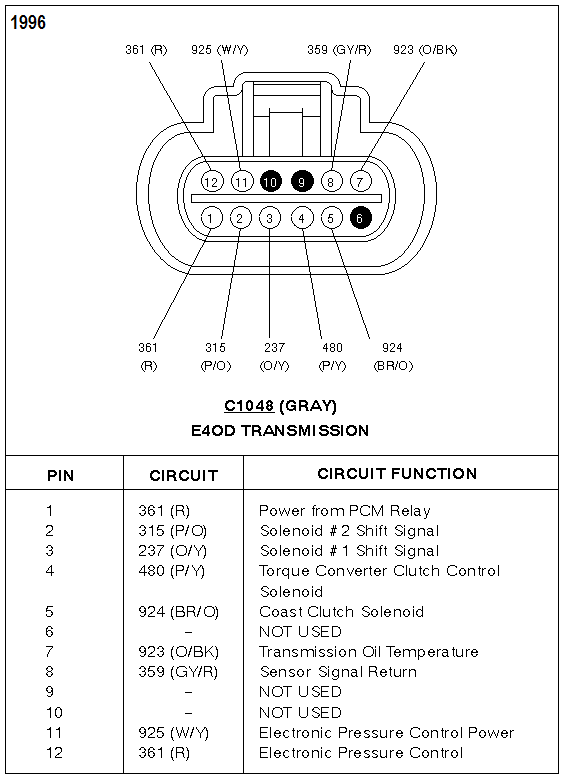

1996 plug:
hello do u still have this diagram I need it asap
/[/QUOTE]
1996 plug:
hello do u still have this diagram I need it asap
/[/QUOTE]
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Fleet Owner
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
Re posted.
Fleet Owner
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
The first one:
Attachment 277877
The second one above:
Attachment 279867
/
Attachment 277877
The second one above:
Attachment 279867
/
