Reverse wire location
FTE Leadership Emeritus
Joined: May 2014
Posts: 27,345
Likes: 5,941
From: Lake Hartwell, GA
I taped into an ignition power wire instead of the reverse wire to power the camera because I wanted to view the image even if the truck was not in reverse. This means the camera is on when the truck is on and I simply select camera view on the stereo in order to view the image.
I have a manual transmission and this works very well when hooking up to my trailer. Just another idea to think about.
I have a manual transmission and this works very well when hooking up to my trailer. Just another idea to think about.
Tuned
Joined: Jun 2003
Posts: 465
Likes: 53
From: Connecticut
Thanks for the tip. Unfortunately, leaving it powered on all the time is not feasible. On the head unit I have, the Pioneer AVHX2700BS, when that wire is energized the screen goes full-screen to the rear camera and stays there until that wire is powered off. If I left that wire powered on all the time I'd not be able to use any other head unit function.
The Pioneer does allow me to use the menus to go to a separate video input, but I have no need to keep the rear camera powered on all the time: I have a wireless camera on the aft edge of my enclosed auto trailer that feeds into a rearview mirror display. When the trailer's wireless is broadcasting it shows up there.
All I need today's camera install for is backing up to connect the trailer and for seeing what's back there when I'm reversing. Having it powered on and displaying only when in reverse works best for me.
I'll get motivated soon to find the right wire. Or I'll run one from the back.
The Pioneer does allow me to use the menus to go to a separate video input, but I have no need to keep the rear camera powered on all the time: I have a wireless camera on the aft edge of my enclosed auto trailer that feeds into a rearview mirror display. When the trailer's wireless is broadcasting it shows up there.
All I need today's camera install for is backing up to connect the trailer and for seeing what's back there when I'm reversing. Having it powered on and displaying only when in reverse works best for me.
I'll get motivated soon to find the right wire. Or I'll run one from the back.
New User
Joined: Jul 2007
Posts: 2
Likes: 0
Unfortunately the clear pictures in post 12 do not show the correct wire. While it is the correct color, that plug is not the backup wire, instead it is Connector 219, which contains the key in warning circuit.

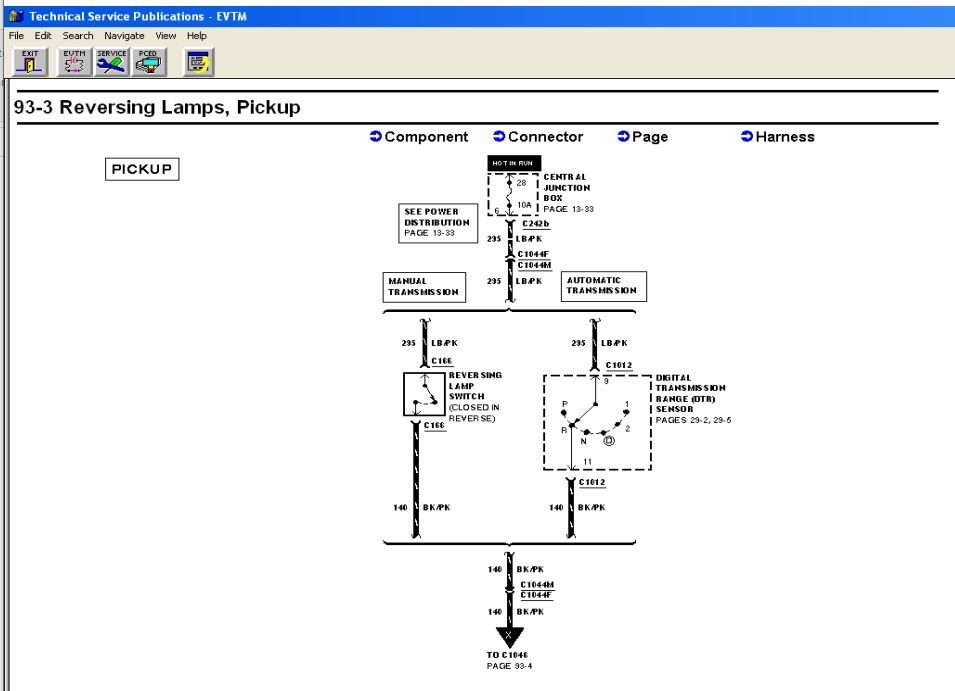

The circuit we need for reverse power is circuit 140, also black and pink, but instead it is accessible at connector 1049 further to the left side of the truck, or under the panel by the drivers side door, or in the passenger side A pillar which runs up to the auto dimming mirror. I hope to get clear pics soon from my 2001 Excursion.
The circuit we need for reverse power is circuit 140, also black and pink, but instead it is accessible at connector 1049 further to the left side of the truck, or under the panel by the drivers side door, or in the passenger side A pillar which runs up to the auto dimming mirror. I hope to get clear pics soon from my 2001 Excursion.
New User
Joined: Jul 2007
Posts: 2
Likes: 0
Here's where I accessed mine. I could not find the Black/Pink wire in the Driver's side kick panel, but It was there on the Passenger's side where it ran up to the A pillar and eventually the rear view mirror.
I tapped into it just behind the kick panel and routed the wire up to the head unit.
I tapped into it just behind the kick panel and routed the wire up to the head unit.
Post Fiend
Joined: Mar 2015
Posts: 5,277
Likes: 32
From: Blairsville, Pennsylvania
New User
Joined: Oct 2017
Posts: 2
Likes: 0
That whole brown wire clip you know what’s it called and what it feeds?
Thanks for the pictures.

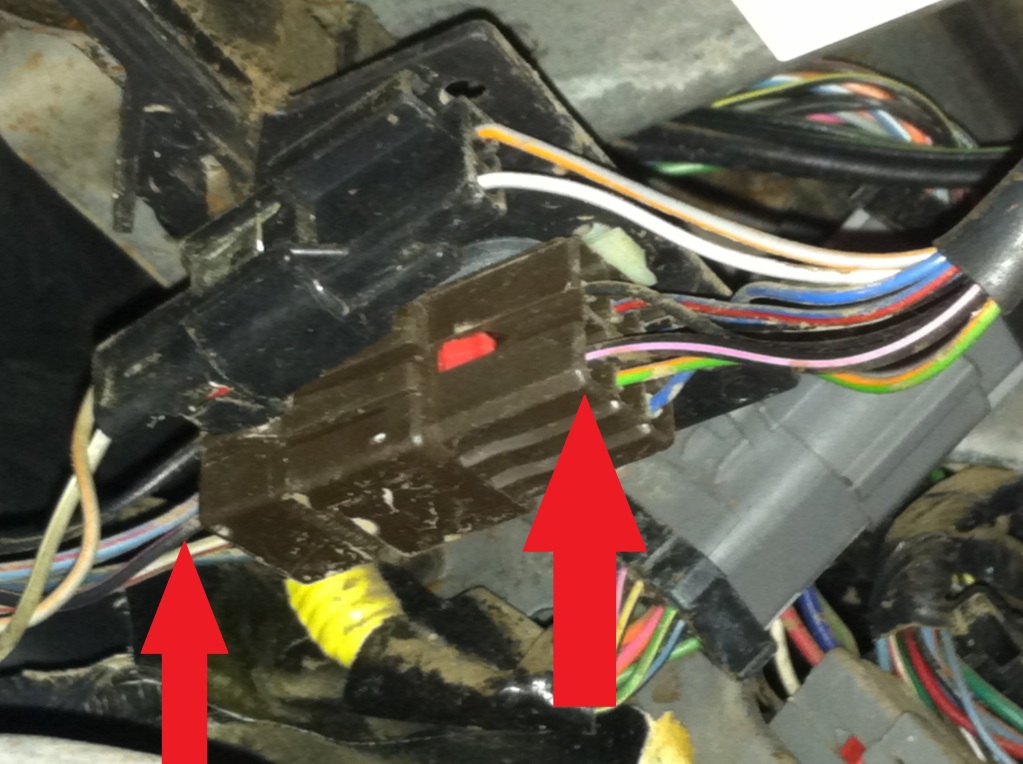

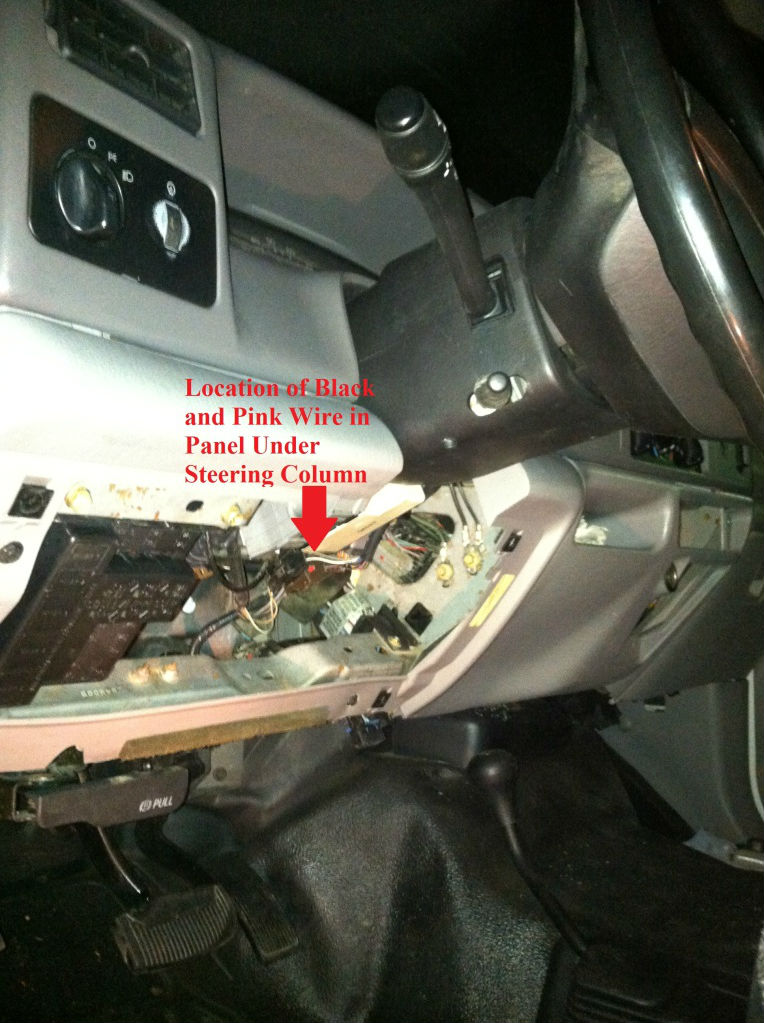

I spent a few minutes under the steering column and found a group of wires coming out of the wheel shroud that included a black wire with a pink stripe. The wires terminate into a brown plug.
I've attached two pictures - one for perspective and one closer up.
Assuming I found the correct wire, I hope this helps others.
Attachment 201591
Attachment 201592
I'll confirm that I located the correct black/pink wire when the camera arrives and I start my install.
I spent a few minutes under the steering column and found a group of wires coming out of the wheel shroud that included a black wire with a pink stripe. The wires terminate into a brown plug.
I've attached two pictures - one for perspective and one closer up.
Assuming I found the correct wire, I hope this helps others.
Attachment 201591
Attachment 201592
I'll confirm that I located the correct black/pink wire when the camera arrives and I start my install.
New User
Joined: Jan 2020
Posts: 3
Likes: 0
Black/Pink
Same here. Not the reverse wire on a 2006 F-250. When using a test light it causes the chimes in the truck to go off, and is always hot. Still looking for the reverse wire for this truck, and tried all the wires from the backup fuse to no avail.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
FTE Chapter Leader
Joined: Jan 2005
Posts: 13,086
Likes: 4,697
From: Henderson, NV
I tapped mine close to C1044.
