Hey folks! I'd like a peek under the hood. For those of you who like to post pictures, let's see before, during and after pics of your projects. Thank you all for the help along the way...Geo
Fleet Mechanic
Joined: Jul 2006
Posts: 1,346
Likes: 4
From: Rapid City, SoDak

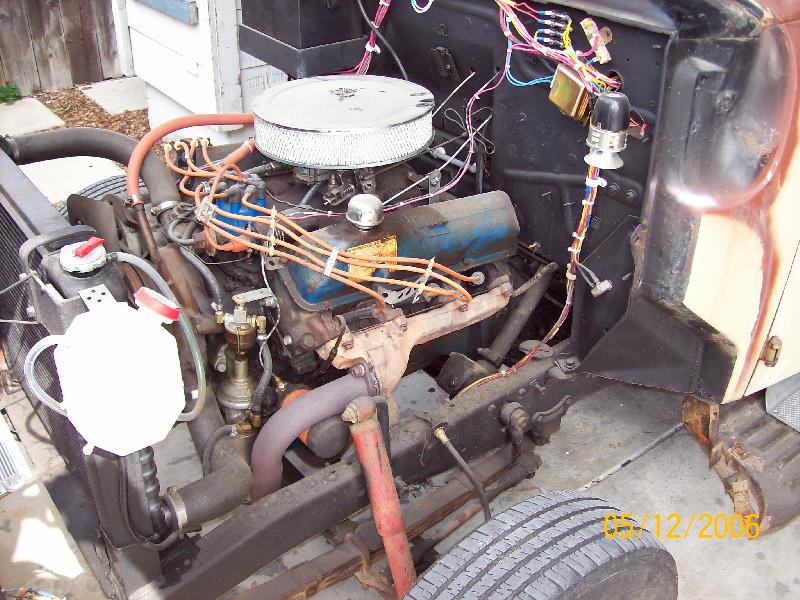

Julie, I haven't seen that pic before, that 390 is a tight fit isn't it? Can you even use block huggers on a 390 or are the headers you have pretty much the only option? I like the spark plug wire tubes btw, nice touch.
Trending Topics
Post Fiend
Joined: May 2008
Posts: 7,641
Likes: 21
From: Poway, Ca.
You might be able to use block hugger headers on the 390 like this, IF you were to substitute the stock steering box for something else - Toyota maybe. But with the stock steering box, no way - over the frame or installing a stock manifold on backwards - pointing the exhaust pipe forward then looping it back (as my original set up was configured). It put the exhaust pipe too close to the fuel pump, and made changing the oil filter impossible.
I found out too late that the new "over the frame" set of headers negated the installation of a MII front end (which I had already bought) and required me to rebuild the stock front end. Had I know at the time how great the stock front end was going to turn out I would have never bought the MII front end in the first place!
The plug wire tubes are aluminum and kept apart with 8mm wire looms - I had a BIG problem with the spark jumping from wire to wire. FEs are notorious for that especially between #7 and #8.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Fleet Mechanic
Joined: Jul 2006
Posts: 1,346
Likes: 4
From: Rapid City, SoDak
VERY TIGHT! 1/4 inch from the back valve cover to the firewall, and 1/4 inch from the top of the C6 to the transmission cover. over the frame or installing a stock manifold on backwards - pointing the exhaust pipe forward then looping it back (as my original set up was configured). It put the exhaust pipe too close to the fuel pump, and made changing the oil filter impossible.
and I never understood that, makes sense now.
Steve that is one saweet lookin' flathead, can't wait to see the rest of that truck come together.
Hotshot
Joined: Oct 2009
Posts: 16,152
Likes: 4,750
From: Burbank, WA

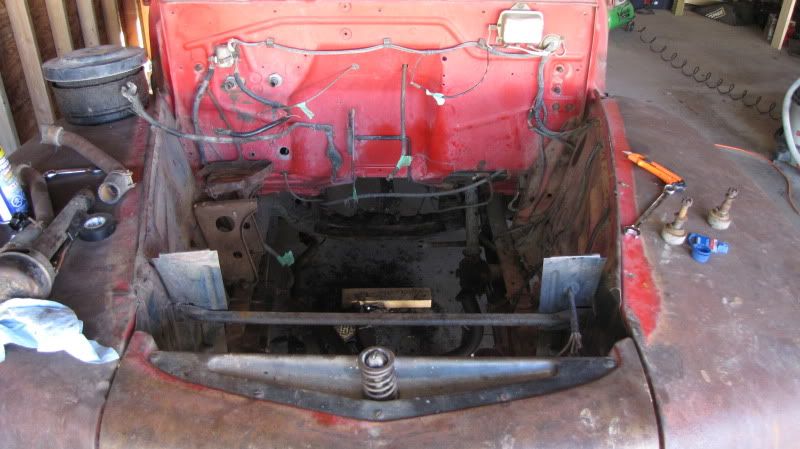

All I have are before's, because it's not after yet. lol.
