I installed a heated mirror switch

Reply



Thread Tools Search this Thread
  #61
Old 04-14-2013, 07:22 PM
SniperVision's Avatar
SniperVision SniperVision is offline
Senior User

Join Date: Mar 2013
Location: Mpls, MN
Posts: 248
SniperVision has a great reputation on FTE.SniperVision has a great reputation on FTE.SniperVision has a great reputation on FTE.SniperVision has a great reputation on FTE.
Can I use one of my stock auxilary switches for this? If so are they all the same or any recommendations? Thx again in advance!
Reply With Quote
  #62
Old 04-14-2013, 07:32 PM
amdriven2liv's Avatar
amdriven2liv amdriven2liv is offline
I'm hitting easy street

Join Date: Nov 2009
Location: Southern, Washington
Posts: 6,237
amdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputation
Go back to page 4.
Reply With Quote
  #63
Old 08-05-2013, 01:42 PM
Culvert Culvert is offline
Senior User

Join Date: Jul 2004
Location: Cold Lake, Ab
Posts: 314
Culvert is starting off with a positive reputation.
Just about to do this on my 06 SD with upfitter switches.
I cant get the OP pics to enlarge any bigger. What Id like to know is how do I plug into the fuse panel.
Running a wire from #3 Aux switch to #39 fuse. Do I just remove fuse & install a U shape wire connector. So both sides are tied into the mini fuse spot or do I cut 1 lug off the connector & go to 1 side of the fuse holder??

I hate wiring & don't want to burn up a fuse panel!!

Thanks for any help or better yet pics!
Reply With Quote
  #64
Old 05-29-2016, 08:28 PM
FordBlueHeart's Avatar
FordBlueHeart FordBlueHeart is offline
Postmaster

Join Date: Jan 2010
Location: Traverse City
Posts: 3,401
FordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud ofFordBlueHeart has much to be proud of
Quote:
Originally Posted by solaratomic View Post
Update: 2006 uses a Green wire w/violet stripe also, connector is not labeled but it is almost directly behind the mirror heat fuse. This connector is at the bottom of the fuse block, just about in the middle(looking directly at it). It has a looped light blue wire w/pink stripe (gos in loops and gos back in) and the release is on the end of the connector. This should help you identify it. I decided to go with the Aux 2 switch since the factory fuse is 15amps, now I just have to go get a large 15 amp fuse for the switch fuse in the block so the mirror wiring doesn't burn up for some reason. Based on the wire size I think I could've used Aux 3 but why take the chance if I'm not useing Aux 2 for anything else. I recommend a SMALL jewelers flathead screwdriver to pry out the red lock in the center of the connector and then to push in the back of the connector to get it to release the wire, it's no prob if you use that. Hope this helps.
I just wanted to let everyone know that this post is correct for the 2006. I found the wire for fuse #39 (green w/violet stripe), then to verify it was the correct connector, I looked for the blue wire w/pink stripe. The connector did indeed have the needed green w/violet striped wire as well as two blue w/pink stripe wires (I assume the OP was correct in stating it looped back in.)
To verify operation, I turned the truck on and let the mirrors get warm and then shut the truck off. I cut the green w/violet stripe wire and waited about 5 minutes. Started the truck up and after a couple minutes it was obvious the mirrors weren't heating up. Success! I attached a piece of 16 ga wire (all I had, probably don't need it to be that large) to both ends of the cut wire and ran them above the fuse box to the dash where I installed a 15 amp 3 pole lighted switch. I ran a ground to the right side of the dash. Now my switch lights up when the heat is on!
Reply With Quote
  #65
Old 05-11-2017, 08:30 PM
spudthegreater's Avatar
spudthegreater spudthegreater is offline
Junior User

Join Date: Oct 2016
Posts: 84
spudthegreater is starting off with a positive reputation.
Heated mirror switch for F250 2006


installed heat mirror switch. Going to put a label on it later.


Green wire with violet stripe...hard to see without some light on it...


4Bolts and position 39 fuse.

I just got done replacing the stock non towing power mirrors on my F250 with some ebay aftermarket mirrors that have the lights/turn signal/ power adjust and heated mirror elements. Didn't know that any of that would actually work because the old small mirrors had none of those functions save the power adjust. Well, low and behold the connectors plugged in just fine and the mirror got hot while I was listening to the radio, I was like, what the heck? Didn't realize that the mirrors by design are always on when the key is on. That was not going to fly with me, so I bought a $6 15amp spst switch and installed a lit red led switch so I can turn it off or on when I want it.
here are some of the steps I took to do it.
1. Disconnect battery cable and remove fuse box with 4 screws, this is drivers side left bottom of dash.
2. Find the Green wire with the violet stripe cut in half and put connectors on them to feed two wires to a SPST switch. Pull the connector out of the back its the connector that is right behind the position 39 heated mirror fuse.
3. The SPST switch has 3 spade connection points, one is for supply, one is for load and one is for ground. the ground connection will allow the led to light up when you hit the switch. It will work with out the ground, but the led light wont light up, you wont know if the mirror is on or not.
4. Find a spot to put the switch and connect it up.
5. Reconnect the fuse box and reconnect the battery and test the switch and then check for heat by touching the mirror, you will feel it pretty quick.
Reply With Quote
  #66
Old 06-12-2017, 09:58 PM
spudthegreater's Avatar
spudthegreater spudthegreater is offline
Junior User

Join Date: Oct 2016
Posts: 84
spudthegreater is starting off with a positive reputation.
Quote:
Originally Posted by spudthegreater View Post

installed heat mirror switch. Going to put a label on it later.


Green wire with violet stripe...hard to see without some light on it...


4Bolts and position 39 fuse.

I just got done replacing the stock non towing power mirrors on my F250 with some ebay aftermarket mirrors that have the lights/turn signal/ power adjust and heated mirror elements. Didn't know that any of that would actually work because the old small mirrors had none of those functions save the power adjust. Well, low and behold the connectors plugged in just fine and the mirror got hot while I was listening to the radio, I was like, what the heck? Didn't realize that the mirrors by design are always on when the key is on. That was not going to fly with me, so I bought a $6 15amp spst switch and installed a lit red led switch so I can turn it off or on when I want it.
here are some of the steps I took to do it.
1. Disconnect battery cable and remove fuse box with 4 screws, this is drivers side left bottom of dash.
2. Find the Green wire with the violet stripe cut in half and put connectors on them to feed two wires to a SPST switch. Pull the connector out of the back its the connector that is right behind the position 39 heated mirror fuse.
3. The SPST switch has 3 spade connection points, one is for supply, one is for load and one is for ground. the ground connection will allow the led to light up when you hit the switch. It will work with out the ground, but the led light wont light up, you wont know if the mirror is on or not.
4. Find a spot to put the switch and connect it up.
5. Reconnect the fuse box and reconnect the battery and test the switch and then check for heat by touching the mirror, you will feel it pretty quick.
window heat and camper alignment laser light.
Reply With Quote
  #67
Old 06-12-2017, 10:02 PM
spudthegreater's Avatar
spudthegreater spudthegreater is offline
Junior User

Join Date: Oct 2016
Posts: 84
spudthegreater is starting off with a positive reputation.
Quote:
Originally Posted by spudthegreater View Post
mirror heat and camper alignment laser light.
120 deg line green line laser mounted on inside of rear window
neodymium magnetic mount removable with quick disconnect
Reply With Quote
  #68
Old 06-12-2017, 10:11 PM
TooManyToys.'s Avatar
TooManyToys. TooManyToys. is offline
Postmaster

Join Date: Dec 2014
Location: Jersey Shore
Posts: 3,639
TooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to all

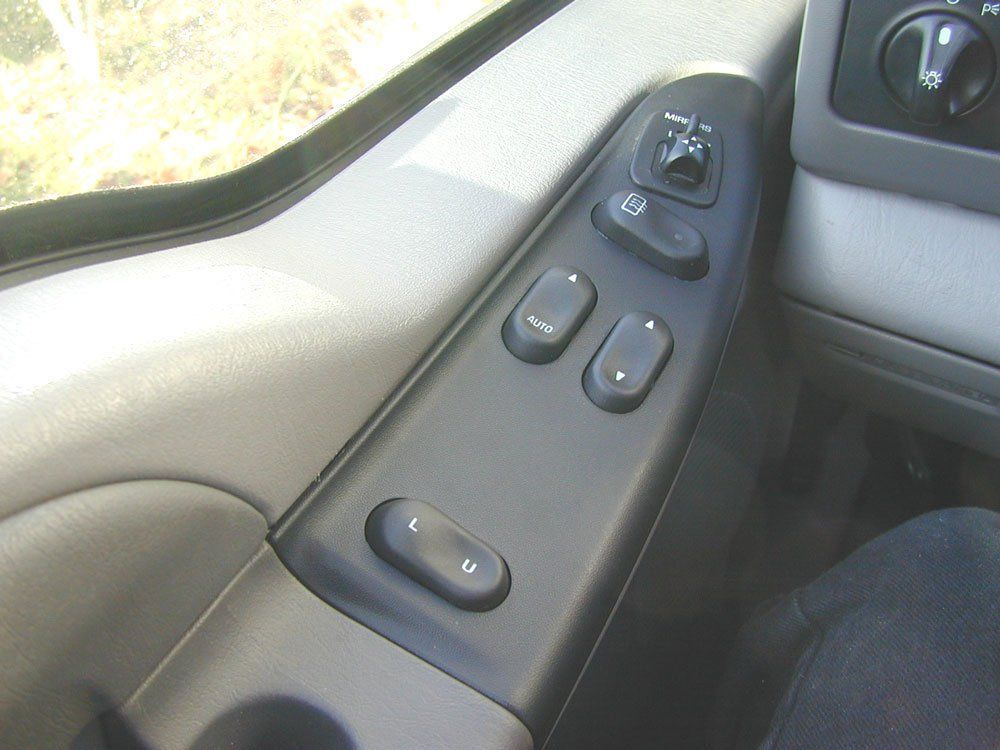

I'll have to find my pics for using the T-Bird timed switch in the door for this. I've got the ones from my old '01 F-250 in FB, but not this truck.





Reply With Quote
  #69
Old 06-12-2017, 10:36 PM
spudthegreater's Avatar
spudthegreater spudthegreater is offline
Junior User

Join Date: Oct 2016
Posts: 84
spudthegreater is starting off with a positive reputation.
Quote:
Originally Posted by TooManyToys. View Post
I'll have to find my pics for using the T-Bird timed switch in the door for this. I've got the ones from my old '01 F-250 in FB, but not this truck.





didn't even think about going to a parts yard and seeing if i could find a door panel with a heat switch on it. could have wired right to that switch... dont know if the 2006 would have fit but it would have been great.
Reply With Quote
  #70
Old 06-13-2017, 05:41 AM
TooManyToys.'s Avatar
TooManyToys. TooManyToys. is offline
Postmaster

Join Date: Dec 2014
Location: Jersey Shore
Posts: 3,639
TooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to all
For the T-Birds they were located on the dash, next to the heater controls. Using those was an old technique from around 2001. The wiring gets a little funky, but the advantage is when you want them to defrost you just hit the momentary switch and the mirror heats for like 15 minutes and turns itself off. Helpful for us aged personnel.
Reply With Quote
  #71
Old 06-13-2017, 11:30 AM
amdriven2liv's Avatar
amdriven2liv amdriven2liv is offline
I'm hitting easy street

Join Date: Nov 2009
Location: Southern, Washington
Posts: 6,237
amdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputation
What do you do when you want to use the heat to keep mirrors dry while driving in the rain?
Reply With Quote
  #72
Old 06-13-2017, 12:47 PM
spudthegreater's Avatar
spudthegreater spudthegreater is offline
Junior User

Join Date: Oct 2016
Posts: 84
spudthegreater is starting off with a positive reputation.
Quote:
Originally Posted by amdriven2liv View Post
What do you do when you want to use the heat to keep mirrors dry while driving in the rain?
are you referring to the post regarding the mirror switch labeled in white of the timed heat switch?
Reply With Quote
  #73
Old 06-13-2017, 01:06 PM
amdriven2liv's Avatar
amdriven2liv amdriven2liv is offline
I'm hitting easy street

Join Date: Nov 2009
Location: Southern, Washington
Posts: 6,237
amdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputationamdriven2liv has a superb reputation
Quote:
Originally Posted by TooManyToys. View Post
For the T-Birds they were located on the dash, next to the heater controls. Using those was an old technique from around 2001. The wiring gets a little funky, but the advantage is when you want them to defrost you just hit the momentary switch and the mirror heats for like 15 minutes and turns itself off. Helpful for us aged personnel.
This post. ^^^^
Reply With Quote
  #74
Old 06-13-2017, 02:22 PM
TooManyToys.'s Avatar
TooManyToys. TooManyToys. is offline
Postmaster

Join Date: Dec 2014
Location: Jersey Shore
Posts: 3,639
TooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to allTooManyToys. is a name known to all
I leave them off in the rain so they don't get so spotted. My initial adaptation was converting the '01 truck to heated mirrors, but with the '03 it was so they were only on when they needed to be defrosted.
Reply With Quote
  #75
Old 06-14-2017, 05:37 AM
Yahiko's Avatar
Yahiko Yahiko is offline
FTE Chapter Leader

Join Date: Apr 2012
Location: Spanaway
Posts: 17,492
Yahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputationYahiko has a superb reputation
This and the fog light mod are on my list of tiny wire mods that I really need to do,
Too bad that the original got eaten by time.

Also I know that he said that he started a new thread on the wiper shaker.
But it would be nice to know how well it worked.
Reply With Quote
