Looks like you guys got it all under control

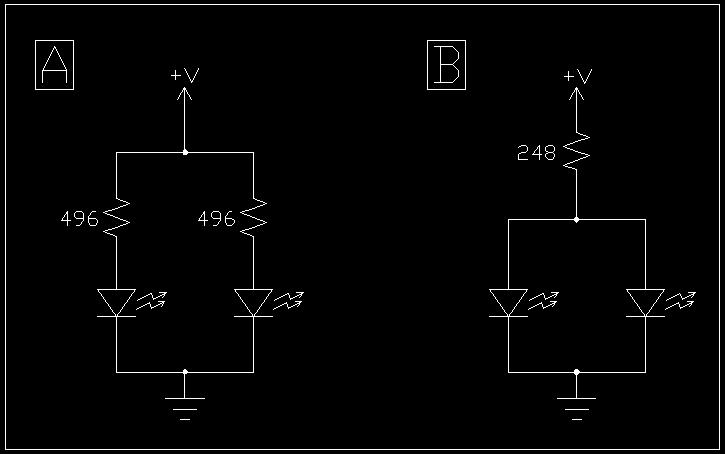

One thought though if you're struggling with the correct resistor/LED setup and you only have 1k ohm resistors, you can connect two 1k resistors in parallel with each other, that will give you 500 ohms which is very close to the original 496ohms you needed. You would use a total of four 1k resistors but it would get the job done.
Don't forget the pics once you're done!
One thought though if you're struggling with the correct resistor/LED setup and you only have 1k ohm resistors, you can connect two 1k resistors in parallel with each other, that will give you 500 ohms which is very close to the original 496ohms you needed. You would use a total of four 1k resistors but it would get the job done.
Don't forget the pics once you're done!
Hotshot
Joined: Jul 2005
Posts: 13,834
Likes: 25
From: Middle Tn.
Looks like you guys got it all under control
One thought though if you're struggling with the correct resistor/LED setup and you only have 1k ohm resistors, you can connect two 1k resistors in parallel with each other, that will give you 500 ohms which is very close to the original 496ohms you needed. You would use a total of four 1k resistors but it would get the job done.
Don't forget the pics once you're done!
One thought though if you're struggling with the correct resistor/LED setup and you only have 1k ohm resistors, you can connect two 1k resistors in parallel with each other, that will give you 500 ohms which is very close to the original 496ohms you needed. You would use a total of four 1k resistors but it would get the job done.
Don't forget the pics once you're done!
Thread Starter
|
Senior User
Joined: Aug 2006
Posts: 387
Likes: 0
From: Ballston Spa, NY
Extreme
dissatisfaction with Radio Shack LEDs. 6.3 mcd does NOT give off a very strong light. Barely visible. Project is on hold until I can find better LEDs
Does anyone know a store where I can get brighter LEDs??
dissatisfaction with Radio Shack LEDs. 6.3 mcd does NOT give off a very strong light. Barely visible. Project is on hold until I can find better LEDs Does anyone know a store where I can get brighter LEDs??
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 7
From: WV
Thread Starter
|
Senior User
Joined: Aug 2006
Posts: 387
Likes: 0
From: Ballston Spa, NY
just loooked on there found the 8000 mcd 45 degree green led. need to find more lights to get from them 5 for shipping so i want to get like tailights and turn signals before i just get two led's. so are those led's going to be good enough and what other bulbs can i get from there. thanks good site
