I can hardly find anything on the F-130. I’m sure you’re already well aware.
Grok tells me that these trucks - in good condition - can fetch upwards of $25,000, but I know that Ai is NOT that reliable when and where information is limited. So, I’ll take this estimate with a grain of salt.
Yes, perhaps someday these will be seen as rare gems when the public learns about the F-130s history and rarity. Let’s hope anyway.
And really, Grock is not far off. But it’s not really the “F130“ part that makes them valuable. All 73 to 79 pickups in good shape are pulling in good money these days.
That 25,000 is not out of line for a nice condition 150, 250, or 350 from that vintage.
Some that are in really spectacular shape get much more.
[QUOTE=Crust Junkies;21216282]It's that time again! Guy on YouTube found a F130, and actually mentioned this very thread which landed me here, which I have now read through and sure as s--t here we are close to 20 years later and the community is still stumped!! Seems to be an EXTREMELYrare bird. After 20 years of the community scrounging, there have been a literal handful of these things to be found. Even googling Ford "F13" or Ford "F130" dig up just a handful of examples in the entirety of the internet. Very, very interesting. I want to know why Ford bothered to make these things! Like they went out of their way to give them their own unique model number, yet there is essentially zero record of them ever existing aside from the few that have been dug up over the
It's that time again! Guy on YouTube found a F130, and actually mentioned this very thread which landed me here, which I have now read through and sure as s--t here we are close to 20 years later and the community is still stumped!! Seems to be an EXTREMELYrare bird. After 20 years of the community scrounging, there have been a literal handful of these things to be found. Even googling Ford "F13" or Ford "F130" dig up just a handful of examples in the entirety of the internet. Very, very interesting. I want to know why Ford bothered to make these things! Like they went out of their way to give them their own unique model number, yet there is essentially zero record of them ever existing aside from the few that have been dug up over the
Some say they will barely command a premium and some - like my mechanic - says these unicorns, if restored correctly, will command top dollar.
It's been my experience that very few people know about the F-130. This lack of public knowledge AND the lack of benchmarked sales, only creates uncertainty. When uncertainty factors into releasing thousands of dollars, people tend to err on the side of caution.
The F130 video on YouTube popped into my “suggested for you” today and reminded me of this thread, which I’ve just re-read. It’s 20 years old now and hundreds of posts long, so figured I’d do a thread summary for the community. If nothing else it’ll help bring people up to speed without having to comb through (literally) 20 years worth of posts:
F130 - What We Know
F130s are exceptionally, exceedingly rare. Not just here on FTE, but in the entirety of the internet and the trillions of pictures and posts across all websites worldwide for the past 30+ years, only a small handful total have been found and that speaks volumes.
All F130 trucks have 8 lug axles. This is what makes them so mysterious, seeing as they are badged as F150s.
All F130 trucks are regular cab longbed 2wd

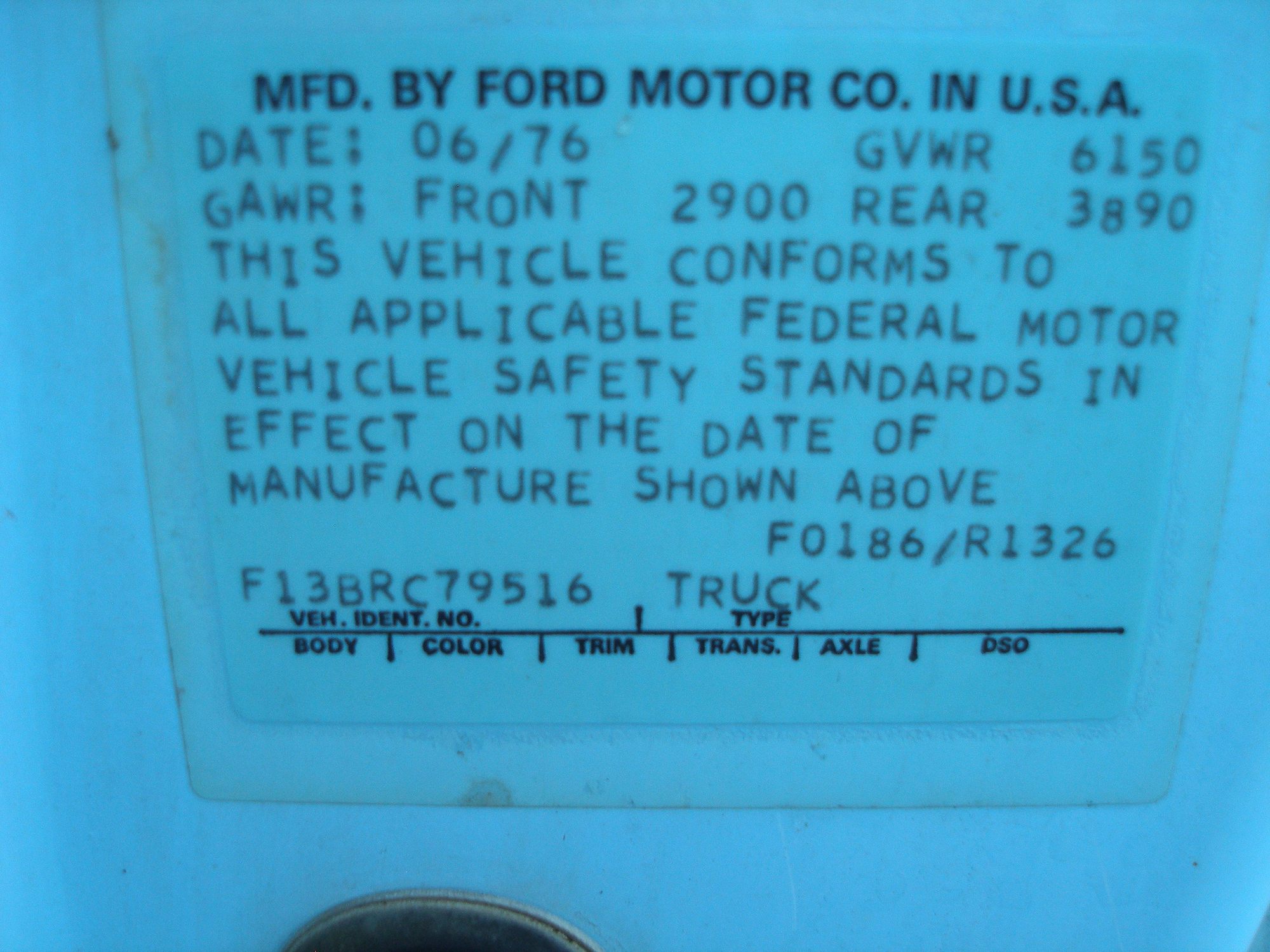

All F130 trucks have 6150 GVW. On a build sheet Ford called this the “6150 GVW package”.
NOT exclusive to any particular assembly plant, these F130s where made everywhere from California to Virginia and all the plants in-between
Engine, transmission, and trim level, and color seem wide open. About every engine/trans combo offered has been posted either here or other groups online, same with color, same with trim level. Everything from inline six base model no frills trucks, all the way up to big block custom paint top of the line Explorer package trucks have been found as F130s.
F130 - What we DON’T Know
#1 thing - WHY WOULD FORD MAKE THESE!
Theory 1: Emissions loophole truck. Massive flaw in this theory: any old run of the mill F150 was already emissions exempt. Why would Ford take the additional time and money to make an 8 lug F150 with a 6150 GVW to bypass emissions laws of the time, when any old 5 lug F150 with 6050, 6200, etc GVW was already exempt? Seems like a lot of additional assembly line coordination and confusion as well as additional financial expense to make a “loophole truck” when the entire point of the F150 to begin with was to be a loophole truck. No need to get crazy with the 8 lug axles and the headache/expense associated with making that happen.
Theory 2: “They’re a Heavy-Half truck”. Massive flaw in this theory: any old 5 lug F150 has a GVW of 6050 lbs, and often higher than that such as 6200 Lbs or so. The 8 lug F130s ALL have a GVW of 6150. So to summarize, how can an F130 be a “Heavy-Half” when it’s GVW is barely just 100 lbs heavier, and potentially even LOWER, than any old 5 lug F150? It makes no sense. Ford going out of their way to rate these 8 lug F150s at just 6150 GVW is the most mysterious/odd thing about these trucks to me. They very obviously could be rated for more weight, but Ford specifically chose to go with a “normal” F150 weight rating despite the huge 8 lug axles. Weird!!
Theory 3: Forestry Service/Railroad Fleet Order. Massive flaw in this theory: For one, all F130s are 2wd. Not exactly what you want out in the woods. Secondly, these trucks were made in a wide variety of colors, engine/trans combos, and from a diverse number of assembly plants. Fleets famously don’t pony up for fancy paint codes and fancy trims. Furthermore, essentially no two F130s found in the past 20 years has been alike. Pretty obvious these weren’t a bulk order of trucks, every one found is far too different from the others to be a fleet order. Fleets order a bunch of the same thing with little variations.
Theory 4: Mexican F200 prototype. Flaw in this theory is if this was the case, why would Ford build them here, there and everywhere? Why make a prototype truck is such a variety of colors? Usually a team at one plant would work on a specific prototype project. Why would Ford build a F200 prototype ***** nilly here there and everywhere and also be selling them to the general public? Why take the time and financial expense to paint prototype trucks in all sorts of paint schemes and trim levels? Pretty obvious these aren’t F200 prototypes.
Theory 5: Axle Shortage. Finally, we get to the theory that makes the most sense! The theory is that Ford was running low on 9” rear axles for whatever reason. Potential due to higher than anticipated demand for the F150? The theory is that Ford decided to use Dana 8 lug rear axles that they had plenty of. To not have mis-matched wheel bolt patterns, Ford had normal F150 front end spindle/brake components machined to accept 8 lug front hubs for a matching bolt pattern on all 4 corners. The theory is Ford then tossed a 100 lb bonus onto the F150s existing 6050 GVW and called these trucks the “6150 GVW package” and gave them a code of F13 F130. The flaw in this theory is why would Ford give them “just” a 100 lb bump in GVW considering the big boy 8 lug axles. The counterpoint to this is maybe Ford was trying to market it as “we’re giving you a rock solid axle for no additional charge, you’ll never hurt your running gear at this GVW, and you’ll get your truck quicker than if we have to wait on a backlogged 9 inch”.
Happy 20 year anniversary to this thread. Discuss the above theories and if I’ve left out a theory or left out a point or counterpoint, say something and I’ll happily edit it in!
Last edited by Crust Junkies; May 25, 2026 at 11:59 PM.
The F130 video on YouTube popped into my “suggested for you” today and reminded me of this thread, which I’ve just re-read. It’s 20 years old now and hundreds of posts long, so figured I’d do a thread summary for the community. If nothing else it’ll help bring people up to speed without having to comb through (literally) 20 years worth of posts:
F130 - What We Know
• F130s are exceptionally, exceedingly rare. Not just here on FTE, but in the entirety of the internet and the trillions of pictures and posts across all websites worldwide for the past 30+ years, only a small handful total have been found and that speaks volumes.
• All F130 trucks have 8 lug axles. This is what makes them so mysterious, seeing as they are badged as F150s.
• All F130 trucks are regular cab longbed 2wd
• All F130 trucks have 6150 GVW. On a build sheet Ford called this the “6150 GVW package”.
• NOT exclusive to any particular assembly plant, these F130s where made everywhere from California to Virginia and all the plants in-between
• Engine, transmission, and trim level, and color seem wide open. About every engine/trans combo offered has been posted either here or other groups online, same with color, same with trim level. Everything from inline six base model no frills trucks, all the way up to big block custom paint top of the line Explorer package trucks have been found as F130s.
F130 - What we DON’T Know
#1 thing - WHY WOULD FORD MAKE THESE!
• Theory 1: Emissions loophole truck. Massive flaw in this theory: any old run of the mill F150 was already emissions exempt. Why would Ford take the additional time and money to make an 8 lug F150 with a 6150 GVW to bypass emissions laws of the time, when any old 5 lug F150 with 6050, 6200, etc GVW was already exempt? Seems like a lot of additional assembly line coordination and confusion as well as additional financial expense to make a “loophole truck” when the entire point of the F150 to begin with was to be a loophole truck. No need to get crazy with the 8 lug axles and the headache/expense associated with making that happen.
• Theory 2: “They’re a Heavy-Half truck”. Massive flaw in this theory: any old 5 lug F150 has a GVW of 6050 lbs, and often higher than that such as 6200 Lbs or so. The 8 lug F130s ALL have a GVW of 6150. So to summarize, how can an F130 be a “Heavy-Half” when it’s GVW is barely just 100 lbs heavier, and potentially even LOWER, than any old 5 lug F150? It makes no sense. Ford going out of their way to rate these 8 lug F150s at just 6150 GVW is the most mysterious/odd thing about these trucks to me. They very obviously could be rated for more weight, but Ford specifically chose to go with a “normal” F150 weight rating despite the huge 8 lug axles. Weird!!
• Theory 3: Forestry Service/Railroad Fleet Order. Massive flaw in this theory: For one, all F130s are 2wd. Not exactly what you want out in the woods. Secondly, these trucks were made in a wide variety of colors, engine/trans combos, and from a diverse number of assembly plants. Fleets famously don’t pony up for fancy paint codes and fancy trims. Furthermore, essentially no two F130s found in the past 20 years has been alike. Pretty obvious these weren’t a bulk order of trucks, every one found is far too different from the others to be a fleet order. Fleets order a bunch of the same thing with little variations.
• Theory 4: Mexican F200 prototype. Flaw in this theory is if this was the case, why would Ford build them here, there and everywhere? Why make a prototype truck is such a variety of colors? Usually a team at one plant would work on a specific prototype project. Why would Ford build a F200 prototype ***** nilly here there and everywhere and also be selling them to the general public? Why take the time and financial expense to paint prototype trucks in all sorts of paint schemes and trim levels? Pretty obvious these aren’t F200 prototypes.
• Theory 5: Axle Shortage. Finally, we get to the theory that makes the most sense! The theory is that Ford was running low on 9” rear axles for whatever reason. Potential due to higher than anticipated demand for the F150? The theory is that Ford decided to use Dana 8 lug rear axles that they had plenty of. To not have mis-matched wheel bolt patterns, Ford had normal F150 front end spindle/brake components machined to accept 8 lug front hubs for a matching bolt pattern on all 4 corners. The theory is Ford then tossed a 100 lb bonus onto the F150s existing 6050 GVW and called these trucks the “6150 GVW package” and gave them a code of F13 F130. The flaw in this theory is why would Ford give them “just” a 100 lb bump in GVW considering the big boy 8 lug axles. The counterpoint to this is maybe Ford was trying to market it as “we’re giving you a rock solid axle for no additional charge, you’ll never hurt your running gear at this GVW, and you’ll get your truck quicker than if we have to wait on a backlogged 9 inch”.
Happy 20 year anniversary to this thread. Discuss the above theories and if I’ve left out a theory or left out a point or counterpoint, say something and I’ll happily edit it in!

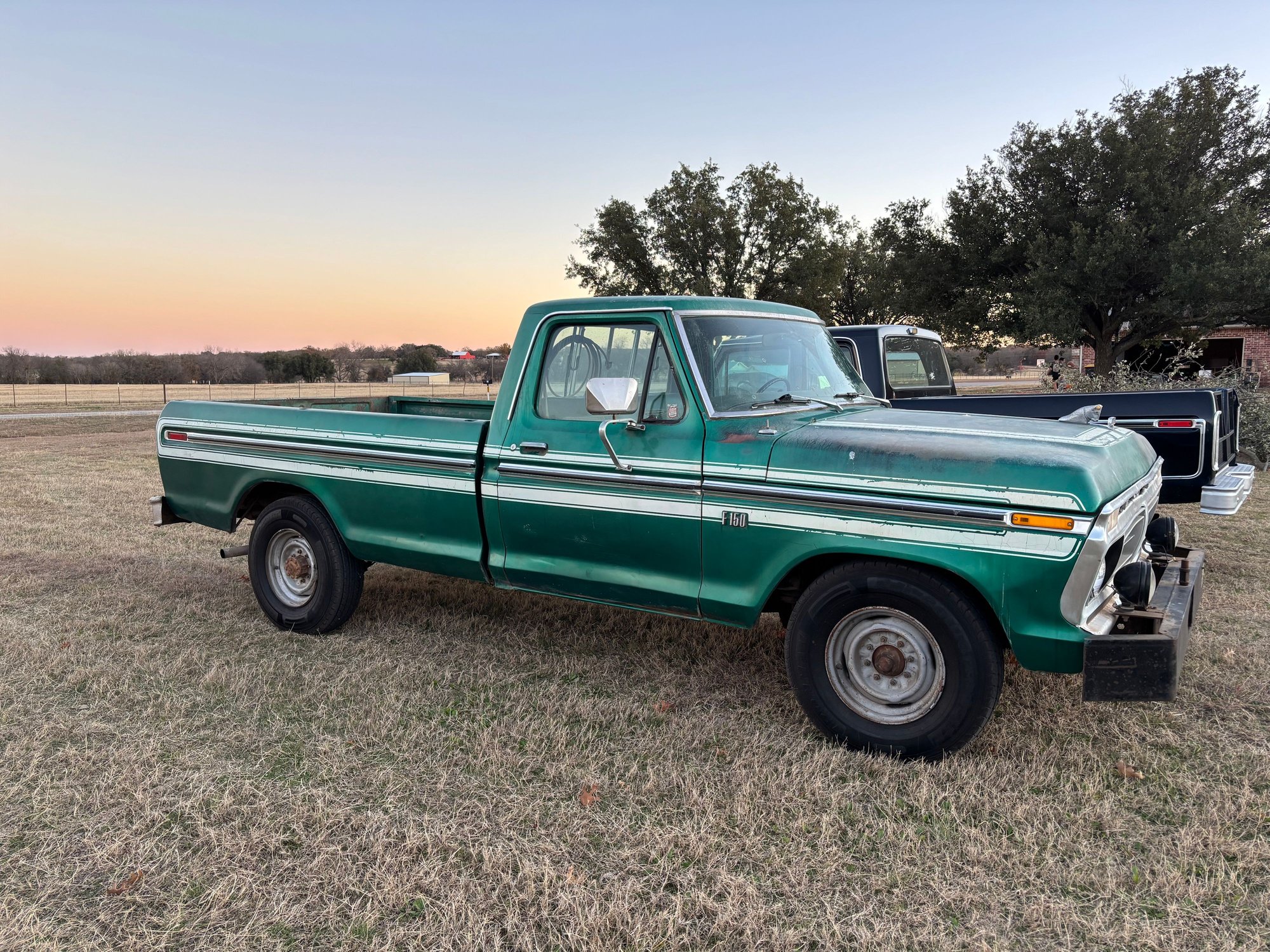

Thank You very much for that wealth of info. I was informed by a few sources that they were only made at the San Jose, Ca plant for the farming community. Either way, I have one for sale. Starts and runs. I haven't posted it yet because I can't decide what to ask for it

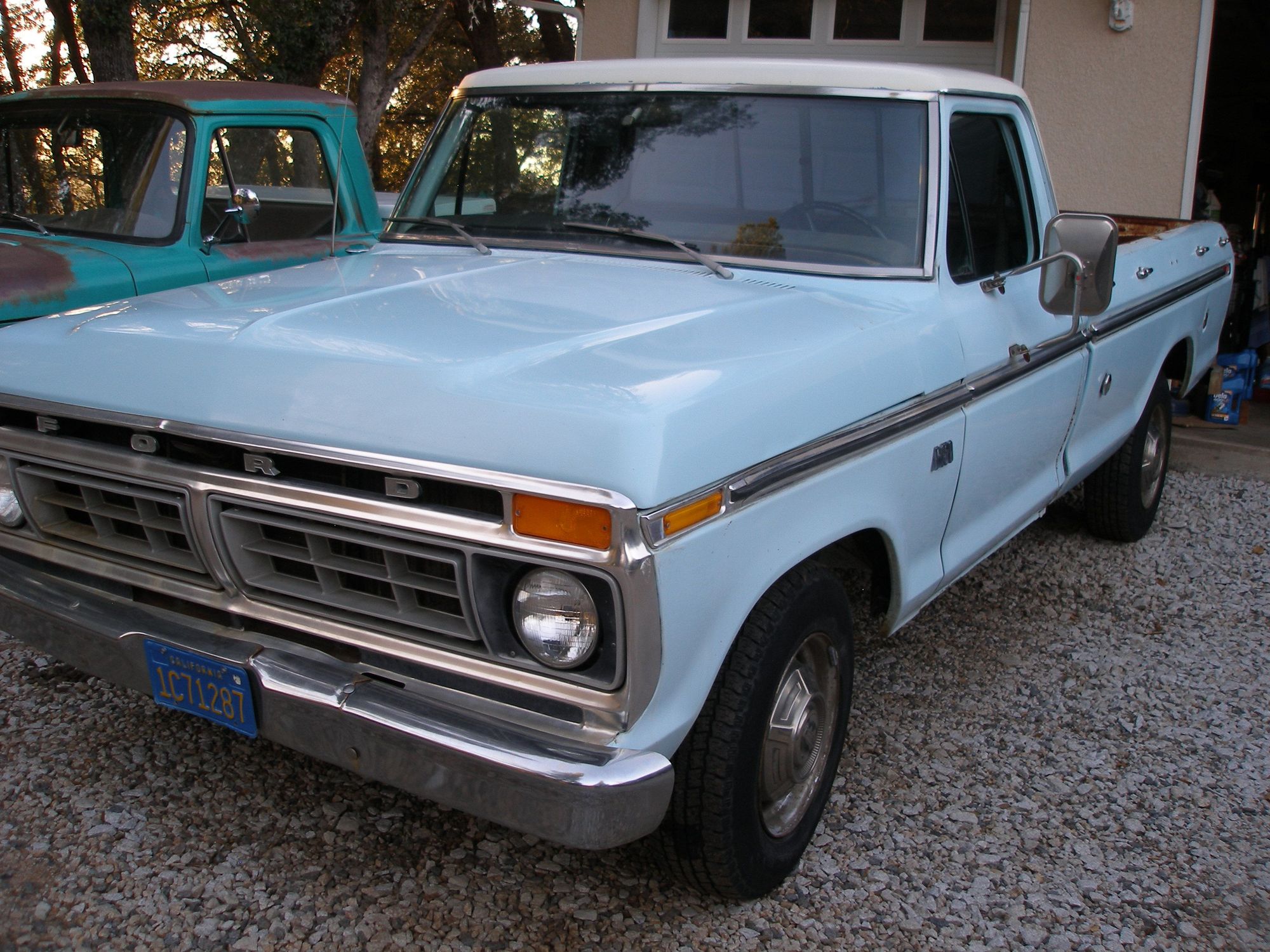

F13 1976 2 wheel drive pickup (F150) with 3/4-ton suspension and 8-lug wheels.
We know what the trucks are, the mystery is in the WHY. The F130s have a GVW barely 100 lbs. over a "normal" run of the mill 5 lug F150, so they're not a "Heavy Half". They're not an emissions loophole truck either because once again any ol run of the mill 5 lug F150 was already emissions exempt. So the mystery is WHY did Ford put in the big boy Dana 8 lug axles, and then give them essentially no additional GVW/capacity to speak of. You got a F150 built like a brick you-know-what house, but (legally) couldn't tow/haul/treat it any different than any other 5 lug F150 due to the essentially unchanged GVW. I've reached out to the team at Rust Bucket Rescue on YouTube who have been researching these trucks, and there is an updated video coming out so I guess we will have to wait and see what he dug up to answer the "why".
My suggested theory would be similar to theory 2. It was originally developed for fleets that primarily use F250s and competitors 3/4 ton trucks. It would allow for a lower priced option but would still share the same wheels and tires as the rest of the fleet.
For whatever reason, perhaps inadvertently, Ford made this model available to the general public. As a result, a few of these made it into general circulation.
Originally Posted by Crust Junkies
The F130 video on YouTube popped into my “suggested for you” today and reminded me of this thread, which I’ve just re-read. It’s 20 years old now and hundreds of posts long, so figured I’d do a thread summary for the community. If nothing else it’ll help bring people up to speed without having to comb through (literally) 20 years worth of posts:
F130 - What We Know
F130s are exceptionally, exceedingly rare. Not just here on FTE, but in the entirety of the internet and the trillions of pictures and posts across all websites worldwide for the past 30+ years, only a small handful total have been found and that speaks volumes.
All F130 trucks have 8 lug axles. This is what makes them so mysterious, seeing as they are badged as F150s.
All F130 trucks are regular cab longbed 2wd
All F130 trucks have 6150 GVW. On a build sheet Ford called this the “6150 GVW package”.
NOT exclusive to any particular assembly plant, these F130s where made everywhere from California to Virginia and all the plants in-between
Engine, transmission, and trim level, and color seem wide open. About every engine/trans combo offered has been posted either here or other groups online, same with color, same with trim level. Everything from inline six base model no frills trucks, all the way up to big block custom paint top of the line Explorer package trucks have been found as F130s.
F130 - What we DON’T Know
#1 thing - WHY WOULD FORD MAKE THESE!
Theory 1: Emissions loophole truck. Massive flaw in this theory: any old run of the mill F150 was already emissions exempt. Why would Ford take the additional time and money to make an 8 lug F150 with a 6150 GVW to bypass emissions laws of the time, when any old 5 lug F150 with 6050, 6200, etc GVW was already exempt? Seems like a lot of additional assembly line coordination and confusion as well as additional financial expense to make a “loophole truck” when the entire point of the F150 to begin with was to be a loophole truck. No need to get crazy with the 8 lug axles and the headache/expense associated with making that happen.
Theory 2: “They’re a Heavy-Half truck”. Massive flaw in this theory: any old 5 lug F150 has a GVW of 6050 lbs, and often higher than that such as 6200 Lbs or so. The 8 lug F130s ALL have a GVW of 6150. So to summarize, how can an F130 be a “Heavy-Half” when it’s GVW is barely just 100 lbs heavier, and potentially even LOWER, than any old 5 lug F150? It makes no sense. Ford going out of their way to rate these 8 lug F150s at just 6150 GVW is the most mysterious/odd thing about these trucks to me. They very obviously could be rated for more weight, but Ford specifically chose to go with a “normal” F150 weight rating despite the huge 8 lug axles. Weird!!
Theory 3: Forestry Service/Railroad Fleet Order. Massive flaw in this theory: For one, all F130s are 2wd. Not exactly what you want out in the woods. Secondly, these trucks were made in a wide variety of colors, engine/trans combos, and from a diverse number of assembly plants. Fleets famously don’t pony up for fancy paint codes and fancy trims. Furthermore, essentially no two F130s found in the past 20 years has been alike. Pretty obvious these weren’t a bulk order of trucks, every one found is far too different from the others to be a fleet order. Fleets order a bunch of the same thing with little variations.
Theory 4: Mexican F200 prototype. Flaw in this theory is if this was the case, why would Ford build them here, there and everywhere? Why make a prototype truck is such a variety of colors? Usually a team at one plant would work on a specific prototype project. Why would Ford build a F200 prototype ***** nilly here there and everywhere and also be selling them to the general public? Why take the time and financial expense to paint prototype trucks in all sorts of paint schemes and trim levels? Pretty obvious these aren’t F200 prototypes.
Theory 5: Axle Shortage. Finally, we get to the theory that makes the most sense! The theory is that Ford was running low on 9” rear axles for whatever reason. Potential due to higher than anticipated demand for the F150? The theory is that Ford decided to use Dana 8 lug rear axles that they had plenty of. To not have mis-matched wheel bolt patterns, Ford had normal F150 front end spindle/brake components machined to accept 8 lug front hubs for a matching bolt pattern on all 4 corners. The theory is Ford then tossed a 100 lb bonus onto the F150s existing 6050 GVW and called these trucks the “6150 GVW package” and gave them a code of F13 F130. The flaw in this theory is why would Ford give them “just” a 100 lb bump in GVW considering the big boy 8 lug axles. The counterpoint to this is maybe Ford was trying to market it as “we’re giving you a rock solid axle for no additional charge, you’ll never hurt your running gear at this GVW, and you’ll get your truck quicker than if we have to wait on a backlogged 9 inch”.
Happy 20 year anniversary to this thread. Discuss the above theories and if I’ve left out a theory or left out a point or counterpoint, say something and I’ll happily edit it in!
We know what the trucks are, the mystery is in the WHY. The F130s have a GVW barely 100 lbs. over a "normal" run of the mill 5 lug F150, so they're not a "Heavy Half". They're not an emissions loophole truck either because once again any ol run of the mill 5 lug F150 was already emissions exempt. So the mystery is WHY did Ford put in the big boy Dana 8 lug axles, and then give them essentially no additional GVW/capacity to speak of. You got a F150 built like a brick you-know-what house, but (legally) couldn't tow/haul/treat it any different than any other 5 lug F150 due to the essentially unchanged GVW. I've reached out to the team at Rust Bucket Rescue on YouTube who have been researching these trucks, and there is an updated video coming out so I guess we will have to wait and see what he dug up to answer the "why"..
See a lot of '76 and older F-150s do you?
There were a few, just like there were a few F-130, but not widely sold the whole year. It was a time of change. Was before '77 that you bought a "cat" F-100 or you bought a F-250 or F-350. Was a few didn't want to deal with cats, nor did they feel a need to get a heavier truck than a F-100.
Last edited by tbear853; May 26, 2026 at 08:14 AM.
Definitely. And another theory, along both of those lines, would be commercial outfits that didn’t want to pay the weight penalty of a higher, GVWR in their taxes, and needed a heavy duty suspension and axle, but didn’t want to pay the extra fees.
And I don’t even know if that’s how it works with taxes and fees on trucks. But if it is, that might be another possibility.
