Is the circuit hot all time or is it switched? Would that matter to you for your application? Is there a dedicated "lighter" circuit in your fuse panel to use instead? I would think there would be. What is the fuse rated for the antenna circuit? Will your charger draw fit into that limit?
Phantom of the Phorum
Joined: Jan 2011
Posts: 5,472
Likes: 1,696
From: Kentucky
ETA: I did some reading. The power antenna typically has 3 wires: Black (Ground). Blue (signal from the radio. Low current only hot with the radio is on.) Red (Hot all the time)
If the wire you asked about is a red "Power antenna Pwr" wire, you could use it for the lighter/power point. It would be hot all of the time.
I used the electric choke so it would only be hot with the key is on. Personal choice.
Last edited by EffieTrucker; Jan 26, 2026 at 09:13 PM.
Thread Starter
|
Mountain Pass
Joined: Aug 2024
Posts: 197
Likes: 82
I used the electric choke circuit for the lighter/power point. I don't think any of my EZWire kits had an antenna circuit.
ETA: I did some reading. The power antenna typically has 3 wires: Black (Ground). Blue (signal from the radio. Low current only hot with the radio is on.) Red (Hot all the time)
If the wire you asked about is a red "Power antenna Pwr" wire, you could use it for the lighter/power point. It would be hot all of the time.
I used the electric choke so it would only be hot with the key is on. Personal choice.
ETA: I did some reading. The power antenna typically has 3 wires: Black (Ground). Blue (signal from the radio. Low current only hot with the radio is on.) Red (Hot all the time)
If the wire you asked about is a red "Power antenna Pwr" wire, you could use it for the lighter/power point. It would be hot all of the time.
I used the electric choke so it would only be hot with the key is on. Personal choice.
I need a pull switch for the headlights. Is there a cheap option? Everything I see is over $50.
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,366
Likes: 1,785
From: Western NY

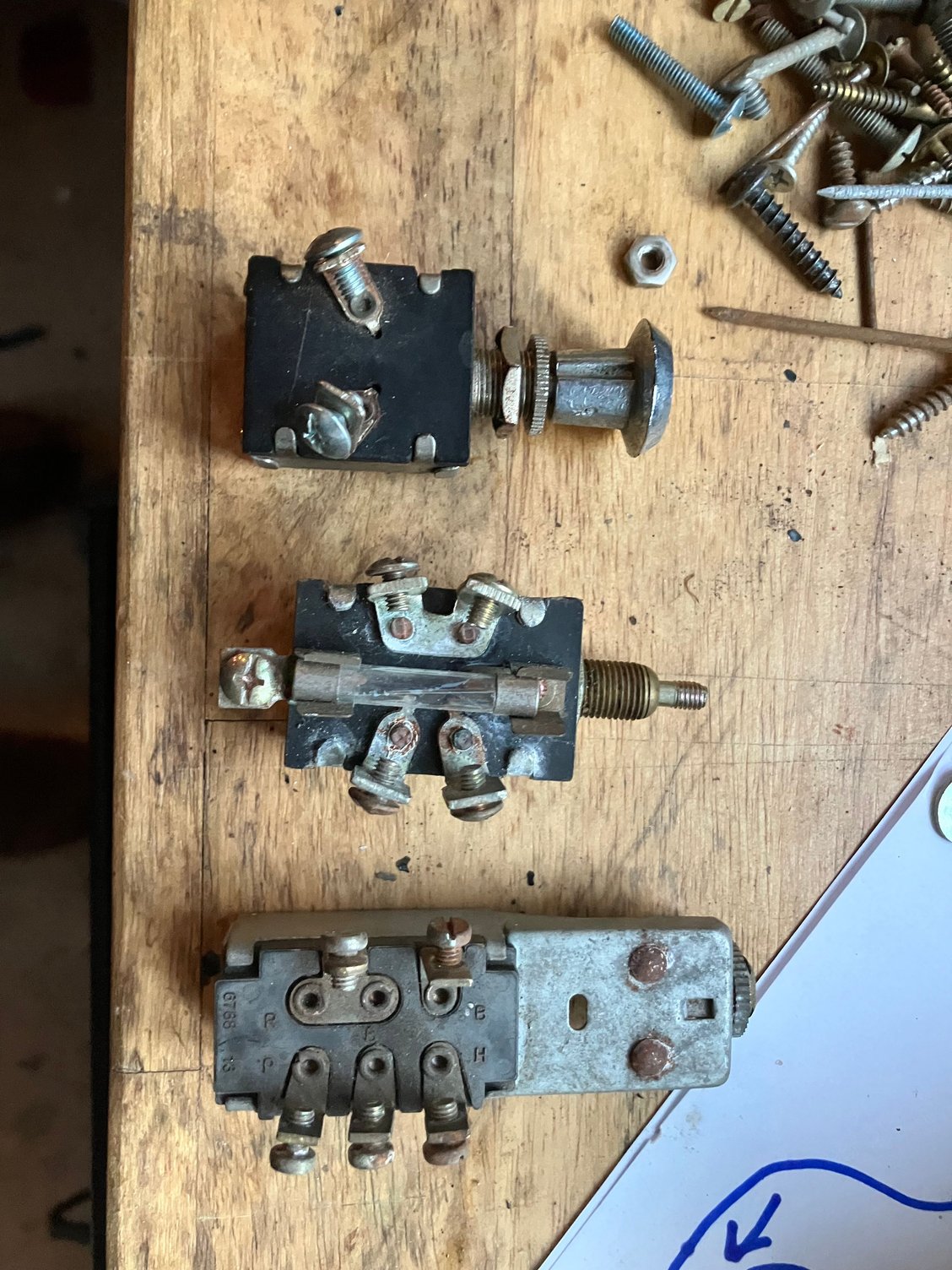

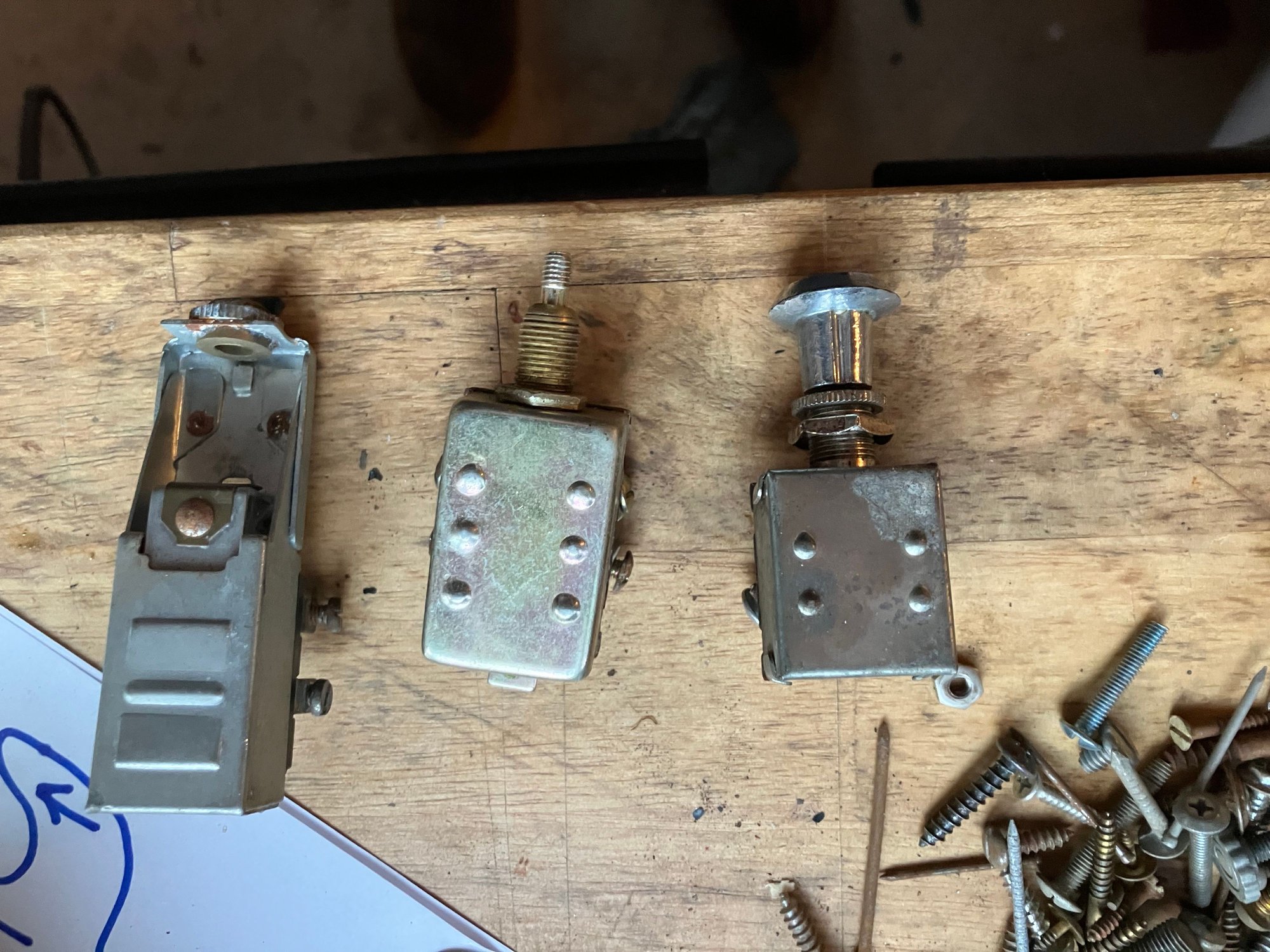

The longer 5 screw terminal switch is the factory switch. If you are just missing the pull, it can be purchased separately.
https://www.dennis-carpenter.com/tru...headlight-****
https://www.lmctruck.com/electrical/...light-switches
https://www.dennis-carpenter.com/tru...headlight-****
https://www.lmctruck.com/electrical/...light-switches
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,366
Likes: 1,785
From: Western NY
Generally, low voltage switches don't care about the differences in 6V and 12V.
Just a curiosity, are you using a relay in your headlight circuitry?
Just a curiosity, are you using a relay in your headlight circuitry?
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
Thread Starter
|
Mountain Pass
Joined: Aug 2024
Posts: 197
Likes: 82
Not unless it is included in the ezwire kit. I do have a relay for the horn that was included?
Phantom of the Phorum
Joined: Jan 2011
Posts: 5,472
Likes: 1,696
From: Kentucky
The longer 5 screw terminal switch is the factory switch. If you are just missing the pull, it can be purchased separately.
https://www.dennis-carpenter.com/tru...headlight-****
https://www.lmctruck.com/electrical/...light-switches
https://www.dennis-carpenter.com/tru...headlight-****
https://www.lmctruck.com/electrical/...light-switches

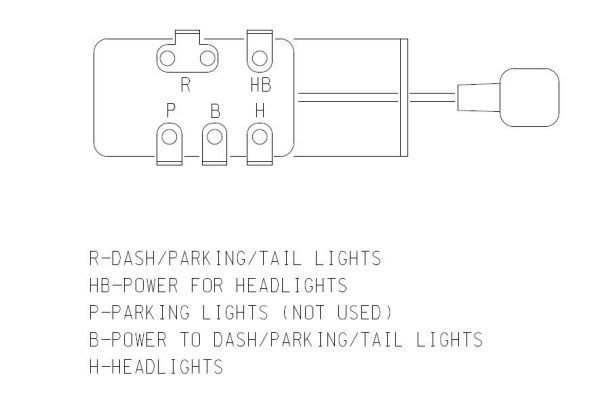

Also, the EZWire only has one power wire for the lights (Red Headlight Power) the 5-terminal switch takes two. I ran a jumper from one "B" post to the other. (Mine says "HB" yours just says "B". Same thing.)
Here is the way I wired mine. If you want the front parking lights to go off when the headlights are on (the way they did from the factory) hook them (Brown Left Front Parking) to the "P" terminal.

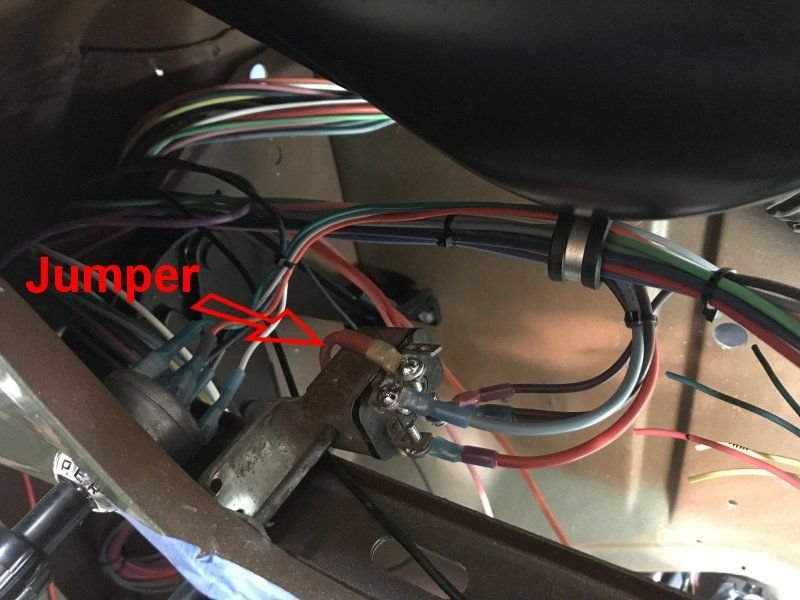

Jumper from "B" terminal to "B" terminal:
Last edited by EffieTrucker; Jan 27, 2026 at 08:15 AM. Reason: changed picture
Thread Starter
|
Mountain Pass
Joined: Aug 2024
Posts: 197
Likes: 82
Thread Starter
|
Mountain Pass
Joined: Aug 2024
Posts: 197
Likes: 82
Thread Starter
|
Mountain Pass
Joined: Aug 2024
Posts: 197
Likes: 82

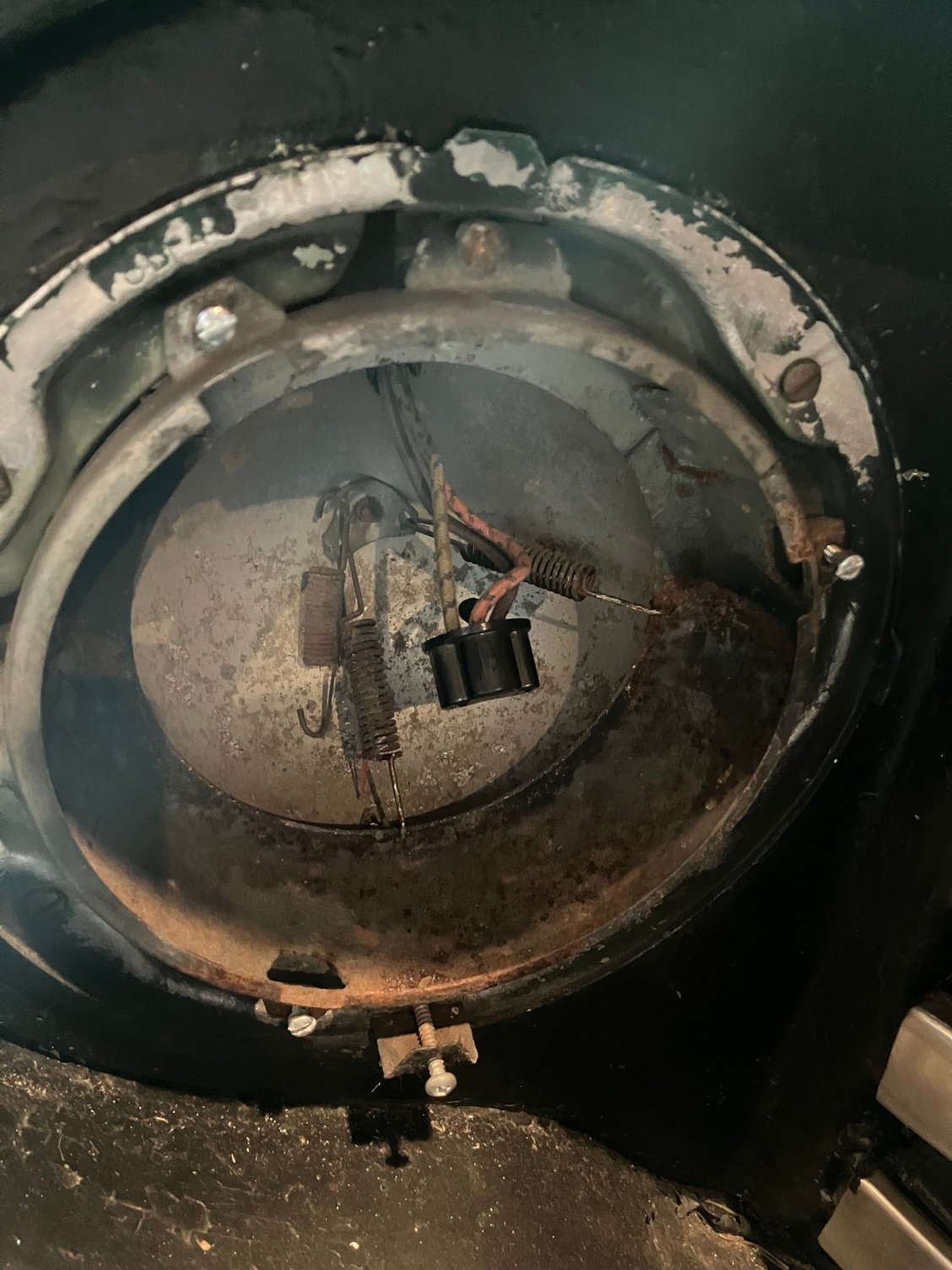

Yes I got those. I Would need to cut the new plugs and snake the wires them through the hole and reconnect correctly? Or should i just drill out a hole big enough to fit the plug through
