TPS woes and a solution
My early 99 had a jerky throttle at light loads so what I thought would be a simple and cheap fix turned out a little different. All I could come up with on an exhaustive search was a Ford part # for a direct TPS replacement alternative rather than buying the whole pedal assembly for $400-$600. I think they are discontinued now anyway? The supposed part # was DY-967 for the common motorcraft TPS sensor. I bought one and installed it to find it was DOA, and supposedly that is pretty common? EDIT: sensor was not defective, see post #6. Even with the sensor unmounted it triggered a CEL and there were only a few rotational degrees that the CEL didn't illuminate. I took a chance and went with a NAPA (Echlin) part # 2-19093. My experience with their electronic parts has been more favorable than the other competitors' junk.

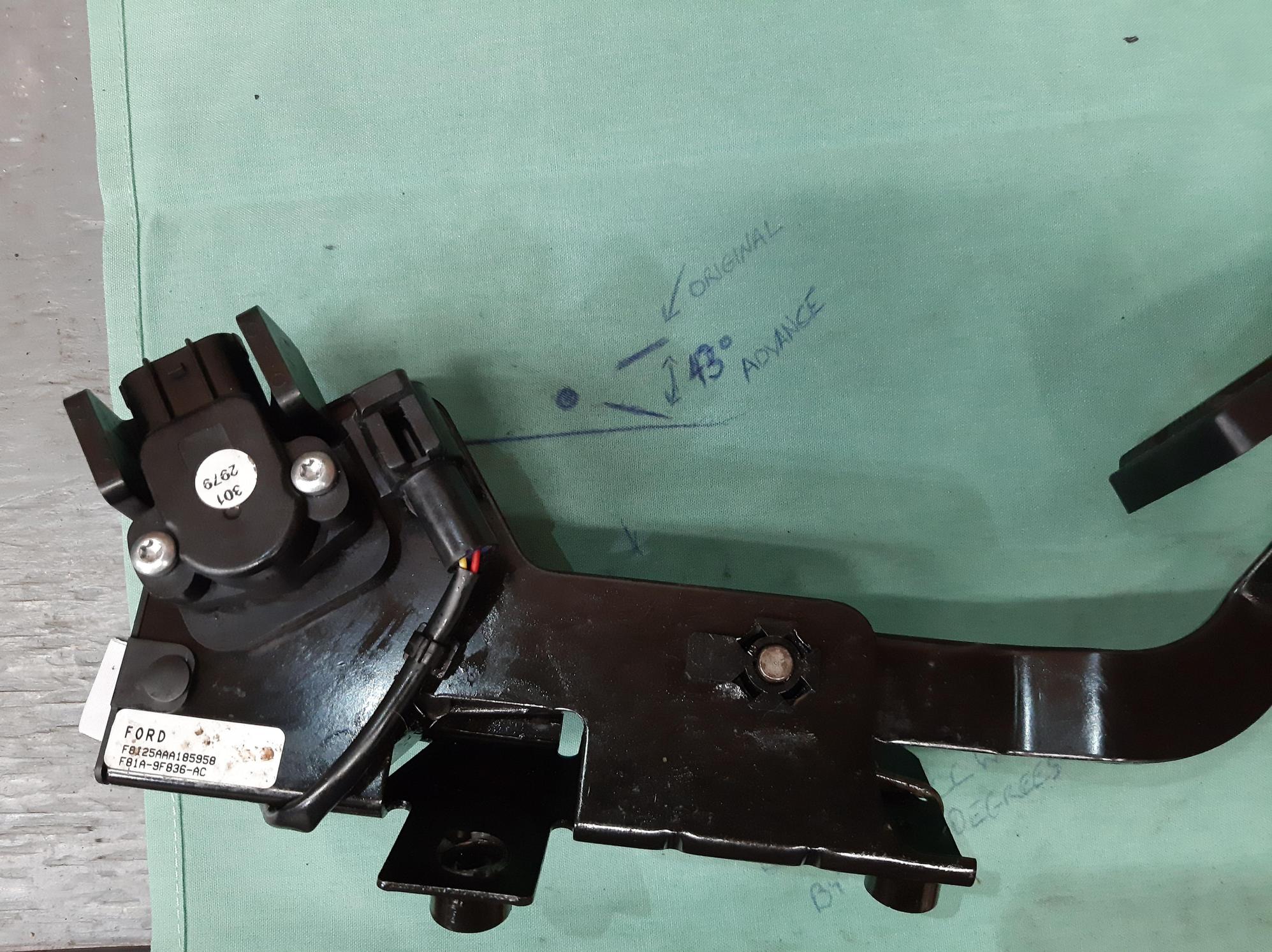

I mounted the new sensor and plugged it in to hear a SNAP when working the pedal. The internal spring mechanism broke so I got a replacement and decided to pull the pedal to see if anything fishy was going on just in case. Upon careful examination I see this - and wouldn't you know, I see a problem -

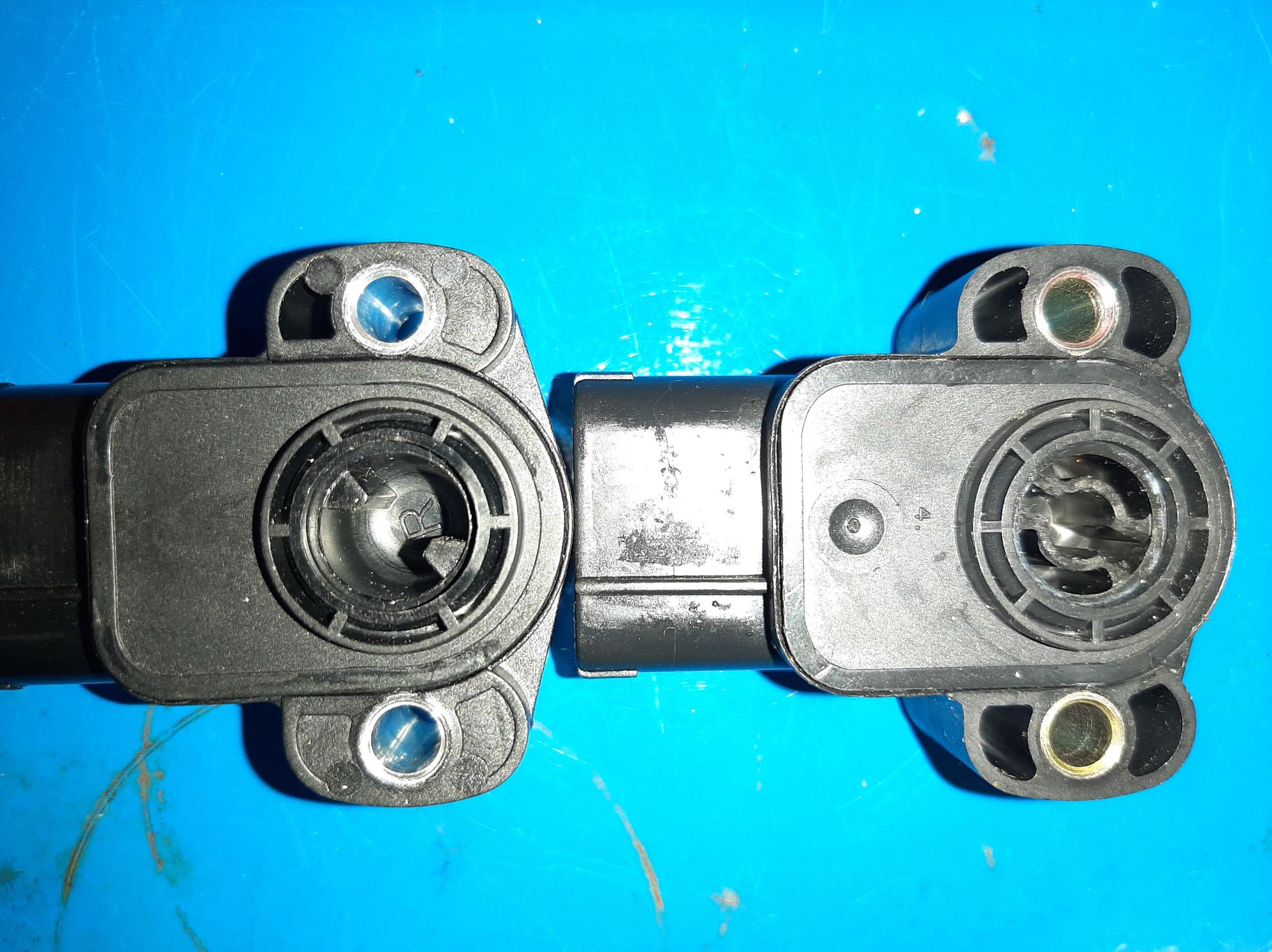

Note that the oem is female and the alternative part is male. Sure you can put the blade of the pedal shaft in there, but it will be too far advanced - or retarded since I apparently screwed up on the first one and the blade was on the wrong side of the tabs in the tps forcing it to break internally. So the fix is to reclock the TPS somehow or an engine light will come on and have nothing but idle speed.
My solution -

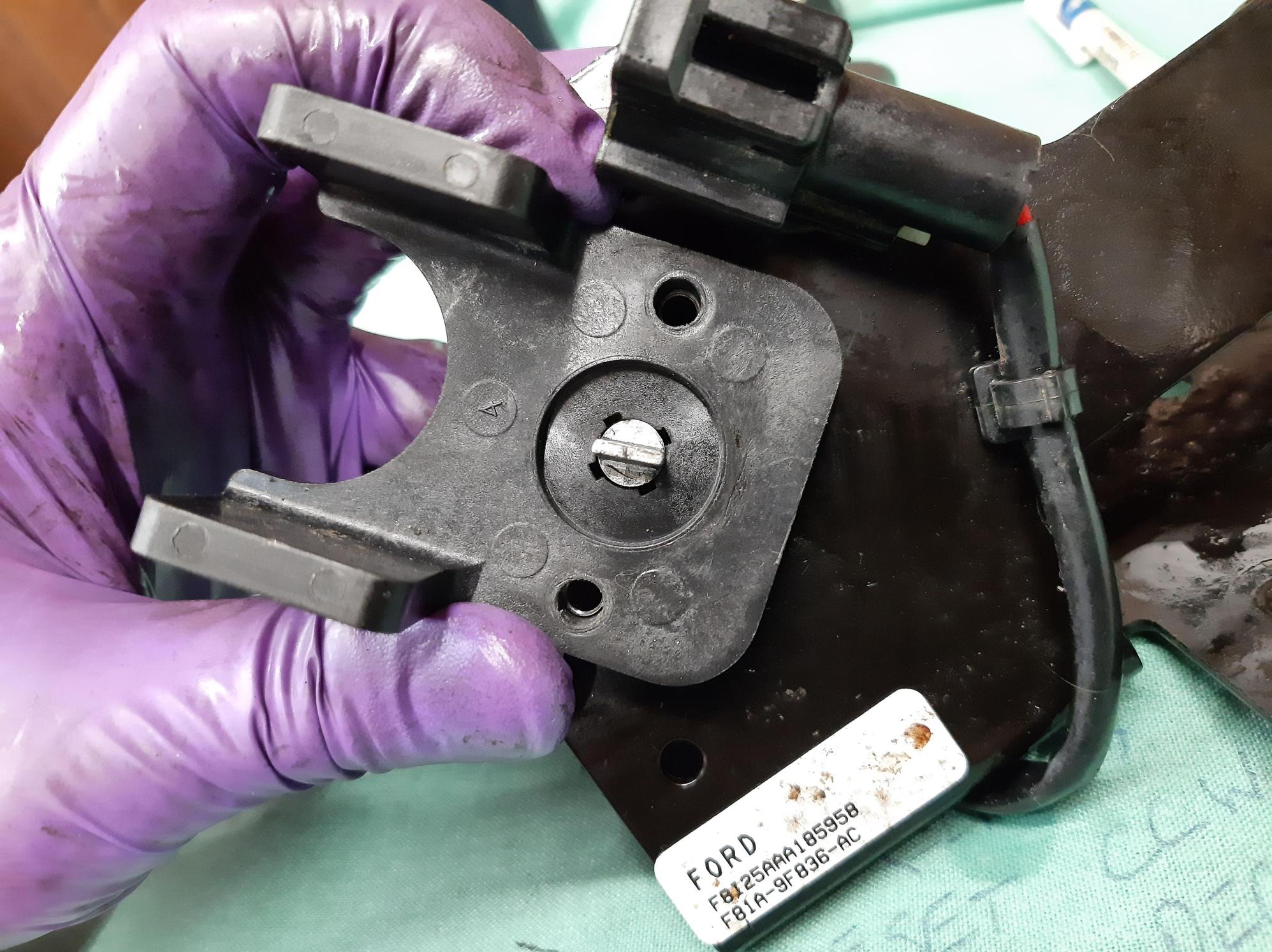

It is evident the (male) slotted shaft can be reclocked fairly easily -

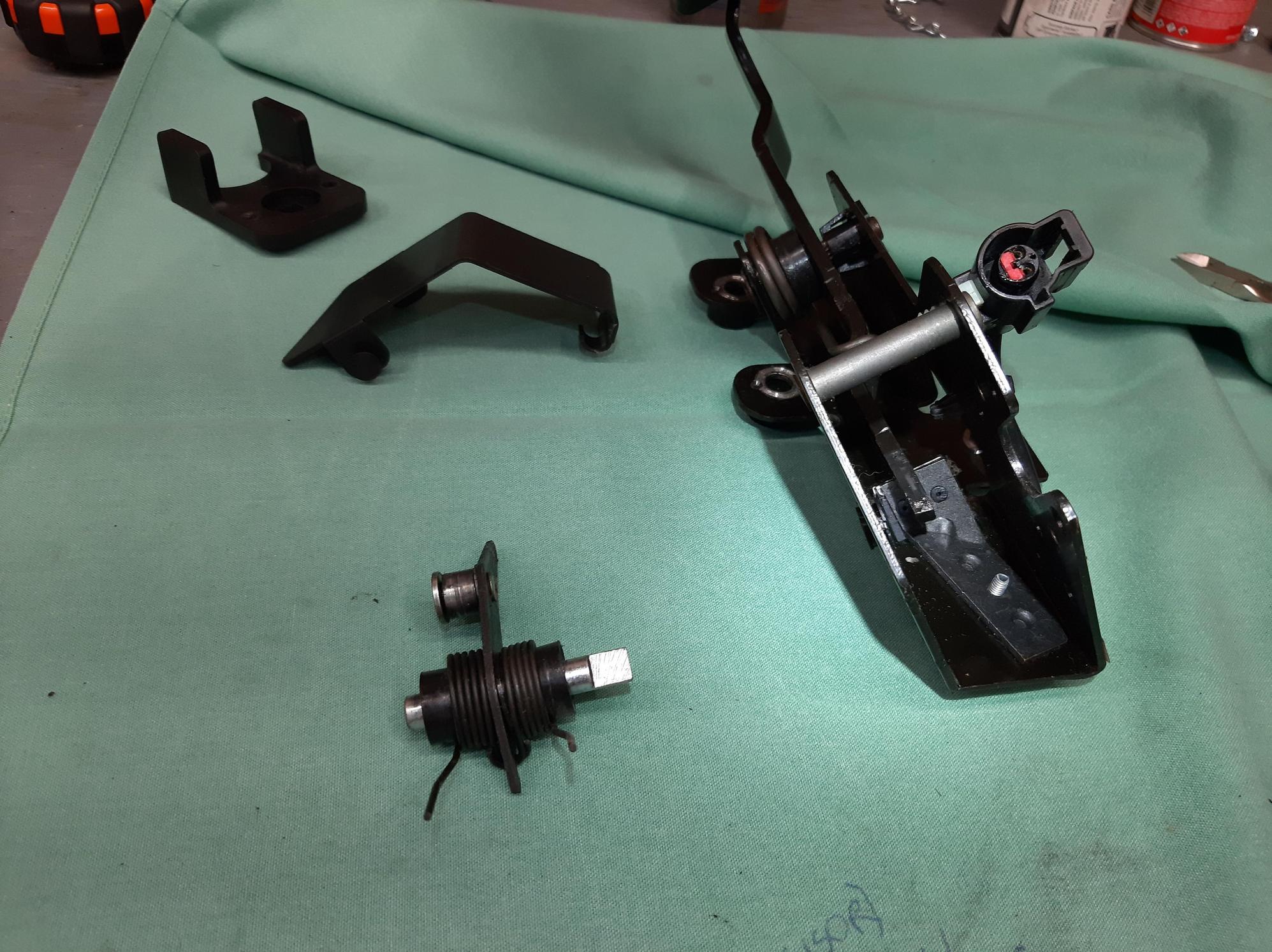

Press the shaft out and rotate it clockwise. Relative to the plate the shaft needs to be rotated about 43 degrees. Press the shaft back into the plate with a vise and deep well socket. Take note the depth the plate needs to be pressed on for proper alignment. The idea is to have the shaft blade just make contact with the TPS ears when the sensor is lined up with the holes and centered in the plastic keeper.
The shaft will probably stay put, but it isn't going to be a factory tight fit. I TIG welded the plate to the shaft, it isn't moving.

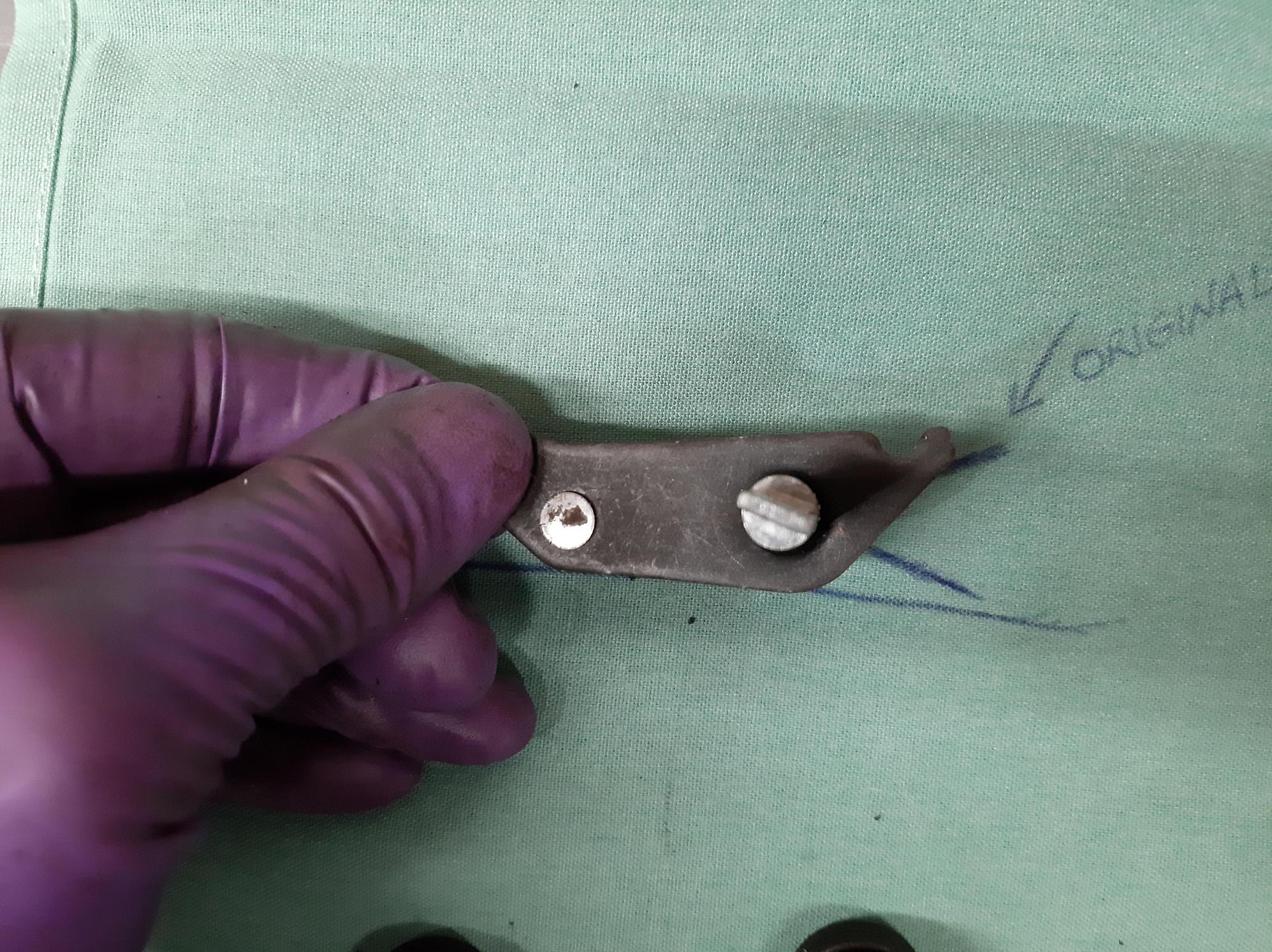

The shaft has been re-clocked, I measure 43 degrees and it is dead on where it needs to be.

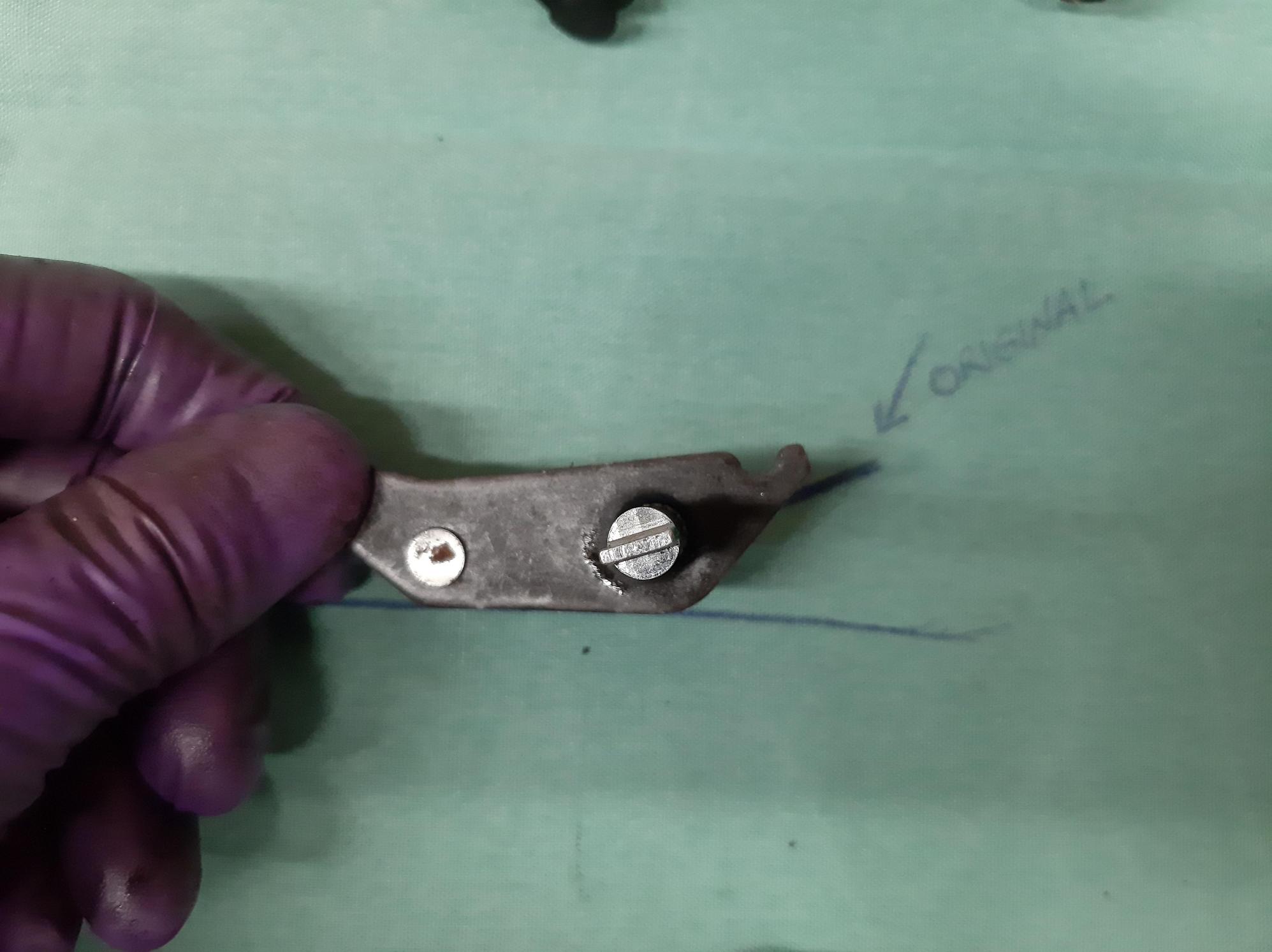

Below is the correct modified orientation of the bladed shaft.
And the final product, that works...
As for the idle validation switch, there should be enough miniature microswitches out there to match something up and retrofit it into the same location. That will be another day.
Again, the motorcraft part # is DY-967 so any crossover part of your flavor should be a direct fit. I'll probably grab a spare to throw in the truck. Keep in mind the original sensor will not work after this.
David, I sent a rep to Greasemonkee on your behalf and it worked for me. I am using Brave browser on a Windows 10 OS.
@Y2KW57 , tagging in order to have this thread considered for the 7.3L PSD Tech Folder. I feel as an FTE'r this has some valuable information that may be of great use to someone in the near future. Images, procedures and part numbers! (Done.)
Last edited by Y2KW57; Dec 11, 2020 at 10:05 AM. Reason: To indicate that this thread has been placed into the Tech Folder as requested.
Do the factory sensor and the OEM sensor have the same resistance at full sweep? They're potentiometers, right?
Edit: The FSM calls it the Accelerator Pedal Position (APP) Sensor. Tagging @Y2KW57 for Tech Folder Content (Done)
Last edited by Y2KW57; Dec 11, 2020 at 11:05 AM. Reason: To indicate content attached has been linked to Tech Folder
We all know that benchtop resistance checking should only be used as a rough and inconclusive diagnosis for troubleshooting these units, but here are the numbers I observed:
Sensor oriented with plug on the right, looking at the front/outside -
Original motorcraft top two terminals: idle position - 124 ohms, max position - 3.58 K ohms
Original motorcraft lower two terminals: idle position - 3.83 K ohms, max position - 320 ohms
Original motorcraft outer two terminals: 3.76 K ohms
The other two sensors I tested vary as much as a few hundred ohms, even at the idle position so apparently there is a pretty broad range that the PCM will accept? Or maybe not, once the sensor in mounted...
Operating Range: 0.5v - 4.95v
Key On: 0.5v - 0.7v
Low Idle: 0.5v - 1.6v
High Idle: 3.4v - 4.95v
GTOR: 0.5v - 1.0v
(GTOR = Garbage Tune Operating Range)
