Yep... another no-start thread
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson

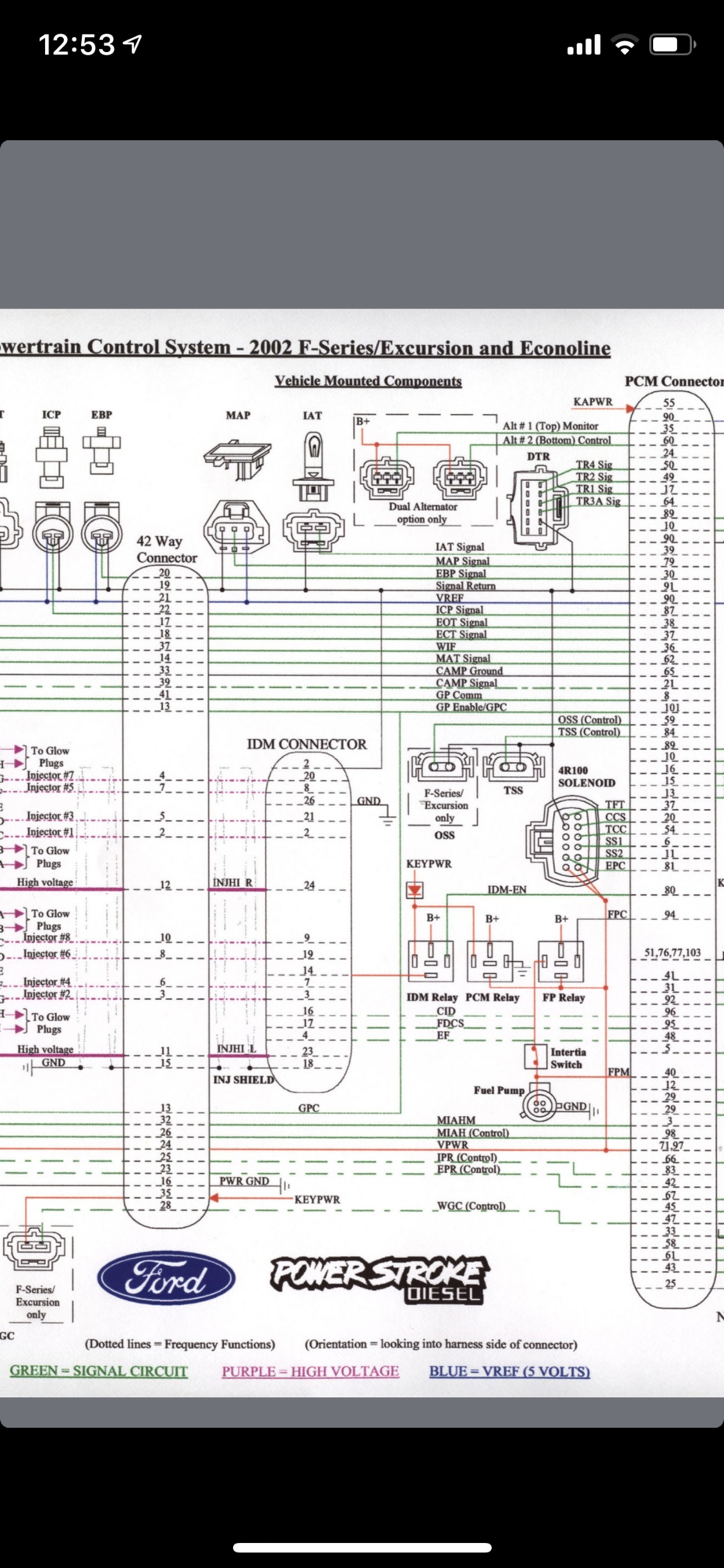

I just felt like I was getting deeper and deeper and when rewording the wirings diagrams, the vref runs from pin 90 through pin 21 of the 42-pin connector right to the CPS. I felt it couldn’t hurt to swap it out with the one I had from Clay.
FTE Leadership Emeritus
Joined: May 2014
Posts: 27,346
Likes: 5,941
From: Lake Hartwell, GA
First time I have seen that issue and resolution. I commend you for your efforts and congratulate you on your victory.
Tell us... Do you do a victory yell when it fired up? I know I would have.
Tell us... Do you do a victory yell when it fired up? I know I would have.
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
Put the hydra chip in, truck ran for about 30 seconds then died. No restart. Pulling the PCM to check the connections. I wiped down the pins with alcohol and let it dry before putting the hydra on and it felt like a solid connection. We’ll see.
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
I did! Until I put the hydra in and won’t start again. Then a loud “wtf”.
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
Thats what I’m thinking. I’m pulling the wiring now and am going to check continuity when I find where the other ends connect. I know one goes to the 42-pin connector. I have a spare pigtail that I’ll put on if continuity checks out. Maybe this one has outlived its usefulness.
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
All 3 go to the 42-pin connector. I have good continuity between the pigtail pins and the 42-pin connector. I have good continuity between the 42-pin and the corresponding pins of the PCM (21, 65, 90). When the 42-pin is connected I get an ohm reading when going from the pigtail to the PCM.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Senior User
Joined: Oct 2016
Posts: 209
Likes: 1
Don't know if this helps but here's a link to riffraff CPS PDF https://www.riffraffdiesel.com/conte...d0QlBvhA-JyShY which has a troubleshooting diagram at the bottom.
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
Plugged in the MX+ to check for codes and it says the scanner is communicating with the phone but not the vehicle with the key on. Checked the ground pins in the OBD II connector and they’re good. Check that I’m getting 12V at pin 16. It’s good. Back to the schematics.
Anyone have a schematic of the OBD II port to PCM? Maybe I have a short somewhere there. There truck started and ran again, then I shut it off and tried to connect the scan tool. Wouldn’t communicate and now back to no start.
Anyone have a schematic of the OBD II port to PCM? Maybe I have a short somewhere there. There truck started and ran again, then I shut it off and tried to connect the scan tool. Wouldn’t communicate and now back to no start.
Logistics Pro
Joined: Oct 2011
Posts: 3,953
Likes: 120
From: Mcdonough, GA
Well congrats on figuring it out the first time.
did you leave the old PCM in the truck. Any chance it's bad and sending higher voltage on the v ref line and frying the CPS? Just spit balling now.
does disconnecting the CPS change anything
did you leave the old PCM in the truck. Any chance it's bad and sending higher voltage on the v ref line and frying the CPS? Just spit balling now.
does disconnecting the CPS change anything
Thread Starter
|
Laughing Gas
Joined: Mar 2007
Posts: 898
Likes: 23
From: Tucson
Im thinking the plug may have an intermittent connection. I’m working on replacing the plug now, just on a beer break. Hopefully that will fix it but I’m not betting any large sums of money on it.
Will report back when I have the new plug soldered on the reconnected.
As a side note, when I replugged the CPS connector I had the PCM connected outside the truck in the wheel well. Truck fired right up. Disconnected batteries, moved PCM to its normal home, reconnected batteries and no WTS, no fuel pressure. This is definitely a stumper.
If I can get it figured out I’ll drive it home and troubleshoot more; hopefully it makes the 6hour journey.
Logistics Pro
Joined: Oct 2011
Posts: 3,953
Likes: 120
From: Mcdonough, GA
Really seems like a wiring issue near the PCM
