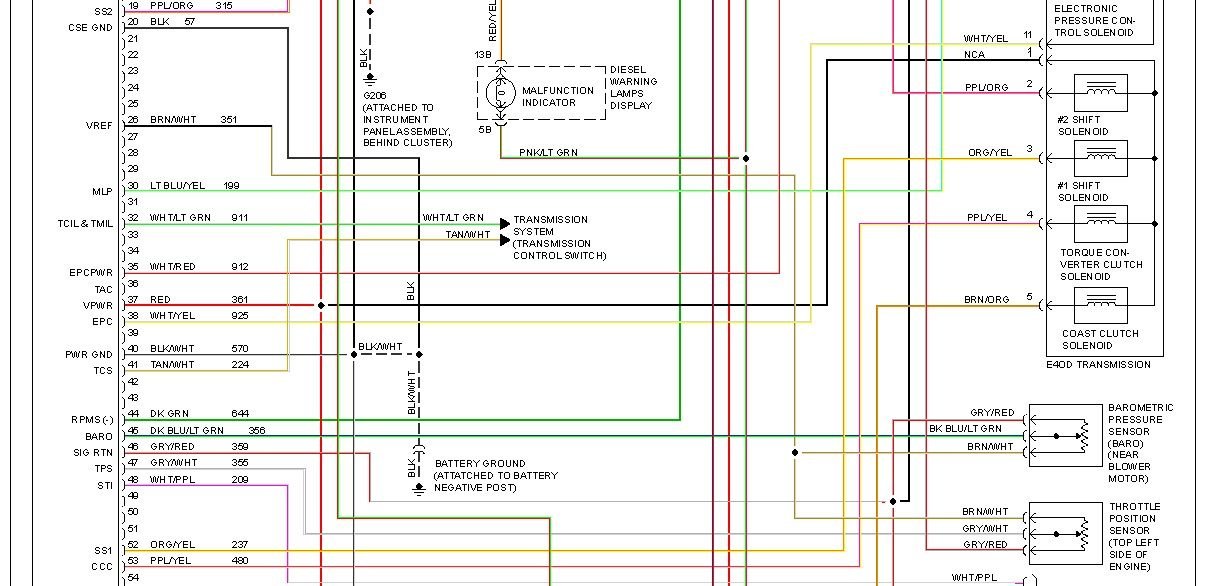

here is what I have for a 1994 E350 IDI

see if that helps to clear things up........ fuse links and fuses are named different... but the Troubleshoot guide remains same

Reply
Old Mar 20, 2020 | 07:28 PM
  #17
Jfg21078's Avatar
Jfg21078
Thread Starter
|
Junior User
Joined: Dec 2010
Posts: 62
Likes: 0
Awesome thanks. Where did you get that? I might have to visit the site in order to read the words . When I zoom in they are pixelated

Reply
Old Mar 20, 2020 | 07:34 PM
  #18
lonewolf_'s Avatar
lonewolf_
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
Originally Posted by Jfg21078
Awesome thanks. Where did you get that? I might have to visit the site in order to read the words . When I zoom in they are pixelated
That is from me Personally... let me see IF I can generate a Higher res version....give me couple minutes

Reply
Old Mar 20, 2020 | 07:52 PM
  #19
lonewolf_'s Avatar
lonewolf_
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
OK I tried 600X600 DPI and still pixelated....

you can stitch these Images together they are all same scale....






Reply
Old Mar 20, 2020 | 07:57 PM
  #20
lonewolf_'s Avatar
lonewolf_
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
you can stitch em all in MS Paint... I just didn't bother

Reply
Old Mar 20, 2020 | 08:01 PM
  #21
Jfg21078's Avatar
Jfg21078
Thread Starter
|
Junior User
Joined: Dec 2010
Posts: 62
Likes: 0
Perfect thanks!

Reply
Old Mar 20, 2020 | 08:08 PM
  #22
lonewolf_'s Avatar
lonewolf_
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
you're quite welcome ... that may solve some of the Mysteries ... I know the Van wiring is a bit different

Reply
Old Mar 21, 2020 | 05:36 PM
  #23
Jfg21078's Avatar
Jfg21078
Thread Starter
|
Junior User
Joined: Dec 2010
Posts: 62
Likes: 0
Just want to update. It’s fixed! Starts great with all the new glow plugs. The problem was with the ignition, it wasn’t giving power to relay. I also get to return that $130 relay I bought. Thanks for the help

Reply
Old Mar 21, 2020 | 10:13 PM
  #24
lonewolf_'s Avatar
lonewolf_
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
Originally Posted by Jfg21078
Just want to update. It’s fixed! Starts great with all the new glow plugs. The problem was with the ignition, it wasn’t giving power to relay. I also get to return that $130 relay I bought. Thanks for the help
Good Deal ... Great Job
