Steering Sector Info

Has anyone a clear photo and if possible an overall measurement of the 1937-48 steering sector shaft/gear assembly part no. 78-3575.
Going to see a friend next week who has a box of assorted sector shafts but don’t really want to pull my box apart to get some photos/sizes. A clear photo of gear assembled on shaft and an overall length would allow me to expand photo to full size to compare with parts.

Sep 6, 2019 | 05:14 PM

newold46

Fleet Mechanic

Joined: Sep 2010

Posts: 1,588

Likes: 37

From: South Carolina

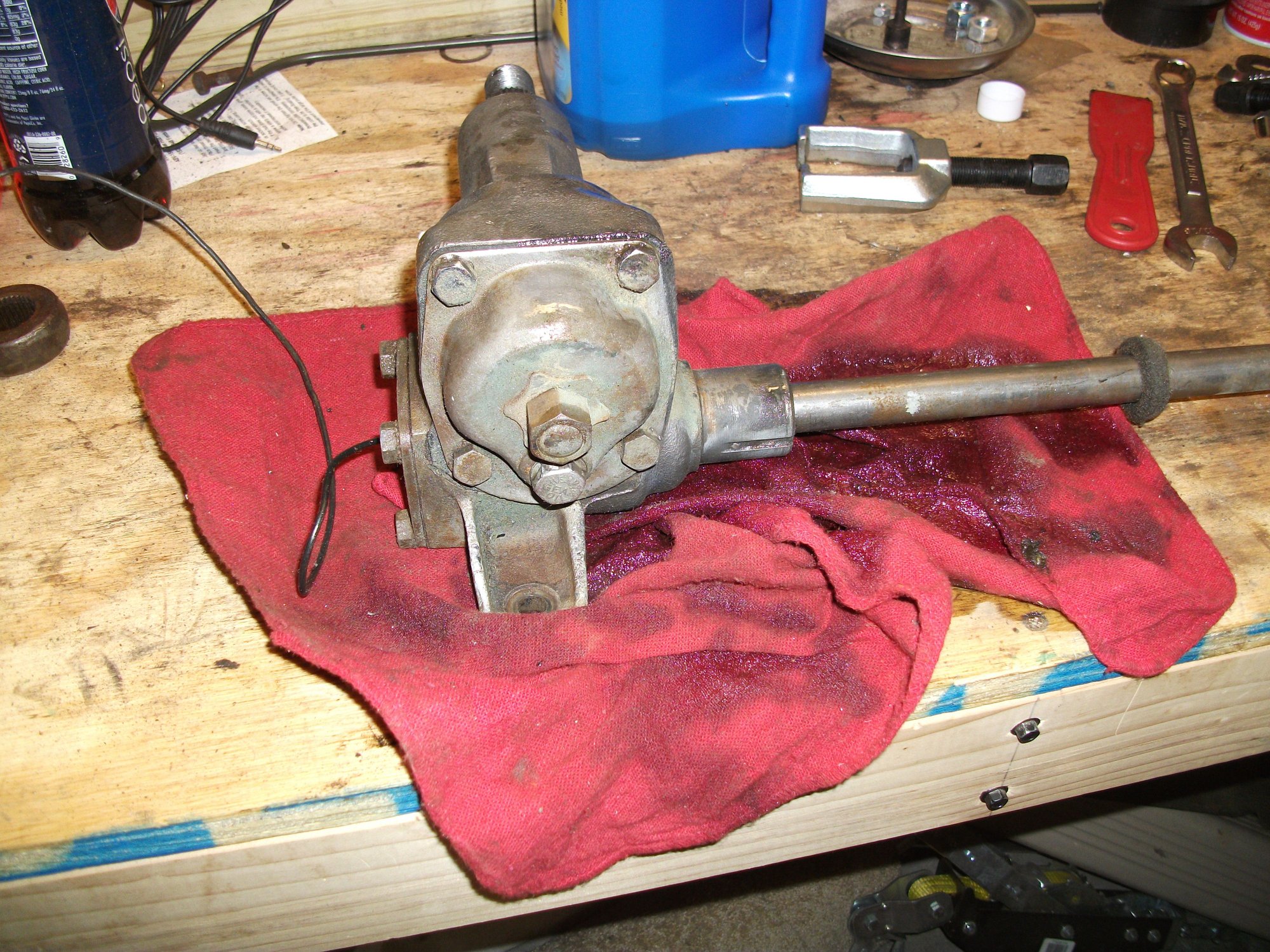

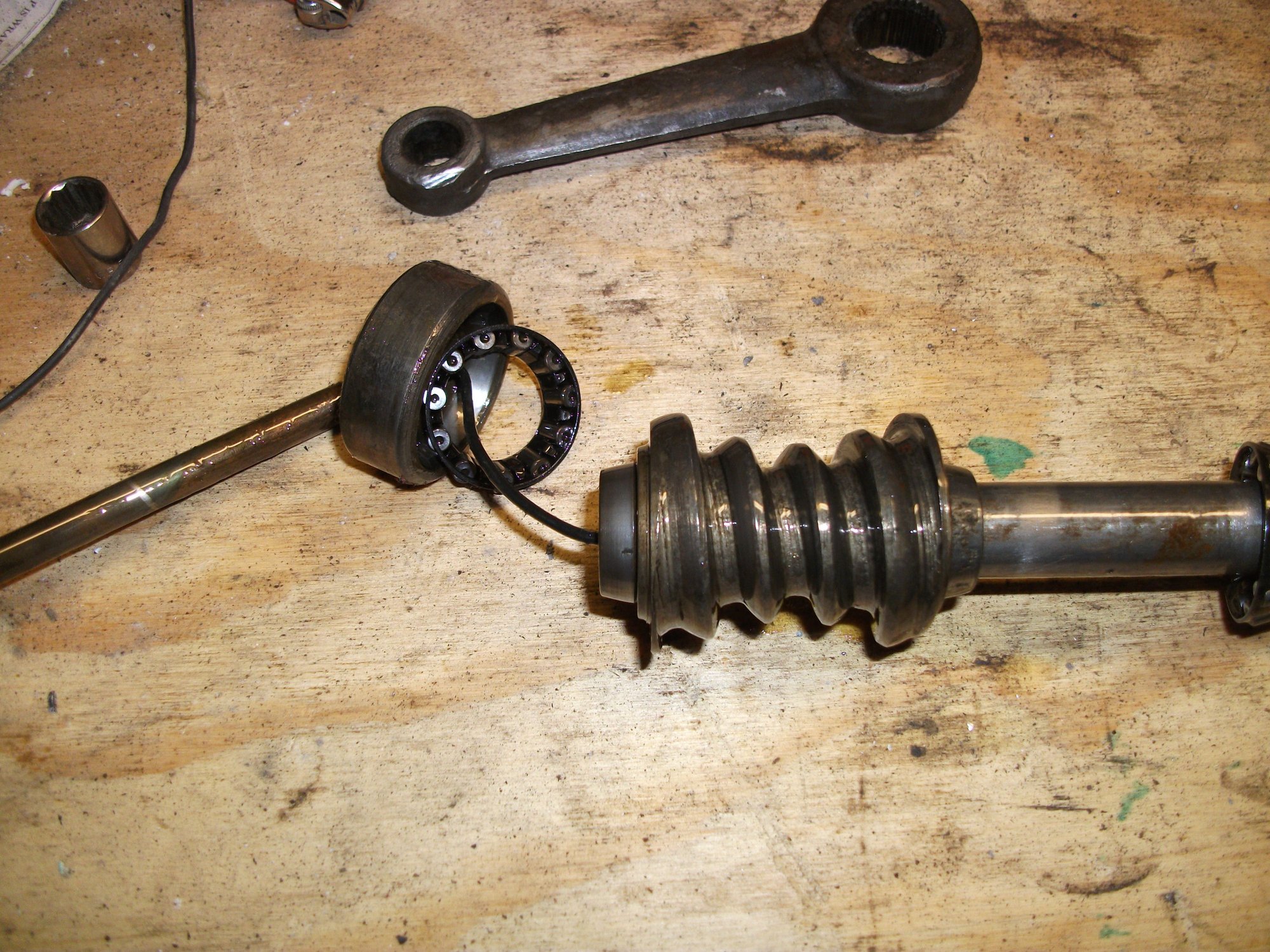

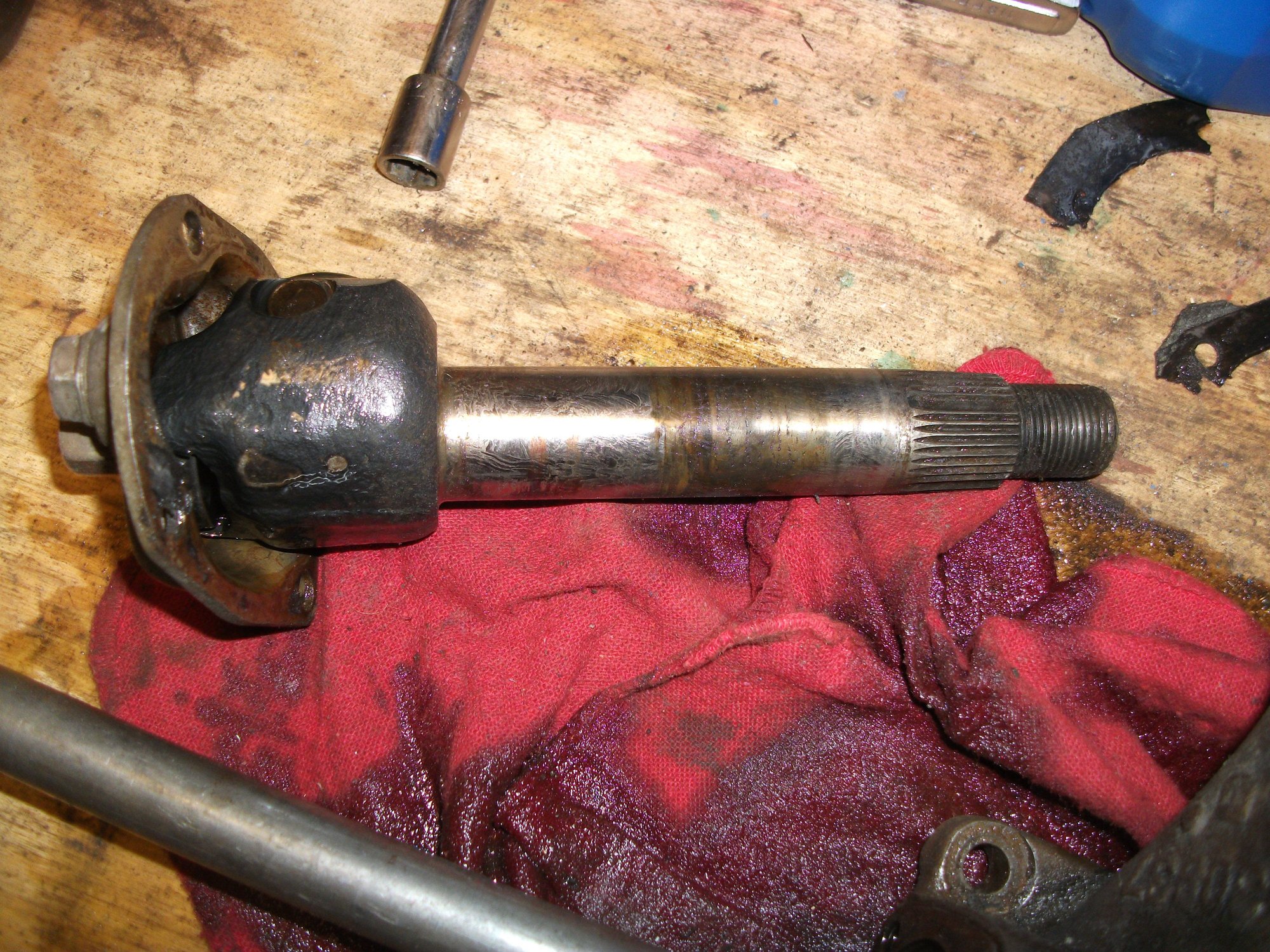

I have no measurements but I do have some pictures of when I tore mine down. Not sure if they can help you but...

Sep 7, 2019 | 06:02 AM

bernette

Cargo Master

Joined: Nov 2012

Posts: 3,157

Likes: 196

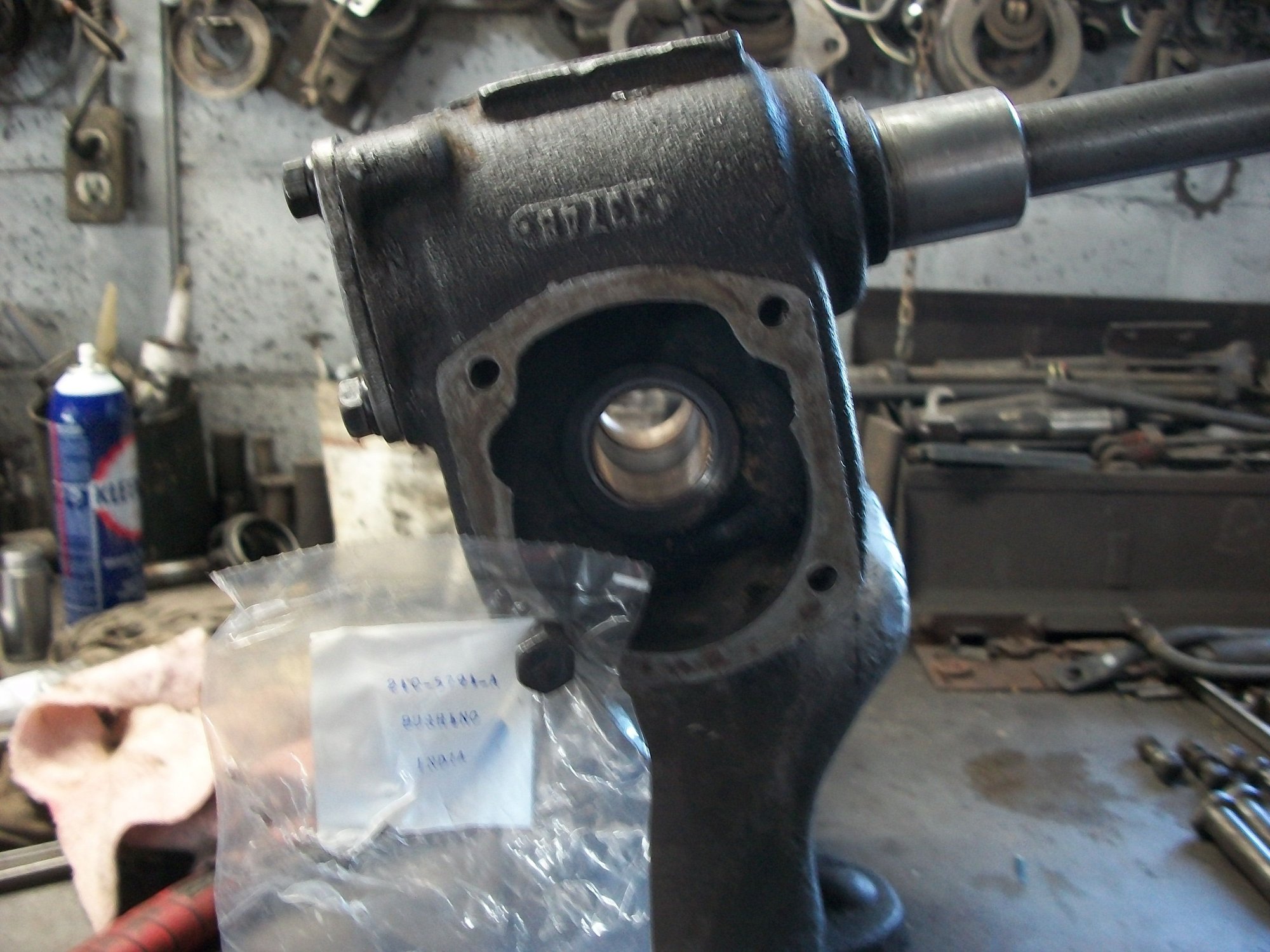

only picture i found , my truck is a 2 ton and bushings were bigger.

Sep 7, 2019 | 01:52 PM

Daggers

Thread Starter

Freshman User

Joined: Jul 2016

Posts: 36

Likes: 0

From: Hampshire,Uk

Thanks for the info guys.
Looking at the PU today I was trying to work out how to get the steering box/column removed.
Has anyone removed a box/column from a complete PU, is it possible?
I can jack up the front end but not sure if the box will pass over or under the axle.

Sep 7, 2019 | 02:32 PM

newold46

Fleet Mechanic

Joined: Sep 2010

Posts: 1,588

Likes: 37

From: South Carolina

It is a one piece affair. I had to jack up the front of the truck to get it out. I'm pretty sure it went under the axle.

Sep 8, 2019 | 03:00 PM

Joe777

Laughing Gas

Joined: Feb 2013

Posts: 853

Likes: 4

From: W. Pa

Been a long time but I recall threading mine up thru cab floor and out driver side door because we could not get the steering wheel off.

Sep 9, 2019 | 04:13 AM

Daggers

Thread Starter

Freshman User

Joined: Jul 2016

Posts: 36

Likes: 0

From: Hampshire,Uk

Lee - will try this weekend to raise PU and see if I can get the box under axle, looks tight.

Joe - did you have the engine in the PU when you removed the box?
