Hub cap paint codes
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
Optional chrome hub caps...
What hub cap is chrome? None, they're stainless steel.
So one has to wonder what else is amiss. Says F100/250 wheels and bumpers are painted white, but which white? Pure white, Wimbledon white or FrigidAire white?
What hub cap is chrome? None, they're stainless steel.
So one has to wonder what else is amiss. Says F100/250 wheels and bumpers are painted white, but which white? Pure white, Wimbledon white or FrigidAire white?
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I appreciate it, that's some good info. Just curious, what manual is this coming out of? If it's in the shop manual, I must be overlooking it.
Lead Gopher
Joined: Aug 2012
Posts: 10,035
Likes: 1,589
From: Seattle
In fact, on that same page the description of the Econoline wheels is "Optional bright-metal hub caps" which is what they should have said about the F100 and F250 series caps, too. And they did in other places, so it's a pretty common mistake to make for some.
The White for painted bumpers and grille varied slightly. If the truck were any color other than Wimbledon White then Wimbledon White was used. But if the base color was Wimbledon White then Pure White was used for the bumpers and grille.
Lead Gopher
Joined: Aug 2012
Posts: 10,035
Likes: 1,589
From: Seattle

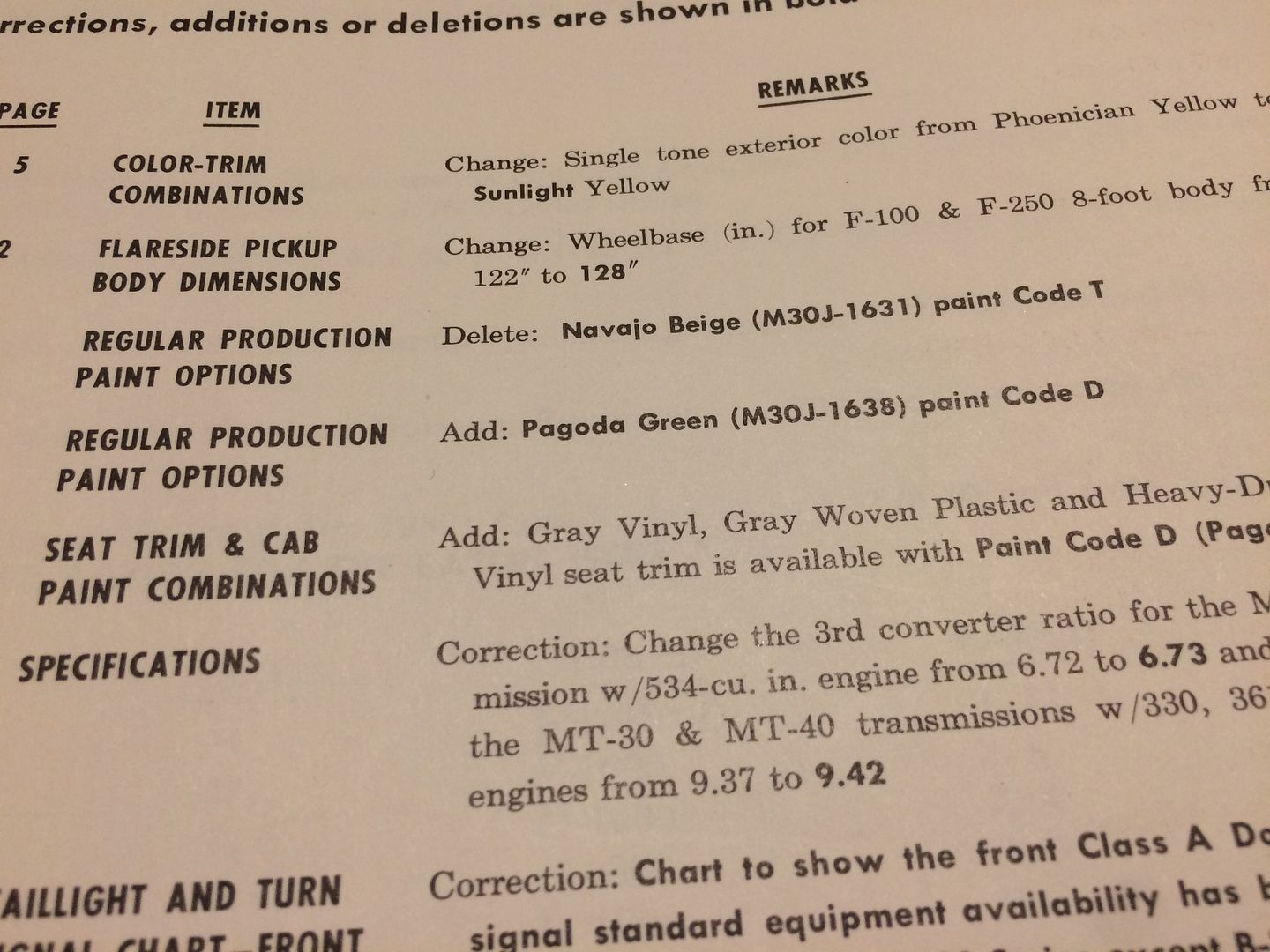

They also were making changes and corrections to some information along the way and issuing change alerts. For example, when they dropped Navaho Beige and added Pagoda Green.
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
It's the 1964 Ford Truck Salesman's Data Book. Total of 632 pages of information from what it says. I haven't counted them but I'll take its word for it.
They also were making changes to some information along the way and issuing change alerts. For example, when they dropped Navaho Beige and added Pagoda Green.
They also were making changes to some information along the way and issuing change alerts. For example, when they dropped Navaho Beige and added Pagoda Green.
Lead Gopher
Joined: Aug 2012
Posts: 10,035
Likes: 1,589
From: Seattle
I don't recall exactly where I got this one. I think it might have been at a swap meet that I go to once a year up here in Monroe. Definitely bought it. Information in them says one per dealership and then you could order more if wanted as you can see. $10 for a binder full of information probably seemed like a lot of money then.
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I don't recall exactly where I got this one. I think it might have been at a swap meet that I go to once a year up here in Monroe. Definitely bought it. Information in them says one per dealership and then you could order more if wanted as you can see. $10 for a binder full of information probably seemed like a lot of money then.
Cargo Master
Joined: Oct 2011
Posts: 2,215
Likes: 646
These books are a source of great technical information, info that is lacking in most 4 or 5 page brochures that dealers gave away free. In some cases, it is rather vague on details. "Argent" color in '64 is a different shade than "Argent" color in '66, but the same color name is used in these books. "Chrome" was actually stainless steel. White is a generic term in the Ford world, there were several shades used from '61-'66. Generally, Whimbeton White was the contrasting color for wheels , grills and bumpers from '64-'66, for most all exterior colors ( except special fleet colors), except when it came to Pure White. When Pure White was the exterior color, wheels grills and bumpers came Pure White. Hubcaps, that were painted white with red letters in '65-'66, were always painted Whimbleton White during '65-'66, never Pure White.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Logistics Pro
Joined: Jun 2003
Posts: 3,919
Likes: 271
Just that particular hub cap. I don’t recall if they’re painted I just know I have some somewhere. I’ve been trying to get a lot of this stuff organized.
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
You might remember a recent thread the other week when I ended up buying a set from another forum member. That's why I'm trying to figure out the paint stuff now that I've got the new set to put on the truck
Logistics Pro
Joined: Jun 2003
Posts: 3,919
Likes: 271
Thread Starter
|
Elder User
Joined: Feb 2019
Posts: 548
Likes: 1
From: NC
I really like the white on metallic, as was currently on there, but my end goal is go to 100% factory with everything. I thought what I had was correct, but apparently it wasn't.
