Boost leak!
Thread Starter
|
Fleet Mechanic
Joined: Feb 2008
Posts: 1,955
Likes: 6
From: Eastern PA
Boost leak!
Was driving today and boom, hissing. Wasn't even under load, just around town. Suddenly, pop, it went hiss. At first it was only under load, then all the time. Something definitely broke. Managed to get it home, pulled both tubes on either side of the intercooler and both checked out perfect. cleaned and reseated everythinig, and still the leak remained. I'm fairly certain it's at the intercooler at this point. I could hear a slight hiss at idle, when i shut it down the remaining pressure hissed out from waht felt like the front.
For sanity's sake, I'm thinking intercooler. both sides are flawless.
For sanity's sake, I'm thinking intercooler. both sides are flawless.
Thread Starter
|
Fleet Mechanic
Joined: Feb 2008
Posts: 1,955
Likes: 6
From: Eastern PA

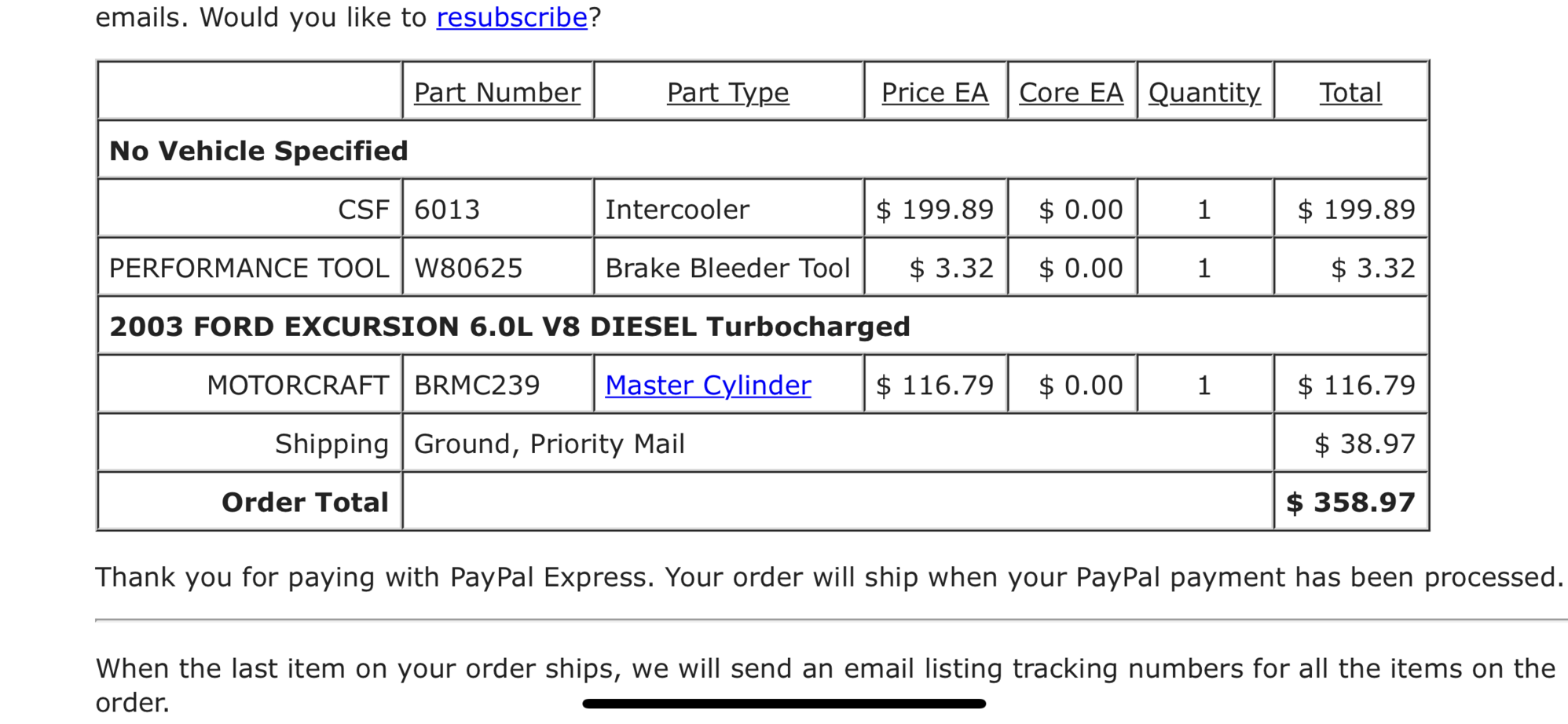

I was thinking of going the CFS route as well. For $200 you can't go wrong with their reputation. When I shut the engine off, there was a definite release of pressure. It's totally gutless now, the engine is not getting any boost. When I put my head down by the front grill I can hear a blowing noise that is not normal.
I'm going to pull the intercooler friday to check, if it's blown are there any visual indicators. I saw that the inlet was metal but the outlet was plastic, so I'm thinking it may be something with that.
I'm going to pull the intercooler friday to check, if it's blown are there any visual indicators. I saw that the inlet was metal but the outlet was plastic, so I'm thinking it may be something with that.
Postmaster
Joined: Sep 2016
Posts: 3,941
Likes: 240
From: Texas
I got mine from Rockauto I believe. 11k on it no issues. If you do that I’d strongly consider a CCV reroute or CCV to catch can/coalescing filter then back into the intake. It’s so much better for your engine to keep that oil vapor out of the turbo, CAC tubes, intercooler and intake.
Thread Starter
|
Fleet Mechanic
Joined: Feb 2008
Posts: 1,955
Likes: 6
From: Eastern PA
That was another thing, there was definitely oil inside the tubes. Not a lot, maybe a half a teaspoon pooling at the bottom of the boot, plus a coating on the inside of the pipes. I'll look into the ccv reroute, that's on the intake before the turbo right? Is it bad for the turbo? I always thought a bit of oil coating was a good thing in most cases.
Postmaster
Joined: Sep 2016
Posts: 3,941
Likes: 240
From: Texas
It’s another ******* design idea to save the environment. Your intake should only ingest air, hot oil vapor is just going to coat everything on the intake system with crap. I ran a 1” heater hose from the CCV fitting, down the frame rail and terminated by the transfer case. I replaced my entire intake system except for the CAC tubes which I cleaned out and had powdercoated oh and the intake manifold which I removed and ckeaned.. No way was I putting that nastiness back into the intake. My turbo vanes and whole intake system are dry as a bone and VERY clean after 11,000 miles.
I work in the oil and gas industry and see hundreds of CAT natural gas compressors and diesel engines and every single one of them has the crank case vented to atmoshphere. The turbo has it’s own lubrication system. Our turbos have a feed tube that pulls oil from the oil cooler to keep the internals lubed. That’s all it needs!
I work in the oil and gas industry and see hundreds of CAT natural gas compressors and diesel engines and every single one of them has the crank case vented to atmoshphere. The turbo has it’s own lubrication system. Our turbos have a feed tube that pulls oil from the oil cooler to keep the internals lubed. That’s all it needs!
Trending Topics
Thread Starter
|
Fleet Mechanic
Joined: Feb 2008
Posts: 1,955
Likes: 6
From: Eastern PA
It's listed as incompatible with my 6.0 excursion, but i'm fairly certain that it'll fit, being that it fits the f250. Is there any reason this intercooler would not be compatible with my excursion?
https://www.ebay.com/itm/CSF-6013-In...frcectupt=true
https://www.ebay.com/itm/CSF-6013-In...frcectupt=true
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Thread Starter
|
Fleet Mechanic
Joined: Feb 2008
Posts: 1,955
Likes: 6
From: Eastern PA
Bump! Any idea why the intercooler wouldn't be listed as compatible with the excursion but would with the f250?
Edit: Nevermind, it sold out.
Between these two:
https://www.ebay.com/itm/New-Interco...L/122980940827
https://www.ebay.com/itm/CPP-Front-I...D/392253764080
Are they the same? or is one worth the extra $50?
Edit: Nevermind, it sold out.
Between these two:
https://www.ebay.com/itm/New-Interco...L/122980940827
https://www.ebay.com/itm/CPP-Front-I...D/392253764080
Are they the same? or is one worth the extra $50?
