Opening a bedside toolbox


  #1
Old 03-10-2019, 04:35 PM
WercMerc
WercMerc is offline
New User
Thread Starter
Join Date: Jan 2019
Posts: 11
WercMerc is starting off with a positive reputation.
Opening a bedside toolbox

I have been trying to get the bedside toolbox opened on my 68 Merc, the latch handle has detached from whatever linkages are on the inside of the door. From old age, rust, too much force from the PO, I don't know. The lock tumbler hasn't been in place since I've owned it, but there is some sort of backing plate or part of the latch linkage, something, frozen over the tumbler hole on the inside.

Shy of cutting off the hinges, I can't see a way in, but I don't want to do that. Has anyone out there successfully opened one up in this situation without doing more damage?

Second, does anyone have a parts diagram of the latch linkages, may e I could make it cooperate if I knew what I was dealing with.

thanks all

  #2
Old 03-10-2019, 05:54 PM
lilorbie
lilorbie is offline
Senior User
Join Date: Feb 2016
Posts: 458
lilorbie is starting off with a positive reputation.
WercMerc since the lock tumbler is already gone. you might try to drill out whats left. maybe it will solve your problem. since you need a new tumbler any way.

  #3
Old 03-10-2019, 06:18 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 81,354
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation

  #4
Old 03-10-2019, 07:52 PM
lambchops25's Avatar
lambchops25
lambchops25 is offline
Senior User
Join Date: Jun 2013
Location: Herlong, CA
Posts: 152
lambchops25 is starting off with a positive reputation.
If you are missing the handle, you should be able to stick a flat head screwdriver up towards the top of the latch and pry down to open the latch. It's just a spring-loaded "paw" that holds the door shut. Itís hard to explain without pictures. I'll try to remember to take a picture of one I have at the house when I get home this evening.

  #5
Old 03-11-2019, 12:39 AM
lambchops25's Avatar
lambchops25
lambchops25 is offline
Senior User
Join Date: Jun 2013
Location: Herlong, CA
Posts: 152
lambchops25 is starting off with a positive reputation.

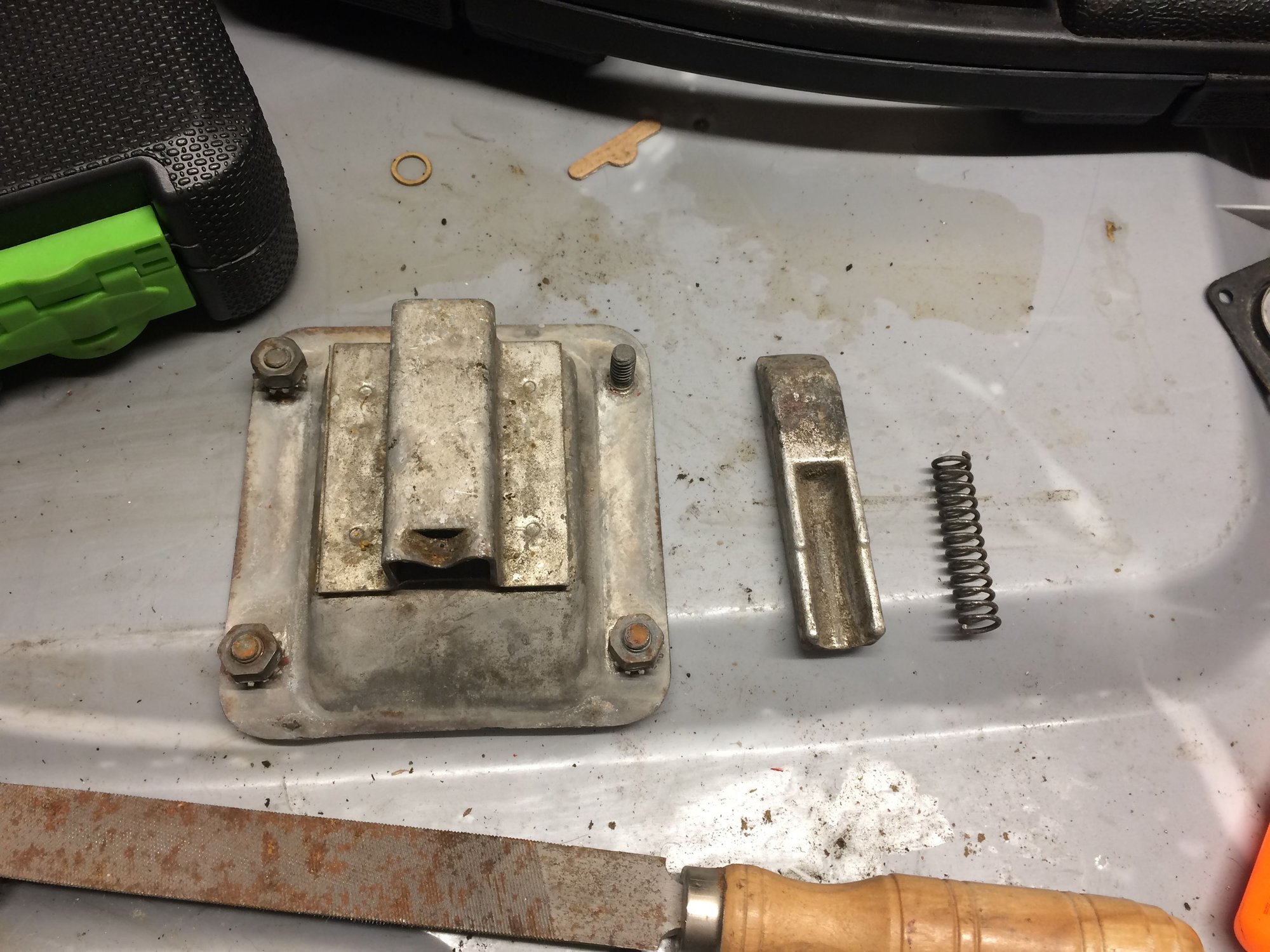

The top picture shows a latch with no handle or lock cylinder, and where to put your screwdriver. Just put it in there and pry the tip down to push the paw down. The door should open. It may be stiff if it is dirty or rusty.

The second picture is of the paw. All it does is move down.

The third picture shows that there is a spring in the paw. Thatís all that is behind the latch.

Please let let me know if you need any more pictures or information.

  #6
Old 03-11-2019, 07:47 AM
WercMerc
WercMerc is offline
New User
Thread Starter
Join Date: Jan 2019
Posts: 11
WercMerc is starting off with a positive reputation.
Deadly!

Life got a lot easier between the diagram and the pics. Thank you. I had assumed there were linkages and latches at the front and rear of the door. Mine must be frozen with rust, it won't budge. Let it soak for a bit, see if I can't salvage the latch-doesn't look like anyone makes a replacement.

  #7
Old 03-12-2019, 04:05 AM
GaryKip's Avatar
GaryKip
GaryKip is offline
Postmaster
Join Date: Aug 2015
Location: Lind, WA- Eastern WA
Posts: 3,559
GaryKip is a splendid one to beholdGaryKip is a splendid one to beholdGaryKip is a splendid one to beholdGaryKip is a splendid one to beholdGaryKip is a splendid one to beholdGaryKip is a splendid one to beholdGaryKip is a splendid one to behold
"lambchops25" thanks for sharing those pics of the latch. That info will help a lot of members, for years to come. I rep'ed you for it.

  #8
Old 03-12-2019, 06:22 PM
lambchops25's Avatar
lambchops25
lambchops25 is offline
Senior User
Join Date: Jun 2013
Location: Herlong, CA
Posts: 152
lambchops25 is starting off with a positive reputation.
Originally Posted by GaryKip View Post
"lambchops25" thanks for sharing those pics of the latch. That info will help a lot of members, for years to come. I rep'ed you for it.
Thanks Gary. I really appreciate it.

  #9
Old 03-12-2019, 07:06 PM
old28's Avatar
old28
old28 is online now
Senior User
Join Date: May 2017
Location: Southern CA
Posts: 374
old28 is starting off with a positive reputation.
I just removed the whole latch unit from my 1971 F250 side box and replaced the key tumbler in the latch. Was able to find a new keyed tumbler at my local hardware store. If you need a full latch with a keyed tumbler they can be had from most all companies that make locking tool boxes.

  #10
Old 03-13-2019, 08:25 AM
TenaciousT
TenaciousT is offline
Freshman User
Join Date: Mar 2015
Posts: 33
TenaciousT is starting off with a positive reputation.
That should be easy to find parts for it . Try - Stahl Utility Truck box company . They have used that same latch on there boxes for 50 years !

  #11
Old 03-15-2019, 01:26 AM
josht
josht is offline
Freshman User
Join Date: Apr 2006
Location: Middle Georgia
Posts: 40
josht is starting off with a positive reputation.
Good info my current (rusted out) bed has one of those boxes, but we never had the key for it. Fortunately the latch isn't locked or rusted shut, but I have wandered about getting a replacement lock or complete latch assembly. If I find a good bed to replace this one and it doesn't have the side box, I intend to cut it out of the existing bed and move it over so I would like to get that lock working.

Were these latch assemblies originally chromed, body color, or something else? Mine is currently rust colored, but nothing that a little time with a wire wheel or bead blaster can't fix.

Also what would the full part number for the seal around that door be? It's 46140 in that picture, but I'm guessing that isn't the whole number. Probably not available anyway.

  #12
Old 03-15-2019, 09:33 PM
old28's Avatar
old28
old28 is online now
Senior User
Join Date: May 2017
Location: Southern CA
Posts: 374
old28 is starting off with a positive reputation.
My 1971 F250 has the original paint. 96,383 original miles, has been well taken care of and my side box latch is painted the same blue as the body
