Help please. 5 wheel plug picture
Thread Starter
|
Freshman User
Joined: Jan 2018
Posts: 26
Likes: 1
Help please. 5 wheel plug picture

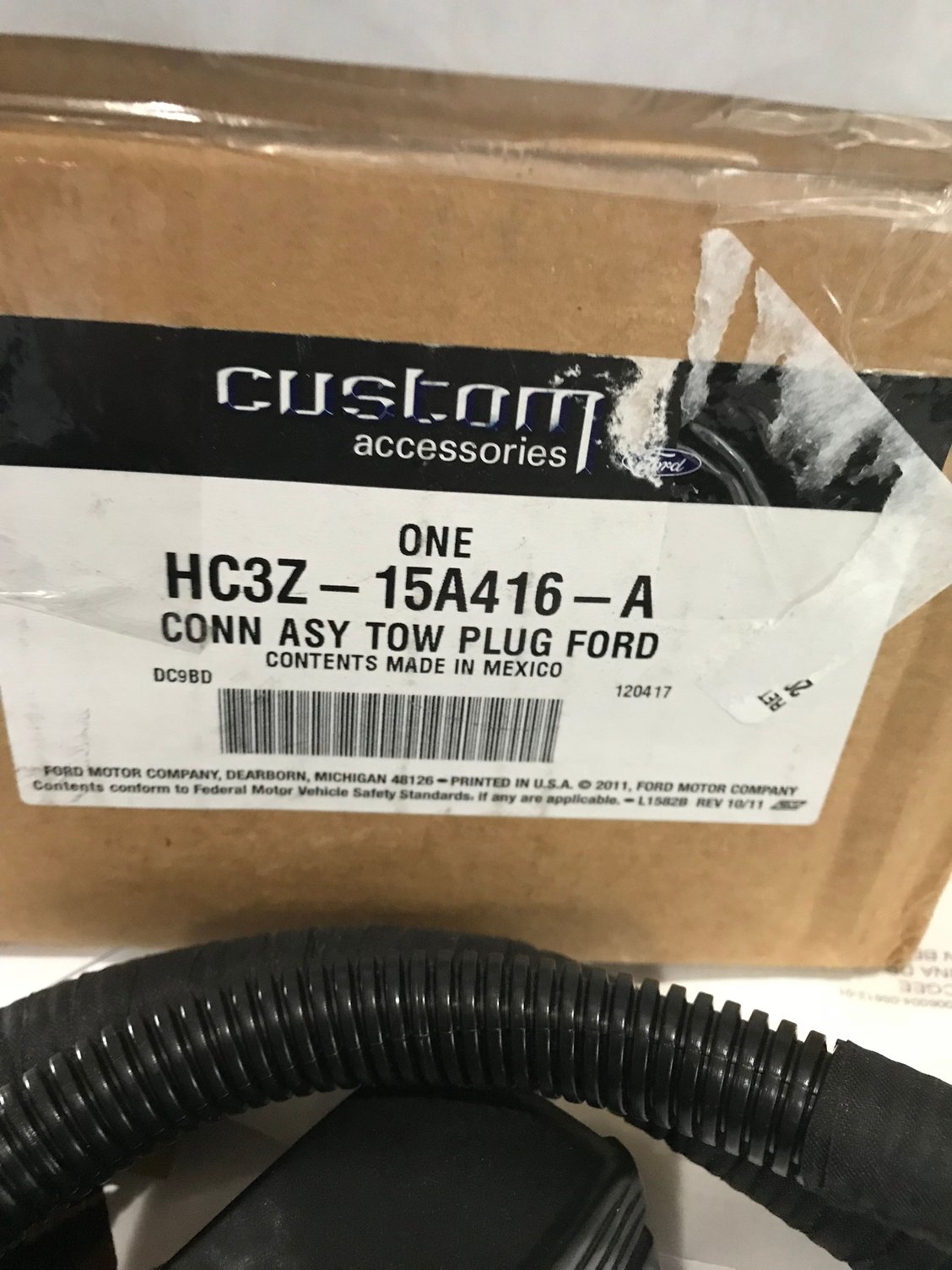

im trying to install the 7 pin plug in the cargo box. I did not order the 5th wheel package but I have tow package and trailer brake. The part number is HC3Z 15A416A. I talked to Ford on the phone and they said it is the correct part. My problem is I cannot find where to plug it in under the truck, I have 2 plugs down there but the do not fit in the sockets.. if anybody can take a picture of where this plugs into the harness, I would appreciate it.
Logistics Pro
Joined: Feb 2004
Posts: 4,460
Likes: 14
From: The Land Of Time

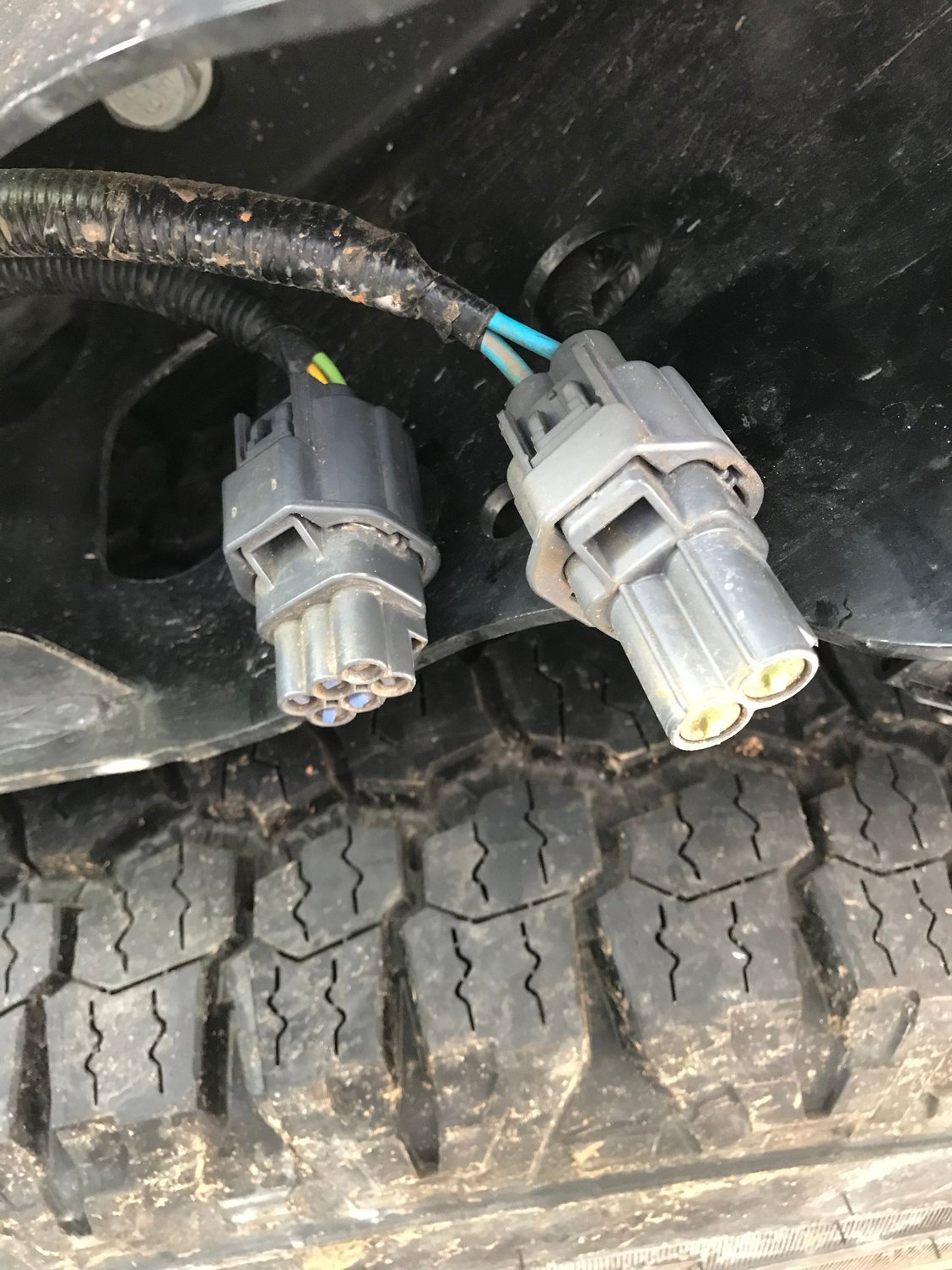

You have to disconnect the plug in the bumper connection, it goes in line between the bumper and truck side harness.
Look where you'd plug a bumper pull in the 7 way and follow it back in plug it, make your connections and you'll be good.
Sarge
Look where you'd plug a bumper pull in the 7 way and follow it back in plug it, make your connections and you'll be good.
Sarge
Lead Driver
Joined: Oct 2014
Posts: 5,943
Likes: 1,357
From: NY/Canada border
I had to Google a better picture of the part number.
Looks like you would unplug the existing 7 pin connector in the bumper, plug one end of your harness into that. Then plug the other end into the 7 pin harness coming from the front of the truck.
Looks like you would unplug the existing 7 pin connector in the bumper, plug one end of your harness into that. Then plug the other end into the 7 pin harness coming from the front of the truck.
Thread Starter
|
Freshman User
Joined: Jan 2018
Posts: 26
Likes: 1

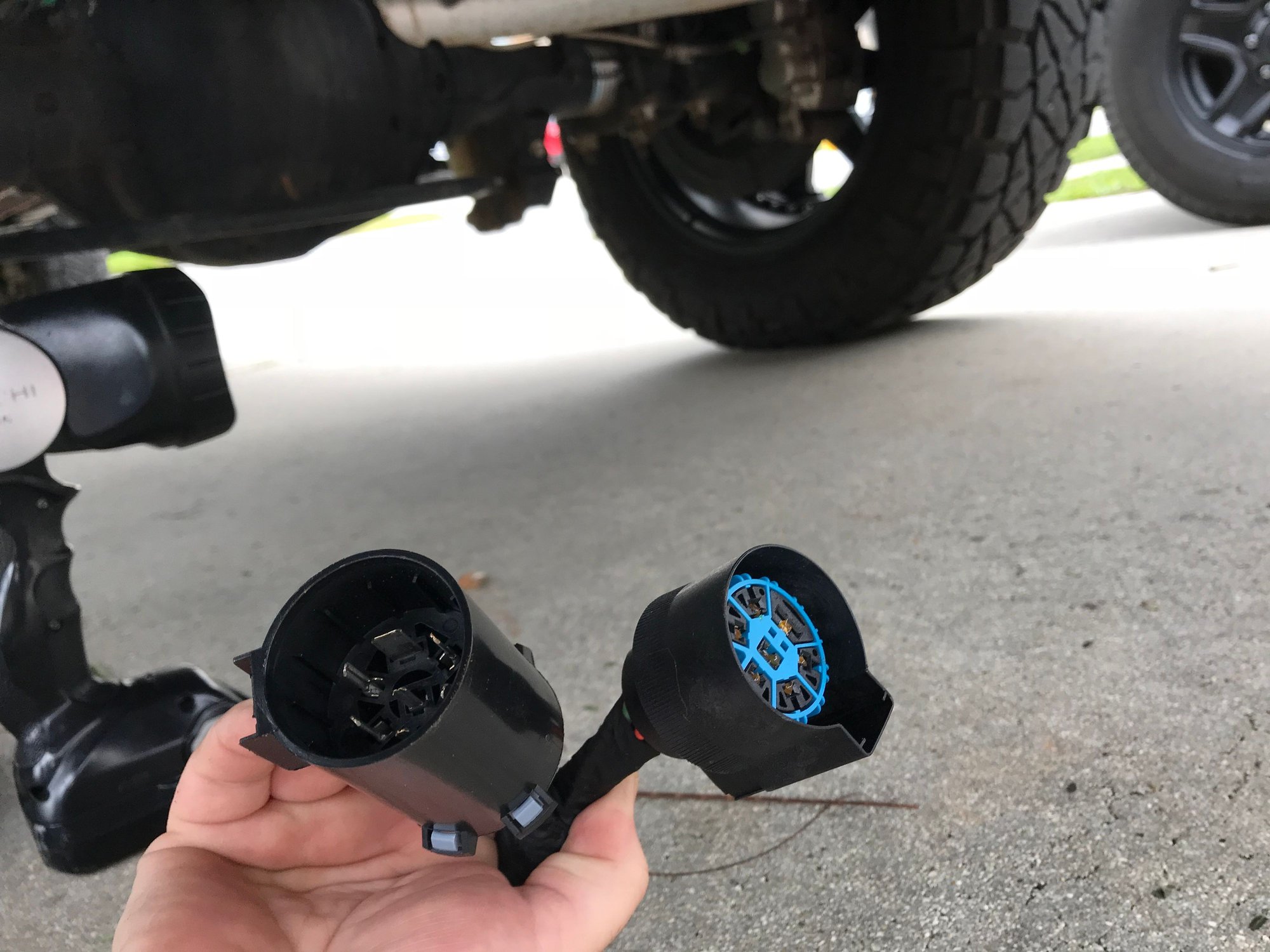

Ok got it mounted up and it plugs right in like you both said. Now I have no power to either plug..😩 Any ideas? I started the truck, pressed the brakes and the trailer brakes.. I will start looking at fuses I guess.
