Unidentified light

Would anyone like to speculate the purpose of the light fixture "B" in the pictures below?

To put it into context, the connections in the boxes "A" go to gauges in the instrument panel. The light socket "C" is the high/low beam light.

The unidentified light is plugged into a 3-outlet plug. I don't remember where the other two went, but I can see they're scratched where something was plugged in to them. The schematic shows three instrument lights, but it doesn't show where they go. The panel itself only has holes for two.

It looks newer than original, as it isn't cloth wrapped. Radio maybe?

I know the truck had a "stem" type radio at one time. Someone had hacked holes into the dash with a chisel or something. It was rough. I can't imagine someone that would cut the holes like that would go the trouble of hooking up the light properly.

Thoughts?
Attached Images

Reply With Quote
  #2
Old 11-12-2017, 10:13 AM
Smitty49's Avatar
Smitty49 Smitty49 is offline
Senior User

Join Date: Feb 2011
Location: Huntsville, Al
Posts: 202
Smitty49 has a good reputation on FTE.Smitty49 has a good reputation on FTE.Smitty49 has a good reputation on FTE.
I had shielded light on a cigarette lighter like that one but your lead doesn't look long enough to reach that area of the dash
Reply With Quote
  #3
Old 11-12-2017, 11:33 AM
53 tonner's Avatar
53 tonner 53 tonner is offline
Senior User

Join Date: Oct 2011
Location: Eagan, MN
Posts: 230
53 tonner is gaining momentum as a positive member of FTE.
Do you have factory blinkers? This may be one of two indicator lights in your dash.

Grant
Reply With Quote
  #4
Old 11-12-2017, 11:39 AM
NumberDummy's Avatar
NumberDummy NumberDummy is online now
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 73,241
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Quote:
Originally Posted by EffieTrucker View Post
Would anyone like to speculate the purpose of the light fixture "B" in the pictures below?

To put it into context, the connections in the boxes "A" go to gauges in the instrument panel. The light socket "C" is the high/low beam light.

The unidentified light is plugged into a 3-outlet plug. I don't remember where the other two went, but I can see they're scratched where something was plugged in to them. The schematic shows three instrument lights, but it doesn't show where they go. The panel itself only has holes for two.

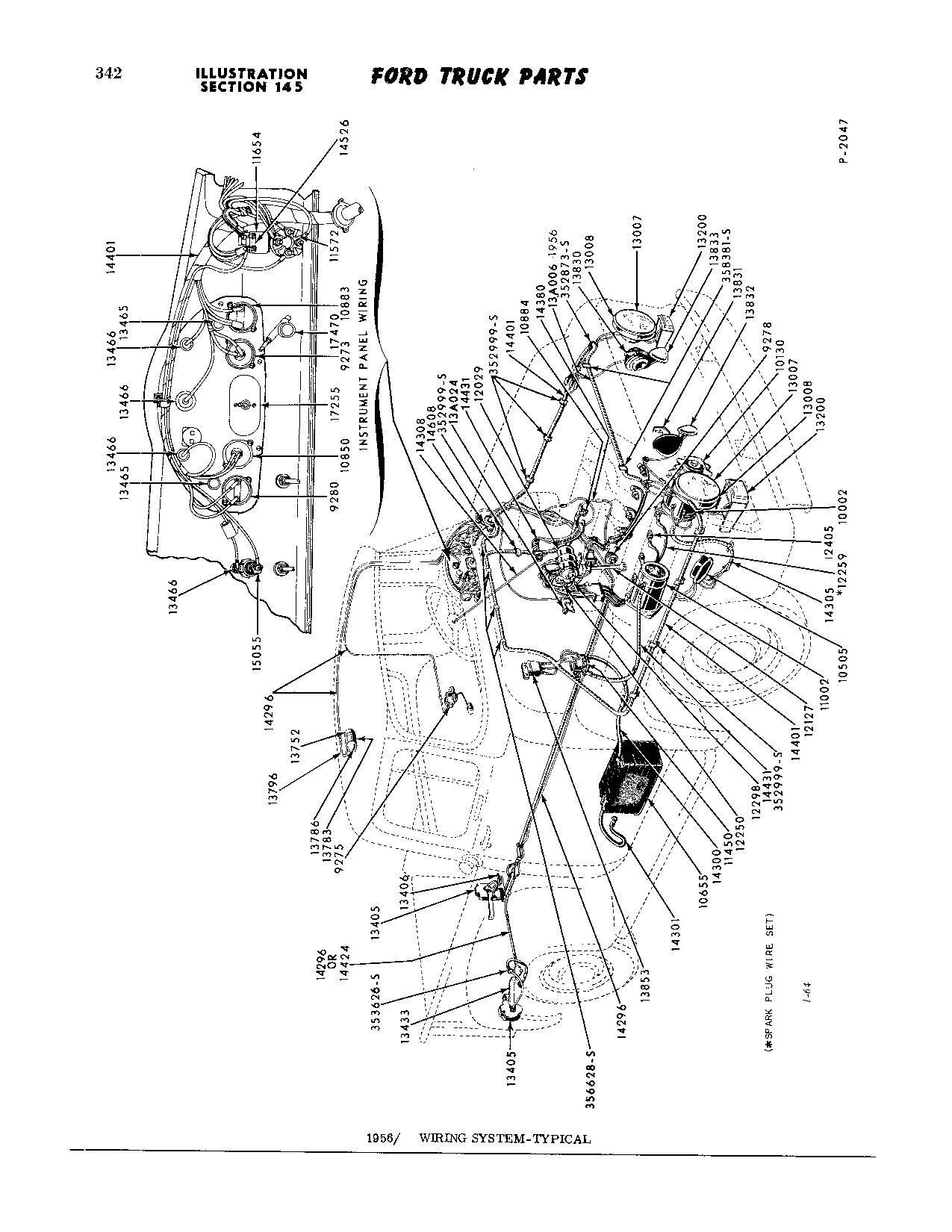

Parts catalog pic shows 4 bulbs (13466) in cluster.

9273 is the fuel gauge, 17255 is the speedo, 10850 is the generator gauge, 11572 is the ignition switch, 15055 is the lighter socket.

Reply With Quote
  #5
Old 11-12-2017, 12:07 PM
firstrider's Avatar
firstrider firstrider is offline
Postmaster

Join Date: Aug 2007
Location: Pt.St.Lucie , Fla.
Posts: 2,710
firstrider has a great reputation on FTE.firstrider has a great reputation on FTE.firstrider has a great reputation on FTE.firstrider has a great reputation on FTE.firstrider has a great reputation on FTE.firstrider has a great reputation on FTE.
What yr. truck ? Socket type is for a dash gauge cluster light or speedo cluster light . Shielded type is for a back lit item , radio light or cigar lighter .
Reply With Quote
  #6
Old 11-12-2017, 12:19 PM
NumberDummy's Avatar
NumberDummy NumberDummy is online now
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 73,241
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Quote:
Originally Posted by firstrider View Post
What yr. truck? Socket type is for a dash gauge cluster light or speedo cluster light. Shielded type is for a back lit item, radio light or cigar lighter .
OP has "1953 F100 Deluxe Cab" in his signature, why I posted a pic of the 1953/55 wiring.
Reply With Quote
  #7
Old 11-12-2017, 12:38 PM
Mixer man's Avatar
Mixer man Mixer man is offline
Posting Guru

Join Date: Sep 2014
Location: Bothell & Silverdale, WA
Posts: 1,626
Mixer man is a name known to allMixer man is a name known to allMixer man is a name known to allMixer man is a name known to allMixer man is a name known to allMixer man is a name known to all
I know some cars had a lighted ring around the ignition switch, but never saw any trucks with it. All of the radios that I know of are lighted internally, so no shielded bulb there. The only other two choices are, IMO, dispatch (glove) box, and cigarette lighter.
Reply With Quote
  #8
Old 11-12-2017, 12:54 PM
Indybeer's Avatar
Indybeer Indybeer is offline
Senior User

Join Date: May 2010
Location: Danville, IN
Posts: 400
Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.

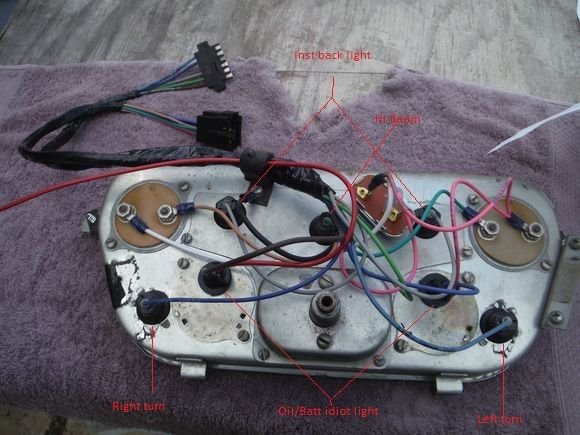

My 54 only has 2 instrument panel lights Here is a pic of it after rewire. The rewire kit was for a 53-56. Not sure where the third back light would go. My panel looks like the diagram Number Dummy posted.


Reply With Quote
  #9
Old 11-12-2017, 01:06 PM
NumberDummy's Avatar
NumberDummy NumberDummy is online now
Ford Parts Specialist

Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 73,241
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Post #4 has the 1953/55 pic, here's the 1956 pic. Bulbs are Ford basic part numbers 13465 & 13466.

Reply With Quote
  #10
Old 11-12-2017, 02:30 PM
56panelford's Avatar
56panelford 56panelford is online now
Posting Legend

Join Date: Oct 2005
Location: Ontario,Canada
Posts: 107,655
56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation
Did the ash tray have a light?
Reply With Quote
  #11
Old 11-12-2017, 03:48 PM
bigwin56f100's Avatar
bigwin56f100 bigwin56f100 is online now
Postmaster

Join Date: Jul 2003
Location: AKRON ohio
Posts: 4,716
bigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud of
As others have already stated it is for the cigarette lighter well
Reply With Quote
  #12
Old 11-12-2017, 03:53 PM
56panelford's Avatar
56panelford 56panelford is online now
Posting Legend

Join Date: Oct 2005
Location: Ontario,Canada
Posts: 107,655
56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation
Quote:
Originally Posted by bigwin56f100 View Post
As others have already stated it is for the cigarette lighter well
Why would you have a light in the cigarette lighter well...? I'm confused..
Reply With Quote
  #13
Old 11-12-2017, 04:04 PM
Indybeer's Avatar
Indybeer Indybeer is offline
Senior User

Join Date: May 2010
Location: Danville, IN
Posts: 400
Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.Indybeer has a great reputation on FTE.
Not sure why you would light it
Reply With Quote
  #14
Old 11-12-2017, 04:40 PM
bigwin56f100's Avatar
bigwin56f100 bigwin56f100 is online now
Postmaster

Join Date: Jul 2003
Location: AKRON ohio
Posts: 4,716
bigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud ofbigwin56f100 has much to be proud of
Everyone smoked back then. When you'd use the lighter at night it pops out and you need to be able to see where to put it back into the hole-well
Reply With Quote
  #15
Old 11-12-2017, 04:48 PM
56panelford's Avatar
56panelford 56panelford is online now
Posting Legend

Join Date: Oct 2005
Location: Ontario,Canada
Posts: 107,655
56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation56panelford has a superb reputation
Neither one of my trucks had a cigarette lighter so have no idea how it worked. Did that light clip onto the barrel the lighter inserted into..?
