I'm never selling this truck anyway (too sentimental)so its more for my own curiosity. I can tell you that I do not recall my dad ever changing the transmission and I know that I never changed the trans either. With that said... I only started becoming a gear head when I was about 14 or 15 years old . That's 14 or 15 years of the trucks life that's really an unknown to me since I was born in 66 too. Dad is no longer here to ask. I can tell you that none of the red came off with a pressure washer. It was solid.
Lead Gopher
Joined: Aug 2012
Posts: 10,060
Likes: 1,613
From: Seattle
I know exactly what you are saying. It is a (sorry to tell you now) lead based reddish-orange primer (called red oxide) that they used. VERY tough stuff. The ELPO dip tank was a fairly new painting process (at the time) where the entire item was dipped directly in the primer. The item itself was electrically charged, which opens the pores of the metal, allowing the primer to seep in. The charge is then cut off, closing the pores and the primer is trapped. The excess is literally rinsed off (with water) once the item emerges from the tank, resulting in a smooth finish and excellent coverage. This same process is still in use today by many manufacturers.
We all know how well paint sticks to primer and that is why these yellow markings, both the stencil and the hand painted portions - are so tough to get off. They were likely using lead based paints as well.

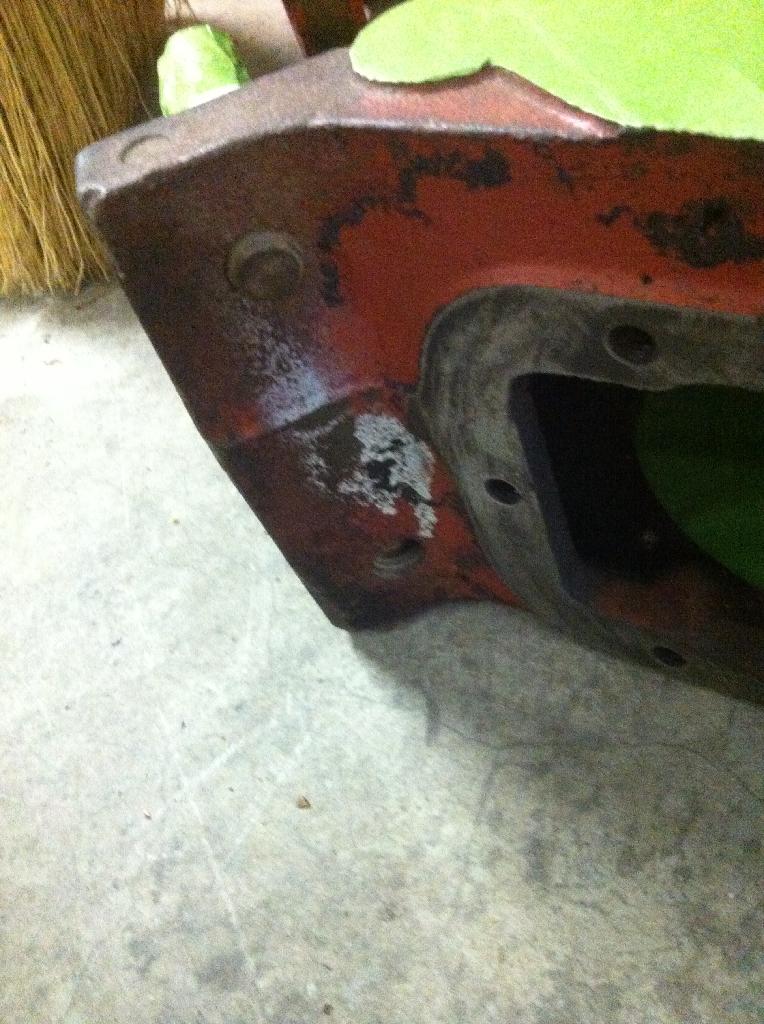

Here's some pictures of an NP205 - same stuff on both the inside and outside. The white markings are factory, too. Embedded in the primer and nothing short of a caustic solvent is going to take it off.
Chad
.
We all know how well paint sticks to primer and that is why these yellow markings, both the stencil and the hand painted portions - are so tough to get off. They were likely using lead based paints as well.
Here's some pictures of an NP205 - same stuff on both the inside and outside. The white markings are factory, too. Embedded in the primer and nothing short of a caustic solvent is going to take it off.
Chad
.
Logistics Pro
Joined: May 2008
Posts: 3,670
Likes: 370
From: PHX AZ
Bill, Although I respect your opinion those markings and color are in Fact Original. Similar markings on my 1966 F600 with 5300 miles on it. I have a half dozen trans here with same type markings. Even back in my Mustang, comet cougar, cyclone manual trans they all had same type of markings. Each and every one. I can show you pics of those type markings from over 40yrs ago.
Logistics Pro
Joined: May 2008
Posts: 3,670
Likes: 370
From: PHX AZ
I know exactly what you are saying. It is a (sorry to tell you now) lead based reddish-orange primer (called red oxide) that they used. VERY tough stuff. The ELPO dip tank was a fairly new painting process (at the time) where the entire item was dipped directly in the primer. The item itself was electrically charged, which opens the pores of the metal, allowing the primer to seep in. The charge is then cut off, closing the pores and the primer is trapped. The excess is literally rinsed off (with water) once the item emerges from the tank, resulting in a smooth finish and excellent coverage. This same process is still in use today by many manufacturers.
We all know how well paint sticks to primer and that is why these yellow markings, both the stencil and the hand painted portions - are so tough to get off. They were likely using lead based paints as well.
Here's some pictures of an NP205 - same stuff on both the inside and outside. The white markings are factory, too. Embedded in the primer and nothing short of a caustic solvent is going to take it off.
Chad
.
We all know how well paint sticks to primer and that is why these yellow markings, both the stencil and the hand painted portions - are so tough to get off. They were likely using lead based paints as well.
Here's some pictures of an NP205 - same stuff on both the inside and outside. The white markings are factory, too. Embedded in the primer and nothing short of a caustic solvent is going to take it off.
Chad
.
ALL of the performance versions had actual VIN's on them or at least a partial VIN
Even the 9" rear axle centers had paint markings and date codes except the SPEC ones had just that SPEC in place of date code. They were same color as the NP Transmissions.
Logistics Pro
Joined: May 2008
Posts: 3,670
Likes: 370
From: PHX AZ
I have a F28 from April 14 1966 on a NP435
Logistics Pro
Joined: May 2008
Posts: 3,670
Likes: 370
From: PHX AZ
Rear Axle Tag
To those that say there is no such thing as "Numbers Matching". FALSE! Each and every FoMoCo Vehicle has dates on about every part installed. And one can really tell if its Original or not.
Case in point on a engine block. When each and every components date matches with build date of said vehicle it becomes pretty clear if its been changed or not.
352 Block
Lead Gopher
Joined: Aug 2012
Posts: 10,060
Likes: 1,613
From: Seattle
Bingo! So the F and digits we are seeing in hand painted yellow is going to correspond with the tag.
It is in the Textual portion Section 70 Page 4
NEW PROCESS IDENTIFICATION OF FORD PRODUCTION PART NUMBER
Mine with F26 has this on the tags.
Chad
.
It is in the Textual portion Section 70 Page 4
NEW PROCESS IDENTIFICATION OF FORD PRODUCTION PART NUMBER
Mine with F26 has this on the tags.
Chad
.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Lead Gopher
Joined: Aug 2012
Posts: 10,060
Likes: 1,613
From: Seattle

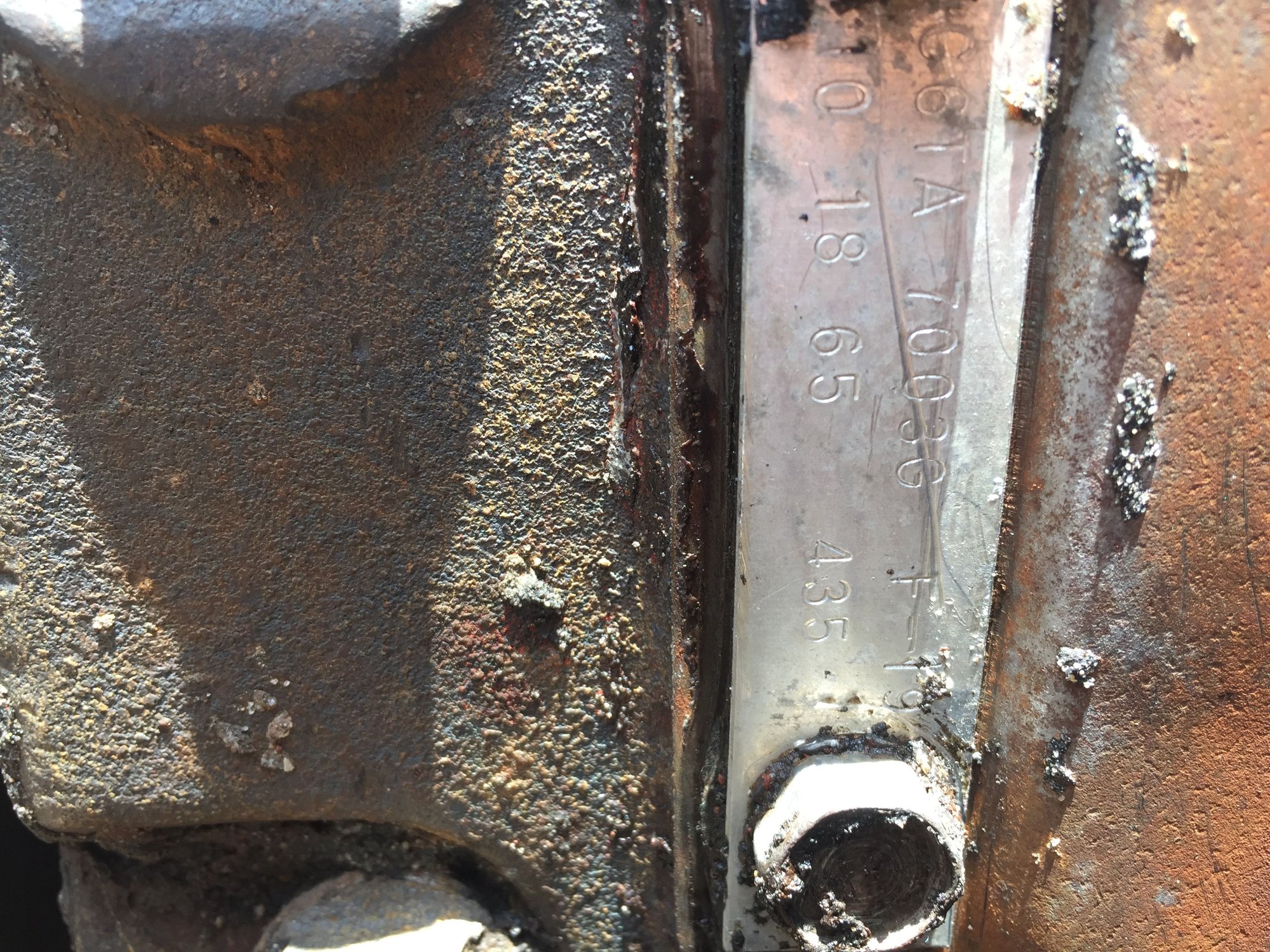

With the addition of the tag from Boss it is clear this is just shorthand for which specific NP435 it is.
F19 on a 6N3G - C6TA-7003-G
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Last 3 are the same order as in the MPC - so a trend there.
Anyone else feel free to post your New Process transmission tag and/or case markings if they are still there.
Chad
.
F19 on a 6N3G - C6TA-7003-G
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Last 3 are the same order as in the MPC - so a trend there.
Anyone else feel free to post your New Process transmission tag and/or case markings if they are still there.
Chad
.
Thread Starter
|
More Turbo
Joined: Nov 2010
Posts: 520
Likes: 61
From: NJ
With the addition of the tag from Boss it is clear this is just shorthand for which specific NP435 it is.
F19 on a 6N3G - C6TA-7003-G
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Last 3 are the same order as in the MPC - so a trend there.
Anyone else feel free to post your New Process transmission tag and/or case markings if they are still there.
Chad
.
F19 on a 6N3G - C6TA-7003-G
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Last 3 are the same order as in the MPC - so a trend there.
Anyone else feel free to post your New Process transmission tag and/or case markings if they are still there.
Chad
.
Lead Gopher
Joined: Aug 2012
Posts: 10,060
Likes: 1,613
From: Seattle
Thanks for confirming that. Someone also sent one from their F600 with an F16 on it. Just 3 before yours in the MPC list so you can sure get a feel for what they were doing. And another with an F25 - Keep PM'ing me any new ones that you find and I'll add them to the list.
F16 on a 5N4AJ - C5TA-7004-AJ
F19 on a 6N3G - C6TA-7003-G
F25 on a 5N3L - C5TA-7003-L
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Chad
.
F16 on a 5N4AJ - C5TA-7004-AJ
F19 on a 6N3G - C6TA-7003-G
F25 on a 5N3L - C5TA-7003-L
F26 on a 5N4AT - C5TA-7004-AT
F27 on a 5N4AU - C5TA-7004-AU
F28 on a 5N3M - C5TA-7003-M
Chad
.
