Wiring
Thread Starter
|
New User
Joined: May 2017
Posts: 4
Likes: 0
Wiring
Hey guys,
Need some help on wiring my 1972 F100. Ran a painless performance kit. Issue I'm having is someone has tampered with steering column. Ive looked up multiple diagrams and it seems these trucks vary with wire coloring so any input would be great. Ive attached pics including the column wires, dimmer wires as well what i believe to be the neutral safety switch wires. Any advice or input on color codes or direction would be greatly appreciated.
Thanks in advance fellas!
Need some help on wiring my 1972 F100. Ran a painless performance kit. Issue I'm having is someone has tampered with steering column. Ive looked up multiple diagrams and it seems these trucks vary with wire coloring so any input would be great. Ive attached pics including the column wires, dimmer wires as well what i believe to be the neutral safety switch wires. Any advice or input on color codes or direction would be greatly appreciated.
Thanks in advance fellas!

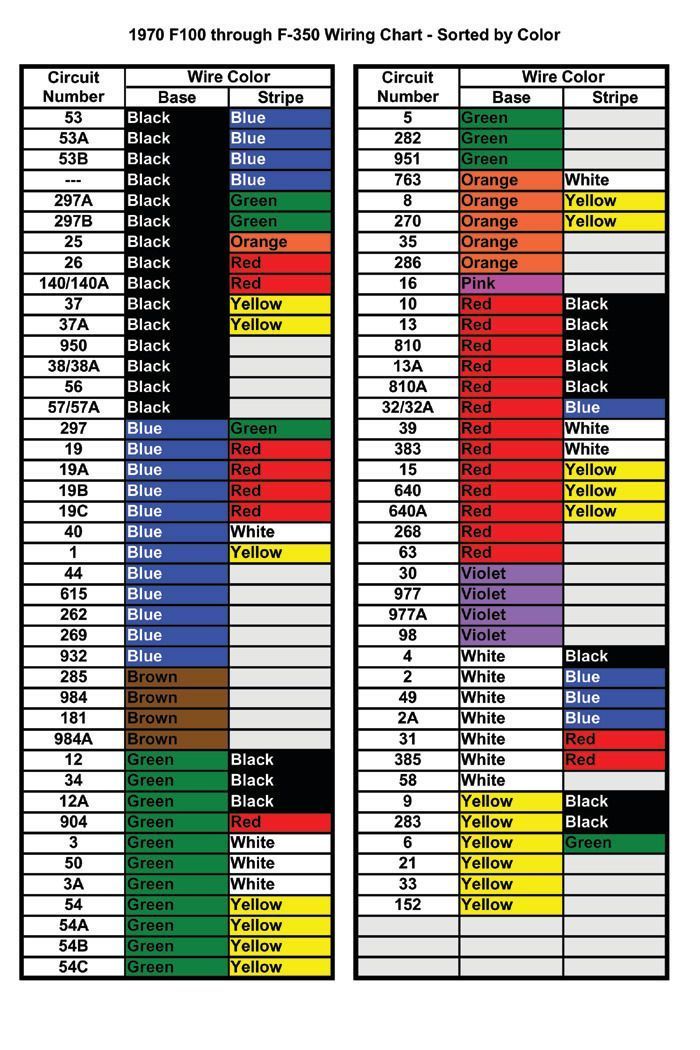

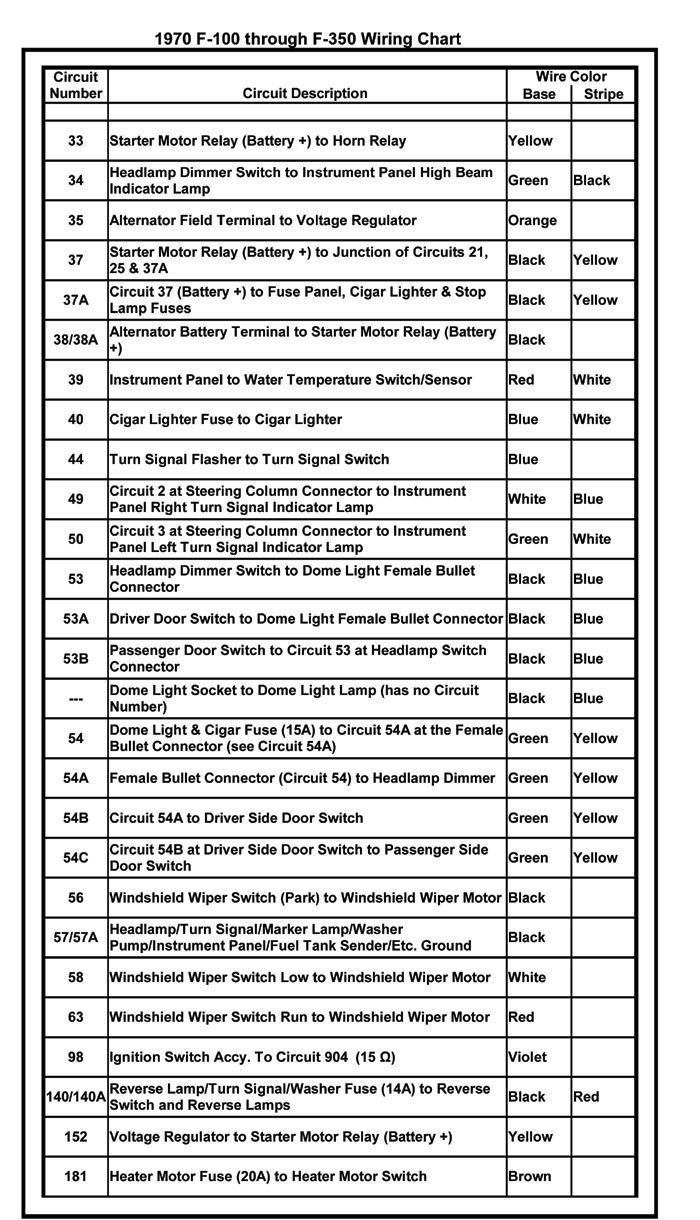

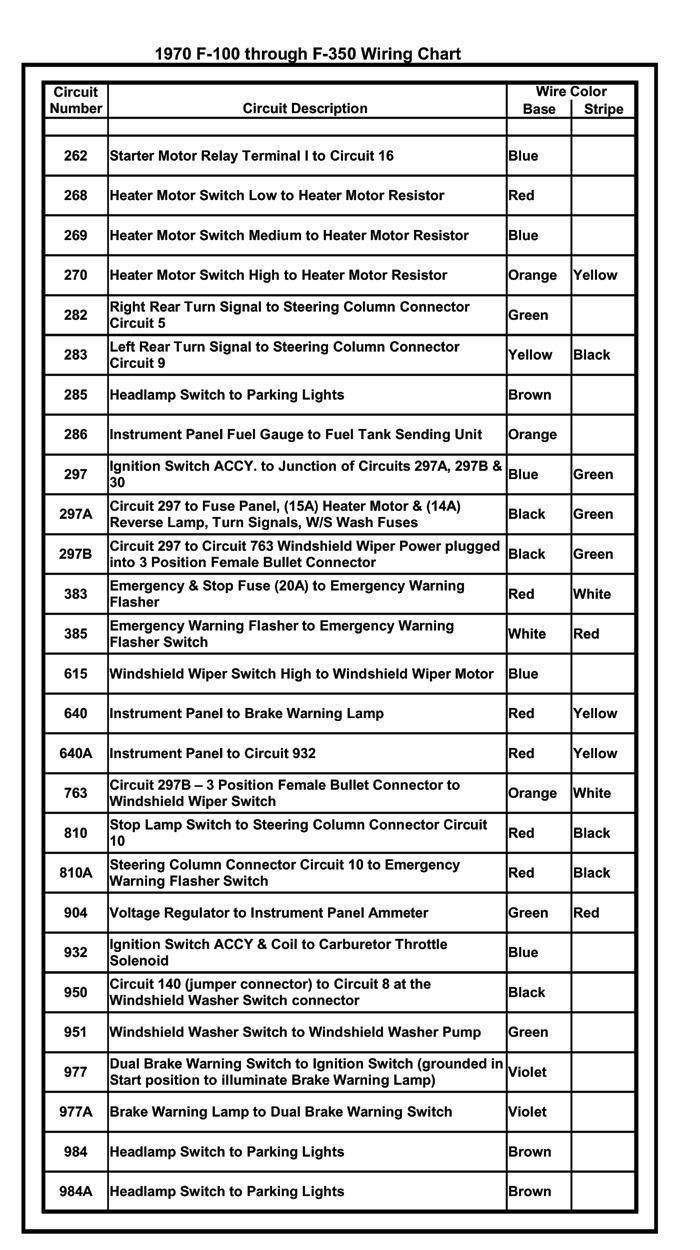

Fleet Mechanic
Joined: Oct 2005
Posts: 1,369
Likes: 7
From: Gainesville, GA
Hotshot
Joined: Mar 2013
Posts: 14,255
Likes: 199
From: Phoenix, Az.
Looks like maybe your PO installed a tilt column out of a 78/79 dentside. Which may be the reason he jacked with the wiring. If you gently push the T/S lever Forward towards the dash does the steering wheel pop up?
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 783
From: Simi Valley, CA
1973/79 F100/350 & 1978/79 Bronco T/S switches have a button that protrudes from the switch that operates the 4 way emergency flashers.
1970/72 F100/350's originally had the 4 way flasher switch located on the dash, to the right of the column.
1970/72 F100/350's originally had the 4 way flasher switch located on the dash, to the right of the column.
Cargo Master
Joined: May 2015
Posts: 2,350
Likes: 7
From: Garland, Tx
Then it is a later model column. Do the flashers work by the switch or is there another 4 way switch in the glove box or dash?
I HATE wiring so I put a bump style T/S in my 79 tilt column and just used the stock 4 way switch.
I HATE wiring so I put a bump style T/S in my 79 tilt column and just used the stock 4 way switch.
