I have a 93 460 4x4 e40d. I had a rat get in and chew some vacuum line up and I'm still struggling to repair all them. I checked the vacuum diagram and didn't get much help from that. The lower one goes to the vacuum reservoir. But the rest I have no idea.

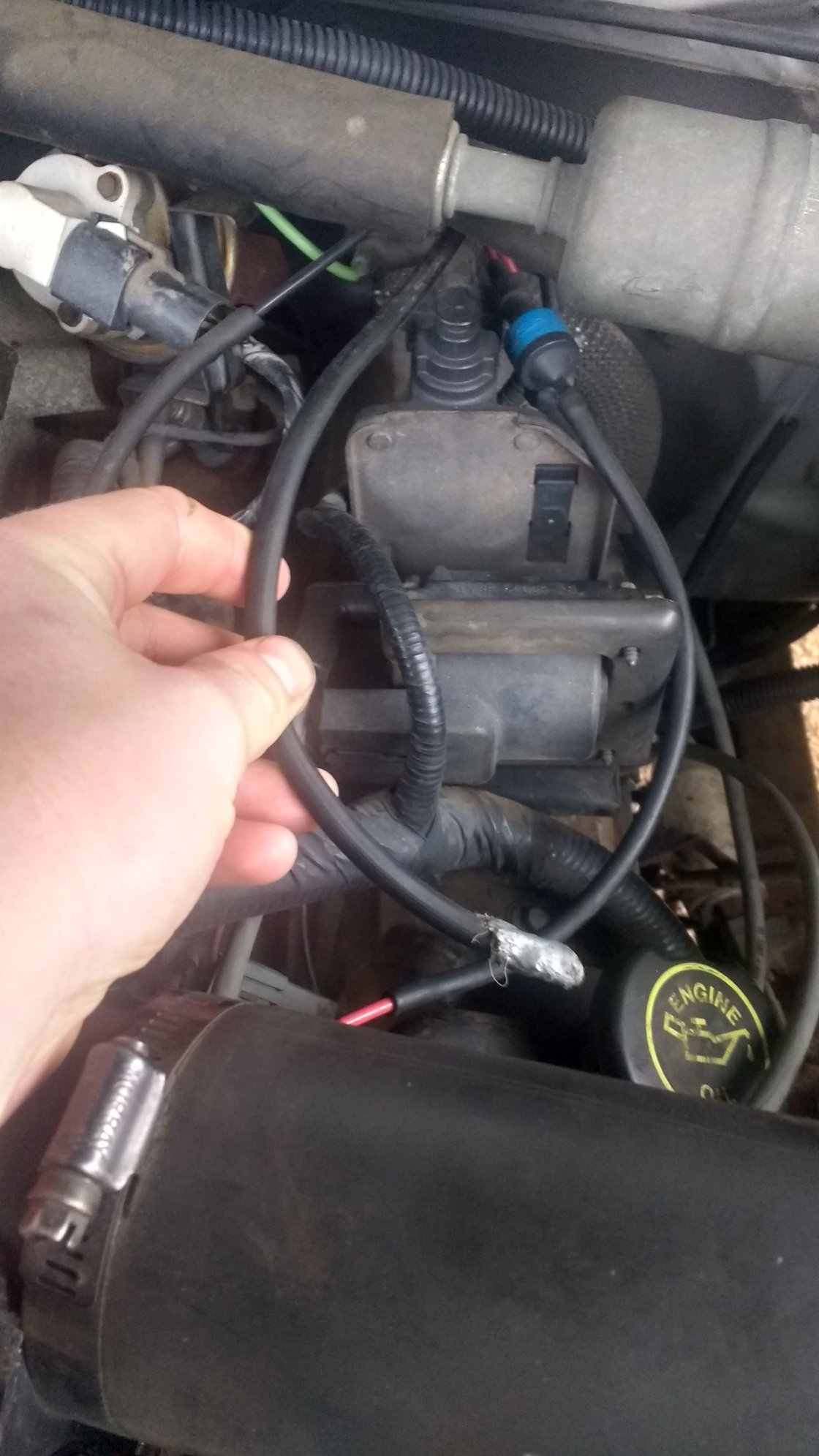

This line is just right of the egr valve. Here's an up close. I believe one connects to this for the air system. Not sure though.

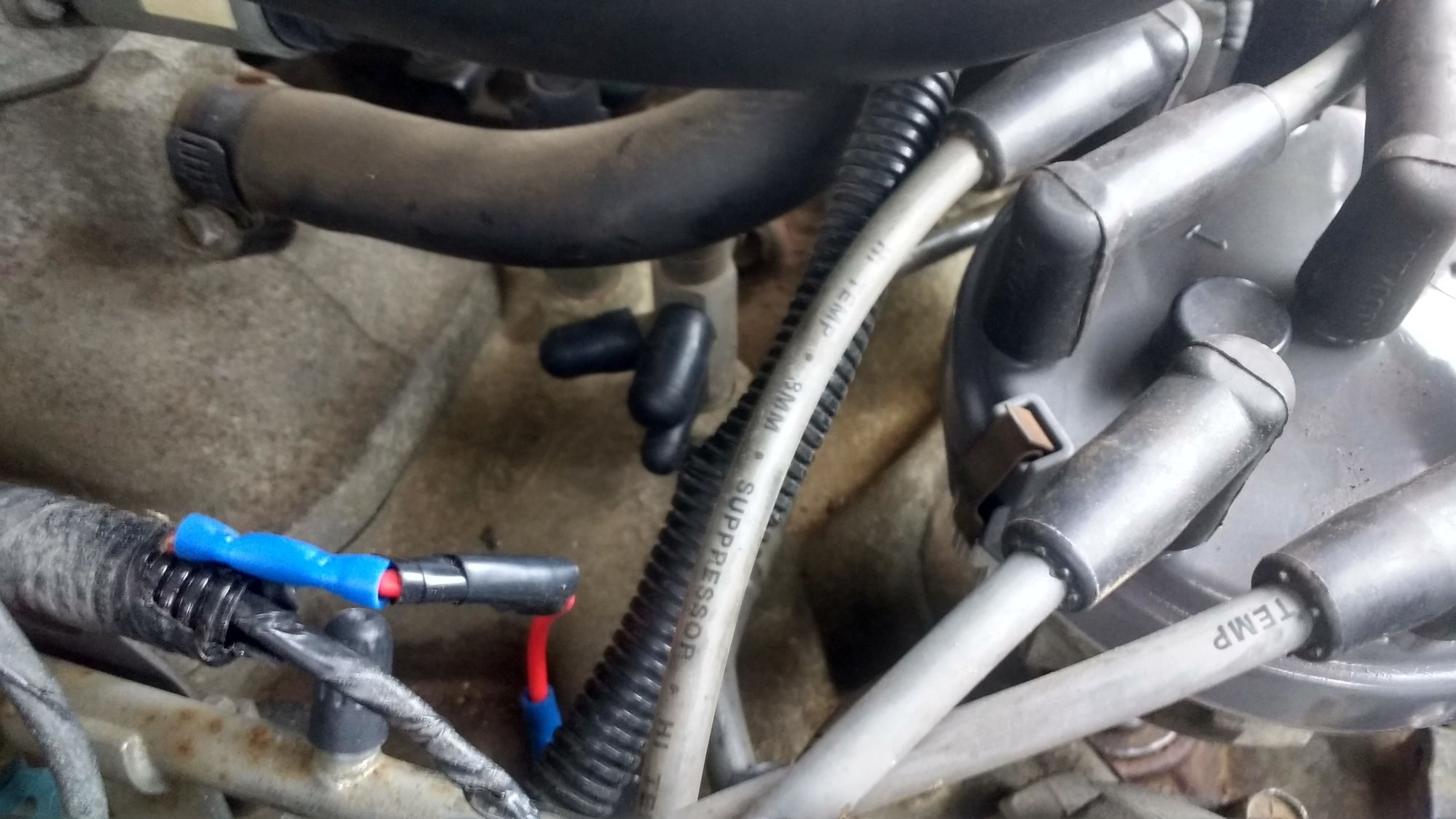

and understand how to repair the colored lines: pink, red, white. But there's a few that have me at a loss. As you can see I put a nipple over each port to stop the leak. But I would like to fix it properly. I have no idea where these go and can't seem to figure it out from the vacuum diagram. The 3 ports in the picture are located directly behind the distributor. Any help would be greatly appreciated.
yes thanks i found that same pic with a google search. i believe its figure 8. you would never know its there if it is there. found a pic off ebay i hope its there and the problem.
well couldn't wait. yes i found the magic tree. every hose is off it tree is completely open., i think that's going to be my problem! ..i hope. man its so tight in there its going to be fun trying to get in there to plug it up.!
