Alternator splash shield location

Reply Subscribe

Thread Tools

Search this Thread

Oct 27, 2016 | 12:16 PM

yankeerebel

Thread Starter

Senior User

Joined: Nov 2008

Posts: 212

Likes: 1

Alternator splash shield location

I must be getting old. I took off my ratty old alternator splash shield and I have a replacement but can't remember how or where it goes. Can someone post a pic?

Oct 27, 2016 | 03:15 PM

kwe45919

Elder User

Joined: Feb 2011

Posts: 575

Likes: 6

From: Knoxville, TN

Didn't know such a thing existed....never had one on my truck.

Oct 27, 2016 | 03:23 PM

HIO Silver

Fleet Owner

Joined: Dec 2009

Posts: 20,678

Likes: 82

From: NorCal

2x.. never seen one on a Dent.. not even a Bump.

Wassupwitdat?

.

Oct 27, 2016 | 03:26 PM

NumberDummy

Ford Parts Specialist

Joined: Nov 2006

Posts: 88,826

Likes: 785

From: Simi Valley, CA

Alternator splash shield, Ford basic part number: 10317

I couldn't find a pic of it.

Attached Images

Oct 27, 2016 | 04:58 PM

mikeo0o0o0

Hotshot

Joined: Apr 2009

Posts: 14,333

Likes: 247

From: Stanley, VA

It's mounted to the lower forward edge of the passenger side splash pan.
Here's the illustration from the parts catalog:

Attached Images

160-2.pdf (56.7 KB, 206 views)

Oct 27, 2016 | 06:14 PM

HIO Silver

Fleet Owner

Joined: Dec 2009

Posts: 20,678

Likes: 82

From: NorCal

Interesting.. never seen one.

Maybe it never went into production as a cost saving measure?

Oct 29, 2016 | 08:20 AM

yankeerebel

Thread Starter

Senior User

Joined: Nov 2008

Posts: 212

Likes: 1

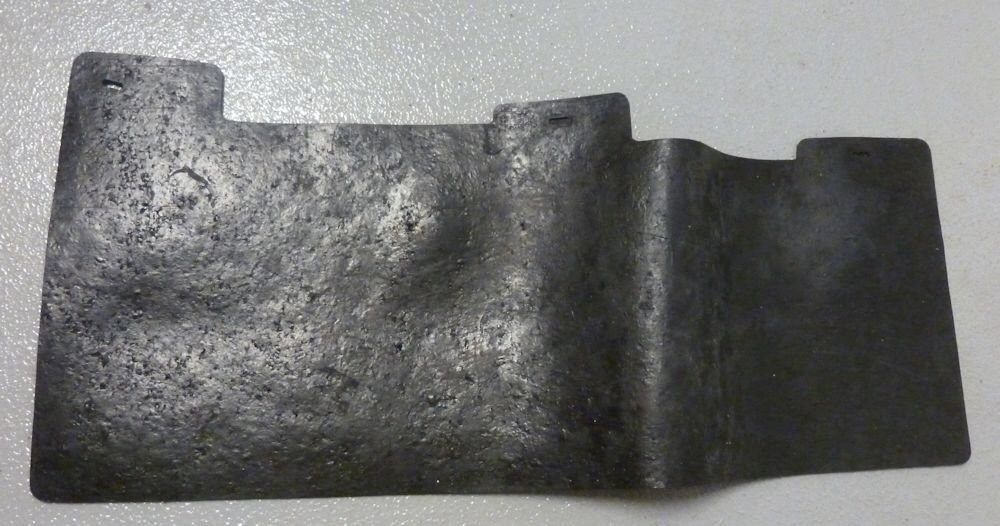

That diagram does not show what I'm referring to. Here's a picture of the part ...

Rezvani's Latest Post-Apocalytic Monster Is a Ford F-150 Raptor Underneath

Verdad Gallardo

Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer

Joe Kucinski

2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)

Brett Foote

Top 10 Ford Truck Tragedies

Joe Kucinski

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

Brett Foote

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Michael S. Palmer

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Verdad Gallardo

10 Best Ford Truck Engines We Miss the Most!

Joe Kucinski

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

Brett Foote

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

Michael S. Palmer

Oct 29, 2016 | 10:22 AM

tbear853

Hotshot

Joined: Feb 2004

Posts: 10,808

Likes: 2,604

From: The Shenandoah Valley

None on my '77?

Oct 29, 2016 | 11:21 AM

#10

beartracks

Lead Driver

Joined: Nov 2000

Posts: 6,628

Likes: 345

From: Albuquerque

Mine doesn't have them. One on each frame rail I think. Probably have to make them but would need a pattern and material.

Oct 29, 2016 | 11:27 AM

#11

orangeford

Laughing Gas

Joined: Aug 2000

Posts: 1,005

Likes: 63

From: Eastern, Idaho

Here you go. I found a decent one at the junkyard for free and used it as a pattern also grabbed the drivers side piece but it gets stapled on. I used some neoprene rubber and put it on with plastic push fasteners similar to those used on door panels. The tab that is the furthest out goes toward the front of the truck. There are three holes on the bottom of the inner fender toward the front. I tucked mine up over the frame rail.
