Wire connections under the dash

I have tried to get a picture on this but got nothing that was useful, so I am gonna try this again a slightly different way.

Under the dash by the steering column I have 2 sets of grey connections, 1 is for the turn signal switch, the other one is the one that I have no idea on and need help with. It was ripped apart accidentally on the female side. I either need a pic or the color order on the plug. The truck is a 1984 ford f250 351W non tilt and non cruise control. As it sits right now because of this plug I have no turn signals/hazzards nor break lights in the rear. can anyone please tell me the female side of this connector so I can just bypass the connector and use but connectors to reconnect these wires. The connector is a curved grey , with 7 ports on top and 4 on the bottom.

Jun 13, 2016 | 04:52 PM

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,984

Likes: 2,738

From: Virginia

Not always but most of the time each connector has the same color wire going through the connection. So if you find a lightgreen wire on the one connector, it usually hooks to the lightgreen on the other connector.

Is this not the case for this connector pair?

Jun 13, 2016 | 05:14 PM

azgunner

Thread Starter

5th Wheeling

Joined: Mar 2014

Posts: 27

Likes: 0

From: https://t.me/pump_upp

There are some wires that dont match up.....this is why I am getting frustrated with it.

Jun 13, 2016 | 06:26 PM

Blackduck59

Junior User

Joined: Jul 2012

Posts: 90

Likes: 0

From: West Australia

If you have 2 sets of those curved grey connectors it sounds like it was set up for speed control. It just inserts between the plug half on the steering column and the half in the main harness. Pictures would really help
Component Testing - ???Gary's Garagemahal

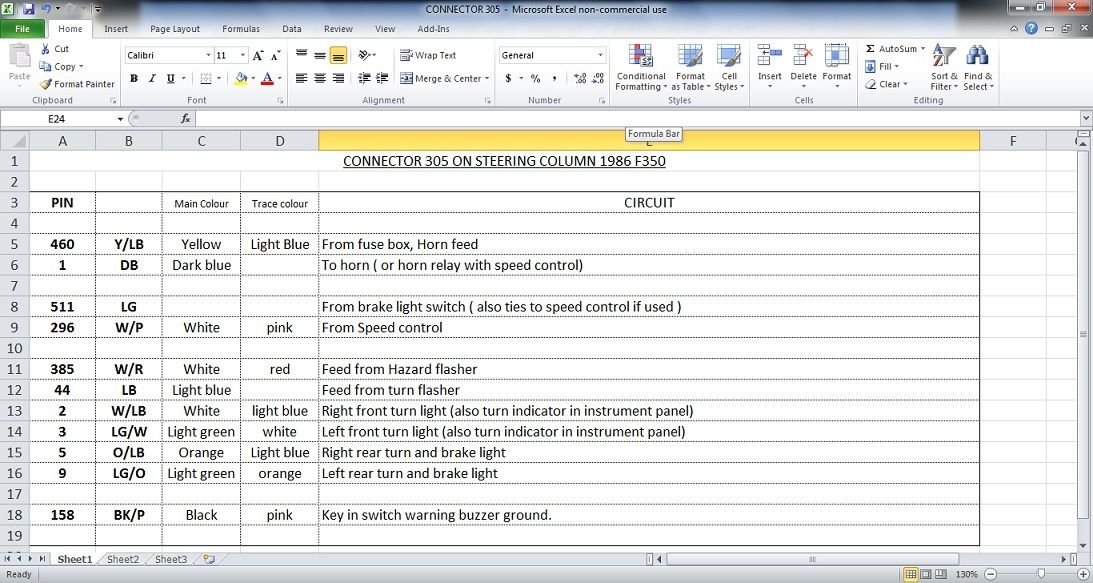

Again this is for an 86 but should give you most of what you need. Page 148 under component testing. Pins marked 511 and 296 are to do with speed control and my truck colours on 511 do not match
Would have to go through my shed notes to ID the rest of the pins. The numbers alongside the colour codes are circuit numbers and show up the various diagrams, such as turn and hazard drawings.

Jun 14, 2016 | 07:57 AM

azgunner

Thread Starter

5th Wheeling

Joined: Mar 2014

Posts: 27

Likes: 0

From: https://t.me/pump_upp

Blackduck59, So after looking up some things after what you had said about the speed control, It does look like my truck is supposed to have it. But the last people to have owned the truck well lets just say that they did some things that were not reasonable and just dismantled things that didn't need to be. And so with that said, I saw a box under the dash and had no idea what it was for, but after your post I looked into it and BAM! that box is the control for the speed sensor. I am partly color blind so I am gonna have my wife look at the wires and see if they actually match up in color. If so I will just connect them back up and hopefully fix this issue. Then I guess I need to figure out how to get the cruise control back and working again. Thank you for that tidbit of info that got me going in the right path.

Jun 14, 2016 | 07:35 PM

Blackduck59

Junior User

Joined: Jul 2012

Posts: 90

Likes: 0

From: West Australia

Pin 511 is also the brake light feed to the switch.
Cheers Steve

Jun 15, 2016 | 09:38 AM

azgunner

Thread Starter

5th Wheeling

Joined: Mar 2014

Posts: 27

Likes: 0

From: https://t.me/pump_upp

ok so here is now my dilemma, colors on the connector that is intact.

blk/pur strp
lt grn
lt blu
orng/blue
ltgrn/orng
wht/red stripe
yel/ blu stripe

grn/wht X2
wht/blu
dk blu
wht/pnk or red X2

now the wires that are loose

yel/blu hash
yel/blu dots
grn/orng
grn
wht/blu
wht/blk(maybe blur but faded???)
grn/wht
wht/red stripe
blk/pur
dk blu
orn/blu

most match up but some dont...any ideas here?
