Finally back off shift and making progress. I think Henry's getting a little selfconscious about having his shirt off this long, so I hope to remedy that by the weekend. Marked out my steering box location and bored the mount holes.
Slid everything back under and it all clears nicely.
I'm using the dodge box as well as the hydroboost. It was available, cheap, and should all work together. I hope.
Slid everything back under and it all clears nicely.
I'm using the dodge box as well as the hydroboost. It was available, cheap, and should all work together. I hope.
Thread Starter
|
Freshman User
Joined: May 2015
Posts: 27
Likes: 0
That they are, mainly driver side. New one on it's way already. Not too many unexpected surprises like that yet, we'll see.

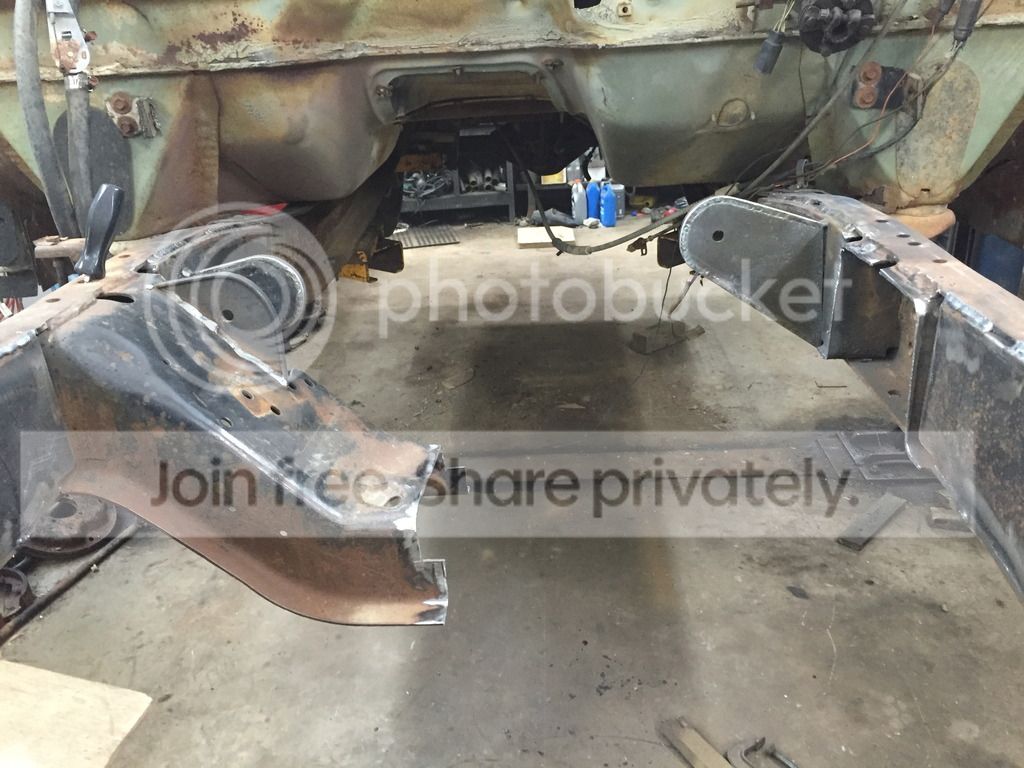

Having problems uploading pics to photobucket so I'm behind on progress. Finished the fab on frame and painted it . Then off to engine that unfortunately fell victim to the KDP at one point in it's life. It was the "repaired" not fixed mind you. So a timing case was the order of the day yesterday. All buttoned up and time to find some paint. Also steering bits on the way should have box mounted and all set later today.
Thread Starter
|
Freshman User
Joined: May 2015
Posts: 27
Likes: 0
Success on uploads.

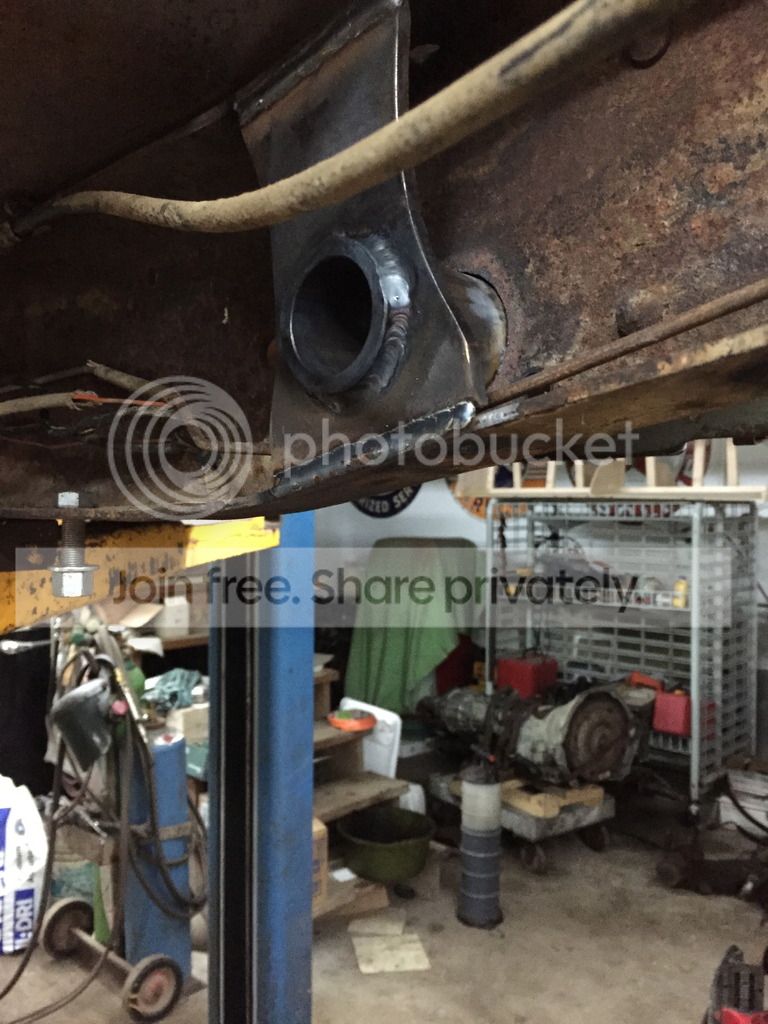

Rear shackle hangars.

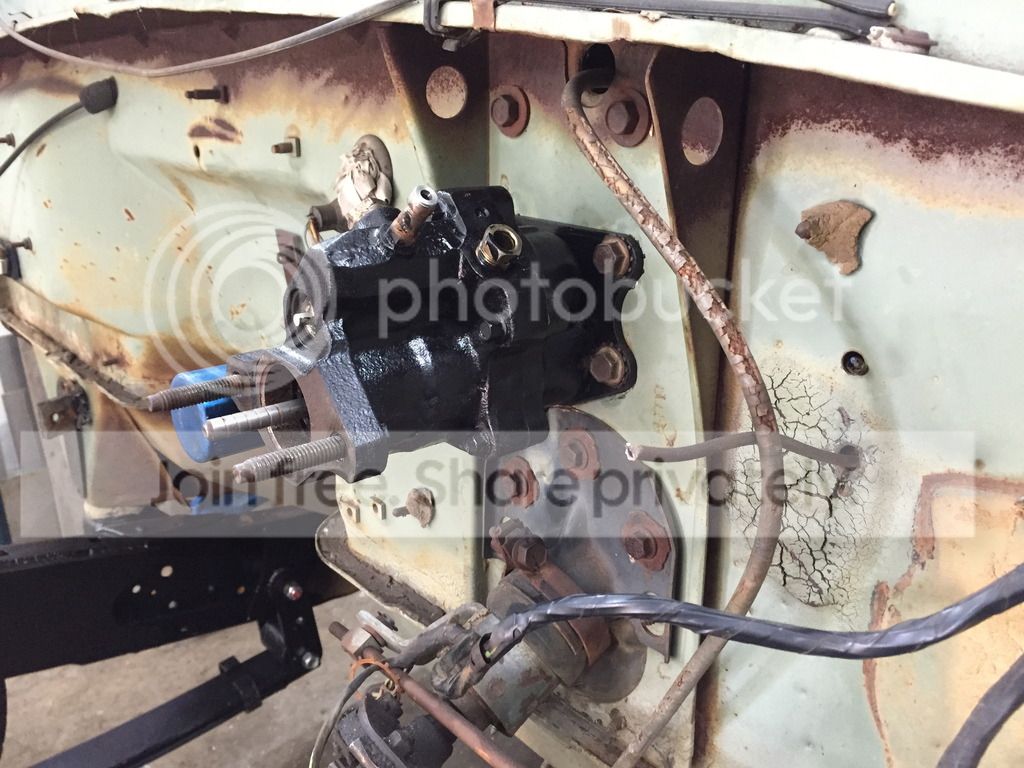

Steering box mounts, 1" DOM .250 wall Tigged to frame(I was tired and I had a big gap to fill), proud on both sides so I don't have to grind off the weld so the lock washer will sit flat, a bit of a scoop for the steering shaft, and a slight recess for the end casting on the box.
Finally cleaned it up and slathered on some semigloss.

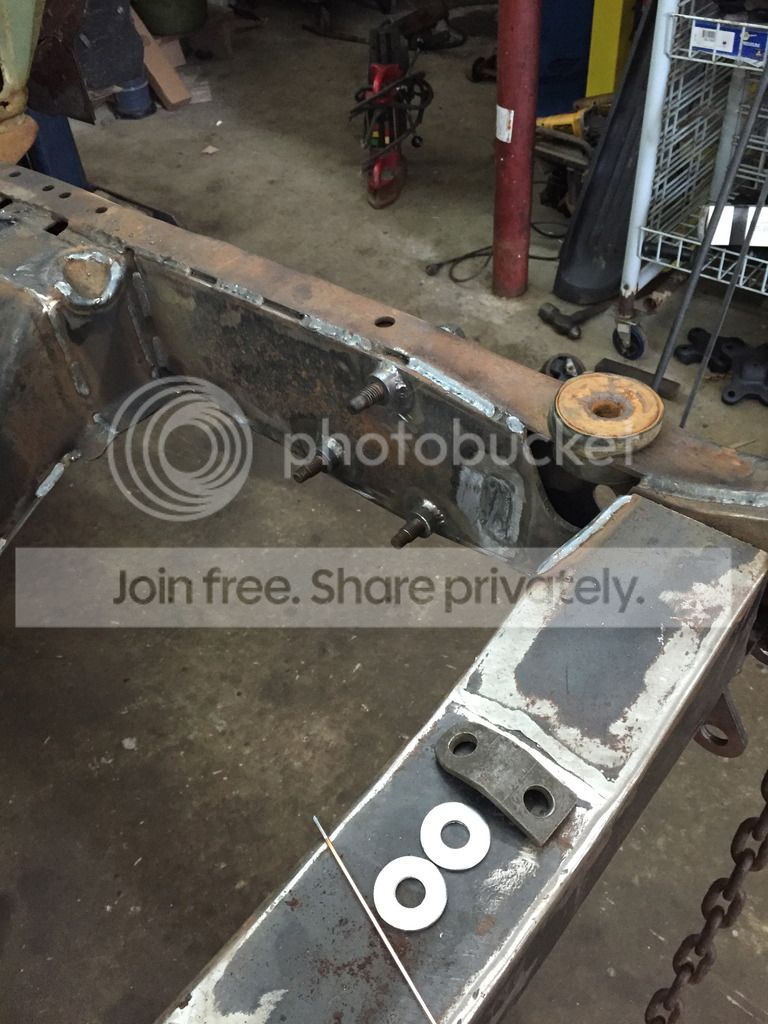

And there really isn't anything structural about the drivers cab mount, It's rotted completely around the front of the donut.
Rear shackle hangars.
Steering box mounts, 1" DOM .250 wall Tigged to frame(I was tired and I had a big gap to fill), proud on both sides so I don't have to grind off the weld so the lock washer will sit flat, a bit of a scoop for the steering shaft, and a slight recess for the end casting on the box.
Finally cleaned it up and slathered on some semigloss.
And there really isn't anything structural about the drivers cab mount, It's rotted completely around the front of the donut.
Posting Guru
Joined: Jul 2011
Posts: 1,650
Likes: 16
From: DFW Texas
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Freshman User
Joined: May 2015
Posts: 27
Likes: 0

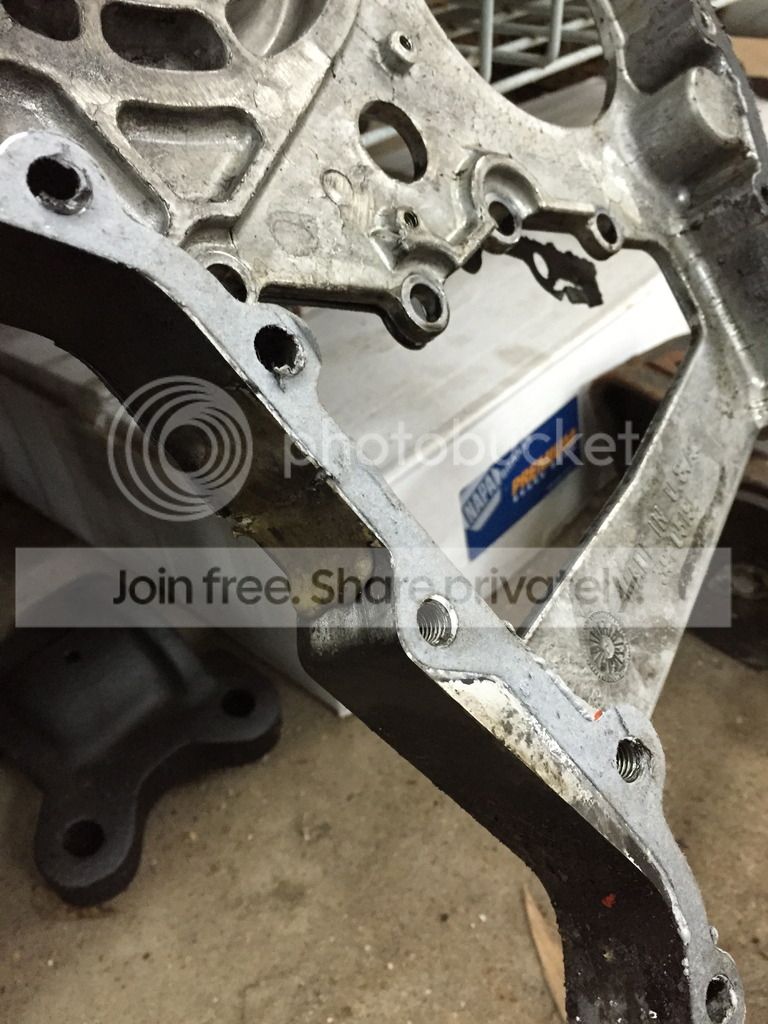

So what happens when the dowel pin pops out and goes for a ride on the cam gear? Kind of like the ultimate interference fit. Not too bad, I've seen worse, didn't get pushed right through, but broken clean across.
How do you "repair" it? Epoxy of course. Didn't leak, much.
That does nothing to reinforce the crack shown in the picture above. But hey, they didn't have to pull the cam. Now all buttoned up ready for some paint, maybe a wire brush first.
How do you "repair" it? Epoxy of course. Didn't leak, much.
That does nothing to reinforce the crack shown in the picture above. But hey, they didn't have to pull the cam. Now all buttoned up ready for some paint, maybe a wire brush first.
Thread Starter
|
Freshman User
Joined: May 2015
Posts: 27
Likes: 0

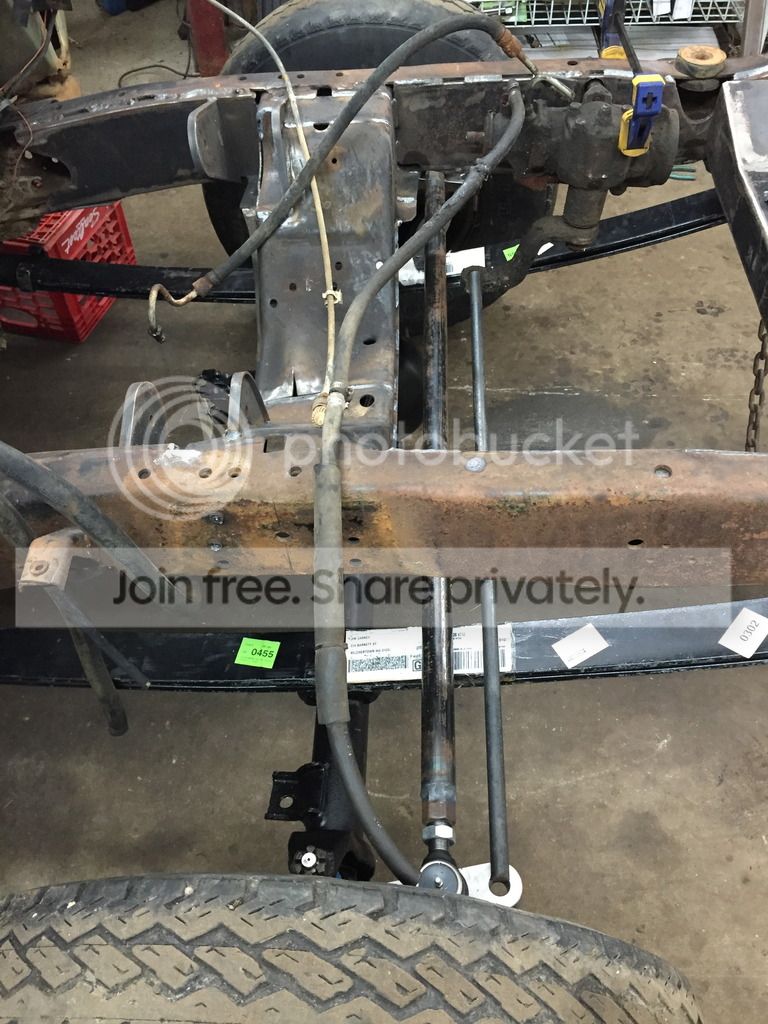

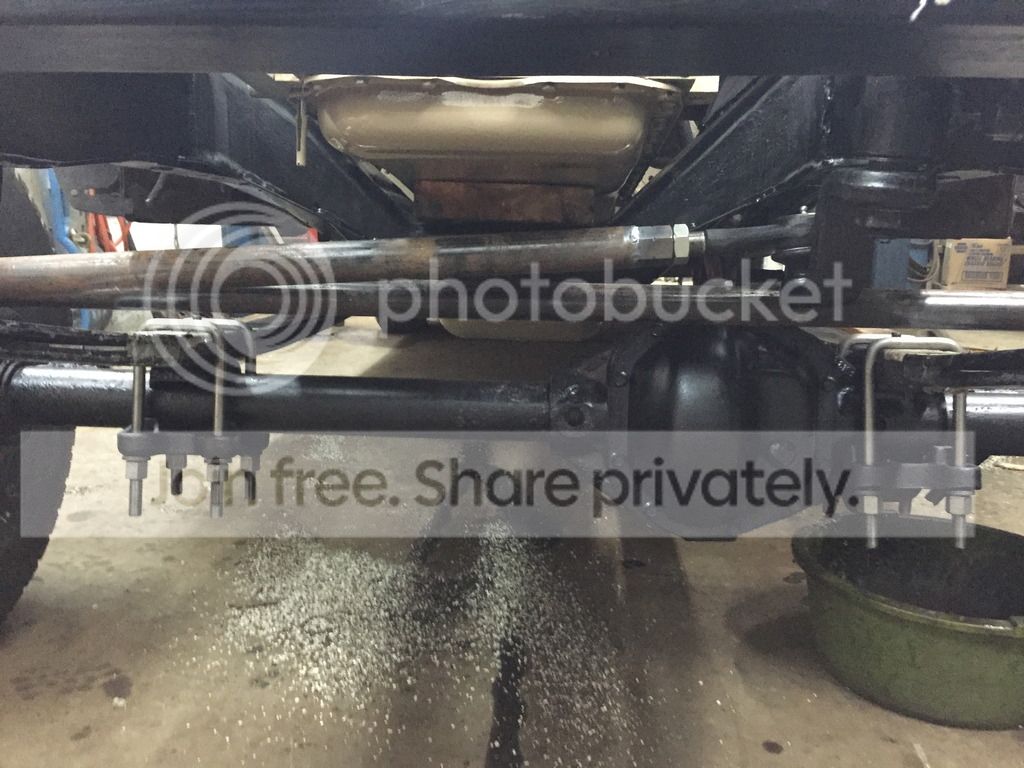

Bolted the front suspension back on and dropped him back on his feet. Finished up the steering, everything looks good.
